Stinger OPSIS 19540255 User Manual

2k quad hd dash camera with included fhd rear camera
Hide thumbs

Advertisement

Table of Contents

19540255
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPSIS 19540255 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stinger OPSIS 19540255

Summary of Contents for Stinger OPSIS 19540255

  • Page 1 19540255 USER MANUAL...

  • Page 2: Box Contents

    INCLUDED FHD REAR CAMERA Introduction Thank you for purchasing your OPSIS Dash Cam. At Stinger, we believe that a dash camera should be more than just a passive recording device; it should be a reliable companion. OPSIS dash cams give drivers the security of knowing they will be able to capture clear, crisp first-hand incident evidence, should the need arise.

  • Page 3: Front Camera

    Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Format Button Manual Record Button Speaker GPS LED Recording LED Wi-Fi LED Wi-Fi Button Audio Recording Button Power Button Front Camera Mounting Holes Memory Card Slot Swivel Front Camera Mounting Bracket DC-IN Power Port Reset Button...

  • Page 4: Button Function

    Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA LED Status LED Indicator Status Definition GPS connected/GPS not connected Solid Blue LED/No LED “GPS Connected” Voice Alert Solid Red LED/ Recording/ Flashing Red LED Event Recording Flashing Blue LED/ Searching for Hotspot/ Wi-Fi Solid Blue LED...
  • Page 5 NOTE: This is semi-permanent and not meant to be removed. Remove the clear protective film Installing Stinger OPSIS Dash Cam: *For best positioning, it is recommended to look at the camera’s live view from the app before mounting.

  • Page 6: Recording Modes

    Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA The dash cam will power on automatically and start recording to the SD card. Recording Modes: Records videos in 1-minute segments Continuous (dual channels are supported for recording the front and rear Recording view) Records 10 seconds before and after the incident...
  • Page 7 INCLUDED FHD REAR CAMERA To manage the settings for your dash cam, download the Stinger OPSIS app for iOS or Android here by scanning this QR code: After downloading the app, open the OPSIS app and tap “Create an Account.”...
  • Page 8 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA To Connect OPSIS to Wi-Fi for the First Time: Press “ + Add Device” and follow the on-screen directions. Press the Wi-FI button on the dash cam. The Wi-Fi LED will start to blink green. Ensure Wi-Fi is enabled on your device (smartphone).
  • Page 9 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Firmware Update: Once the app is connected to the device, it will automatically check for the latest FW. If there is a firmware update available, the “Firmware Update” button in Device Settings will be highlighted. Press the “Firmware Update”...
  • Page 10 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA PC Viewer: PC viewer can be downloaded from opsisbystinger.com and is compatible with Mac and Windows. The PC viewer allows you to view the settings and videos from the microSD card of OPSIS.
  • Page 11 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Wi-Fi Function: In the OPSIS by Stinger app when connected to Wi-Fi, you can: - View the current information of the dash cam and app version - Manage the dash cam settings email - gmsupport@stingersolutions.com...
  • Page 12 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA In the OPSIS by Stinger app when connected to Wi-Fi, you can: - View live video for both front and rear cameras Guidelines can be enabled or disabled to assist in dash cam...
  • Page 13 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA In the OPSIS by Stinger app when connected to Wi-Fi, you can: - Download videos to your phone email - gmsupport@stingersolutions.com tel: 866-766-2267...
  • Page 14 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Hotspot Functions: When your dash cam is connected to a hotspot, you can: - Create, modify or delete geofences A geofence is a virtual fence or boundary around a location. Set the geofence radius between 0.1mi and 2000 mi (161m to 3218km).
  • Page 15 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA When your dash cam is connected to a hotspot, you can: - Receive notification alerts when incident videos are uploaded - View Cloud Storage status email - gmsupport@stingersolutions.com tel: 866-766-2267...
  • Page 16 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA When your dash cam is connected to a hotspot, you can: - Automatically have a strong impact video uploaded to the cloud - Play back videos stored in the cloud and download to your device.
  • Page 17 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA - Remotely monitor your vehicle in real time, from anywhere, at any time. All via OPSIS by Stinger app or logged on to opsisbystinger.com email - gmsupport@stingersolutions.com tel: 866-766-2267...
  • Page 18 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Setting up ADAS functions: To begin using the ADAS functions, calibration will need to be completed. “Initialize ADAS” will have status “Uncalibrated.”...
  • Page 19 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA - Select your Vehicle Type. - Enable the LDWS option. (Low setting for calibration purposes). email - gmsupport@stingersolutions.com tel: 866-766-2267...
  • Page 20 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA - Select “Initialize ADAS” and select “Yes” to begin calibration. With LDWS enabled, drive the vehicle above 18 mph (30 km/h) for approximately 1 minute. Calibration data from this drive will be saved. Until calibration has been completed and LDWS warning beeps 2 times, calibration data will keep getting collected during every drive...
  • Page 21 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA - Once calibration has been completed, the status will read “Calibrated.” email - gmsupport@stingersolutions.com tel: 866-766-2267...
  • Page 22 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA OPSIS Settings: Dash cam settings can be modified in the app or on the PC viewer. Menu Item Type Menu Title Description Default Settings Conditions Memory Card Memory Allocate √...
  • Page 23 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Camera Settings Brightness (Rear) Dark (cont.) √ Bright Rotate Rear Rotate rear Enabled Camera camera image. This means √ Disabled that the image is flipped horizontally, as...
  • Page 24 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Recording Low Light Mode Select when √ Disabled Settings (cont.) low light mode is on during Continuous Mode recording. Low Light Mode Parking Mode enables the...
  • Page 25 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Recording Wintertime Select month(s) None Motion / Time Lapse Settings (cont.) Battery where extra Protection protection is desired for battery during cold weather.
  • Page 26 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Recording Battery This feature is √ Enabled Motion / Time Lapse Settings (cont.) Protection available when Parking Mode Disabled is Enabled to automatically turn off OPSIS once...
  • Page 27 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions ADAS Features Vehicle Type Select the √ Sedan type of vehicle that OPSIS is installed in. Truck Initialize ADAS LDWS (Lane An alert will √...
  • Page 28 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions ADAS Features FVDW (Front When the Enabled (cont.) Vehicle vehicle is Departure stopped at an √ Disabled Warning) intersection or in traffic, FVDW informs the driver when...
  • Page 29 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions System Settings Notification Select which √ Wi-Fi (cont.) Alerts voice alerts to enable. √ √ Continuous Rec √ Entering Parking Mode √...
  • Page 30 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions System Settings Speed Stamp Imprint the √ (cont.) vehicle’s exact speed stamp on footage. (If GPS is not built-in, an external GPS antenna is required).
  • Page 31 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Network Settings Uploading When an √ Enabled (cont.) Driving Impact accident or Video strong impact Disabled is detected while driving, OPSIS will automatically upload footage...
  • Page 32 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Menu Item Type Menu Title Description Default Settings Conditions Network Settings Streamer If the live stream √ Start (cont.) is disabled, live video streaming Stop (Live View) will not work. Wi-Fi / Hotspot √...
  • Page 33 Manual 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Memory Partition: Partitioning of the memory card allocates a specific percentage of the space depending on purpose of use of the dash cam. Default percentages are shown below: Continuous Incident Parking Manual...
  • Page 34 Manual Dash Camera Specs: 79.0 x 70.4 x 34.7 mm / 106.5 g Dimensions/Weight 3.11 x 2.77 x 1.36 inch / 0.23 lb microSD memory card Memory 128GB max (UHS-I) Camera Sensor 5.14 Megapixel, 1/2.8” Sony STARVIS Viewing Angle (lens) Approximately 140°...

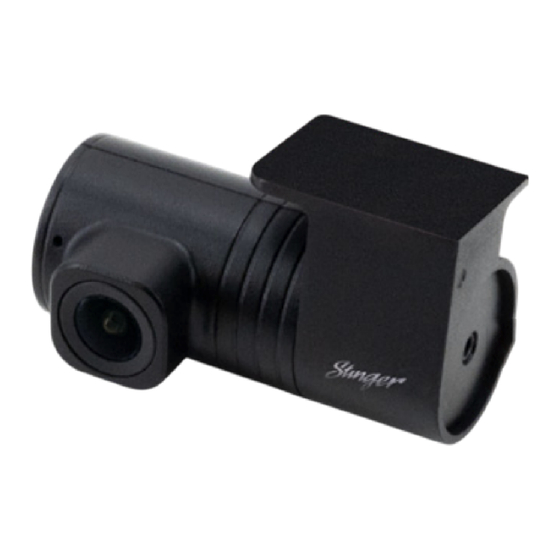

  • Page 35 2K QUAD HD DASH CAMERA WITH INCLUDED FHD REAR CAMERA Rear Camera Specs: 60.0 x 25.0 x 33.7 mm / 23.7 g Dimensions/Weight 2.36 x 0.98 x 1.32 inch / 0.052 lb Camera Sensor 2.0 Megapixel, 1/2.9” Viewing Angle (lens) Approximately 130°...

  • Page 36: Warranty

    Stinger sole option. To obtain warranty service, the product(s) must be returned to an Stinger authorized dealer along with proof of retail purchase and warranty coverage.
  • Page 37 • Back-Up Camera (if so equipped): damage or loss due to improper use, failure to clean the camera lens, understanding of the camera’s capabilities and limitations The extent of Stinger liability under this warranty is limited to the repair or replacement provided above and, in no event, shall Stinger liability exceed the purchase price paid by purchaser for the product.
  • Page 38 email - gmsupport@stingersolutions.com tel - 866-766-2267 StingerSolutions.com REV 081324TT FCC ID: XBDDCH3FG This device complies with part Rules. Operation subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference...
