Sandia Plastics 80-2100 Safety, Operation And Maintenance Manual With Parts List

Sniper 12-gallon carpet extractor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Safety, Operation and Maintenance

Manual with Parts List

Please read before use!

100 PSI, Dual 2-Stage and 3-Stage MotoRS

Heated and Non-Heated Units

Important Information and Safety Instructions

Serial No:

Models:

80-2100

80-2100-H

80-3100

80-3100-H

Manufactured with

Pride in the U.S.A.

Another Innovative

Product from

Table of Contents

Need help?

Do you have a question about the 80-2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sandia Plastics 80-2100

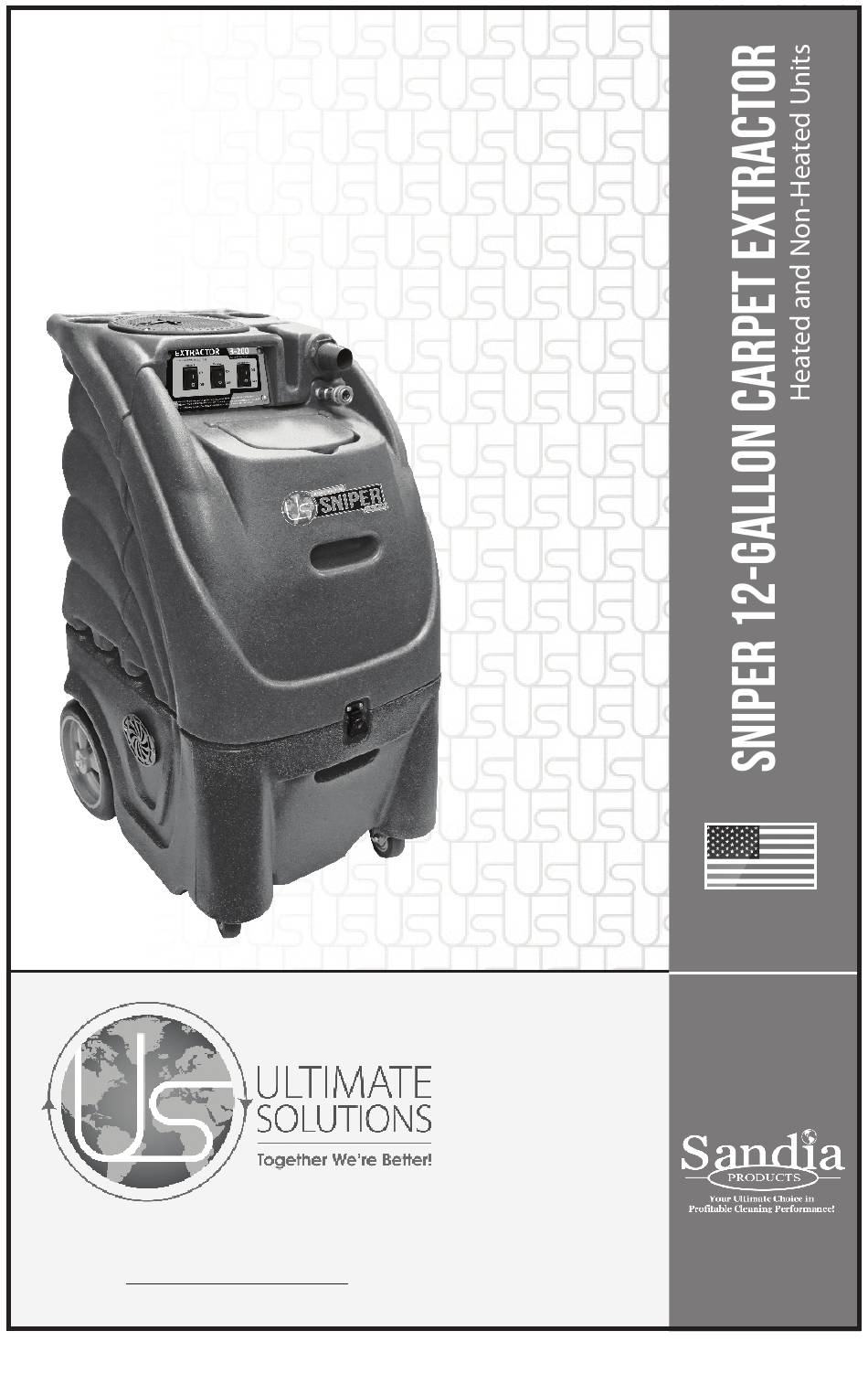

Page 1 Safety, Operation and Maintenance Manual with Parts List Please read before use! 100 PSI, Dual 2-Stage and 3-Stage MotoRS Heated and Non-Heated Units Models: 80-2100 80-2100-H 80-3100 80-3100-H Manufactured with Pride in the U.S.A. Another Innovative Product from Important Information and Safety Instructions Serial No: Copyright ©...
Page 2 Dear Valued Client, Congratulations on the purchase of your 12-Gallon Carpet Extractor! The world of carpet cleaning is becoming more high-tech and competitive and we strive to provide you with the most innovative products. Our Carpet Extractor is yet another example of this, bringing a new dimension to restoration and carpet cleaning.
Page 3: Table Of Contents
Table of Contents Returned Material Authorization (RMA) Procedure ..............3 New Equipment Warranty ........................4 1.0 Safety Instructions ..........................5 2.0 Grounding Instructions ........................6 3.0 Care of your Carpet Extractor .......................7 4.0 Set-Up and Operation ........................7 5.0 Maintenance ............................8 6.0 Shutdown Procedures ........................12 7.0 Storing your Carpet Extractor ....................
Page 4: New Equipment Warranty
New Equipment Warranty Lifetime on body, 2-years on motors and 100 PSI Pump, 1-year on all electrical components, 90-days on tools and accessories. Warranty Policy All equipment is inspected and tested before shipping from the manufacturer. All parts are warranted to be new and free from defects in workmanship and material, under normal use to the original retail purchaser.
Page 5: Safety Instructions
Returned Material Authorization (RMA) Policy Original purchaser (distributor/service center) must contact the manufacturer to follow correct RMA/warranty procedures. Must include a copy of RMA Sheet enclosed in the box with returned item. No returns shall be authorized unless proper RMA procedures are followed. It is the responsibility of the distributor to repair the client’s equipment as soon as possible.
Page 6: Grounding Instructions
1.0 Safety Instructions Continued Reduce the Risk of Fire, Electric Shock or Injury • DO NOT leave the carpet extractor when plugged in. Unplug it from the outlet when not in use and before servicing. • DO NOT use this carpet extractor with a damaged cord or plug. If the equipment is not working as it should because it has been dropped, damaged, left outdoors, etc., contact an authorized service center.
Page 7: Care Of Your Carpet Extractor
2.0 Grounding Instructions Continued This electric equipment is for use on a normal 120 volt circuit. It has a grounded plug that looks like the plug illustrated in (Fig A). The use of a temporary adaptor is NOT recommended. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
Page 8: Maintenance
4.0 Set-Up and Operation Continued 4.1 Attach the Power Cord The machines comes with (1) or (2) 25-foot, 12/3-gauge safety power cord(s). • Locate the pigtail on the back of the machine’s base. • Plug the lighted end of the power cord into the pigtail. •...
Page 9 5.0 Maintenance Continued • Do not allow water to remain in the tanks after use. • Lubricate all quick disconnects with WD-40 or similar lubricant. • Clean vacuum float assembly screen. Operation Interval Clean Fresh Water Tank Filter Daily - After Each Job Clean Vacuum Assembly Screen Daily - After Each Job Rinse Out Recovery Tank...
Page 10 5.0 Maintenance Continued Rinse Out Recovery Tank Continued To rinse out recovery tank, remove the recovery tank lid and open the dump valve. Place a bucket under the dump valve. Use a hose to rinse the dirt and debris out of the recovery tank. Close the dump valve and spray the tank with deodorizer or disinfectant.
Page 11 5.0 Maintenance Continued Clean Dump Valve The dump valve, located on the back of the machine, has a track inside of it. Open the dump valve and check the track for build-up. This build-up could prevent the dump valve from closing and cause leaking.
Page 12: Shutdown Procedures
6.0 Shutdown Procedures • When finished cleaning, turn OFF all switches. • Disconnect the solution hose and vacuum hose from the cleaning tool. Pull the valve trigger to release pressure from the hose before disconnecting the solutions hose from the cleaning tool. •...
Page 13: Storing Your Carpet Extractor
7.0 Storing your Carpet Extractor Store your carpet extractor in temperatures over 40 degrees Fahrenheit. To prevent moisture from damaging the vacuum motor during storage, empty the recovery tank and store with the lid open. Store in an upright position in a dry area If you plan on storing your extractor in freezing conditions or for a long period of time, you must winterize your carpet extractor to protect the pump from freezing and damage being caused to fittings and valves.
Page 14: Trouble Shooting Guide
8.0 Trouble Shooting Guide CAUTION: Always disconnect the power cord before servicing equipment. WARNING: Never operate this carpet extractor when the equipment is not performing as expected or when any part is visibly damaged. Repairs should only be performed by an authorized service center. Failure to do so will VOID warranty.
Page 15: Machine Wiring Diagrams
9.0 Machine Wiring Diagrams 9.1 Carpet Extractor - Non-Heated Unit 9.2 Carpet Extractor - Heated Unit Sniper 12-Gallon, 100 PSI Carpet Extractor (15)
Page 16: Solution Tank Schematic Drawing - Non-Heated Unit
10.0 Solution Tank Schematic Drawing – Non-Heated PARTS ATTACHED TO RECOVERY TANK (16) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 17: Solution Tank Parts List - Non-Heated Unit
11.0 Solution Tank Parts List – Non-Heated Drawing No. Item ID Item Description Qty. SN-12-ST-USIBLUE 12-Gallon Solution Tank - Ultimate Blue 1.00 SN-12-L-USIBLUE 12-Gallon Lid - Ultimate Blue 1.00 10-0834 Pump Flat Washer 4.00 10-0818 S/R Top of Tank Bolt on Extractor 2.00 10-0846 1/4”...
Page 18: Recovery Tank Schematic Drawing - Non-Heated Unit
12.0 Recovery Tank Schematic Drawing – Non-Heated PARTS ATTACHED TO SOLUTION TANK (18) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 19 13.0 Recovery Tank Parts List – Non-Heated Drawing No. Item ID Item Description Qty. SN-12-RT-USIBLUE 12-Gallon Recovery Tank - Ultimate Blue 1.00 80-0008 1.5 PVC Female Adapter 1.00 10-0416-A-GASKET Gasket for Stand Pipe 1.00 10-0416-A 1.5” Black ABS Stand Pipe 1.30 80-0012 Shut-Off Assembly for Extractor...
Page 20: Recovery Tank Parts List - Non-Heated Unit
14.0 Motor Base Schematic Drawing – Non-Heated ATTACHED TO 10-0801-J IN SOLUTION TANK PUMP TO QD ON SOLUTION TANK PARTS ATTACHED TO MOTOR BASE & MOTOR MANIFOLD (20) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 21: Motor Base Parts List - Non-Heated Unit
15.0 Motor Base Parts List – Non-Heated Drawing No. Item ID Item Description Qty. SN-12-MB-BLKGRAN 12-Gallon Motor Base Black Granite 1.00 10-0821 Extractor Hinge 2.00 10-0838-A Pigtail for Extractor (1 or 2 Depending on Model) 1.00/2.00 10-0820 End Cap for Axle 4.00 10-0822 Exhaust Grate for Extractor...
Page 22: Motor Manifold Schematic Drawing - Non-Heated Unit
16.0 Motor Manifold Schematic Drawing – Non-Heated ATTACHED TO 10-0822 IN THE MOTOR BASE ATTACHED TO 10-0849 IN RECOVERY TANK ATTACHED FROM MOTOR MANIFOLD TO OTHER MOTOR MANIFOLD PARTS ATTACHED TO MOTOR BASE & MOTOR MANIFOLD (22) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 23: Motor Manifold Parts List - Non-Heated Unit
17.0 Motor Manifold Parts List – Non-Heated Drawing No. Item ID Item Description Qty. 10-0023 4.00 Washers for Shoulder and Waist Belt for Backpack Vacuums 10-0833-S Motor Manifold Mounting Bolts - 5/8” Stem 4.00 SN-12-MFLD 12-Gallon Motor Manifold - Black 2.00 10-1030-S2 2-Stage Motor Gasket...
Page 24: Solution Tank Schematic Drawing - Heated Unit
18.0 Solution Tank Schematic Drawing – Heated PARTS ATTACHED TO RECOVERY TANK (24) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 25: Solution Tank Parts List - Heated Unit
19.0 Solution Tank Parts List – Heated Drawing No. Item ID Item Description Qty. SN-12-ST-USIBLUE 12-Gallon Solution Tank - Ultimate Blue 1.00 SN-12-L-USIBLUE 12-Gallon Lid - Ultimate Blue 1.00 10-0834 Pump Flat Washer 4.00 10-0818 S/R Top of Tank Bolt on Extractor 2.00 10-0846 1/4”...
Page 26: Recovery Tank Schematic Drawing - Heated Unit
20.0 Recovery Tank Schematic Drawing – Heated PARTS ATTACHED TO SOLUTION TANK (26) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 27: Recovery Tank Parts List - Heated Unit
21.0 Recovery Tank Parts List – Heated Drawing No. Item ID Item Description Qty. SN-12-RT-USIBLUE 12-Gallon Recovery Tank - Ultimate Blue 1.00 80-0008 1.5 PVC Female Adapter 1.00 10-0416-A-GASKET Gasket for Stand Pipe 1.00 10-0416-A 1.5” Black ABS Stand Pipe 1.30 80-0012 Shut-Off Assembly for Extractor...
Page 28: Motor Base Schematic Drawing - Heated Unit
22.0 Motor Base Schematic Drawing – Heated ATTACHED TO 10-0801-J IN SOLUTION TANK PUMP TO QD ON SOLUTION TANK PARTS ATTACHED TO MOTOR BASE & MOTOR MANIFOLD PARTS ATTACHED TO BOTTOM OF HEATER UNIT & SIDE OF MOTOR BASE (28) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 29: Motor Base Parts List - Heated Unit
23.0 Motor Base Parts List – Heated Drawing No. Item ID Item Description Qty. SN-12-MB-BLKGRAN 12-Gallon Motor Base Black Granite 1.00 10-0821 Extractor Hinge 2.00 10-0838-A Pigtail for Extractor (1 or 2 Depending on Model) 1.00/2.00 10-0820 End Cap for Axle 4.00 10-0822 Exhaust Grate for Extractor...
Page 30: Motor Manifold Schematic Drawing - Heated Unit
24.0 Motor Manifold Schematic Drawing – Heated ATTACHED TO 10-0822 IN THE MOTOR BASE ATTACHED TO 10-0849 IN RECOVERY TANK ATTACHED FROM MOTOR MANIFOLD TO OTHER MOTOR MANIFOLD PARTS ATTACHED TO MOTOR BASE & MOTOR MANIFOLD (30) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 31: Motor Manifold Parts List - Heated Unit
25.0 Motor Manifold Parts List – Heated Drawing No. Item ID Item Description Qty. 10-0023 4.00 Washers for Shoulder and Waist Belt for Backpack Vacuums 10-0833-S Motor Manifold Mounting Bolts - 5/8” Stem 4.00 SN-12-MFLD 12-Gallon Motor Manifold - Black 2.00 10-1030-S2 2-Stage Motor Gasket...
Page 32: Heater Schematic Drawing
26.0 Heater Schematic Drawing PARTS ATTACHED TO BOTTOM OF HEATER UNIT & SIDE OF MOTOR BASE (32) Sniper 12-Gallon, 100 PSI Carpet Extractor...
Page 33: Heater Parts List
27.0 Heater Parts List Drawing No. Item ID Item Description Qty. 10-1500-A 1000 Watt Heater Element 2.00 10-0814 Heater Sensor 4.00 10-0902 Locking Nut for Heater 8.00 10-0920 Dual Rod Heat Exchanger Tube 1.00 10-0921 Aluminum Box for Dual Rod Heater 1.00 10-0801-I MJ-FP 90 Hyd Adaptor...
Page 34 Sniper 12-Gallon Carpet Extractor By Ultimate Solutions | Sandia Products Please fill out the following information: Model No: Serial No: Distributor Name: Distributor Phone No: Date of Purchase: Ultimate Solutions Our Family of Companies TOGETHER WE’RE BETTER! Ultimate Carpet Solutions www.sandiaplastics.com Ultimate Hard Floor Solutions www.mercuryfloormachines.com...
Page 36 New Equipment Warranty Limited Warranty Sandia Products warrants new equipment against defects in material and workmanship under normal use and service to the original purchaser. Any statutory implied warranties, including any warranty of merchantability or fitness for a particular purpose, are expressly limited to the duration of this written warranty. Sandia Products will not be liable for any other damages, including but not limited to indirect or special consequential damages arising out of or in connection with the furnishing, performance, use or inability to use the machine.
