Summary of Contents for RIX RNV-14

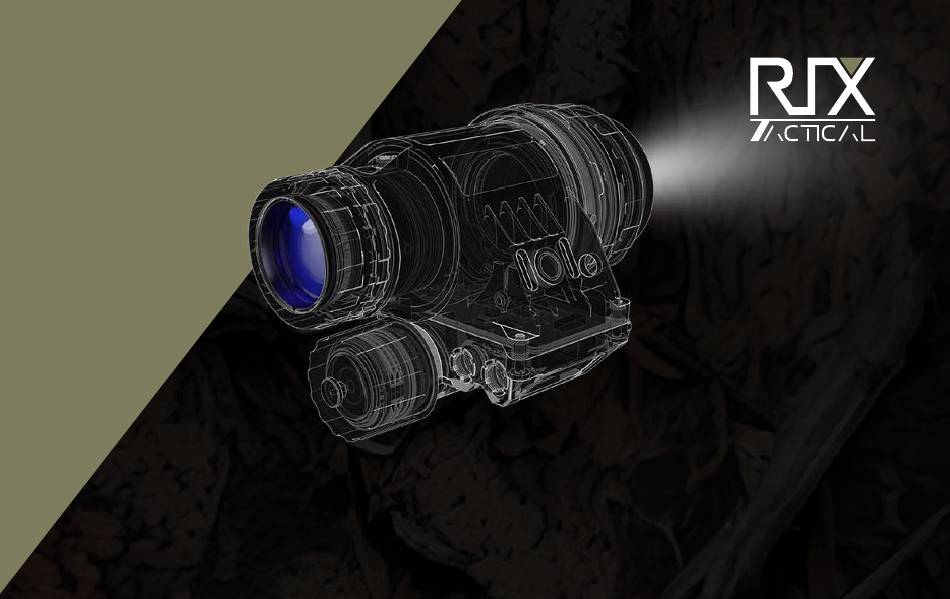

- Page 1 RNV-14...
- Page 2 TABLE OF CONTENTS PRODUCT OVERVIEW PRODUCT PARAMETERS PACKING LIST PRODUCT APPEARANCE DEVICE MODES POWER SUPPLY POWER ON/OFF CONTROLS AND INDICATORS PRODUCT PRODUCT TROUBLE LEGAL AND REGULATORY MAINTENANCE SHOOTING INFORMATION...
- Page 3 The optical design of the RNV-14 objective lenses collects the available light, and the image intensifier converts 40° ∞ the captured light into a clear visible image. In situations where there is insufficient ambient light, the RNV-14 Focus Range 0.25m ~ +...
- Page 4 PACKING LIST PRODUCT APPEARANCE Thermal Fusion J arm bracket Eyepiece Pendant Adapter Objective lens RNV-14 Device J arm Bracket Helmet Bracket(L4G24) Potentiometer knob (optional) Long eyeshade Battery cap IR illuminator BSP bright source protection User manual Portable bag...
-
Page 5: Device Modes
Installation of Thermal Fusion Pendant Adapter (Achieve Fusion with J-C) DEVICE MODES 1.Secure the Thermal Fusion Pendant Adapter to the bottom of the objective lens with 2 M2x5 screws. Verify Helmet Mode the alignment, screw in the bolts, and tighten. 2.After sliding J-C into the Thermal Fusion Pendant Adapter, listen for a "click"... -
Page 6: Power Supply
POWER SUPPLY POWER ON/OFF Install the storage battery following the below procedures: POWER ON 1.Unscrew the battery cap. 1.Turn clockwise, and when you hear a "click," turn on the power. 2.Insert the AA battery (please pay attention to the polarity mark on the device). 2.After power is applied, rotate the potentiometer gain adjuster. -
Page 7: Controls And Indicators
CONTROLS AND INDICATORS 》Flip function 》 BSP bright source protection function Press the potentiometer knob three times consecutively (with no more than 1 second between presses). ON: blue light blinks twice (500 ms/time). Press the potentiometer knob five times in a row (the interval between two times is not more than one second) OFF: blue light flashes twice (250 ms/time). -
Page 8: Product Maintenance
PRODUCT MAINTENANCE 》Battery Level Detection NOTE 》The monocular night vision device is a precision optoelectronic instrument and must be handled with care. When the battery voltage falls below 1.1V, the red status indicator will blink. 》Do not scratch the outer surface of the lens or touch it with your fingers. 》Do not wipe the shield with wet lens paper or when the shield is wet, or the coating will be damaged. -
Page 9: Product Trouble Shooting
PRODUCT TROUBLE SHOOTING LEGAL AND REGULATORY INFORMATION MALFUNCTION PROBABLE CAUSE/TEST/INSPECTION CORRECTIVE ACTION 1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.Check that batteries are installed in the correct (1) This device may not cause harmful interference, d i r e c t i o n a n d w h e t h e r t h e b a t t e r y p o w e r i s The device will not 1.Replace the battery or install the battery correctly. - Page 10 following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
-
Page 11: Year Warranty
YEAR WARRANTY Night Vision Devices...
