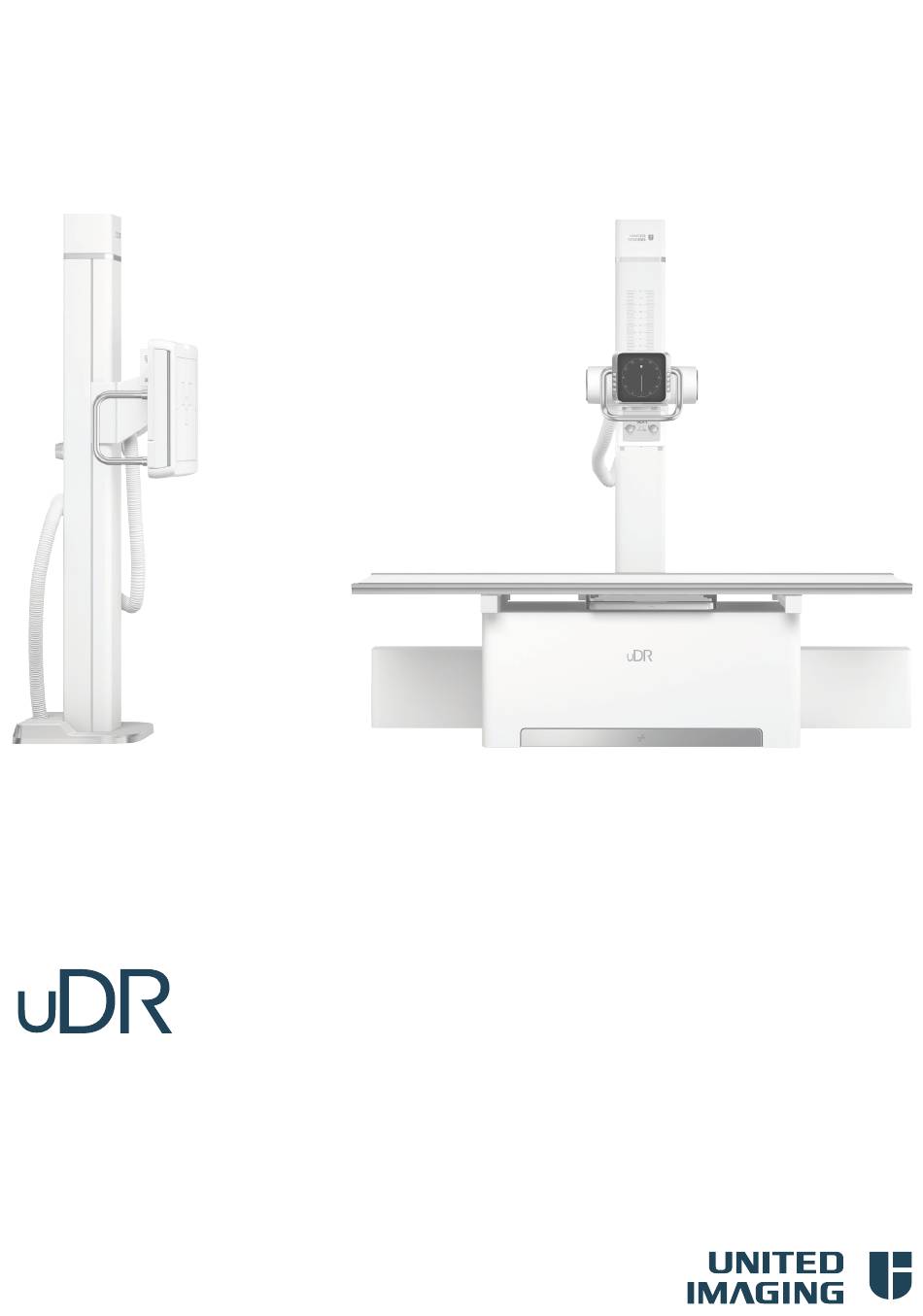

Page 1 System Operator Manual Digital Medical X-ray Imaging System uDR 566i-A, uDR 566i-B uExceed R002 51002504-08-202308-ENG...
Page 3 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. © Without explicit written permission from Shanghai United Imaging Healthcare Co., Ltd. (hereinafter referred to as "UIH"), no part of this document can be reproduced, transmitted, stored in or introduced into a retrieval system in any form or by any means (including but not limited to electronic, mechanical, photographic or otherwise) for any purpose.
Page 5 Foreword This manual provides instructions on the functions, operation methods, and daily maintenance methods of the system. Audience ■ Users of UIH systems. ■ UIH training and customer service engineers. ■ UIH marketing personnel. ■ Authorized distributors of UIH. Revision records Version Description 2021-06, release version 1...
Page 7: Table Of Contents
Equipment compatibility................ 2-26 2.13 Service life of the product..............2-27 System components Components in the scanning room............3-2 Components in the control room............3-16 Device connection.................3-18 System operations System startup..................4-3 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 8 Contents Patient preparation..................4-4 Adjusting system position............... 4-6 Patient positioning.................4-19 Checks before exposure............... 4-20 Performing exposure................4-21 Viewing images in the Exam interface..........4-23 Image post-processing................4-24 Ending the exam................... 4-25 4.10 Shutting down the system..............4-26 System accessories Patient stretch grip of the BWS bucky............ 5-2 Additional filters..................5-5 Diagnostic monitor..................
Page 9 Heating and cooling curves of the X-ray tube anode....7-19 Figure 7-11 Radiation field range of the bucky wall stand......7-23 Figure 7-12 Radiation field range of the fixed radiographic table....7-23 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 10 List of Figures System Operator Manual...
Page 11 Parameters of the flat panel detector........7-21 Table 7-9 AEC information of DR.............. 7-21 Table 7-10 Image processing system............7-22 Table 7-11 Data interfaces................7-22 Table 7-12 Bucky wall stand................7-24 Table 7-13 Fixed radiographic table............7-24 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 12 List of Tables System Operator Manual...
Page 13: Introduction
Introduction About this manual..................1-2 About this system..................1-3 1.2.1 System features................1-3 1.2.2 Optional components..............1-3 Clinical application................... 1-4 Personnel training and qualifications............1-6 Text conventions..................1-8 Disclaimers....................1-9 Glossary....................1-10 Abbreviations..................1-12 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 14: About This Manual
Introduction About this manual 1.1 About this manual This manual provides information on safety, system components, system operations, and maintenance and repair. To be able to operate this system safely and effectively, users must have the required expertise and be familiar with the contents of this manual. Before operating this system, carefully read through this manual and pay particular attention to all the information in the chapter “Safety”.
Page 15: About This System
■ Before using any third-party assembly or optional part, you should acquire UIH's approval for compatibility. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 16: Clinical Application
1.3 Clinical application Intended purpose uDR 566i-A/ uDR 566i-B Digital Medical X-ray Imaging System is intended to acquire X- ray images of the human body by a qualified technician, examples include acquiring two- dimensional X-ray images of the skull, spinal column, chest, abdomen, extremities, limbs and trunk.
Page 17 No specific contraindication is incurred for the system. Use the system with care for patients sensitive to radiation. Limitations This device is not intended for use in performing mammography. Applied parts Radiographic table, BuckyWall stand, flat panel detector are the applied parts. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 18: Personnel Training And Qualifications
Introduction Personnel training and qualifications 1.4 Personnel training and qualifications WARNING Authorized professionals shall be familiar with the standards concerning radiological protection, and shall have received training. WARNING Safety training shall be included in the trainings on operations. In order to safely and effectively operate this system, the user must undergo strict training, fully understand the contents of this manual, and abide by local laws and regulations.
Page 19 Introduction Personnel training and qualifications ■ E-mail: services@united-imaging.com Website: http://www.united-imaging.com 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 20: Text Conventions
Introduction Text conventions 1.5 Text conventions Text Convention Items in a list "■" symbol Sub-items or list items in a table "♦" symbol One-step operation "►" symbol Steps within operating sequences Numbers Elements in the user interface (such as buttons, Bold font window titles, and menu items) Cross references...
Page 21: Disclaimers
■ Wrong operations, improper maintenance, or unapproved modifications due to non- compliance with the manual instructions. ■ Use of third-party accessories, assemblies, or any other auxiliary components without the approval or authorization of UIH. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 22: Glossary
Introduction Glossary 1.7 Glossary Glossary Description Electric current of the electron beam incident on the target of an X-ray X-ray tube current tube. Usually, the X-ray tube current is expressed by its mean value in milliamperes (mA). Potential difference applied to an X-ray tube between the cathode and X-ray tube voltage the anode.
Page 24: Abbreviations
Introduction Abbreviations 1.8 Abbreviations Abbreviation Full form Application Entity Automatic Exposure Control Acquisition Workstation Bucky Wall Stand Controller Area Network CoCo Control Box Critical Traceable Component Digital Imaging and Communications in DICOM Medicine Domain Name System Digital Visual Interface Electromagnetic Compatibility Flat Panel Detector GCHW Geometry Control Hardware...
Page 25 Introduction Abbreviations Abbreviation Full form Source to Object Distance TCP/IP Transmission Control Protocol/Internet Protocol Tube Stand Touch User Interface Uninterruptible Power Supply 1-13 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 26 Introduction | Abbreviations This page intentionally left blank. 1-14 System Operator Manual...
Page 27: Safety
2.10 Handling of emergencies............... 2-22 2.10.1 Emergency procedures............2-22 2.10.2 E-Stop button................2-22 2.10.3 Emergency Power Off button..........2-23 2.11 Environment safety................2-24 2.11.1 Disposal of radioactive wastes..........2-24 2.11.2 Battery safety and recycling............2-24 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 28 Safety 2.12 Equipment compatibility................. 2-26 2.13 Service life of the product..............2-27 System Operator Manual...
Page 29: Overview
Format of the safety information: DANGER Safety information – risks and possible consequences. ♦ Safety information – preventive measures. WARNING Safety information – risks and possible consequences. ♦ Safety information – preventive measures. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 30: Table 2-1 Instruction Symbols
Safety Overview CAUTION Safety information – risks and possible consequences. ♦ Safety information – preventive measures. NOTICE Safety instructions to be followed. 2.1.2 Symbols and labels Warning safety signs and symbols must be permanently and securely attached to the equipment or other appropriate areas. NOTICE The safety labels must be firmly attached and legible, and must comply with local laws and regulations.
Page 31: Table 2-2 Warning Symbols
Position where foot is easily Warning, watch out for pinch squeezed Surface of an easily tripped Warning, to prevent tripping component Warning, hot surface Close to the hot component 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 32: Table 2-3 Prohibition Symbols
Safety Overview Table 2-3 Prohibition symbols Label Description Position Surface of component where No stepping on surface stepping is forbidden No heavy load Surface of easily broken parts BWS bucky and handles of the Load-bearing limit (15 kg) bucky wall stand 250kg Load-bearing limit (250 kg) Fixed radiographic table...
Page 33 Keep dry Packing case Center of gravity Packing case No stacking Packing case Temperature limit Packing case Date of manufacture Packing case Recycling Packing case Atmospheric pressure limit Packing case 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 34 (240)######## MATERIAL No ####-##-## (21)###### SERIAL Made in China (not for the U.S.A.) Shanghai United Imaging Healthcare Co., Ltd. No.2258 Chengbei Road,Jiading District, Shanghai, 201807, P.R. China Input Voltage: ###### Specification label Input Frequency: ###### Input Power: ###### Operation Mode: ######...
Page 35: Radiation Safety
♦ Do not expose hands, wrists, arms, or other body parts to direct X-rays when operating or maintaining X-ray equipment. ♦ Do not repair the equipment during patient examination. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 36: Radiation Protection For Patients
Safety Radiation safety CAUTION Do not start X-ray exposure when there is people inside the scanning room or when the protection door is not closed. CAUTION Before exposure, check whether the exposure parameters meet the clinical requirements. Adjust any inappropriate parameters in time. Recommended principles of X-ray radiation protection: ■...
Page 37: Radiation Protection For Operators
The protective devices must meet the national and local requirements for radiation protection. ■ You can wear dosimeters to detect the absorbed radiation dose. 2-11 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 38: Electrical Safety
Safety Electrical safety 2.3 Electrical safety WARNING Part of the system components still carry voltage after the shutdown. To avoid electric shock, do not remove covers of the system. WARNING Multiple socket-outlets provided with this system shall only be used for supplying power to equipment that is intended to form part of the system.
Page 39: Laser Safety
♦ Do not look directly at laser beams. ♦ During examination, turn the linear laser localizer off by sliding the laser cover to protect the patient's eyes. 2-13 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 40: Mechanical Safety
Safety Mechanical safety 2.5 Mechanical safety NOTICE Select the correct screws and torques to avoid mechanical damages or property damages. WARNING When the equipment moves, keep monitoring the equipment to prevent collisions or crushes. WARNING ♦ If associated equipment does not meet the safety requirements of this equipment, the safety level of the system may be degraded.
Page 41: Figure 2-1 Dangerous Areas On The Fixed Radiographic Table
■ Ensure that the knee of the seated person is not under a vertically movable system assembly. Figure 2-1 Dangerous areas on the fixed radiographic table 2-15 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 42: Figure 2-2 Dangerous Area On The X-Ray Source Assembly
Safety Mechanical safety Figure 2-2 Dangerous area on the X-ray source assembly Figure 2-3 Dangerous areas on the bucky wall stand Figure 2-4 Dangerous area on the flat panel detector tray 2-16 System Operator Manual...
Page 43: Electromagnetic Compatibility
WARNING ♦ The system must only be used in the specified site with radiation protections. ♦ Do not use devices other than this system in the scanning room. 2-17 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 44: Fire And Explosion Safety
Safety Fire and explosion safety 2.7 Fire and explosion safety 2.7.1 Fire protection WARNING Prevent ingress of liquid into the system to prevent corrosion of components and short circuit. NOTICE Do not place containers with liquids, such as water cups and medicine bottles, on the equipment.
Page 45: Explosion Protection
This system is not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Detergent and disinfectant (including those used on patient bodies) may produce explosive gas mixtures. Please follow all relevant safety regulations. 2-19 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 46: Image Quality
Safety Image quality 2.8 Image quality 2.8.1 Image quality NOTICE Image quality must be checked by qualified personnel to ensure that the image quality meets the standards for clinical diagnosis. NOTICE The monitor of the image processing system cannot be used for diagnosis. To view the images for diagnostic purpose, send the images to the diagnostic workstation or print the images on films.
Page 47: Patient Care
If the table top is broken, contact UIH Customer Service Center immediately for checking, repairing, or replacement of the table top. 2-21 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 48: Handling Of Emergencies
Safety Handling of emergencies 2.10 Handling of emergencies 2.10.1 Emergency procedures CAUTION Due to the complexity of the system, unavailability of the system due to abnormal external power supply, wear parts (for example the X-ray tube) approaching the end of their service life, accidental damage to parts, failure, or interference cannot be completely avoided.
Page 49: Figure 2-6 E-Stop Button On The Control Box
■ This button should be used in case of emergencies such as fire and earthquake, so as to cut off the system power supply quickly. You can power on the system again after the faults and hazards are eliminated. 2-23 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 50: Environment Safety
Safety Environment safety 2.11 Environment safety This system was designed and manufactured according to the requirements of safety and environment protection. When none of the system cover is removed and the system is used correctly, this system will not cause harm to personnel or the environment. A hazardous material is a substance that can ignite or cause an explosion, is toxic and harmful to health, or is corrosive or irritating.
Page 51 Expired batteries and rechargeable batteries shall be recycled in accordance with the relevant national and regional laws and regulations. 2-25 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 52: Equipment Compatibility
Safety Equipment compatibility 2.12 Equipment compatibility WARNING If unapproved accessories are connected to the system, the system performance may be adversely affected, causing errors during the scanning and resulting in misdiagnosis. ♦ Only use approved accessories. WARNING Only the third-party software that has been validated by UIH can be installed on the equipment.
Page 53: Service Life Of The Product
After the product reaches its service life, it must be disposed of according to relevant laws and regulations. In case of any problems, please contact UIH Customer Service Center. 2-27 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 54 Safety | Service life of the product This page intentionally left blank. 2-28 System Operator Manual...
Page 55: System Components
Flat panel detector..............3-2 3.1.2 Components of the tube stand..........3-6 3.1.3 Bucky wall stand..............3-11 3.1.4 Fixed radiographic table............3-14 Components in the control room............3-16 3.2.1 Control box................3-16 Device connection..................3-18 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 56: Components In The Scanning Room
System components Components in the scanning room 3.1 Components in the scanning room Component Description Including: ♦ Guide rail on the tube stand ♦ Tube stand ♦ Cantilever of the X-ray source assembly Components of the X-ray ♦ Movement handle of the X-ray source source assembly assembly ♦...
Page 57 When the flat panel detector is placed into the bucky correctly, the charging port on the detector is connected with the charging port in the bucky and charging starts. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 58 System components Components in the scanning room ■ When the flat panel detector is being charged, the charging state is shown in the System Status area ■ Charging stops when the battery is fully charged. ■ Charging stops when you pull the tray out. 3.1.1.2 Calibration It is recommended that FPD calibration be carried out once every month.
Page 59 Charge the battery completely at least once a month to avoid damage. NOTICE To avoid the necessity for additional exposure, confirm that the light field is within the coverage of the detector before you start the exposure. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 60: Components Of The Tube Stand
System components Components in the scanning room Overheating of the detector may degrade its performance. Make sure that the vents are clear. NOTICE Keep the remote control and the flat panel detector away from heat or fire to avoid personal injuries and battery damage. 3.1.2 Components of the tube stand 3.1.2.1 Structure of the tube stand 56 7...
Page 61 If the load falls, it may also cause personal injury to patients. WARNING In extreme cases, the temperature of the X-ray tube assembly will rise. To avoid scalds, do not touch the X-ray tube housing. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 62 System components Components in the scanning room 3.1.2.2 Collimator System Operator Manual...
Page 63 When you adjust the collimator manually, please pay attention to the size of the radiation field. An overly large radiation field will generate excessive radiation, causing unnecessary harm to patients. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 64: Figure 3-1 X-Ray Source Assembly (Front)
System components Components in the scanning room 3.1.2.3 Movement control buttons of the X-ray source assembly Figure 3-1 X-ray source assembly (front) Figure 3-2 X-ray source assembly (back) 3-10 System Operator Manual...
Page 65: Bucky Wall Stand
The bucky wall stand holds the BWS bucky and other components and enables the movement of the BWS bucky. You can adjust the height of the bucky according to the body part to be scanned. Bucky wall stand 3-11 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 66 System components Components in the scanning room Component Description Patients can hold the side handles during Side handles (both sides) positioning. Patients can hold the patient stretch grip during Patient stretch grip positioning. Stand The stand supports the BWS bucky. The bucky includes the front cover, the flat BWS bucky panel detector, the slot for grids, the movement...
Page 68: Fixed Radiographic Table
System components Components in the scanning room Button Name Description Hold down this button to align the X- ray source assembly with the BWS bucky. Automatic Centering button At the same time, the tracking of the X-ray source assembly and the BWS bucky is activated.
Page 69 The table bucky is under the table top. It holds components such as the flat panel detector and the grid. There is an infrared sensor on the handle of the table bucky. You can move the table bucky freely. 3-15 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 70: Components In The Control Room
System components Components in the control room 3.2 Components in the control room Component Description Including: Accessories of the image ♦ Host monitor processing workstation ♦ Diagnostic monitor ♦ Mouse and keyboard The control box is used to switch the system on Control box or off, control system movement, and perform exposure.
Page 71 Bucky Up button up. If the button is released during the motion, the bucky will stop. Press this button to turn on or off the collimator Collimator Lights button lights. 3-17 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 72: Device Connection
System components Device connection 3.3 Device connection Conventional printers, laser printers, and barcode scanners can be connected to this equipment. The printers should support DICOM 3.0 protocol. The barcode scanner Motorola LS2208 is recommended. 3-18 System Operator Manual...
Page 73: System Operations
Loading exposure images ............4-23 4.7.2 Rejecting images..............4-23 4.7.3 Restoring images..............4-23 Image post-processing................4-24 Ending the exam..................4-25 4.9.1 Finishing the exam..............4-25 4.9.2 Archiving images..............4-25 4.9.3 Printing films................4-25 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 74 System operations 4.10 Shutting down the system..............4-26 System Operator Manual...
Page 75: System Startup
To log in to another account, log out of the current account first or switch the account. 4. Run system self-test. ♦ You can perform scans only after the self-test is passed. ♦ Contact UIH Customer Service Center if the self-test fails. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 76: Patient Preparation
System operations Patient preparation 4.2 Patient preparation 4.2.1 Registering patients from RIS ► In the Patient Administration interface, select a RIS patient and double-click the study. Scenario Action Protocol match with RIS has been completed. Protocols are matched automatically and the Exam interface opens.
Page 77 2. Click New Study or Repeat Study. ♦ Or right-click the study and select New Study or Repeat Study in the context menu. Result: ♦ The Patient Registration interface is opened. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 78: Adjusting System Position
System operations Adjusting system position 4.3 Adjusting system position 4.3.1 Flat panel detector in bucky Figure 4-1 Flat panel detector in table bucky Figure 4-2 Flat panel detector in BWS bucky 4.3.1.1 Starting up the system ► Hold down the power button till the power indicator lights up. 4.3.1.2 Inserting the flat panel detector 1.
Page 79: Adjusting The Height Of The Bws Bucky
Vertical Release button handle of the BWS bucky to pull the bucky up and down. When there is no detector inside the BWS bucky, you cannot move the bucky vertically. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 80: Figure 4-3 Coordinate Axes And Directions Of Table Top Movement
System operations Adjusting system position WARNING When the patient is pressed against the BWS bucky, especially when the patient's jaw is placed in the jaw slot, do not adjust the height of the BWS bucky. Also, pay attention to any tracking movement of the bucky caused by movement of the X-ray source assembly.
Page 81: Positioning The X-Ray Source Assembly
A second button that you press at the same time will not function. Before moving the X-ray source assembly, make sure that there is no person or object in the path. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 82 System operations Adjusting system position WARNING When the X-ray tube is moved to a lateral side or the back of the stand, check the position of the detector before exposure to avoid personal damage caused by improper exposure. WARNING While rotating the X-ray source assembly, be aware of the gaps between the moving parts and the detents to avoid squeezing fingers.
Page 83 3. When the X-ray source assembly reaches the target position, release the button. 4.3.4.3 Rotation about the horizontal axis You can rotate the X-ray source assembly about the horizontal axis by using the movement control buttons. 4-11 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 84: Figure 4-4 Tube Stand Pedal
System operations Adjusting system position -120° +120° ■ The X-ray source assembly can rotate from -120° to +120° about the horizontal axis, with detents at the -90°, 0°, and +90° positions. ■ Slow down when the X-ray source assembly approaches a detent. Release the button when you feel the X-ray source assembly is completely engaged in the detent without shaking.
Page 85 ■ There is a gap of 4.27 cm between the front cover of the BWS bucky and the detector in the BWS bucky. Therefore, this gap should be added to the reading of the measuring tape. SID range: 4-13 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 86: Using Collimator
System operations Adjusting system position ■ Fixed radiographic table: 35 cm – 120 cm ■ Bucky wall stand (standard installation): 110 cm – 290 cm The scale on the front of the tube stand shows the SID range for lying exams. When you measure the SID for a lying exam, read the scale at the top edge of the cover of the tube cantilever.
Page 87 1. Hold the handle of the bucky tray tightly and pull the tray out till it cannot be pulled any further. 2. Align the grid with the slot, with the label side facing the X-ray source assembly, and insert the grid into the slot. 4-15 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 88: Centering
System operations Adjusting system position 3. Push the grid to the end till it is locked in place. 4.3.6.2 Removing the grid WARNING ♦ Support the grid when removing or installing it to prevent it from falling and being damaged. ♦...
Page 89 ♦ When tracking is turned on, the center of the detector is aligned with the focal spot of the X-ray tube and the detector follows the movement of the X-ray tube. 4-17 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 90 System operations Adjusting system position 4.3.7.3 Flat panel detector in free mode NOTICE When the X-ray tube or the flat panel detector is tilted during the exposure, consider the effect of image geometric distortion on clinical diagnosis. 1. Check the position of the FPD. 2.
Page 91: Patient Positioning
4.4.2 In the control room ► Talk with the patient, who is in the scanning room, through the intercom system at the console and give instructions on positioning and breathing. 4-19 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 92: Checks Before Exposure
System operations Checks before exposure 4.5 Checks before exposure Before exposure, make sure that the tube and the flat panel detector are centered. CAUTION Before exposure, check whether the exposure parameters meet the clinical requirements. Adjust any inappropriate parameters in time. 1.
Page 93: Performing Exposure
If the exposure hand switch remains half-pressed for a long time, the X-ray tube may overheat and the service life of the tube may be reduced. 1. Half-press the Exposure button to prepare for exposure. 4-21 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 94: Using The Control Box For Exposure
System operations Performing exposure 2. Fully press the Exposure button until you hear the prompt tone. 3. Release the Exposure button 2 seconds after the prompt tone ends. 4. After exposure, place the exposure hand switch into its holder. 4.6.3 Using the control box for exposure Before you start: Exposure is allowed only when the system is ready and the X-ray exposure indicator (OK ring) is green.
Page 95: Viewing Images In The Exam Interface
1. Click the rejected image to be restored in the image list. 2. Click Restore on the image. 3. Click Yes in the confirmation dialog box that pops up. 4-23 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 96: Image Post-Processing
System operations Image post-processing 4.8 Image post-processing 1. Click Review&Filming to open the Filming interface. 2. Optional: Adjust the image layout in the Filming interface. 3. Optional: Adjust the image noise, tissue equalization, contrast ratio, etc. in the Filming interface. 4-24 System Operator Manual...
Page 97: Ending The Exam
1. Select the images to be printed. 2. Set the printing parameters, including orientation, image display mode, and size. 3. Set the number of copies. 4. Click Print. 4-25 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 98: Shutting Down The System
System operations Shutting down the system 4.10 Shutting down the system Before you start: ■ Make sure that there is no scan in progress. ■ Make sure that data of the completed scans have been saved. NOTICE ♦ Follow the instructions in this manual to shut down the system. ♦...
Page 99: System Accessories
Installation and removal of the patient stretch grip....5-3 Additional filters..................5-5 5.2.1 Installing additional filters............5-5 5.2.2 Removing additional filters............5-5 Diagnostic monitor................... 5-6 Barcode scanner..................5-7 5.4.1 Parameters................5-7 5.4.2 Using the barcode scanner............5-7 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 100: Patient Stretch Grip Of The Bws Bucky
System accessories Patient stretch grip of the BWS bucky 5.1 Patient stretch grip of the BWS bucky 1. Patient stretch grip 2. BWS bucky 5.1.1 Scenario The patient stretch grip on the BWS bucky can assist the patient in positioning. 90°...
Page 101: Prohibited Use
The patient stretch grip can be installed on the left or right on top of the BWS bucky. 1. Patient stretch grip 2. Socket 5.1.3.1 Installation 1. Align the patient stretch grip with the socket. 2. Insert the patient stretch grip vertically. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 102 System accessories Patient stretch grip of the BWS bucky 5.1.3.2 Removal 1. Hold the patient stretch grip with both hands and pull it out. 2. Put the patient stretch grip in a specified storage place. System Operator Manual...
Page 103: Additional Filters
5.2.2 Removing additional filters 1. Pull the additional filter out along the slots horizontally. 2. Place the additional filter safely in the storage device. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 104: Diagnostic Monitor
System accessories Diagnostic monitor 5.3 Diagnostic monitor An additional diagnostic monitor can be added to this system. Model Dimensions Brightness Resolution G22SP+ 21.3 inches 1900 cd/m² 1600 × 1200 System Operator Manual...
Page 105: Barcode Scanner
♦ The laser beam must cover the entire label. If only part of the label is scanned, the patient information cannot be read. 4. Complete the input. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 106 System accessories | Barcode scanner This page intentionally left blank. System Operator Manual...
Page 107: Repair, Maintenance, And Disposal
Repair, maintenance, and disposal Repair, maintenance, and disposal Maintenance.....................6-2 6.1.1 Preventive maintenance............6-2 6.1.2 Recording results..............6-3 Cleaning and disinfection.................6-4 6.2.1 Cleaning..................6-5 6.2.2 Disinfection................6-6 Disposal....................6-8 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 108: Maintenance
Repair, maintenance, and disposal Maintenance 6.1 Maintenance Routine maintenance of the system must be carried out in accordance with the requirements of laws and regulations to ensure the safe and stable operation of the equipment, improve the reliability of the system, reduce the failure rate of the equipment, prolong the service life of the equipment, ensure the image quality, and ensure the safety of patients, operators, and others.
Page 109: Recording Results
Record the process and results of preventive maintenance, including the following information: ■ Type and scope of work. ■ Detailed modification of rated values or working area. ■ Date and operator signature. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 110: Cleaning And Disinfection
Repair, maintenance, and disposal Cleaning and disinfection 6.2 Cleaning and disinfection CAUTION To ensure safe and effective system operation and prevent cross infections, the parts that come into contact with patients must be cleaned and disinfected regularly according to local laws and regulations. In case of special circumstances, clean and disinfect the components whenever needed.
Page 111: Cleaning
1. Use a soft cloth moistened with commercially available neutral detergent to wipe the surface of furniture. 2. Use a piece of clean soft cloth to dry the furniture. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 112: Disinfection
Repair, maintenance, and disposal Cleaning and disinfection 6.2.1.4 Cleaning the monitors 1. Power off the system. 2. Use a piece of soft cloth (such as gauze and non-woven fabric) slightly moistened with water to clean the monitors. ♦ Clean up the fingerprints left on the monitors regularly. ♦...
Page 113 2. Use a piece of soft cloth slightly moistened with 75% alcohol to clean the monitors. ♦ Do not spray liquids onto the monitors. ♦ Do not scratch the monitors. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 114: Disposal
Repair, maintenance, and disposal Disposal 6.3 Disposal Medical equipment is a special kind of products. After the product reaches its service life, it should be disposed of according to relevant laws and regulations. Users shall contact UIH Customer Service Center for recycling when the service life of the product expires. Please handle hazardous materials correctly.
Page 115: Technical Data
Requirements for transport and storage........7-4 System performance................7-5 7.4.1 Coordinate axes and directions..........7-5 7.4.2 Parameters of component movement........7-6 7.4.3 Parameters of imaging chain components....... 7-7 7.4.4 Parameters of components.............7-24 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 116: Equipment Classification Based On Safety Levels
Technical data Equipment classification based on safety levels 7.1 Equipment classification based on safety levels Table 7-1 Equipment classification based on safety levels Classification Safety feature According to the type of protection against Class I equipment electric shock According to the degree of protection Type B applied part against electric shock According to the degree of protection...
Page 117: Requirements For The Mains Supply
N.A. phases Internal resistance of the power N.A. ≤ 0.15 Ω supply ♦ uDR 560i-A, uDR 566i-A: 95 System input power N.A. ♦ uDR 560i-B, uDR 566i-B: 120 kVA 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 118: Ambient Conditions
Technical data Ambient conditions 7.3 Ambient conditions 7.3.1 Requirements for operating environment Table 7-3 Requirements for operating environment Parameter Operating conditions Ambient temperature +10℃ to +40℃ Relative humidity 30%–75% (no condensation) Atmospheric pressure 700–1060 hPa 7.3.2 Requirements for transport and storage WARNING The system must be stored in a warehouse with controllable temperature and humidity to prevent harms caused by the changes of weather and the dust in the environment.
Page 119: System Performance
When the cantilever of the X-ray source assembly is parallel to the Y-axis, the RVA angle is 0°. When the X-ray source assembly is rotated clockwise (looking down from above), the RVA angle is positive. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 120: Parameters Of Component Movement
Technical data System performance 7.4.2 Parameters of component movement Component Parameter Range Rotation about the vertical ≥ 270° (deviation: ±5%) axis (RVA) X-ray tube assembly Rotation about the ≥ 240° (deviation: ±5%) horizontal axis (RHA) X-axis movement ≥ 1400 mm (deviation: ±5%) Tube stand Z-axis movement ≥...
Page 121: Parameters Of Imaging Chain Components
(kV + mA + AEC mode) (kV + mA + AEC mode) Note: Adjustment to the tube current, current–time product, and loading time of the high- voltage generator complies with the R'10 standard. 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 122: Table 7-5 Maximum Output Power Of The High-Voltage Generator With Different Tube Currents
Technical data System performance Table 7-5 Maximum output power of the high-voltage generator with different tube currents 50 kW configuration 65 kW configuration Tube current (mA) Maximum voltage Maximum output Maximum voltage Maximum output (kV) power (kW) (kV) power (kW) N.A.
Page 123 975 kJ (1.354 MHU) content Maximum continuous heat 180 W (250 HU/sec) 196 W (272 HU/sec) dissipation Cooling method Natural cooling or air cooling Natural cooling or air cooling 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 124: Figure 7-1 X-Ray Tube Assembly (Xrr-3331X)
Technical data System performance 7.4.3.3 X-ray tube assembly (XRR-3331X) φ 140 Anode φ 152.4 11.1 Cathode Terminal connection 9 8 7 Temperature relay (normally closed) Note: The terminals No.1, No.5 and No.6 should Ｃ Focal spot not be connected with series circuit. Center of the focal spot Symbol description -1.5mm ≦...
Page 125: Table 7-6 Rated Values Of The Rotary Anode Motor
The time required from low speed to high speed (as for repeated fluoroscope and radiography) equals 2/3 of the listed time. The maximum speed increase and decrease may reach 110% of the specification values listed above c: Applicable to high-speed situations. 7-11 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 126: Figure 7-2 Characteristics Of Filament Emission
2014-09-11_E7252Xﾍﾞｰｽで EfはE7884X Technical data System performance THREE-PHASE Focal Spot : 1.2 mm Nominal focus point: 1.2 1000 80kV 100kV 125kV 150kV 60kV 40kV 2009-10-08 150kV,125kV100kV Maxｶｯﾄ THREE-PHASE Focal Spot : 0.6 mm Filament current (A) FILAMENT CURRENT [A] Nominal focus size: 0.6 80kV...
Page 127: Figure 7-3 Maximum Rated Values (Stator Drive Frequency: 50 Hz)
60kV 50kV 40kV 80kV 90kV 100kV 110kV 125kV 150kV 0.01 0.03 0.07 5 7 10 0.02 0.05 Exposure time (s) Figure 7-3 Maximum rated values (stator drive frequency: 50 Hz) 7-13 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 128: Figure 7-4 Heating And Cooling Curves Of The X-Ray Tube Assembly
Technical data System performance 180W cooling heating 2007-10-22_E78 86Xの60Wなし Time (min) ANODE Figure 7-4 Heating and cooling curves of the X-ray tube assembly cooling 142 W heating Time (min) Figure 7-5 Heating and cooling curves of the X-ray tube anode The heating curves are showing example of average 7-14 System Operator Manual...
Page 129: Figure 7-6 X-Ray Tube Assembly (E7876X)
ET: Earthing terminal S: Small focus : Central X-ray M: Main winding of stator Anode and cathode terminal: A: Secondary winding of stator IEC60526 Figure 7-6 X-ray tube assembly (E7876X) 7-15 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 130: Table 7-7 Rated Values Of The Rotary Anode Motor
Technical data System performance Table 7-7 Rated values of the rotary anode motor Parameter Starting Running Power frequency (Hz) 50/60 50/60 Input power (W) 1450 Voltage (V) Current (A) Minimum speed increase (s) N.A. Capacitor (µF) ♦ a: The voltage applied at each time must not exceed 110% of the specification values listed above.
Page 131: Figure 7-7 Characteristics Of Filament Emission
40kV 50kV 60kV 80kV 100kV 125-150kV Filament current (A) Nominal focus size: 0.6 50kV 60kV 80kV 100kV 125-150kV 40kV Filament current (A) Figure 7-7 Characteristics of filament emission 7-17 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 132: Figure 7-8 Maximum Rated Values (Stator Drive Frequency: 50 Hz)
Technical data System performance Nominal focus size: 1.2 50kV 40kV 60kV 70kV 80kV 90kV 100kV 110kV 125kV 150kV 0.01 0.03 0.07 5 7 10 0.02 0.05 Exposure time (s) Nominal focus size: 0.6 50kV 40kV 60kV 70kV 80kV 90kV 100kV 110kV 125kV 150kV...
Page 133: Figure 7-9 Heating And Cooling Curves Of The X-Ray Tube Assembly
Time (min) Figure 7-9 Heating and cooling curves of the X-ray tube assembly cooling 142W heating Time (min) Figure 7-10 Heating and cooling curves of the X-ray tube anode 7-19 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 134 Technical data System performance 7.4.3.5 Collimator parameters Parameter Value Average luminance ≥ 180 l X @ 100 cm SID Light field control mode Manual Light field duration 30 s Inherent filtration 1.0 mmAl Input power 24 V DC Minimum radiation field ≤...
Page 135: Table 7-8 Parameters Of The Flat Panel Detector
♦ When the maximum output power of the high-voltage generator is 50 kW: 10–630 Range of automatic exposure ♦ When the maximum output power of the high-voltage generator is 65 kW: 10–800 7-21 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 136: Table 7-10 Image Processing System
Technical data System performance 7.4.3.9 Image processing system Table 7-10 Image processing system Parameter Value Hard disk of the acquisition workstation ≥ 500 GB Processor Frequency: ≥ 2.5 GHz. Dual-core or above. ≥ 8 GB Operating system Windows 10 64-bit or other compatible versions Power supply 665W ♦...
Page 137: Figure 7-11 Radiation Field Range Of The Bucky Wall Stand
Record the exposure parameter mAs displayed on the Exam interface. The error of the mAs value should not exceed 20% of the standard values in the table below. 7-23 2023 Shanghai United Imaging Healthcare Co., Ltd. All rights reserved. ©...
Page 138: Table 7-12 Bucky Wall Stand
Technical data System performance Phantom thickness (cm) kV value mAs value 19.5 10.5 7.4.4 Parameters of components Table 7-12 Bucky wall stand Parameter Description Maximum load 15 kg Grid Pluggable Ionization chamber Standard Surface X-ray absorption rate of the bucky 0.5 mmAl Table 7-13 Fixed radiographic table Parameter...
Page 140 Index System Operator Manual...
Page 142 Shanghai United Imaging Healthcare Co., Ltd. www.united-imaging.com Address: No. 2258 Chengbei Road Jiading District, Shanghai TEL: +86(21)-67076888 FAX: +86(21)-67076889 Shanghai International Holding Corp. GmbH (Europe) Address: Eiffestrasse 80 20537 Hamburg Germany TEL: +49-40-2513175 FAX: +49-40-255726...

This manual is also suitable for:

Udr 566i-a Udr 566i-b

UNITED IMAGING uDR Operator's Manual

1 Introduction

2 Safety

3 System Components

4 System Operations

5 System Accessories

6 Repair, Maintenance, and Disposal

7 Technical Data

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for UNITED IMAGING uDR

Summary of Contents for UNITED IMAGING uDR

This manual is also suitable for:

Table of Contents
