Summary of Contents for XKITCHEN LT5-20

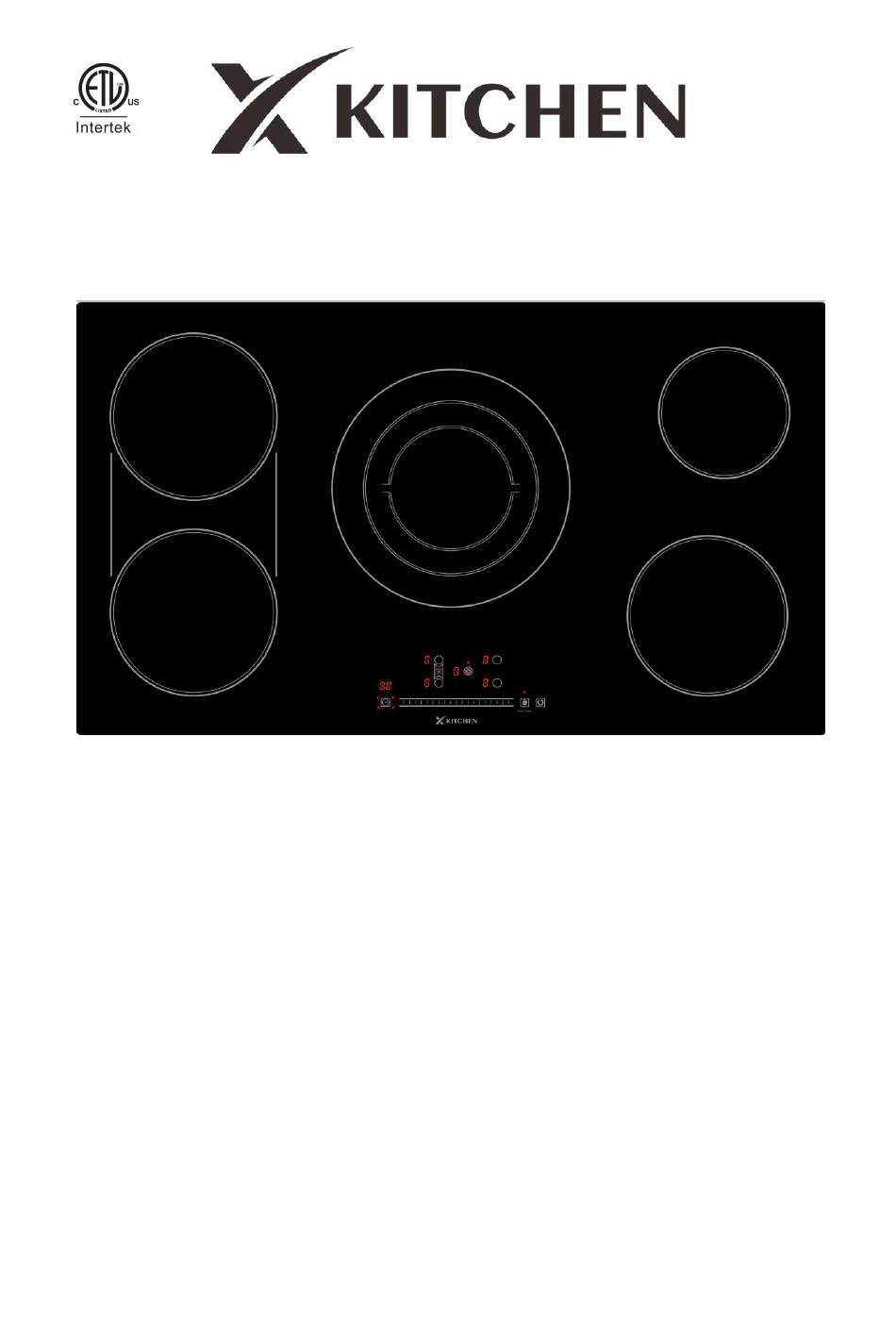

- Page 1 CERAMIC HOB Instruction Manual Model Name: LT5-20 Product size : 900x520 mm Built in size : 870x490 mm Voltage : 220 - 240V , 50/60 Hz. Power (total): 9200W Customer Service 9 AM-5 PM, Mon-Fri +1 (888) 907-5060 (Toll Free)
-
Page 2: Table Of Contents
CONTENTS ·Important safety instructions ……………………………….…..……..……1 ·Installation ….....................2-4 ·Connect to the power supply ……………………………..…….…..…..4-5 Diagram of the radiant cooktop · …………………………………...…..….…5 ·Instruction for use ……………………………………………………..….…5-6 ·Safety …………………………………………………………………..………….7 ·Using Cookware ……………………………………………….…………..7-8 ·Cleaning and maintenance …………………….………….……....8-9 ·Ttroubleshooting ………………………………………………………….…9-12 ·Customer Service …………………….………….…….…......12... -
Page 3: Important Safety Instructions
Notice The cooktop's surface will be hot after cooking, please do not touch! WARNING • Only a professional technician can repair any problems with your stove. Repairs not performed by a professional technician will void the warranty. • Technical details and appliance identification can be found on the specification plate. Refer to this plate before making any electrical connections. -
Page 4: Installation
Installation Warning (1). The radiant cooktop must be installed by a qualified professional. We have certified installers available. Do not attempt to install the appliance yourself. (2).The Radiant cooktop must not be installed above refrigerators, freezers, dishwashers or tumble dryers. (3).The wall and the area above the cooktop should be able to withstand heat. - Page 5 The distance between the underside of the appliance and the separator panel must respect the dimensions given in the figure (mini. 50mm). To ensure proper operation of the appliance, do not block the minimum required clearance (minimum 20 mm) on the countertop for airflow. If an under-counter oven is installed, make sure it has a cooling system.
-
Page 6: Connect To The Power Supply
Connection to power supply: If the cable is damaged or needs or needs replacing, this should be done by technician using the proper tools to avoid any accidents. The installer must ensure the electrical connection is correct and complies with safety regulations. -
Page 7: Diagram Of The Radiant Cooktop
Electric ceramic stove failure: No heating for 2 minutes after the gear is selected, an "E4" fault will be displayed. Customer Service Email: service@xkitchen.store (Please send relevant videos and pictures to our email address, and attach your Amazon order number. After confirming the problem, we will definitely give you a satisfactory solution.) - Page 8 Power Press the button for the required cooking zone,You can change the power levels by sliding the slider to switch off the relevant cooking zone.The operation of zones is the same. The only difference is that the middle heating zone have two circel zones, you can choose the inner heating circle for a smaller pot or for lower power or the whole bigger heating circle by pressing the heating zone selection button Residual heat indicator:...
-
Page 9: Safety
Key Lock (Childlock) To ensure child safety, the cooktop has a lock function. To lock, hold down the "Interlock" key for 3 seconds; the cooktop will enter "Interlock" mode, the timer will show "L0", and the other keys will be disabled. To unlock, hold down the lock key for 3 seconds, and the cooktop will return to normal operation. -
Page 10: Cleaning And Maintenance
Do not turn on the hotplates without placing a pan on top. The bottom of the pan should be flat and dry. Pans previously used on gas stoves are often not completely flat and may not conduct heat well. Make sure that the diameter of the pan is at least that of the hotplate. -
Page 11: Ttroubleshooting
Once a week, perform a thorough cleaning using products specifically designed to preserve and protect radiant cooktops. Remove any stuck-on dirt with a scraper. If sugar (or sugary matter) or plastic is accidentally burnt on the cooktop, remove at once with the scraper while still hot. Otherwise it may leave a permanent mark Do not use the cooktop as a work surface. - Page 12 unresponsive, there is no blown electricians. display, and there is no Recheck the wiring by No power to the junction box "beep" sound) professional electricians. Contact after-sales If the above issues are not the service and provide cause, the product has corresponding videos or malfunctioned pictures.
- Page 13 Vitro-Ceramic Hob. Have a professional The heating element stays electrician recheck the red, but the controls are wiring, it may be working normally connected incorrectly. The cookware used has too Replace the cookware. thick walls The child lock button is Press and hold the child activated, and the power lock key for 3 seconds.
-
Page 14: Customer Service
Contact after-sales Cracks in the heating Damaged during service and provide element transportation corresponding videos or pictures. Customer Service Call: +1 (888) 907-5060 (Toll Free) Business Hours: 9 AM-5 PM, Mon-Fri Email: service@xkitchen.store - 12 -...
