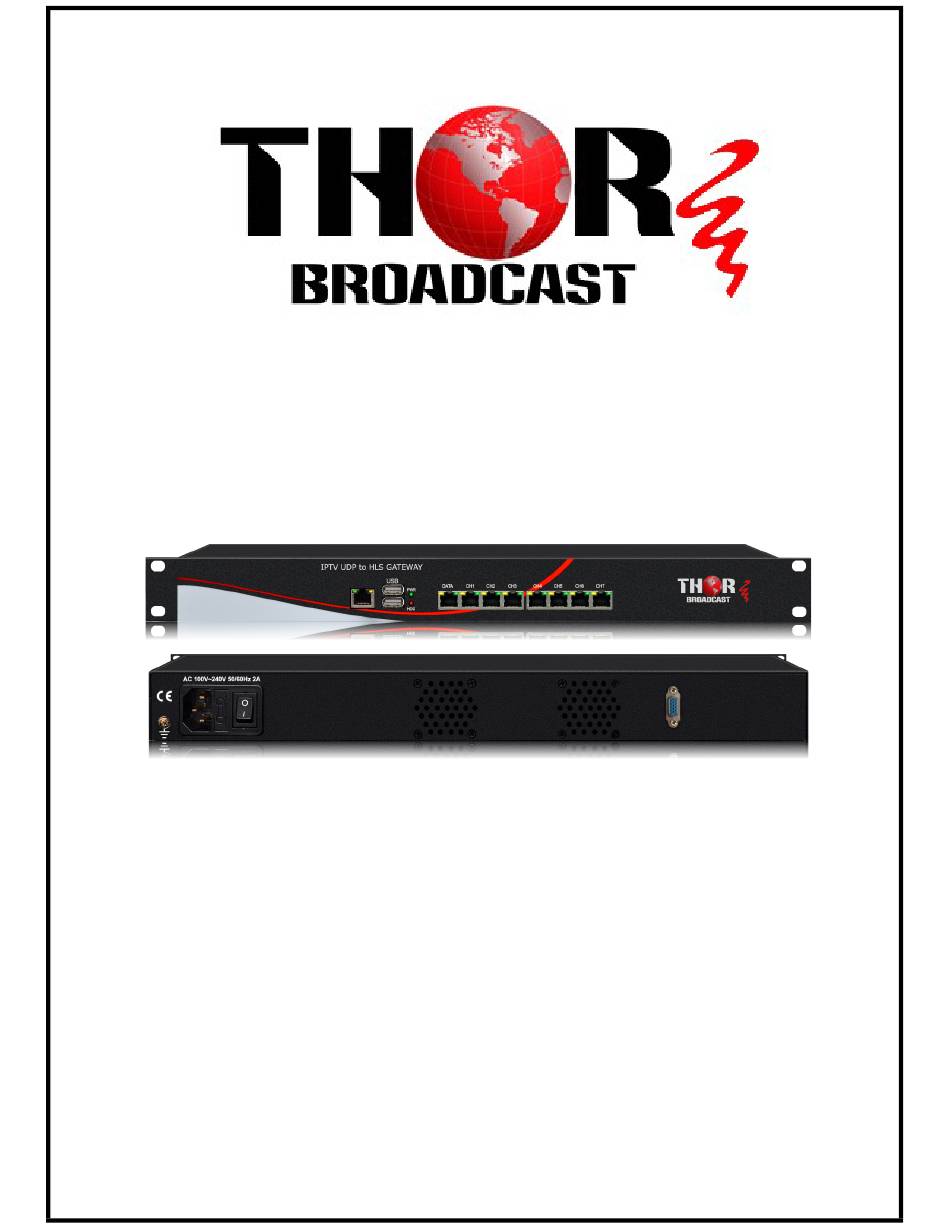

  • Page 1 User Manua l IPTV UDP to HLS GATEWAY H-IPTV-GATEWAY...
  • Page 2 H-IPTV-GATEWAY A Note from Thor Broadcast about this Manual Intended Audience This user manual has been written to help people who have to use, integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.

  • Page 3: Table Of Contents

    H-IPTV-GATEWAY DIRECTORY IPTV UDP TO HLS GATEWAY ......................0 CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 Outline ................................1 1.2 Features ................................1 1.3 IP Protocol Conversion ..........................2 1.4 General Principle Chart ..........................2 1.5 Specifications ..............................2 1.6 Appearance and Description .......................... 3 CHAPTER 2 INSTALLATION GUIDE ....................

  • Page 4: Chapter 1 Product Outline

    H-IPTV-GATEWAY Chapter 1 Product Outline 1.1 Outline IPTV Gateway is a device which is used for the protocol conversion H-IPTV-GATEWAY scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol.

  • Page 5: Ip Protocol Conversion

    H-IPTV-GATEWAY 1.3 IP Protocol Conversion 1.4 General Principle Chart 1.5 Specifications IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS Input TS files uploading through Web management IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS IP output and RTMP (Program source should be H.264 and AAC encoding)

  • Page 6: Appearance And Description

    H-IPTV-GATEWAY shall prevail, and suggest maximum 80% CPU utilization web-based NMS management thru DATA port Demission 482mm×324mm×44mm (WxLxH) General Temperature 0~45℃(operation), -20~80℃(storage) Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz 1.6 Appearance and Description Front Panel Illustration: Reserved ports for future...

  • Page 7: Chapter 2 Installation Guide

    2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  H-IPTV-GATEWAY IPTV Gateway  User’s Manual  Grounding Cable  Power Cord If any item is missing or mismatching with the list above, please contact local dealer.
  • Page 8 H-IPTV-GATEWAY 2.2.2 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to H-IPTV-GATEWAY IPTV Gateway, user should set the power switch to “OFF”. Tel: (800) 521-8467 Email: sales@thorfiber.com...

  • Page 10: Chapter 3 Web Nms Operation

    User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the H-IPTV-GATEWAY’s IP address; otherwise, it would cause IP conflict. 3.1 login The default IP of this device is 192.168.200.136:3333...

  • Page 11: Operation

    H-IPTV-GATEWAY Figure-1 3.2 Operation System Chart When we confirm the login, it displays the status interface where users can have an overview of system chart. (Figure-2) User can click any item here to enter Schematic diagram of corresponding system connection...
  • Page 12 H-IPTV-GATEWAY Number 1-8 refers to 8 data ports. Number 1 refers to the output data port. So users can’t set dialing parameters. Figure-3 Streaming Media→ Custom Program Clicking “Custom Program”, it displays the interface where users can upload TS files from local sources for distributing programs.
  • Page 13 H-IPTV-GATEWAY (RTMP is only supported when input sources are H.264 and AAC encoding Output address can’t be changed when selecting HLS as output protocol. (Figure-5) Click here to select the programs Figure-5 : Click to edit or delect programs Click to start/stop/stop all the program distribution : Click box in front of program number, and then click it to batch programs information as below box.
  • Page 14 H-IPTV-GATEWAY : Click to batch delete programs : Click to sort programs manually by dragging program’s name Streaming Media→ HTTP Clicking “HTTP”, it displays the interface where users can set the HTTP parameters. HLS, HTTP and RTSP can’t be converted into HTTP directly, but UDP and RTP can be converted into HTTP.
  • Page 15 H-IPTV-GATEWAY Figure-6 ADV→ Rolling Subtitles ADV function is only applicable to IP out application and the STB and TV must be installed IPTV APK. Clicking “Rolling Subtitles”, it displays the interface where users can add rolling subtitles and set subtitles’ parameters. After submitting, rolling subtitles will appear when playing programs.
  • Page 16 H-IPTV-GATEWAY Clicking “Boot Images”, it displays the interface where users can add boot images. Click “Add” and then upload it. After submitting, boot images will appear when starting IPTV APK. (Figure-8) Figure-8 More Configuration→ System Set Clicking “System Set”, it displays the interface where users can select client protocol and Unicast output port, and set ADV parameters.
  • Page 17 H-IPTV-GATEWAY More Configuration→ Streaming Media Setting Clicking “Streaming Media Setting”, it displays the interface where users can set streaming media parameters. (Figure-10) Figure-10 More→ Client Management Clicking “Client Management”, it displays the interface where users can download APK from this device and then upload it to STB and TV. (Figure-11)
  • Page 18 H-IPTV-GATEWAY Figure-11 Clicking “Download APK”, it will trigger a box as below (select saving pass) to save IPTV APK flie. More→ AUZ Information Clicking “AUZ Information”, it displays the interface where users can check the authorization information. (Figure-12) Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 19 H-IPTV-GATEWAY Figure-12 System Information Clicking “System Information”, it displays the interface where users can check the system information such as CPU usage rate, CPU usage record and so on. (Figure-13) Figure-13 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...

  • Page 20: Chapter 4 Troubleshooting

    H-IPTV-GATEWAY Chapter 4 Troubleshooting quality assurance system has been approved by CQC organization. For H-IPTV-GATEWAY guarantee the products’ quality, reliability and stability. All THOR products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.
  • Page 21 H-IPTV-GATEWAY For Further Tech Support 1-800-521-Thor(8467) support@thorfiber.com Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
