AutoPatch AF-10 Installation And Setup Manual

Accessory card frame system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

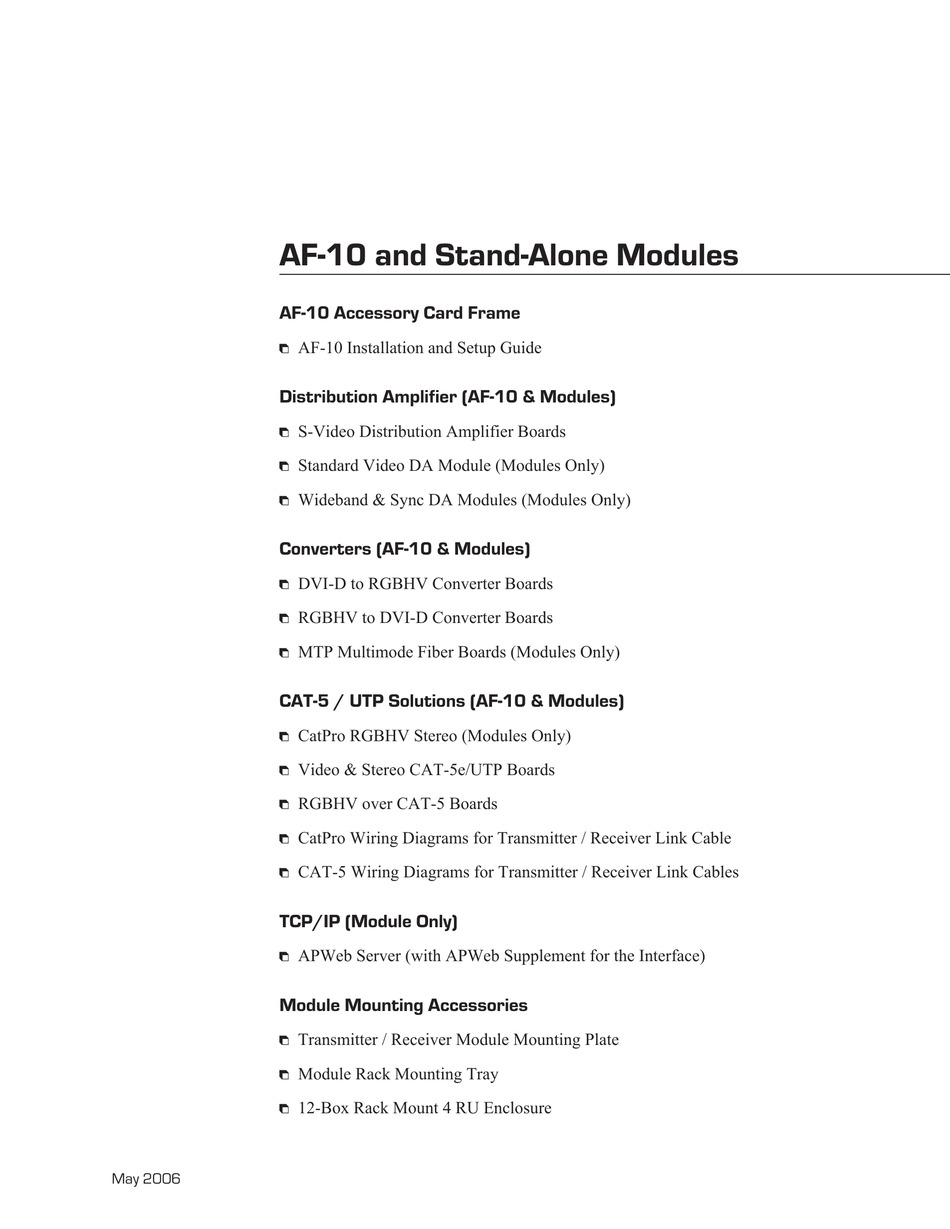

AF-10 and Stand-Alone Modules
AF-10 Accessory Card Frame
/
Distribution Amplifier (AF-10 & Modules)
/
/
/
Converters (AF-10 & Modules)
/
/
/
CAT-5 / UTP Solutions (AF-10 & Modules)
/
/
/
/
/
TCP/IP (Module Only)
/
Module Mounting Accessories
/
/
/
May 2006
AF-10 Installation and Setup Guide
S-Video Distribution Amplifier Boards
Standard Video DA Module (Modules Only)
Wideband & Sync DA Modules (Modules Only)
DVI-D to RGBHV Converter Boards
RGBHV to DVI-D Converter Boards
MTP Multimode Fiber Boards (Modules Only)
CatPro RGBHV Stereo (Modules Only)
Video & Stereo CAT-5e/UTP Boards
RGBHV over CAT-5 Boards
CatPro Wiring Diagrams for Transmitter / Receiver Link Cable
CAT-5 Wiring Diagrams for Transmitter / Receiver Link Cables
APWeb Server (with APWeb Supplement for the Interface)
Transmitter / Receiver Module Mounting Plate
Module Rack Mounting Tray
12-Box Rack Mount 4 RU Enclosure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AF-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for AutoPatch AF-10

  • Page 1 CatPro RGBHV Stereo (Modules Only) Video & Stereo CAT-5e/UTP Boards RGBHV over CAT-5 Boards CatPro Wiring Diagrams for Transmitter / Receiver Link Cable CAT-5 Wiring Diagrams for Transmitter / Receiver Link Cables TCP/IP (Module Only) APWeb Server (with APWeb Supplement for the Interface)
  • Page 3 Anyone performing field maintenance on AutoPatch equipment should utilize an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord.
  • Page 4 There are no user serviceable parts inside an AutoPatch product; service should only be done by qualified personnel. ä If you see smoke or smell a strange odor coming from your AutoPatch product, turn it off immediately and call AutoAssist. ä...
  • Page 5 ä Pour éviter les chocs ou les dommages éventuels causés à l’équipement par une décharge électrostatique, veillez à ce le dispositif oit bien relié à la terre avant de toucher les composantes se trouvant à l’intérieur d’un appareil AutoPatch. ä...
  • Page 6 Federal Communication Commission Radio Frequency Interference Statement: “This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 7 (at AutoPatch’s option) replacement parts and ship them to the dealer or to the customer if so directed by written order from the dealer. In that case the replacement will be billed to the customer and the customer may return the failed subassembly within 30 days for credit.
  • Page 8 AutoPatch shall not be liable under any circumstances for consequential or incidental damages including, but not limited to, labor costs or loss of profits arising in connection with the use of or inability to use AutoPatch products.

  • Page 9: Table Of Contents

    Adding Accessory Boards........3-1...

  • Page 10: Welcome

    AF-10, Order #40-10. Installer’s Product Notes The AF-10 is an accessory card frame system that holds up to sixteen plug-in accessory boards. The accessory boards come in an assortment of connector combinations for converting a variety of signals.

  • Page 11: Terms To Know

    This process includes defining levels and breakaways. level A subset of a logical set formed to facilitate the switching of a portion of the logical set. For example, if a logical set is defined by grouping literal inputs and outputs for video components R, G, B, H, V and stereo audio...

  • Page 12: Technical Support

    A logical set that consists entirely of literal outputs. logical set An ordered set of literals that are grouped together in order to be considered a single entity and to be switched as a unit. The logical set may consist of input, output, or control literals. macro...

  • Page 13: Chapter 1 - Unpacking

    Power cord (one per card frame) AF-10 The shipping boxes are marked as “Box #_ of _,” where the first blank is the box number and the second blank is the total number of boxes in the shipment. Box #1 contains several additional items:...

  • Page 14: Rear Of The Af-10

    Expansion Slots Additional accessory boards can be ordered for any of the board slots that are empty. If you use the expansion slot with the serial number, we recommend keeping the slot plate with the serial number with the system for easy reference.

  • Page 15: Chapter 2 - Placing And Installing

    (7.6 cm) of clearance around the card frame openings for proper airflow. Reduced Airflow Installation of the equipment in a rack should be such that the amount of airflow required for safe operation of the equipment is not compromised. Caution: Avoid placing high heat-producing equipment directly above or below the card frame.

  • Page 16: Rack Mounting The Af-10

    POWER CORDS TO A SINGLE SURGE PROTECTOR AND/OR AN AC LINE CONDITIONER. 2.2 Rack Mounting the AF-10 The AF-10 can be mounted in a standard EIA 19 in. (48.26 cm) rack. To hold the accessory card frame in place, rack installation ears are attached prior to shipping.
  • Page 17 Rack Mounting the AF-10 Rack installation of an AF-10 Note: Adjustments may need to be made for the length of the cable as cabling/wiring is done. Check the Board Installation Guide(s) in the back of this manual for details. 2. Attach the cables/wires to the connectors on the rear of the card frame per the instructions in the Board Installation Guide(s) (in the back of this manual) for specific accessory boards.

  • Page 18: Chapter 3 - Adding And Connecting Accessory Boards

    3.1 Adding Accessory Boards You may need to adjust the board to compensate for the length of the cable, if the length does not match the length specified for the factory default setting. Make any necessary adjustments before adding the board to the accessory card frame.
  • Page 19 Adding and Connecting Accessory Boards 3. Line up the accessory board with the board guides that are on the top and bottom of the board slot. With the board extractor handle in the down position, carefully push the board firmly into the slot. When the board is almost in, the extractor handle will start to lift.

  • Page 20: Connecting Accessory Boards

    Connecting Accessory Boards 3.2 Connecting Accessory Boards Each Board Installation Guide in the back of this manual includes directions for connecting to a specific model of accessory board’s connectors. Installation and Setup Guide...

  • Page 21: Appendix A - Autopatch Service And Returns Policy

    Express Economy service; however, AutoPatch reserves the right to select the final method and carrier for any shipment. Although we take special care to ensure the safe arrival of all orders, shipping accidents and damage can occur. Shipments are transferred to the appointed carrier in good condition, and AutoPatch’s liability for the...

  • Page 22: Replacement Policies And Procedures

    (at AutoPatch’s option) replacement part(s) to the dealer and ship the part(s) to the dealer or to the consumer if so directed by written order from the dealer. Unless otherwise instructed in writing by an AutoPatch...

  • Page 23: Special Notice

    (at AutoPatch’s option) replacement part(s) to the dealer or to the consumer if so directed by written order from the dealer. 3. Post warranty repairs and replacements are warranted for the first thirty (30) days following invoice date.

  • Page 24: Appendix B - Product Specifications

    Product Specifications This page contains performance specification for your AutoPatch AF-10. The AutoPatch web site (www.autopatch.com) also has a full list of specifications for all AutoPatch products. B.1 General AC Power 100 - 240 V single phase Frequency 47 - 63 Hz...
  • Page 25 AC power B-1 power switches 2-2 accessory boards circuit overloading 2-2 See boards clearance 2-1 accessory card frame system i adding boards 3-1 damage, shipping 1-1 adjustments, for cable length 2-3 dimensions B-1 airflow restriction, Caution 2-1 Distribution Matrix (DM)
  • Page 26 2-2 environment 2-1 removing boards 3-2 mounting 2-2 site recommendations 2-1 size 2-2 tools 2-2 rear of enclosure, illus. 1-2 Installer's Product Notes i removing boards 3-2 invoices 1-1 replacement policies and procedures A-2 return authorizations A-1 level returning equipment A-1...
  • Page 27 (VM) definition iii Warning adding boards, ESD 3-1 warranty repair and replacement information A-1 Special Notice A-3 web site iii weight B-1 wiring connectors 2-3 Installation and Setup Guide...
  • Page 28 Module with CAT-5e/UTP Receiver board The boards all work in the same basic way, converting audio and video signals to CAT-5e format cabling or vice versa. For example, a transmitter board with an S-Video connector and RCA connectors converts S-Video and stereo input signals from a source device to CAT-5e, allowing all four signals to be sent together on a single CAT-5e cable.
  • Page 29 AF-10: To adjust a CAT-5e/UTP Receiver board in a module: 1. Remove the screws at the top and bottom of the board’s faceplate. 2. Push down on the board extractor handle and 1. Remove the screws on each side of the receiver (four screws total).
  • Page 30 CAT-5e/UTP Board Installation To attach connectors: Note: To determine the correct wiring to use for the audio connectors, check the type of 1. Adjust the board for line length if necessary connection specified in the table at the bottom of (See procedure A).

  • Page 31: Product Specifications

    = 5 MHz <-70 dB Unbalanced Version Audio THD + Noise f = 20 Hz to 20 kHz, Vin = -10 to +8 dBu <0.01% Balanced Version f = 20 Hz to 20 kHz, Vin = +4 to +22 dBu <0.01%...
  • Page 32 Each model of an S-Video Distribution Amplifier board has five S-Video connectors: one input and four outputs or five outputs that are paired with the 1:4 board to create a 1:9 distribution amplifier. These boards are built either as a stand-alone, distribution amplifier module (see graphic below) or as distribution amplifier accessory boards for an AF-10 (see graphic on reverse).
  • Page 33 #40-455. When using both, board slot (counting from left to right). For example, use slots 1 and 2, 3 and 4, 5 and 6, and so on. The input on #40-452 will then route Odd-even numbered, slot pairs:...
  • Page 38 RGBHV with CAT-5 Transmitter and Receiver boards each have an HD-15 and an RJ-45 connector. Transmitter boards pass RGBHV from a source device over CAT-5e cable (allowing RGBHV to be sent over longer distances). Receiver boards accept RGBHV from CAT-5e cable and pass it on to destination devices. Model numbers vary depending on the type of installation and the length of cable used.
  • Page 39 HD-15 jack. Impedance 75 Ohms Note: Cable is available in fixed lengths. Each cabled set allows up to 300 ft. to maintain specs. Total distance must be <400 ft. (121.92 m). 40-467 RGBHV over CAT-5 Transmitter Board HD-15 Board Connector Pinout Note: Use CAT-5, CAT-5e, or CAT-6 cable.
  • Page 55 Setting Admin & User Account Logins........1-5...
  • Page 56 Executing & Disconnecting Switches ........

  • Page 57: Apweb Overview

    The module or expansion board is connected via an RJ-45 link cable to a LAN (Local Area Network), the Internet, or a network card in a computer (which could then connect to a LAN or the Internet). See the module or expansion board supplement for cabling information.

  • Page 58: Chapter 1 - Network Administrator/Initial Setup

    Chapter 2 contains instructions for the person using APWeb to control an AutoPatch Routing System. We suggest making a copy of Chapter 2 to give to the user along with the user name and password that you set for them.

  • Page 59: Opening The Apweb Server

    To set up the APWeb server: 1. Follow the directions in the APWeb module or expansion board installation supplement for connecting the APWeb board to a LAN or to a network card in a computer. 2. Launch a browser on your computer.

  • Page 60: Overview Of The Admin Home Page

    APWeb version number Links Number of defined macros Bootup discovery information The links on the left side of the Home page access the pages listed below: Link Page – Function Home Home – the main page in the APWeb site Controller XBar –...

  • Page 61: Setting A Static Ip Address

    1.3 Setting a Static IP Address The current (default) IP address is displayed on the APWeb Configuration page under the section for Current APWeb Settings. A field is provided on the same page under Configure APWeb Settings for entering a static IP address.

  • Page 62: Using A Dhcp Ip Address (Optional)

    If further security is required, we recommend locking the module (or enclosure with expansion board) in a secure location. User names and passwords are sent in clear text over the network, thus leaving them vulnerable to network sniffers. We also recommend deploying APWeb in a secure LAN environment.
  • Page 63 Network Administrator / Initial Setup Note: System security can also be turned on and off at the Account Profile / Site Security page (see page 1-17). User login information Administration login information Default User Name and Password Administration Account Login - super and super...

  • Page 64: Executing A Test Switch With The Xbar

    The test switch below routes Input (source channel) 2 to Output (destination channel) 1 on VM0 (Virtual Matrix 0). If the system does not have a VM0, use the VM in the VM title block. (For directions on changing VMs, see page 1-21.) To execute a test switch with the XBar: 1.

  • Page 65: Executing A Test Switch With Bcs

    (e.g., a Y/c signal over two BNC connectors). The following test switch routes Input 1 to Output 2 on Level 0. If the system does not have a VM0, use the level indicated on the “Connector Guide.”...

  • Page 66: Customizing The Site

    The new name appears at the top of all the pages within APWeb. Enabling/Disabling Product Services APWeb can be customized for additional access to the system using any or all of three different means (Telnet, X Net tunnel, and BCS tunnel). These means can be enabled or disabled from the APWeb Administration page.

  • Page 67: Customizing Bootup Operations

    APWeb Configuration page if you plan on using a different one than the default, which is 3500. BCS Tunnel – check this option to be able to open a TAP for entering BCS control commands. This is especially useful for third-party controllers (such as Crestron and AMX), which control the attached AutoPatch system using IP connectivity.
  • Page 68 The default setting for this option is on. If it is off, APWeb will not make any retrieval attempts from the attached system during a reboot; instead, it will display whatever was in memory the last time it was running.

  • Page 69: Customizing The Control Options

    Customizing the XBar The XBar displays input and output channels which can be customized. In addition, you can set the initial VM for executing switches. The VM is displayed in the VM title block in the upper left corner of the XBar.

  • Page 70: Creating / Editing Macros

    The default virtual matrix for executing switches that will display for all XBar Controllers that are launched for the system can be specified on the Configuration page. The VM is displayed in the VM title block in the upper left corner of the XBar Controller.
  • Page 71 Do not enter a space between the “T” ending one command and the start of the next command. For example, to route Input 2 to Output 7, to route Input 5 to Outputs 21, 23, and 24, and to execute Local Preset 7 on Level 0 enter the following command:...

  • Page 72: Manually Configuring Vms

    1. From any page in the site, click the Create Macro link. 2. Enter the new BCS commands in the BCS String field. 3. Enter the exact name of the macro which is being redefined in the Macro Name field.
  • Page 73 For example, if you want to create a VM that only has access to 8 outputs in a system with 32 outputs, they will be the first 8 outputs.

  • Page 74: Handling Security Issues

    We strongly recommend that this service be turned off when not in use (see page 1-10). Turning System Security Off The option to turn system security on and off is on the Account Profile / Site Security page (accessed by clicking the Authentication button on the Administration page).

  • Page 75: Resetting The User Name /Password

    5. Wait approximately 20 to 30 seconds; then flip the Service switch down or to the left to automatically reboot and return to normal functioning. 6. Optional – If you do not want to use the default values, enter new user names and passwords by following the steps on page 1-6.

  • Page 76: Opening A Telenet Session

    Structure) command (see page 1-8) and view Communication Statistics. Since only one client at a time can initiate a Telnet session, other clients who try to use Telnet or the XBar Controller will be notified that they cannot control the system until the initial session is closed.
  • Page 77 Network Administrator / Initial Setup Any APWeb server for a single system can be accessed from up to five PCs at the same time. The XBar for that system can be operated simultaneously from all of the PCs using the same or different VMs. Simultaneous XBar users can open the VM Selection Pad and update status as needed.
  • Page 78 1. From any page in the site, click the Controller link. The XBar launches. 2. Optional (to change the VM) – Click the VM title block in the upper left corner. The VM Selection Pad dialog box opens. From the VM list, select the new VM.

  • Page 79: Executing Macros

    Network Administrator / Initial Setup Executing Macros Once a macro is created for a system on APWeb, it can be executed from any PC with access to the APWeb server for that system. Macros are listed after being created on the Create/Edit Macro page To execute a macro: 1.

  • Page 80: Connection Information Worksheet

    (The user names and passwords are case sensitive.) Addresses (Must Be Supported) Fixed or Static IP Address: ______ . ______ . ______ . ______ (The default APWeb address is 192.168.0.251) Subnet Mask: ______ . ______ . ______ . ______ (The default Subnet Mask is 255.255.255.0)

  • Page 81: Chapter 2 - Using Apweb

    Using APWeb This chapter starts with four easy steps for connecting to APWeb after the initial setup by the Network Administrator. It then explains how to use APWeb’s two control options for executing and disconnecting switches: the XBar Controller (a crosspoint interface) and Macros (which are programmed by the Network Administrator).

  • Page 82: Home Page

    (VMs) and the number of currently defined macros. The site name can be customized to uniquely identify your AutoPatch Routing System (contact your Network Administrator). Home Page Links The links on the left side of the Home page access the pages listed below: Links Pages – Function Home Home –...

  • Page 83: Executing & Disconnecting Switches

    An APWeb server provides access to a single AutoPatch Routing System from a specific IP address and can be accessed from up to five PCs at the same time. If you are controlling the same system as other users, you can open the VM Selection Pad and update status as needed (see page 2-4).

  • Page 84: Executing & Disconnecting Switches On The Xbar

    1. From any page in the site, click the Controller link. The XBar launches. 2. Optional (to change VM) – Click the VM title block in the upper left corner. The VM Selection Pad dialog box opens. From the VM list, select the new VM.

  • Page 85: Executing Macros

    2. Click the macro button for the macro you want to execute. When the text on the macro button turns green, the macro has successfully executed. (If the text on the macro button turns red, the macro failed to execute.)

  • Page 86: Appendix A - Embedding The Xbar Applet

    Embedding the XBar Applet The XBar applet can be embedded in a custom website by using the applet tag shown below. Make any of the following adjustments to the code to fit your particular system’s requirements. codebase Replace the value with the IP address for your system if it is different than the default IP address.

  • Page 87: Appendix B - Changing The Proxy Setting

    Check the Link indicator LED on the APWeb module (or expansion board). If the indicator is not illuminated, check the cable type. It must be an RJ-45 crossover cable from the APWeb module (or expansion board) to the PC or an RJ-45 straight-through patch cable from the APWeb module (or expansion board) to the network/hub.
  • Page 88 3. Click LAN Settings. The Local Area Network (LAN) Settings dialog box opens. If the Proxy server box is checked, go to Step 4. If the Proxy server box is not checked, check it before going to Step 4. APWeb...
  • Page 89 4. Click Advanced. The Proxy Settings dialog box opens. 5. In the Exceptions field, enter the appropriate APWeb IP address (the default is 192.168.0.251). 6. Click OK to exit each of the dialog boxes used in these steps. APWeb...

  • Page 90: Appendix C - Upgrading The Firmware

    Version 1.1.0 and greater ä User name and password for the admin account are reset to their defaults of super and super. User name and password for the user account are reset to their defaults of none and none.
  • Page 91 PC. To upgrade the firmware for APWeb: 1. Flip the Service switch up (on the expansion board) or to the right (on the module) to place it in Service mode (see Figure 2). Figure 2: Service switch in Service mode 2.
  • Page 92 5. If the IP address displayed in the dialog does not match the default one for the expansion board or module to be upgraded: Enter the correct address in the field. Click the Find button, select the correct address in the Find Netburners dialog box, and click OK.
  • Page 93 Index This index only includes entries for the APWeb supplement. Most sections in the product binder for the distribution matrix each have their own index. Please check the binder indexes for additional system information not covered here. Account Profile / Site Security page 1-5,...
  • Page 94 Channel Names 1-11, 1-12, 1-13 control options Hardware Devices 1-11 HyperTerminal 1-10, 1-19 macros 1-22, 2-5 Discovery XBar Controller 1-19 to 1-21, 2-3 Enable System 1-11 indicator, Link B-1 to 2-4 Force VM 1-11 internet connection worksheet 1-23 Controller, XBar...
  • Page 95 C-3 1-23 security enable / disable product services 1-9 Caution 1-2 update system status 1-20, 1-21, 2-3, 2-4 reset user name / password 1-18 issues, handling 1-17 upgrading firmware C-1 to C-3 set up APWeb 1-2 recommendations 1-5...
  • Page 96 Index VM Selection Pad dialog box full names, display 1-12 function 1-20, 2-3 status, update 1-20, 1-21, 2-3, 2-4 VM, change 1-21, 2-4 VM title block VM Selection Pad, open 1-12, 1-20, 2-3, 2-4 VMs, accessible A-1 website customizing APWeb 1-9...
  • Page 101 Transmitter/Receiver Module Mounting Plate 911114 A0 Attach the mounting plate to the top or the bottom of the module. Fasten using the 4/40 x ¼" undercut screws provided.
  • Page 102 Module Rack Mounting Tray 10-813 The modules’ connectors may face to the front or to the rear of the tray (see Figures 2 and 3). To install a module in the module rack mounting tray: 1. Remove the module feet by prying loose with a screwdriver.
