Summary of Contents for Intimidator Spot 160 ILS

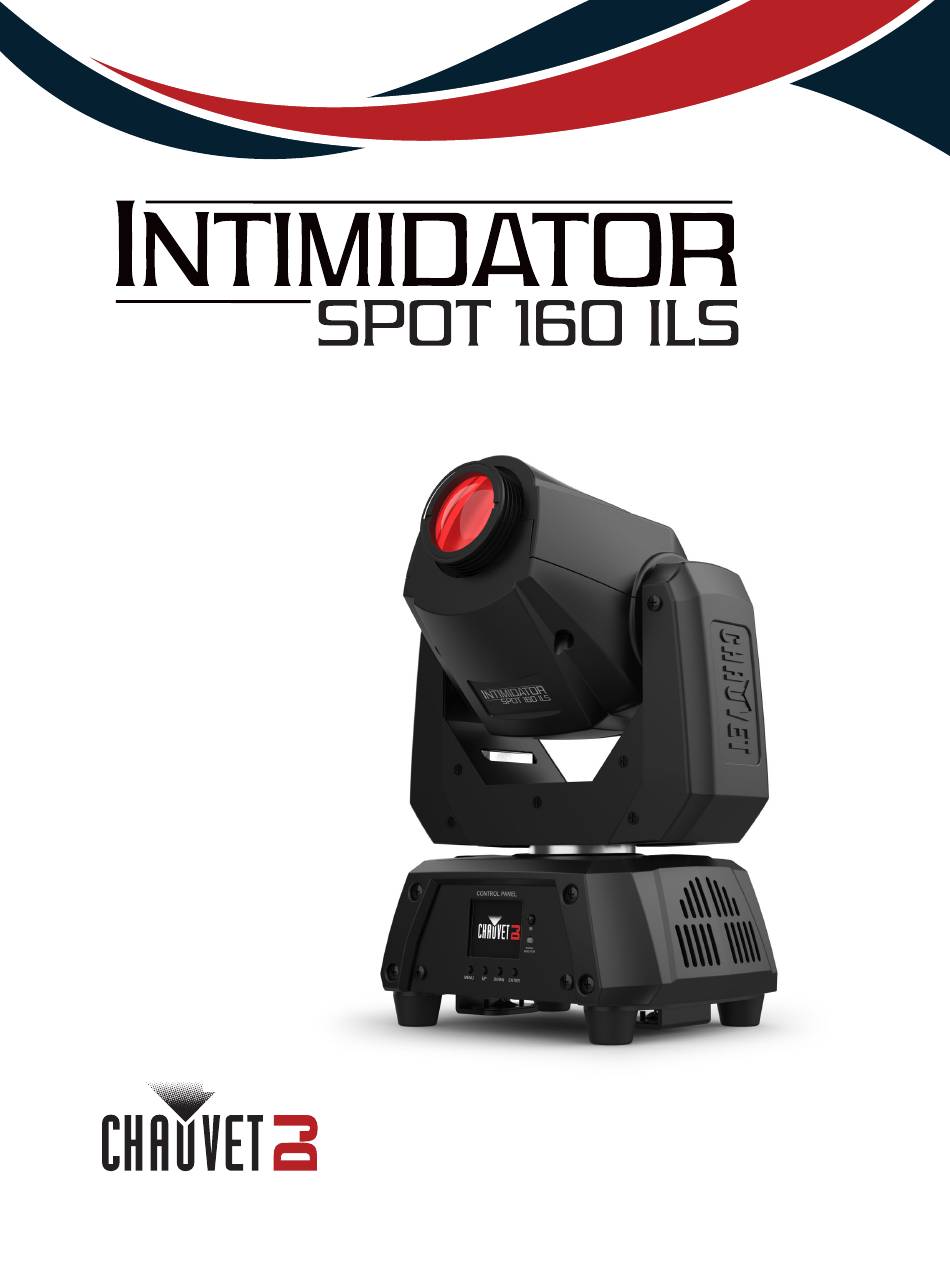

- Page 1 User Manual...
- Page 2 Edition Notes The Intimidator Spot 160 ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Intimidator Spot 160 ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Intimidator are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Tilt Angle ........................12 Totem Mode ........................12 DMX Loss........................12 Indicator ......................... 13 Flash if DMX........................13 Follow Spot Mode ......................13 Reset..........................13 Factory Reset......................... 13 System Information ......................13 Intimidator Spot 160 ILS User Manual Rev. 3... - Page 4 Gobo Wheel ........................Blackout .......................... Master/Slave Mode ....................Wired Master/Slave Mode....................15 D-Fi USB Master/Slave Mode ..................15 ILS Mode........................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Contact Us......................Warranty & Returns....................Intimidator Spot 160 ILS User Manual Rev. 3...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 6: Safety Notes
♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 7: Introduction
LED indicator LED display Menu buttons Safety loop Power out Fuse holder Power in DMX in/out D-Fi USB port Product Dimensions 8.2 in (207 mm) 12 in (305 mm) 5.9 in (149 mm) Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 8: Setup
Power-Linking Diagram Power source Additional products It is possible power link up to 7 Intimidator Spot 160 ILS products on 120 VAC or up to 12 products on 230 VAC. Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 160 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Navigates downwards through the menu list or decreases a selected numeric value <ENTER> Enables the currently displayed menu or sets a selected value into the selected function Menu Map Refer to the Intimidator Spot 160 ILS product page on www.chauvetdj.com for the latest menu map. Main Level... -
Page 11: Dmx Configuration
DFI: _ _ _ _ _ _ _ Displays connected D-Fi (if available) DMX Configuration The Intimidator Spot 160 ILS works with a DMX controller. Information about DMX is in the Chauvet DMX Primer available from the Chauvet website: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. -
Page 12: D-Fi Usb Connectivity
D-Fi USB Connectivity The Intimidator Spot 160 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 13: Dmx Channel Assignments And Values
004 007 Open 008 076 Strobe (slow to fast) Shutter 077 145 Pulse strobe (slow to fast) 146 215 Random strobe (slow to fast) 216 255 On Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 14: Gobos
184 199 Sound-active movement macro 4 200 215 Sound-active movement macro 5 216 231 Sound-active movement macro 6 232 247 Sound-active movement macro 7 248 255 Sound-active movement macro 8 Gobos Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 15: Standalone Configuration
4. Use <UP> or <DOWN> to select Sound. 5. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Spot 160 ILS, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 16: Tilt Reverse
DOWN (restricts the pan and tilt motion for surface/floor mounting). 7. Press <ENTER>. DMX Loss To set the action the Intimidator Spot 160 ILS will do when signal is lost, do the following: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. -
Page 17: Indicator
4. Use <UP> or <DOWN> to select Reset. 5. Press <ENTER>. Factory Reset To restore the Intimidator Spot 160 ILS to factory default settings, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 18: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Intimidator Spot 160 ILS is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 160 ILS to IR mode, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Run Mode. -
Page 19: Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single Intimidator Spot 160 ILS product (the “master”) to control the actions of one or more Intimidator Spot 160 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. -
Page 20: Ils Mode
ILS mode. This product will synchronize with the moving heads of the GigBAR MOVE+ILS. To set the Intimidator Spot 160 ILS to respond to an ILS signal: 1. Press <MENU> repeatedly until iLS_ shows on the display. -
Page 21: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 22: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 5 or 11 Ordering Product Name Item Code UPC Number Intimidator Spot 160 ILS 10011850 781462221980 Intimidator Spot 160 ILS User Manual Rev. 3... -
Page 23: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Intimidator Spot 160 ILS User Manual Rev. 3...
