Summary of Contents for Estella 236HWDD1

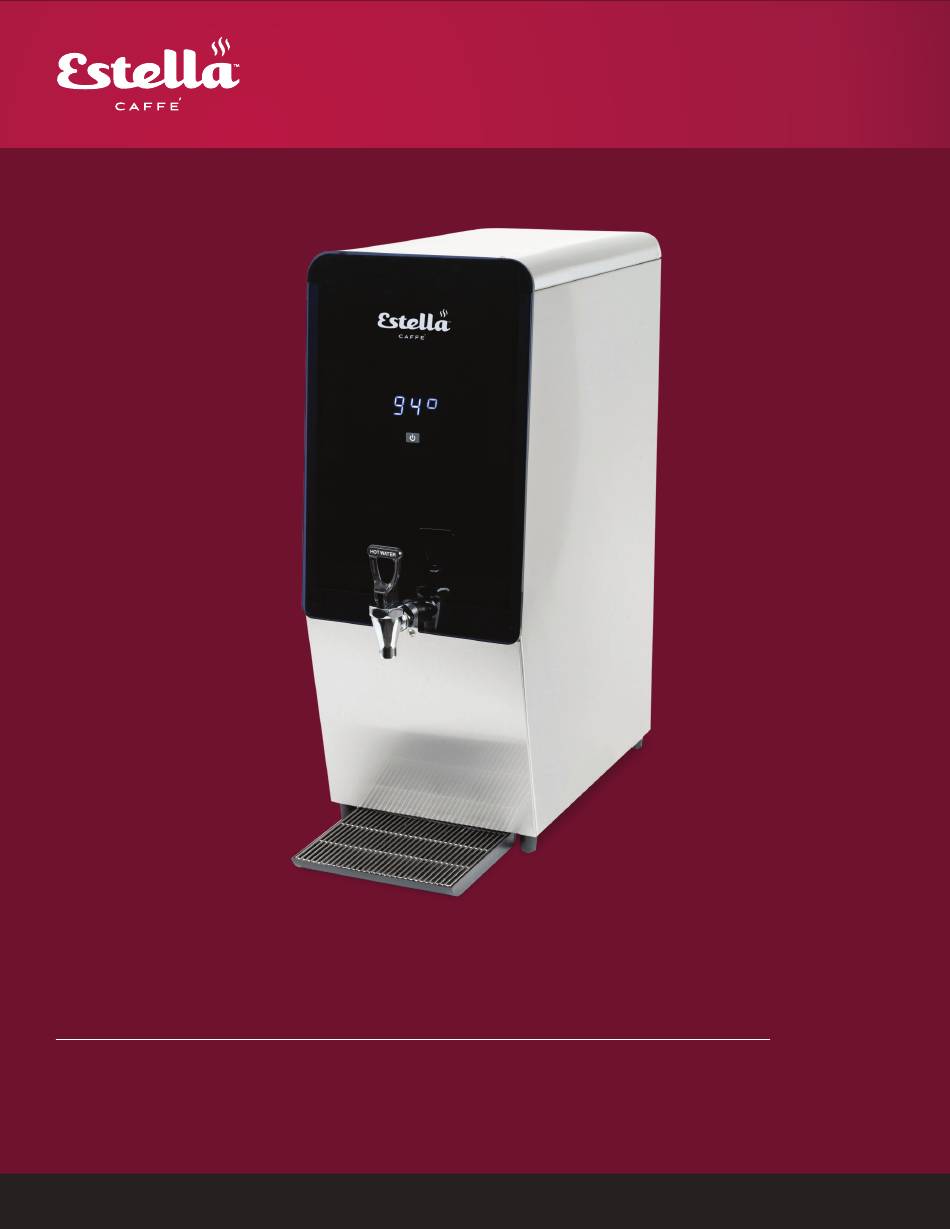

- Page 1 U S E R M A N U A L H O T W AT E R D I S P E N S E R # 2 3 6 H W D D 1 , 2 3 6 H W D D 2 , 2 3 6 H W D D 5 , 2 3 6 H W D D 5 D 08/2024 w w w.
-
Page 2: C R I T I C A L I N F O R M A T I O N
I N D E X Critical Information ........2 Hazard Statements ........3 Initial Setup ............ 4 Cleaning ............5 Initial Operation ..........6 Programming ..........7 Troubleshooting ...........10 Maintenance ..........11 Parts Diagram ..........12 Note: Save these instructions for future reference. C R I T I C A L I N F O R M A T I O N •... -
Page 3: H A Z A R D S T A T E M E N T S
H A Z A R D S T A T E M E N T S • Read the Manual: Thoroughly read and understand the manual before setting up, operating, or cleaning the Hot Water Dispenser. • Proper Installation: Have the Hot Water Dispenser installed by a qualified technician following the manufacturer's guidelines and local regulations. -
Page 4: Initial Setup
I N I T I A L S E T U P Inspect the Packaging: Carefully inspect the exterior of the packaging for any signs of damage that might have occurred during shipping. Unboxing: Open the packaging with care. Use scissors or a box cutter to open the box without damaging the machine or any parts. - Page 5 C L E A N I N G Preparation: Cool Down: If the machine was in use recently, allow it sufficient time to cool down. A minimum of 30 minutes is advisable. Unplug: For safety, unplug the machine from the electrical outlet to avoid electrical shocks. Cleaning the Exterior: Damp Cloth: Use a damp cloth and a light detergent to clean the exterior of the machine.
-
Page 6: Initial Operation
I N I T I A L O P E R A T I O N • Ensure that all procedures have been properly carried out from the Initial Setup section of the manual. • Ensure that the unit is properly connected to water and that the water supply is on. Powering On: Connect the boiler to a suitable power socket. - Page 7 Filter Reset: The system will estimate when the filter needs to be changed. To turn off the flag: a. Hold button down for 10 seconds. b. Keep pressing the button until it reads (00). Release the button for 5 seconds to save. Setting to “00”...
- Page 8 Fill Type Selection: This setting determines how the machine will automatically refill. • Heat Fill (H-F): The inlet valve lets in a small, fixed volume of water and the element turns on, heating the water to the set temperature. This process is repeated until the water has reached the high level probe and the machine is up to temperature.
-
Page 9: Troubleshooting
T R O U B L E S H O O T I N G The screen of the boiler indicates various errors or problems with the machine. See diagnostic table below for details. Error Description Action • Descale machine and low level probe. •... -
Page 10: Maintenance
M A I N T E N A N C E Monthly Checks: Inspect for wear. Purpose: To regularly check all components for signs of wear, tear, or damage, and replace as necessary. Turn off and disconnect the machine from the power source. Inspect the plug and cord for any indications of excessive wear, which may encompass discoloration, burn marks, cuts, and tears. -
Page 11: Parts Diagram
PA R T S D I A G R A M 236HWDD1 / 236HWDD2 Item Item Parts No. Description Qty. Parts No. Description Qty. Tap Chr. Bonnet BlackHW 183006 Gasket Inner Ecoboller 2100279 Compl. 800781 Filter Microfilter M9 Tap Chr. Bonnet BlackHW... - Page 12 PA R T S D I A G R A M 236HWDD5 / 236HWDD5D 14 7 10 3 17 Item Item Parts No. Description Qty. Parts No. Description Qty. 183006 Gasket Inner Ecoboller 1400550 Gasket Inner Ecoboller 2300279 Plastic Driptray MT Boiler 1401170 Plastic Driptray MT Boiler 2301516...
