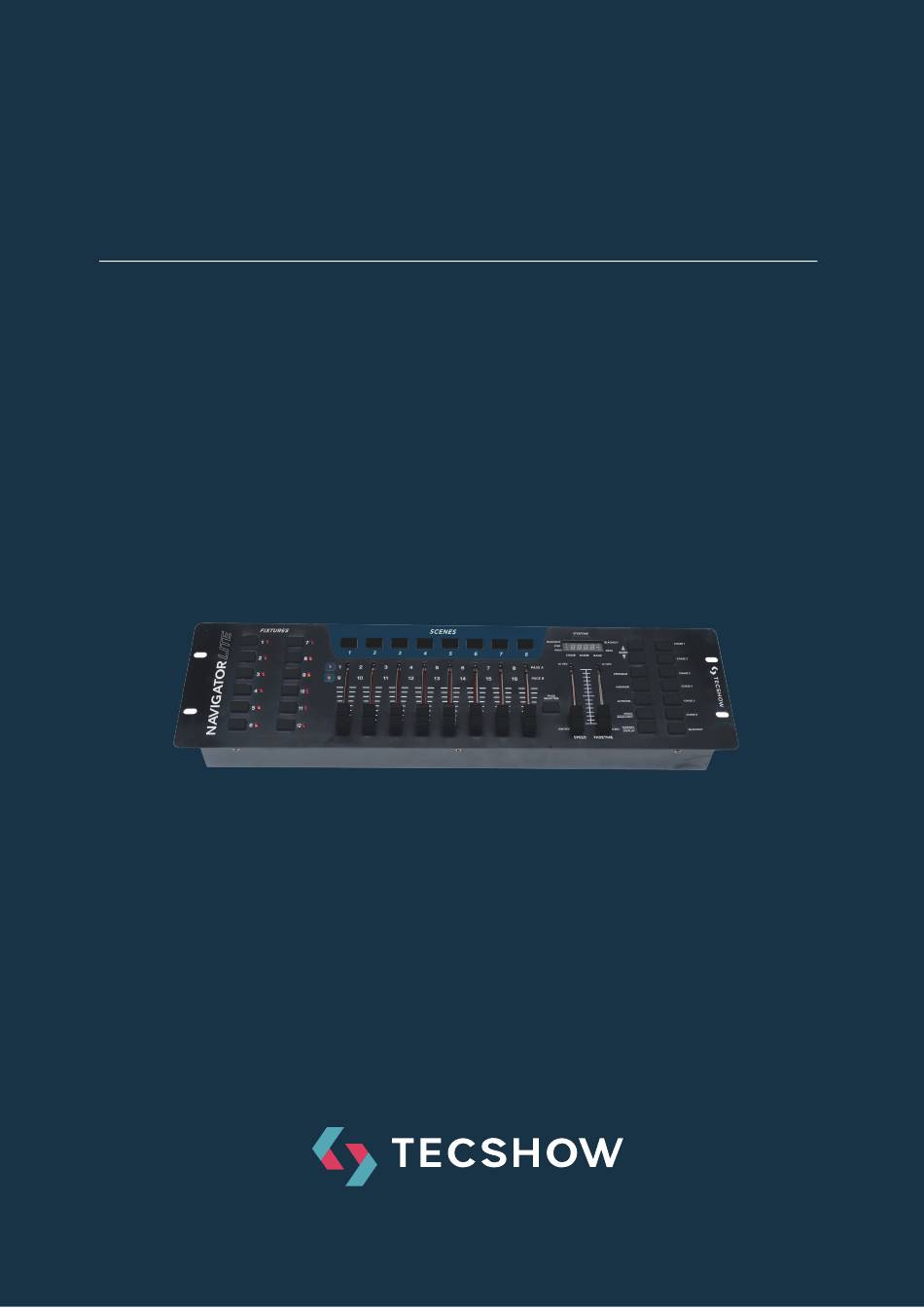

- Page 1 NAVIGATOR LITE DMX controller with 192 channels able to control up to 12 units of 16 channels each USER MANUAL / MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR...
-
Page 2: Specifications
Navigator is a standard universal DMX 512 controller, controlling up to 192 DMX channels. Navigator Lite is a DMX controller with 192 chan- nels able to control up to 12 fixtures of 16 channels each. The unit has a total of 23 banks with 8 pro- grammable scenes (184 scenes max). -
Page 3: Before You Begin
In the event of a serious operating problem, • stop using the product immediately. Do not switch the device on and off in short • P. 3 English version | Tecshow Navigator Lite... -
Page 4: Description Of The Device
8 faders adjust the DMX output level from 0 - 255 • 2 faders control chase speed and fade time • Built-in Microphone • Blackout • Output connector - 3 pin female XLR Overview P. 4 Tecshow Navigator Lite |English version... -
Page 5: Front Control Panel
Speed Slider: To adjust the rate of chase speed in Auto Mode Speed Slider: To adjust the output level from 0~255 or the intensity from 0% - 100% of each channel P. 5 English version | Tecshow Navigator Lite... -
Page 6: Installation
DMX Out of the first product in the rig to DMX In of BANK UPand AUTO/DEL). the next product. Continue connecting until all the products are con- nected like below picture: Additional Produc t s 1st Product 2nd Product 3rd Product P. 6 Tecshow Navigator Lite |English version... -
Page 7: Dmx 512 Addressing
Each of the 12 fixtures is assigned 16 channels. The Dip switches are set as per the chart below: Note: When addressing your fixtures, follow the starting address in this instruction not the addressing found in your fixture user manual. P. 7 English version | Tecshow Navigator Lite... -
Page 8: Scene Programming
5. Press MIDI/Add followed byte Scene Button to copy, then press the scanner button you want where you want to copy to. to copy toll) to exit. Programming mode press and hold the Program button for 3 seconds. P. 8 Tecshow Navigator Lite |English version... -
Page 9: Delete Scene
2. Select the bank to be deleted. Press the Auto/Del and Music/Bank- Copy at the same time to delete the Bank .The LCD will flash to indicate the function completion P. 9 English version | Tecshow Navigator Lite... -
Page 10: Running Scenes
2. Press and hold the Auto/Del button and then press and hold the Chase button of the have to be deleted. The LEDs will flash three times. 3. Release both button and the chase will be deleted. P. 10 Tecshow Navigator Lite |English version... -
Page 11: Running Chases
2. Press and release the Auto/Del button. The corresponding LED Will flash. 3. Adjust the Speed and Fade Time to your desired settings. The Chase will run according to your settings. P. 11 English version | Tecshow Navigator Lite... -
Page 12: Troubleshooting
If in Auto Mode, did you adjust. Speed after selecting Auto is Fade time to long for speed selected lf the XRL cable is more than30 meters, check if it is terminated properly P. 12 Tecshow Navigator Lite |English version... - Page 13 FOR MORE INFO ON THIS PRODUCT PLEASE CHECK AMPROWEB.COM / PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO VISITE AMPROWEB.COM P. 13 English version | Tecshow Navigator Lite...
