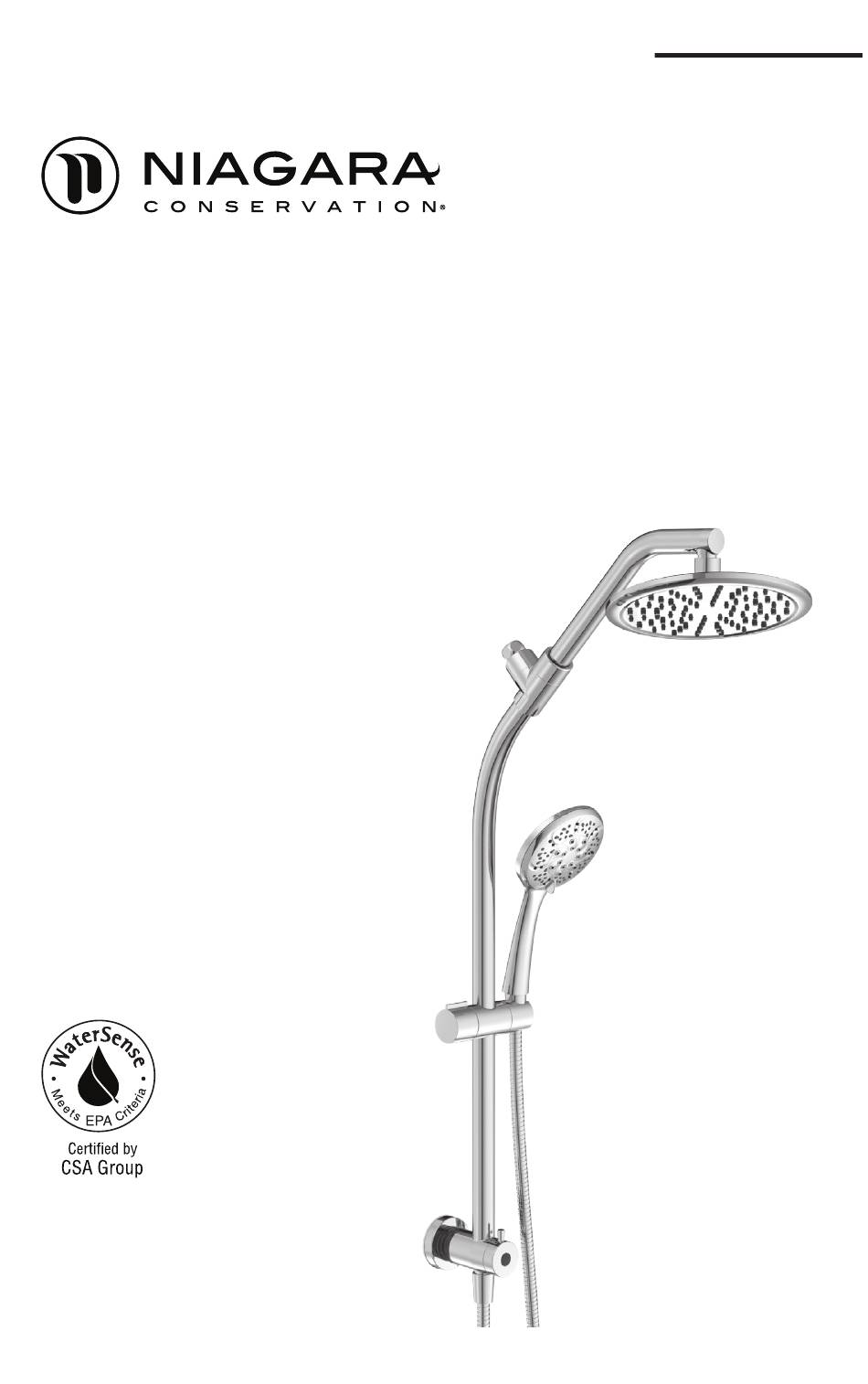

- Page 1 User Manual SHOWERRAIL SYSTEM INSTALLATION INSTRUCTIONS Models: NSR175-RF-6FHH-CH NSR175-RF-6FHH-MB NSR175-RF-6FHH-BN This diagram is for illustration purposes only. Your model may vary.
-
Page 2: Table Of Contents
USER MANUAL USER MANUAL PARTS INCLUDED TABLE OF CONTENTS Specifications Parts Included ..................3 Usage ......................4 Ceiling and Water Controls Clearance ..........5 32-5/16 " Installation ....................6 ShowerRail Care and Maintenance................12 Safety Precautions ................13 Warranty and Service ................14 Ordering Parts or Accessories ............14 4-9/16"... -
Page 3: Ceiling And Water Controls Clearance
USER MANUAL USER MANUAL USAGE INSTRUCTIONS CEILING AND WATER CONTROLS CLEARANCE Diverter Valve Diverter valve controls the rain showerhead and Ceiling Clearance 5 inches handheld shower functions. Turn it clockwise for Space required for handheld shower and turn shower rail to fit without counterclockwise for rain hitting ceiling as Diverter... -
Page 4: Installation
USER MANUAL USER MANUAL INSTALLATION INSTALLATION (continued) 3 OPTIONS FOR ATTACHING SHOWERRAIL TO WALL Remove Existing Shower Head Unscrew counter-clockwise Suction Cup Adhesive Screws from shower arm. Remove any existing plumber's tape residue. Unscrew 1. SUCTION CUP Unscrew the Suction Cup from the Diverter Base. - Page 5 USER MANUAL USER MANUAL INSTALLATION INSTALLATION (continued) (continued) 2. ADHESIVE 3. SCREW-IN Unscrew the Suction Cup from Unscrew the Suction Cup from the Diverter Base. the Diverter Base. Diverter White Suction Diverter White Suction Base Washer Base Washer Be sure shower wall is smooth and Be sure shower wall is smooth and clean.
- Page 6 USER MANUAL USER MANUAL INSTALLATION INSTALLATION (continued) (continued) 3. SCREW-IN (continued) Attach hex nut end of handheld Place the White Washer over showerhead to diverter. the Fixed Base and place the Diverter Base over it. While applying pressure, rotate the Diverter Base clockwise to screw it onto the Fixed Base.
-
Page 7: Care And Maintenance
Always turn cold water on first to help prevent accidental burning or by periodically using an auto scalding, especially for children and elderly. spray wax. DO NOT use any part of the Niagara Conservation ShowerRail as a • Clean using mild liquid soap and a non-abrasive sponge or cloth. support device. -
Page 8: Warranty And Service
USER MANUAL WARRANTY AND SERVICE AM Conservation warrants that this product is free from defects in material and workmanship for a period of 10 years from the date of the first purchase or the original distribution of the product under an energy conservation program, subject to the proper installation and/or use of the product.
