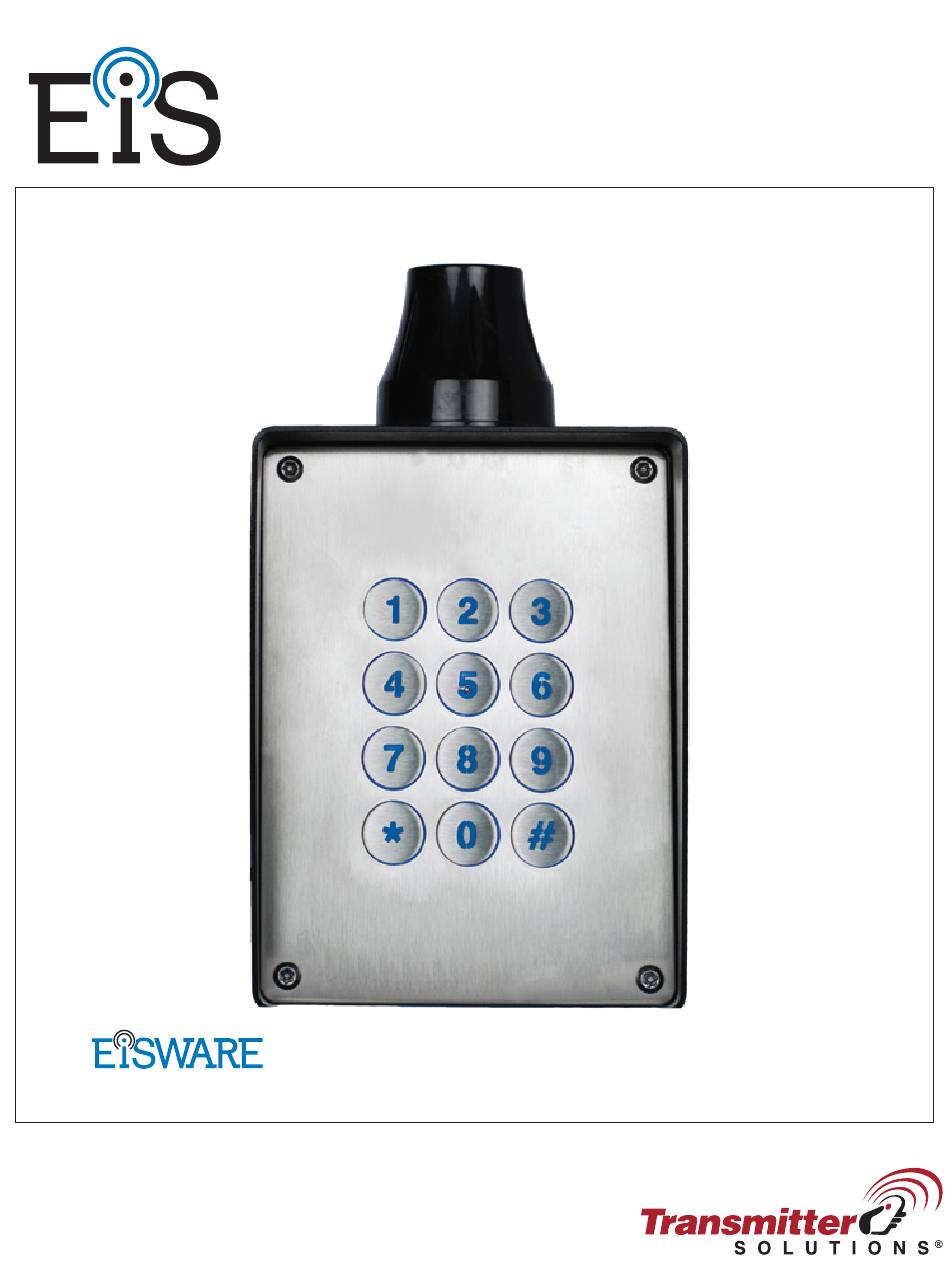

- Page 1 GSM CODELOCK ACCESS CONTROL UNIT E I S E N T RY- LO C K Programming Software USER MANUAL v.1.4.20160816...
-
Page 2: Table Of Contents
EIS ENTRY-LOCK USER MANUAL Contents FOR YOUR SAFETY .............................. 3 INTRODUCTION ..............................4 EIS ENTRY-LOCK FEATURES AND APPLICATIONS .................. 5 START UP ................................6 LED INDICATION ..............................7 CONNECTION DIAGRAM ........................... 8 EIS UNIT MANAGEMENT ........................... 9 EIS FUNCTIONS WITH PROGRAMMING INSTRUCTIONS..............10 WEB SERVER - LOG IN .............................. - Page 3 EIS ENTRY-LOCK USER MANUAL Figures Figure 1: EIS: Connection diagram .....................8 Figure 2: WEB Server-Sign In page ....................10 Figure 3: WEB Server-Main page select ADD mode................11 Figure 4: WEB Server-Main page adding EIS units................12 Figure 5: WEB Server-Unit management window ................13 Figure 6: WEB Server-Keypad PIN Access: Permanent PIN codes..........14 Figure 7: WEB Server-Keypad PIN Access: Temporary PIN codes..........15 Figure 8: WEB Server-Wiegand interface support.
-
Page 4: For Your Safety
EIS ENTRY-LOCK USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance. SWITCH OFF IN HOSPITALS Follow any restrictions. -
Page 5: Introduction
USER MANUAL INTRODUCTION EIS ENTRY-LOCK (EIS) is a simple GSM switch system designed to ensure low-cost, simple to install/use, reliable and single box solution for remote managed switching application. It is designed for unlimited range, pin code access, caller ID control and Wiegand access support. -
Page 6: Eis Entry-Lock Features And Applications
EIS ENTRY-LOCK USER MANUAL EIS ENTRY-LOCK FEATURES and APPLICATIONS Features: ⇒ Built-in 5 band GSM module ⇒ Keypad Access entry support (up-to 1000 PIN codes) ⇒ Caller ID numbers control (up-to 100 caller ID numbers) ⇒ Up to 50 temporary SPIN access codes ⇒... -
Page 7: Start Up
EIS ENTRY-LOCK USER MANUAL START UP EIS unit accepts a standard GSM SIM (T-Mobile or AT&T) card from any network. VERY USE A MICRO SIM CARD IMPORTANT WARNING DO NOT Insert or remove the SIM card while the unit is powered ON!! IMPORTANT Before inserting SIM card to unit make sure the PIN code is removed!! ⇒... -
Page 8: Led Indication
EIS ENTRY-LOCK USER MANUAL LED INDICATION Green LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network. -
Page 9: Connection Diagram
EIS ENTRY-LOCK USER MANUAL CONNECTION DIAGRAM Before connection the EIS please take a look at connection diagram. Must use 15VDC power supply that is provided with EIS unit. Figure 1: EIS: Connection diagram DO NOT USE Power out (12V AUX) for electric lock driving! Use IMPORTANT separate power source for door electric lock! Page 8... -
Page 10: Eis Unit Management
EIS ENTRY-LOCK USER MANUAL EIS UNIT MANAGEMENT Unit supports different types of management (programming): ⇒ Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EIS Ware). ⇒ Unit can be programmed remotely by using WEB server access. ⇒... -
Page 11: Eis Functions With Programming Instructions
EIS ENTRY-LOCK USER MANUAL EIS FUNCTIONs with PROGRAMMING INSTRUCTIONs As mentioned in previous chapters EIS unit can be programmed in various ways, this document will focus on most common programming way: WEB programming. SIM card in the EIS unit MUST have DATA PLAN to be able to use WEB IMPORTANT programming! 8.1 WEB SERVER - LOG IN... -
Page 12: Web Server - Adding Units To User Profile
EIS ENTRY-LOCK USER MANUAL NOTE Server support Firefox, Google Chrome, Safari. 8.2 WEB SERVER – ADDING UNITS TO USER PROFILE After login the user will be diverted to WEB server main window. This page is used to add/remove/search for EIS units from the user’s profile. Select “+”... -
Page 13: Figure 4: Web Server-Main Page Adding Eis Units
EIS ENTRY-LOCK USER MANUAL Figure 4: WEB Server-Main page adding EIS units User than provides required data: • Name: Name for the added unit - mandatory information. • IMEI: Identification number of the unit can be found in the enclosure of the unit - mandatory information. -
Page 14: Web Server-Unit Management
EIS ENTRY-LOCK USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the EIS unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window. By clicking Send to device button ALL changes are send to the unit. -
Page 15: Keypad Pin Entry - Access
EIS ENTRY-LOCK USER MANUAL 8.4 KEYPAD PIN ENTRY – ACCESS Primary use of on-board keypad is access by entering PIN codes. Pin codes must be at least 4 digits. Pin codes can be defined in two sections. First section is permanent pin code and second is temporary pin codes, which are limited by the consecutive time they are entered. -
Page 16: Figure 7: Web Server-Keypad Pin Access: Temporary Pin Codes
EIS ENTRY-LOCK USER MANUAL Temporary pin codes are placed in Temporary pin access tab. Figure 7: WEB Server-Keypad PIN Access: Temporary PIN codes • Temp PIN codes activate output: Selecting the output that will be triggered in case of correct SPIN code. •... -
Page 17: Wiegand Access
EIS ENTRY-LOCK USER MANUAL 8.5 WIEGAND ACCESS EIS unit has onboard support for 1 Wiegand output based device. With the user of external replicator more Wiegand devices can be connected to the unit. Configuration of Wiegand interface is found in Digital interface tab. Wiegand interface can be found on board with a dedicated Wiegand connector and cables. -
Page 18: Figure 10: Web Server-Adding Wiegand Devices With Temporary Use
EIS ENTRY-LOCK USER MANUAL Temporary pin codes are placed in Temporary pin access tab. Figure 10: WEB Server-Adding Wiegand devices with temporary use. • Temp PIN codes activate output: Selecting the output that will be triggered in case of correct SPIN code. •... -
Page 19: Caller Id Access
EIS ENTRY-LOCK USER MANUAL 8.6 CALLER ID ACCESS Caller ID access is a very simple way to control relay output defined in Caller ID output setting. User will by calling in the EIS unit trigger defined output. Settings for this function are found in the Caller id # tab. Figure 11: WEB Server-Caller ID Access General settings: •... -
Page 20: Outputs Settings
EIS ENTRY-LOCK USER MANUAL 8.7 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 12: WEB Server-Output setting Output 1 - Settings for output 1: • Output (relay) mode: User can select between 3 options Disable-Output is disabled. Latching-Output is in latching mode. - Page 21 EIS ENTRY-LOCK USER MANUAL Additional output settings - Setting are used to link onboard actions with the outputs if needed: Unauthorized call or SMS received: If unauthorized call or SMS is received on the unit • this event will activate output defined under this section. Input 1 activate output: If input 1 is activated this action will activate output defined under •...
-
Page 22: Administration
EIS ENTRY-LOCK USER MANUAL 8.8 ADMINISTRATION Administration tab allows user to enable advanced settings: notification of unauthorized access, periodic test messages, lock down of the unit… Figure 13: WEB Server-Notification numbers • Phone number, User name: Phone number and user name of the user that will be receiving notification messages. - Page 23 EIS ENTRY-LOCK USER MANUAL • Unauthorized call: In case of unauthorized call the unit can notify user. To enable notification SMS tick the check box in corresponding position. • Administration allowed to remote program by SMS: By selection this option the user can “Lock down”...
-
Page 24: Event Loging
EIS ENTRY-LOCK USER MANUAL 8.9 EVENT LOGING EIS unit itself supports a 20000 log event entry. These log events can be pull up to the server by clicking Read Log button in the “Event Log” tab. Events are listed in the table. Figure 15: WEB Server-Log event Each event is equipped with the event type, time, output if triggered and the user name of the user responsible for the event. -
Page 25: Miscellaneous
EIS ENTRY-LOCK USER MANUAL 8.10 MISCELLANEOUS This tab is split into 2 sections. Figure 16: WEB Server-Misc General settings can be found: • SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu. •... - Page 27 During the warranty period, the product will be repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a defective component. This warranty does not extend to (a) the product case, which can be damaged by conditions outside the control of Transmitter Solutions, or (b) battery life of the product. ...
