Summary of Contents for Amigo Max CR

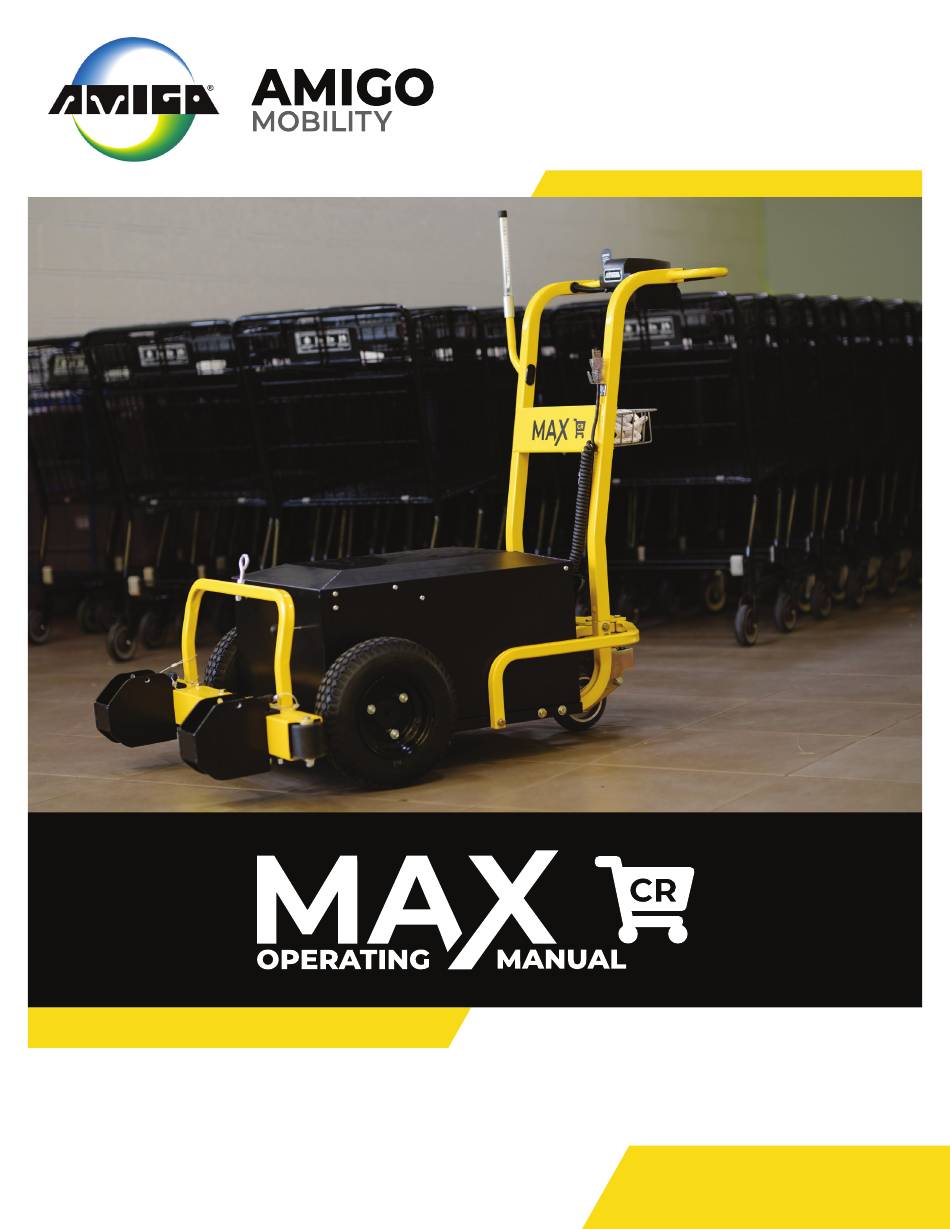

- Page 1 FOR SERVICE, PLEASE CONTACT AMIGO MOBILITY 1-989-777-0910 • service@myamigo.com DELIVER MANUAL TO STORE MANAGER service@myamigo.com 1-989-777-0910...
-
Page 2: Safety Information
Secure carts with rope before operating. • Operator must be properly trained before operating the Max CR. • Do not sit or stand on the Max CR and keep a safe distance away from vehicles and people. • Do not operate in severe weather. -
Page 3: Table Of Contents
Warranty information INITIAL SET-UP STEP STEP STEP Using a measuring Pull out the locking pins Charge the Max CR tape, measure the to adjust the cart holsters overnight before distance between the so that the back wheels of first use. -
Page 4: Connecting The First Cart
HELPFUL TIP Many stores opt to leave a cart attached to the Max CR, even when not in use. They store the rope in the cart basket, and it will save on time when retrieving carts by not requiring the operator to attach/detach the rope after each use. -
Page 5: Creating A Train Of Carts
STEP Make sure the first cart is securely attached to the Max CR, as shown on page 3 - 4. STEP Carefully push additional carts into attached cart so that they are nested tightly. -
Page 6: Operating Controls
OPERATING CONTROLS HANDLE CONTROLS Use the handle controls when pushing the Max CR out into the parking lot to start collecting carts. 1. Speed adjustment. 2. Numerical Speed / Error code, Battery Gauge. 3. Horn. 4. Forward / Reverse. 5. Belly switch emergency stop. -
Page 7: Pairing The Remote
To engage freewheeling, push the lever down. To disengage freewheeling, pull the lever upwards. LABELING The Max CR has the following labeling. Contact our service department if you need to replace the labeling 989-777-0910 or service@myamigo.com. PN: 12982 Remote pairing instruction label... -
Page 8: Charging
CAUTION READ INSTRUCTIONS COMPLETELY BEFORE USING. To charge, park the Max CR near a grounded GFCI AC outlet and turn the power “OFF”. Locate the charge cord that is hanging beneath the handle controls on the back of the tug. Plug it securely into the AC outlet. -
Page 9: Battery Information
Never smoke or allow an open flame in the vicinity of the batteries. • Only use an Amigo supplied charger on the Max CR. The charger is not intended to supply power to an extra-low voltage electrical system or to charge dry cell batteries. - Page 10 DIAGNOSTIC CODES If the Max CR requires service, a number will flash on the left side of the battery gauge, use this guide to help diagnose the issue. For further support, contact Amigo customer service at 1-989-777-0910. Note: The first solution listed for each diagnostic code has been shown to fix the problem 80% of the time.
- Page 11 WARRANTY General warranty provisions Amigo Mobility International, Inc. (AMI) warranties its OEM products to the original purchaser and commences on date of shipment. The warranties on this page DO NOT cover the failure of any part or accessory due to: •...
- Page 12 Amigo Mobility 1-989-777-0910 myamigo.com/retail © 2024 Amigo Mobility International, Inc. Amigo is a ® registered trademark of Amigo Mobility International, Inc. 0224 12981 Rev B Amigo Mobility International, inc...
