Summary of Contents for NVX VMPS35

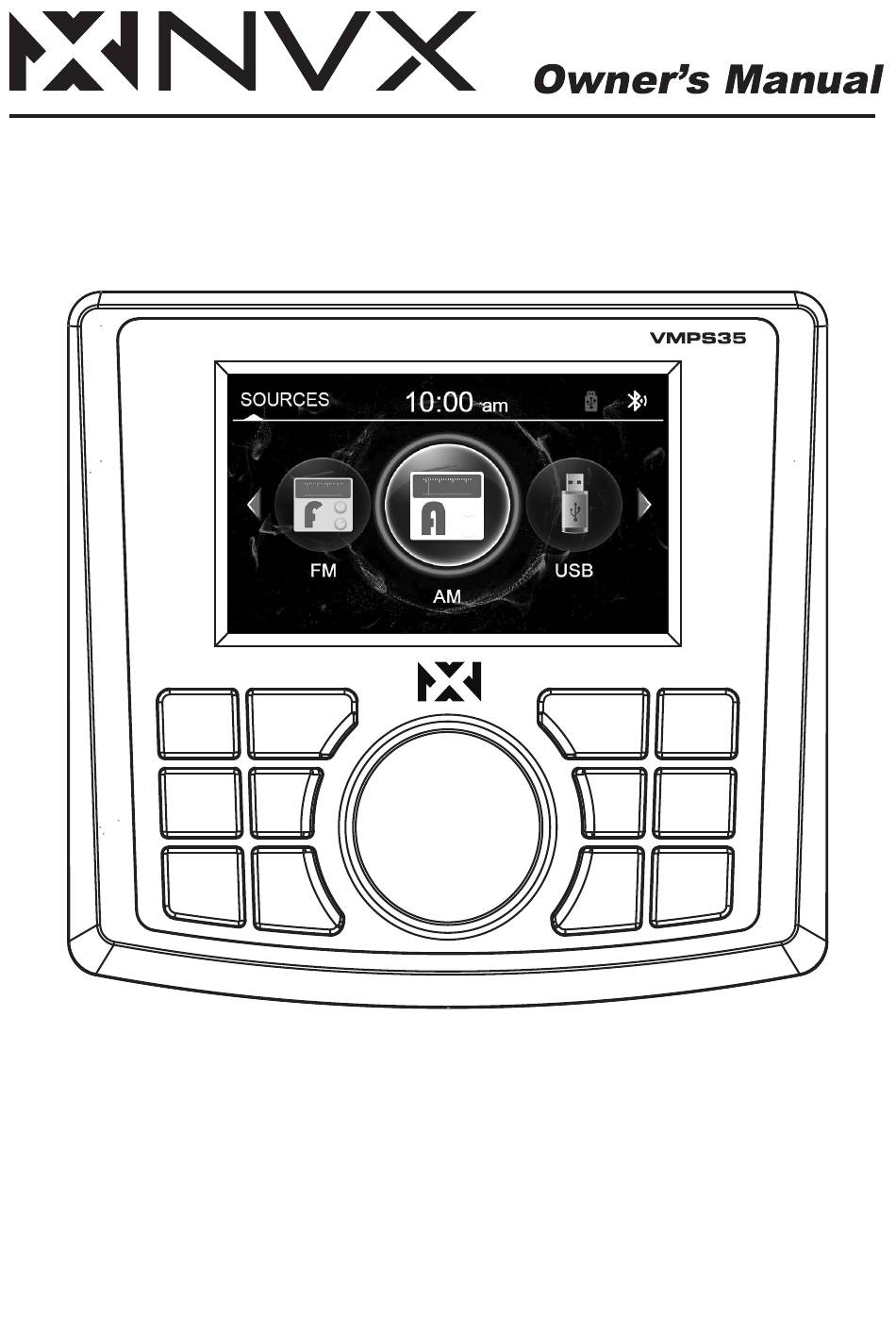

- Page 1 Marine ATV/UTV Media Center VMPS35 | Before connecting and operating this unit, please read this manual carefully and keep it for future reference. Note: Specifications and design are subject to change without notice for future improvement.
-
Page 2: Included In The Box
THANK YOU FOR CHOOSING NVX Thank you for choosing the NVX VMPS35 media center. Like all NVX products, the VMPS35 is a result of extensive research, development, and real-world testing to ensure it exceeds customer’s expectations for durability and performance. - Page 3 RECEIVER INSTALLATION INSTRUCTIONS WARNING: Before installing this unit onto any panel, always ensure that there is sufficient clearance behind the panel and that no wiring harnesses, fuel lines, or any other critical components are exposed or damaged by the installation. This unit requires a negative ground 12V power supply.
- Page 4 DIMENSIONS AND WIRING DIAGRAM 4.5” 0.8” 4.9” 4.1” 1.2” Bullet Socket Functions Color Function Color Function ACC (+12V) ANT/Rem (+12V Output) Blue Zone 1 L– Zone 2 L– White/Black Green/Black Zone 1 L+ Zone 2 L+ White Green Battery (+12V) Ground (-) Yellow Black...
-
Page 5: Specification
SPECIFICATIONS SPECIFICATION VMPS35 25W x 4 @ 4 Ohms RMS Power Output 20 Hz - 20 kHz Frequency Response 95dB Signal to Noise Ratio 500mV Input Sensitivity Ultra Bright full-color TFT display Display Type IP66 Waterproof Rating Front, Rear, and Sub - Preamp Output Fuse Rating BT 5.0 A2DP... -
Page 6: Operation
OPERATION BUTTON FUNCTION Press to select the previous/next track. Press and hold PREV/NEXT to rewind or fast-forward (USB mode only). MODE Press repeatedly to reach desired mode. Press to turn the unit on. Hold for 2 seconds to turn off. POWER Press repeatedly to switch between AM and FM bands. -
Page 7: Speaker Zones
FEATURES SPEAKER ZONES The VMPS35 marine receiver has 4 zones, each with independent volume control using the VMPREM wired remote (sold separately). There are 3 zones for full-range and a 4th zone for a subwoofer. Zone 1 controls the main speakers, powered by the built-in 4-channel amplifier. -
Page 8: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE SOLUTION 1. Check to make sure all 1. Improper wiring Head unit is not wiring is correct. receiving power 2. Check your fuse to see if it 2. Fuse is blown might be blown. Reverse a speaker connection Speaker is wired Low or no volume from positive to negative;... - Page 9 • Package the original packaging in an additional shipping container to avoid shipping damages and to comply with most shipping couriers such as UPS and FedEx. • Ensure your return at the price paid as NVX is not responsible for insurance losses or damages occurring in shipment to our facility.
-
Page 10: What Is Not Covered
COD will be refused. WHAT IS NOT COVERED? This warranty is valid only if the product is purchased from an Authorized NVX Dealer and used for the purpose for which it was designed. It does not cover: • Damage due to improper installation and/or subsequent damage to other components. -
Page 11: International Warranty
HOW LONG WILL IT TAKE? NVX strives to maintain a goal of 1 week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. INTERNATIONAL WARRANTY Contact your International NVX dealer or distributor concerning specific procedures for your country’s warranty policies. - Page 12 NVX.COM...
