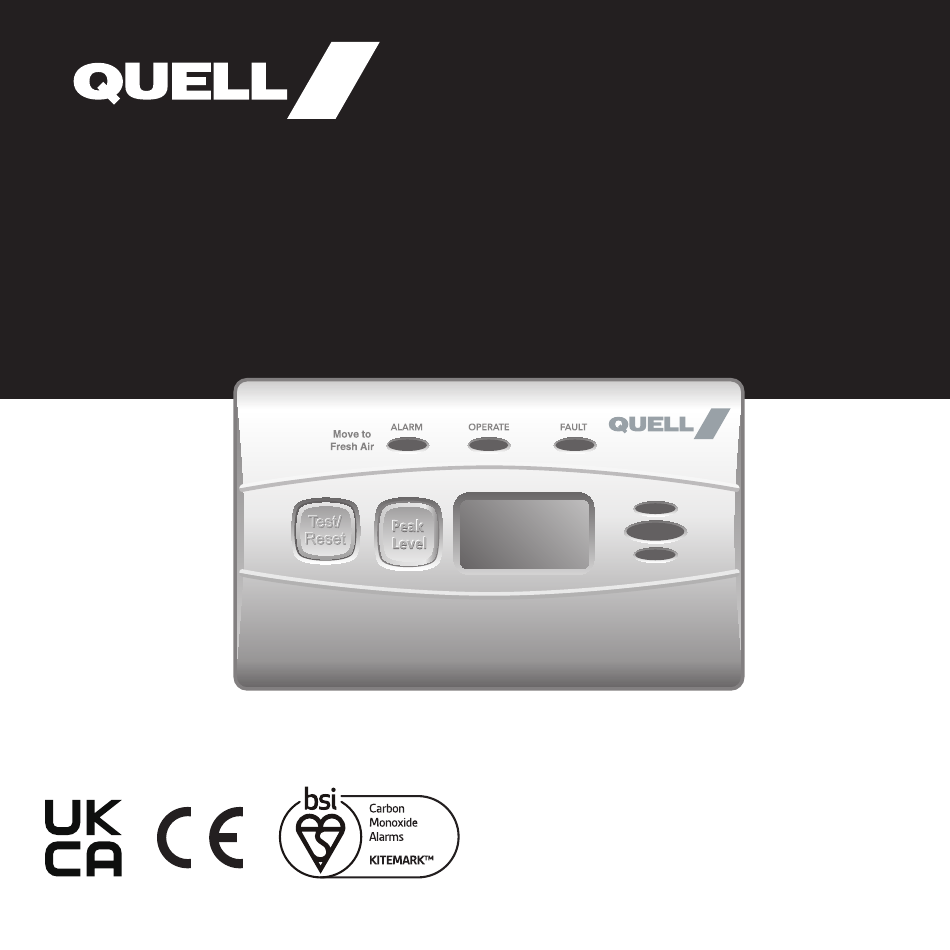

User and Installer Guide
Sealed Battery, Long Life Carbon Monoxide Alarms
Quick Start Instructions included
at the back of this User Guide
Part Number: 140022
Carbon Monoxide Alarm
Model: Q10LLDCO
BS EN 50291-1:2018
LICENSE NO. KM 738897
PPM of CO displayed
Lb= Low Battery
End= End of Unit Life
Model: Q10LLDCO
K10LLDCO-7250-00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q10LLDCO and is the answer not in the manual?

Questions and answers

Related Manuals for Quell Q10LLDCO

Summary of Contents for Quell Q10LLDCO

  • Page 1 Quick Start Instructions included at the back of this User Guide Carbon Monoxide Alarm PPM of CO displayed Lb= Low Battery Model: Q10LLDCO End= End of Unit Life Part Number: 140022 Model: Q10LLDCO BS EN 50291-1:2018 LICENSE NO. KM 738897...
  • Page 2 Thank You for Purchasing this QUELL Alarm Powered by a sealed, non-replaceable battery, these models include a digital display (model Q10LLDCO only), and a Reset function to temporarily silence nuisance alarms. Teach children how to respond to the alarm and that they should never play with the unit. This alarm is designed to detect carbon monoxide from any source of combustion in a residential environment.

  • Page 3: Table Of Contents

    Contents 1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds..................4 Other Alarm Visual and Audible Indicators............................ 5 3. Troubleshooting Guide....................................6 4. Introduction, Product Features and Specifications........................7 Limitations of CO Alarms..................................9 Recommended Locations for Alarms..............................10 7.

  • Page 4: Carbon Monoxide Alarm: What To Do When The Alarm Sounds

    The carbon monoxide (CO) alarm pattern is four quick beeps repeating every 5 seconds. The red LED blinks in sync with the beep pattern. The digital display on model Q10LLDCO will show the PPM level of CO detected. WARNING: CARBON MONOXIDE ALARM ACTIVATION INDICATES THE PRESENCE OF CARBON MONOXI O AT HIGH CONCENTRATIONS WHICH CAN KILL YOU.

  • Page 5: Other Alarm Visual And Audible Indicators

    Red LED blinks in sync with beep present) Single beep alarm operation. pattern. Model Q10LLDCO digital display will show 3 dashes and then “888”. CO Alarm Memory (unit Red LED blinks every 60 sec. None.

  • Page 6: Troubleshooting Guide

    Chirp every 30 sec. * See Cleaning Your Alarm section. 30 sec. * Push test button once to attempt to reset the unit. Model Q10LLDCO digital display will show “Err”. End of Unit Life Amber LED blinks twice Two chirps every * Push button once to silence for 24 hrs.

  • Page 7: Introduction, Product Features And Specifications

    The digital readings tolerances are 0-999 ± 30% +15ppm during these condi- tions: 27°C ± 12°C (80°F ± 10°F), atmospheric pressure ±10%, 40% ± 3% relative humidity CO Sensor: Electrochemical Peak Level Memory (Q10LLDCO only) CO Alarm Reset Powered by a sealed lithium battery...
  • Page 8 Amber, Red, Gr e A larm LED Pow er LED Fault LED Test / Reset Button PPM of CO displayed Lb= Low Battery Model: Q10LLDCO End= End of Unit Life Peak Level Button Digital Display Model: Q10LLDCO with digital display...

  • Page 9: Limitations Of Co Alarms

    5. Limitations of CO Alarms WARNING: PLEASE READ CAREFULLY AND THOROUGHLY This alarm is not intended to alert hearing impaired individuals. LIMITATIONS OF CO ALARMS • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas.

  • Page 10: Recommended Locations For Alarms

    6. Recommended Locations for CO Alarms NOTE: CO alarms should be installed following the guidance of relevant local standards, such as EN 50292. Whether the alarm is wall-mounted or ceiling mounted, place the alarm a horizontal distance of between 1 metre and 3 metres from a fuel burning appliance. When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a minimum of 150 mm below the ceiling.

  • Page 11: Locations To Avoid

    7. Locations to Avoid In the garage. Products of combustion are present when you start your motor vehicle. Do not install alarms adjacent to, or directly above, heaters or air-conditioning vents. In very humid areas (above 90% RH, non-condensing), such as bathrooms and shower rooms. Do not install directly above a sink, or near dishwashers or washing machines.

  • Page 12: Installation

    8. Installation / Activation CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE! NOTE: YOUR CO ALARM MUST BE INSTALLED BY A COMPETENT PERSON, AND IS TO BE INSTALLED ACCORDING TO THESE INSTRUCTIONS. After selecting the proper alarm location as described in the “Recommended Locations for CO Alarms” section, you may choose either a wall mounting or free-standing installation.

  • Page 13: Operation And Testing

    9. Operation and Testing Operation The alarm is operating once it is activated and testing is complete (see “TESTING” below). When CO is detected, the unit sounds a loud alarm. See Section 1 for alarm signal descriptions. In high levels of CO, the unit will go into alarm in a shorter period of time than at low levels of CO.

  • Page 14: Recognizing Nuisance Alarms

    10. Recognizing Nuisance Alarms Carbon Monoxide (CO) Nuisance RESET: Pushing the test / reset button during CO alarm allows the unit to reset calculations and double check for the presence of CO. If the unit re-alarms, it is sensing high levels of CO which can quickly become a dangerous situation.

  • Page 15: Permanently Disable Alarm / Discharge Battery

    12. Permanently Disable Alarm / Discharge Battery WARNING: FAILURE TO DISCHARGE ALARM BATTERY AS INSTRUCTED PRIOR TO DISPOSAL MAY CREATE POTENTIAL FOR LITHIUM BATTERY RELATED FIRE OR HAZARD. WARNING: DISCHARGING THE ALARM BATTERY IS PERMANENT Once the alarm battery has been discharged, it cannot be reactivated! Once discharged, the alarm will NO LONGER DETECT CO.

  • Page 16: General Carbon Monoxide (Co) Information

    13. General Carbon Monoxide (CO) Information What is Carbon Monoxide? Carbon monoxide (CO) is a highly poisonous gas with no taste, colour or smell. Potential Sources of CO This CO alarm is not a substitute for proper installation, use and maintenance of fuel burning appliances including appropriate ventilation and exhaust systems.
  • Page 17 NOTE: Young children, elderly and pets are more susceptible to the dangers of CO. NOTE: Your QUELL alarm is designed to detect CO gas. It is not designed to detect other gas such as natural gas. NOTE: This product is intended for use in ordinary family homes. It is not designed to measure compliance with occupational safety and the HSE.

  • Page 18: Cleaning Your Alarm

    14. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year You can clean the interior of your alarm by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth.

  • Page 19: Service And Warranty

    15. Service and Warranty Ten-Year Limited Warranty Warranty Kidde Australia Pty Ltd ("Kidde") warrants to the original consumer purchaser that each new CO alarm will be free from defects in materials and workmanship under normal use for a period of 10 years from the date of purchase.

  • Page 20: Quick Start Instructions

    Quick Start Instructions Carbon Monoxide Alarm PPM of CO displayed Lb= Low Battery Model: Q10LLDCO End= End of Unit Life Carbon Monoxid Carbon Model: Q10LLDCO Model: Q10LLDC...
  • Page 21 Model: K10LLCO, K10LLDCO Model: Q10LLDCO (Model K10LLCO shown) (Model Q10LLDCO shown) xide Alarm Pause Pause Pause Pause Pause Pause (30 sec) (30 sec) (30 sec) (30 sec) (30 sec) (30 sec) Carbon Monoxide Alarm PPM of CO displayed Lb= Low Battery...
  • Page 22 Kidde Australia Pty Ltd ABN 68 006 252 428 10 Ferntree Place No�ng Hill, Vic, 3168 Telephone 1800 654 435 Quell ® is a registered trademark of Kidde Australia Pty Ltd Copyright © 2021 Kidde Australia Pty Ltd. All rights reserved.
