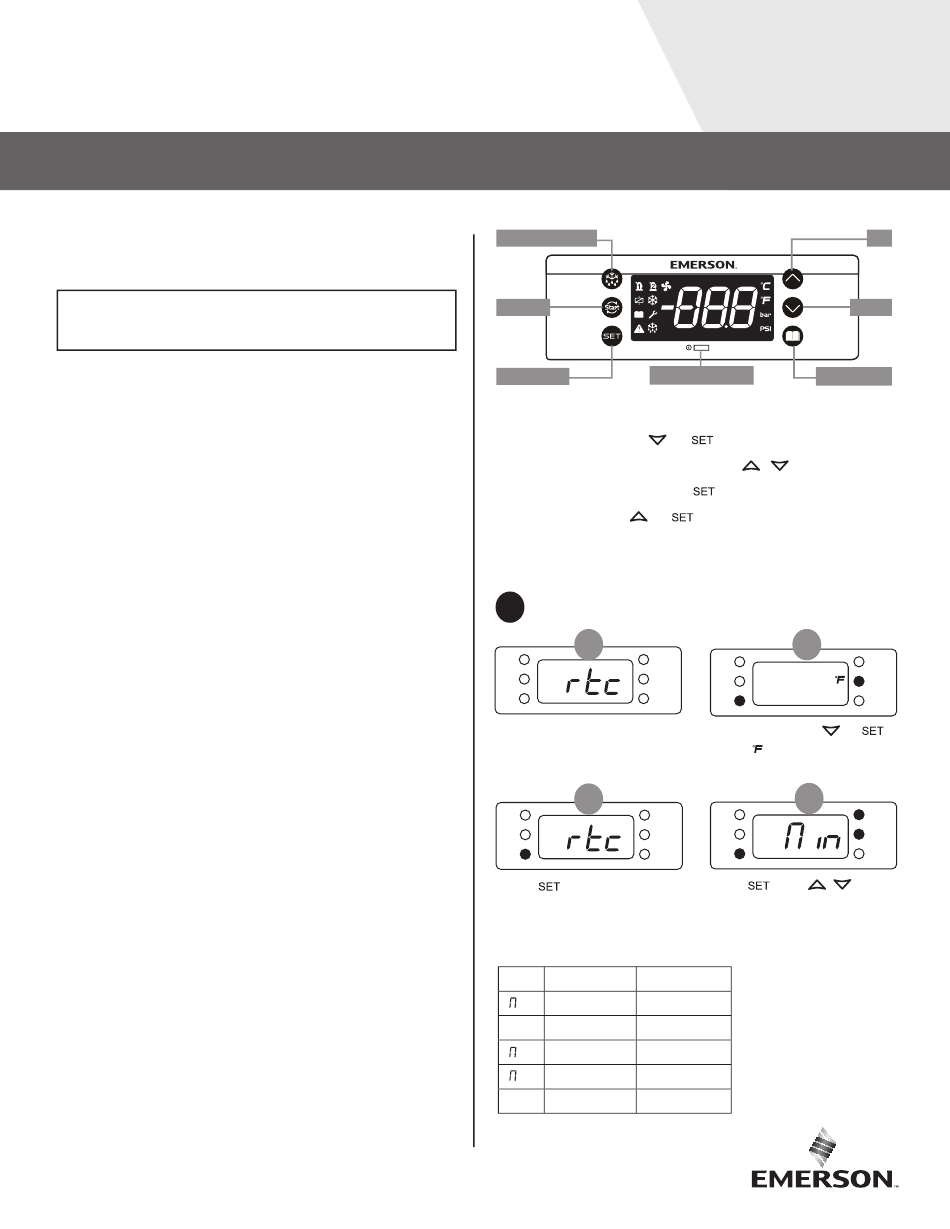

Digital X-Line Quick Start Guide
***IMPORTANT BEFORE PROGRAMMING***
DETERMINE DESIRED DEFROST MODE
Interval Mode (in) - Interval between defrost cycles
RTC Mode (rtc) - Real time clock based defrost schedule
Not Used Mode (nU) – Defrost not used
1. Press and Hold SET + DOWN for 3 seconds
2. Using arrows scroll to RTC and select by pressing SET
3. Press UP or DOWN and select EdF
4. Press SET and select interval mode (in), real time
clock mode (rtc), or not used (nU)
5. Press SET to confi rm section then proceed to step 6 if
(in) selected, or step 8 if (rtc) selected
IF USING INTERVAL DEFROST MODE (in)
6. Scroll through options and select (idF) by
pressing SET. Scroll to desired defrost interval
(hours) and confi rm by pressing SET.
7. Scroll through options and select (NdF) by
pressing SET. Scroll to desired defrost duration
(minutes) and confi rm by pressing SET.
IF USING TIME OF DAY DEFROST MODE (rtc)
8. Scroll to Ld1 and confi rm by pressing SET.
Set desired defrost time(0.1 = 12:10AM,
13.5 = 1:50PM) and confi rm by pressing SET
9. Scroll to Ld2-Ld6 and repeat step 8 for each
desired time of day. Set all unneeded options
to (nU)
2015ECT-3 R1 (/18) Emerson is a trademark of Emerson Electric Co. ©2015 Emerson Climate Technologies, Inc. All rights reserved.
Manual Defrost
Restart
Power Indicator
Set/Select
Navigation
Enter program mode*
Cycle through options/adjust values
Select funtion/store function
Exit program mode
+
*Program mode will terminate after 60 seconds of inactivity.
1
Set the clock
A
The unit will fl ash rtc the fi rst
time power is applied or if the
clock has lost its setting.
C
Press
to select the
rtc menu .
Clock Parameters
Par.
Description Value Range
in
Minute
0-59
Hour
Hr
0-23
dY
Day
1-31
on
Month
1-12
Yer
Year
0-99
Down
Alarm Info
+
3 seconds (f fl ash)
B
Press and hold
+
until
fl ashes.
D
Use
and
buttons to select and
adjust clock parameters.
