Summary of Contents for QL QL4P9KG

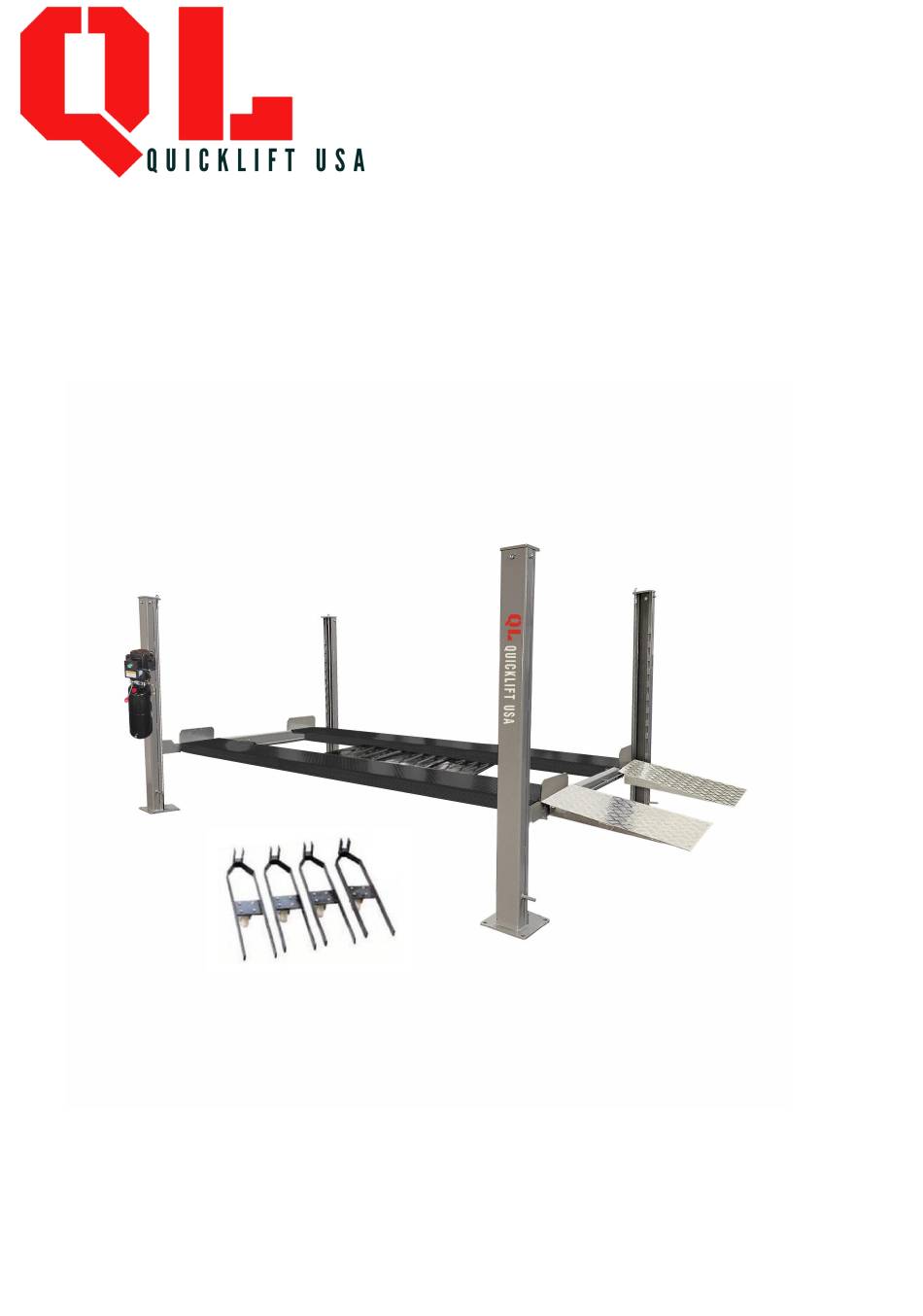

  • Page 1 QL4P9KG QL4P9KG FOUR POST LIFT Manual...

  • Page 2: Table Of Contents

    QL4P9KG Contents 1 Safety instruction and attentions…………………………………………………..……3 1.1 Cautions with words……………………………………...………………………...3 1.2 Safety caution signal………………………………………………………………4 1.3 Using Purpose…………………………………………………..…………………5 1.4 Expected Rated Lifted Assignment ………………………...……………………6 1.5 Attentions…………………………………………………………...…….…………6 2 Introduction on Main Parts of the Lift……………………………………………………7 3 Main parameters of the equipment………………………………………………...……7 3.1 Outside Dimension Picture………………………………….…………..………..7...

  • Page 3: Safety Instruction And Attentions

    QL4P9KG 1 Safety instruction and attentions Failure to read these instructions may result in injury to user, and other people within the area of the lift, or vehicles. We are not responsible for any injury or damage as a result of not carefully read and follow these instructions.

  • Page 4: Safety Caution Signal

    QL4P9KG 1.2 Safety caution signal Please read Safety Signage carefully, understand and remember them. Routine maintenance and inspection is necessary for safe lift operation Read operating and instruction manuals before operating lift Remain clear of lift when raising or lowering vehicle...
  • Page 5 QL4P9KG Keep feet clear of lift whilst lowering vehicles Only authorized personnel in lift vicinity Lift only to be used by trained personnel Do not operate damaged lift Do not exceed lifting capacity Avoid excessive rocking of vehicle while on lift...

  • Page 6: Using Purpose

    QL4P9KG 1.3 Using Purpose The lift is used to parking the car whose weight is less than 4000kg. (Routine check of safety latch system is very important - discovery of device failure before using could help you save production time, avoid expensive property damage, serious personal injury and even death.)

  • Page 7: Introduction On Main Parts Of The Lift

    QL4P9KG  DANGER! The power unit used on this lift contains high voltage.  Cut power before performing any electrical repairs. Put plug in a safe distance from power so that it cannot be accidentally plugged in during service.  WARNING! RISK OF EXPLOSION. This equipment has internal arcing or sparking parts which should not be exposed to flammable vapors.

  • Page 8: Main Parameters Of The Equipment

    QL4P9KG Main parameters of the equipment 3.1 Outside Dimension Picture 3.2 Lift parameter chart Total Height 2122mm/2322mm Lifting/Dropping Time ≈50s The Maximum Lifting Height 1850mm/2000mm Overall length: 4457mm/4831mm Rated Load 4000kg/4000kg Motor Power 2.2kw Working Voltage 3～400V+N+PE 1～230V+N+PE Noise Level ≤70dB(A)

  • Page 9: Installation

    QL4P9KG Installation of the equipment 4.1 Installation parts included 3 drip trays 1 jack tray SELECTING SITE : Before installing your new lift, check the following points . OVERHEAD OBSTRUCTIONS : The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical wires etc.
  • Page 10 QL4P9KG "Hammer "Crow Bar" 4 Foot Level "Chalk Line "Open-End Wrench Set: 12-28 "Medium Flat Screwdriver "Socket and Ratchet Set: 12 -28 "Tape Measure: 5m Minimum "Hex-Key / Allen Wrench Set "Needle Nose Pliers COLUMN & CROSSRAIL INSTALLATION Lay down rear columns. Position the Cross rail at the top of the two columns.

  • Page 11: Operation

    QL4P9KG Install the 90 fitting w/O-Ring in the base of power unit pump next to the lever operated release valve. IT IS NOT NECESSARY TO USE TEFLON TAPE ON O-RING FITTING Connect the 2200MM hose to the fitting on the power unit. Attach the other end of the 2200MM hose to outside fitting in main side track.

  • Page 12: Checking Points Before Using

    QL4P9KG Checking Points before Using 5.1 General Checking Points Item Detail Method How to avoid Lifting has abnormal sound visual Lubricating, cleaning listen replacement the overall appearance of the lift get visual Maintenance, replacement damage and skew Wire wheels get deformation and...

  • Page 13: Packing, Transport And Storage

    QL4P9KG Packing, transport and storage Only skilled personnel who are familiar with the lift and this manual shall be allowed to carry out packing, lifting, handling, transport and unpacking operations. 90%of components were pre-assembled and packed with blister packing in steel frame for shipment.

  • Page 14: Hydraulic Diagram

    QL4P9KG power unit. parts. b. the button on the power unit is b. Maintain or change for new damaged. parts. c. Leakage of oil pipeline c. Clean, tighten and change for new parts. When lift is rising a. There is not enough hydraulic oil.
  • Page 15 QL4P9KG 10. exploded drawing...
  • Page 16 QL4P9KG...
  • Page 17 QL4P9KG Parts Parts L=2040mm hose Lingkage rod Power unit Connecting nut M8*25 bolt Middle rod D8 washer Short rod D8 spring washer bush M8 nut M6*32 bolt Main column assembly D6 washer Top plate assembly D6 spring washer Steel cable A: L=8060 B: L=6620;...
