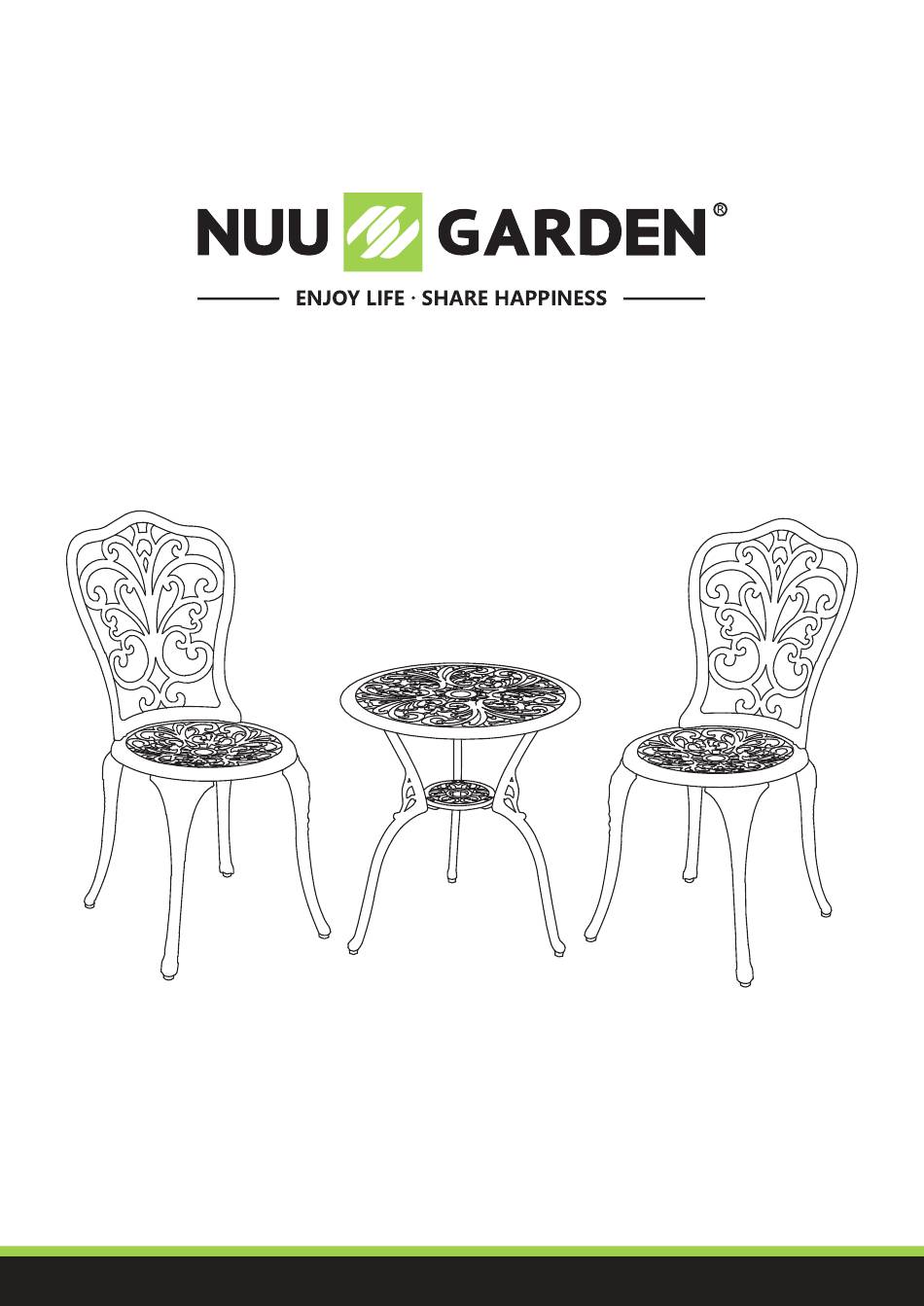

- Page 1 INSTRUCTION MANUAL 3PCS Cast Aluminum Bistro Set SCD006-01-WKL...
- Page 2 INTRODUCTION Thanks for purchasing and trusting NUUGARDEN with your home decorat- ing plans. This product is a piece of furniture designed and made by NUUGARDEN Corp. We are committed to R&D and innovation and creating the most exquisite and diverse outdoor series. After unpacking and before every use, check whether the item shows any damage.
- Page 3 Images Part Qty. Number Sizes M8*30...
- Page 4 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please only tighten any bolt once all bolts are placed correctly. If you tighten one bolt, it may cause other bolts to get out of position. STEP 1 Attach the backrest (A) to the seat frame (B) using 2 bolts (G), 2 washers (D), 2 spring washers (E) and 2 nuts (F).
- Page 5 Images Part Qty. Number Sizes M8*30 M6*35...
- Page 6 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please only tighten any bolt once all bolts are placed correctly. If you tighten one bolt, it may cause other bolts to get out of position. STEP 1 Attach the tabletop (A) to three legs (B) using 3 bolts (G), 3 washers (D), 3 spring washers (E), and 3 nuts (F).
- Page 7 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please only tighten any bolt once all bolts are placed correctly. If you tighten one bolt, it may cause other bolts to get out of position. STEP 2 Attach the leg support (C) to three legs (B) using 6 bolts (H), 6 washers (I), 6 spring washers (J), and 6 nuts (K).
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE Follow the instructions for the product's material to ensure it stays in the best shape as long as possible. The information below is a general guideline. Don't hesitate to get in touch with us to learn more. •... -
Page 9: Customer Service
CUSTOMER SERVICE Thanks for purchasing NUUGARDEN furniture. We are here to help you maximize your enjoyment and appreciation of it. Please do not hesitate to contact our customer service if you have any questions regarding assembly or accessories. Add: 6366 Corley Road, Norcross, GA 30071. Tel: (800) 257-7108 Web: https://nuumart.com E-mail: service@nuugarden.com... - Page 10 NUUGARDEN USA Nuu Garden Corp. Add: 6366 Corley Road, Norcross GA 30071. Tel: (800) 257-7108 Web: https://nuumart.com E-mail: service@nuugarden.com...
