RedBack Lasers VSL200 Series Instruction Manual

Vacuum Suction Lifter Instruction Manual

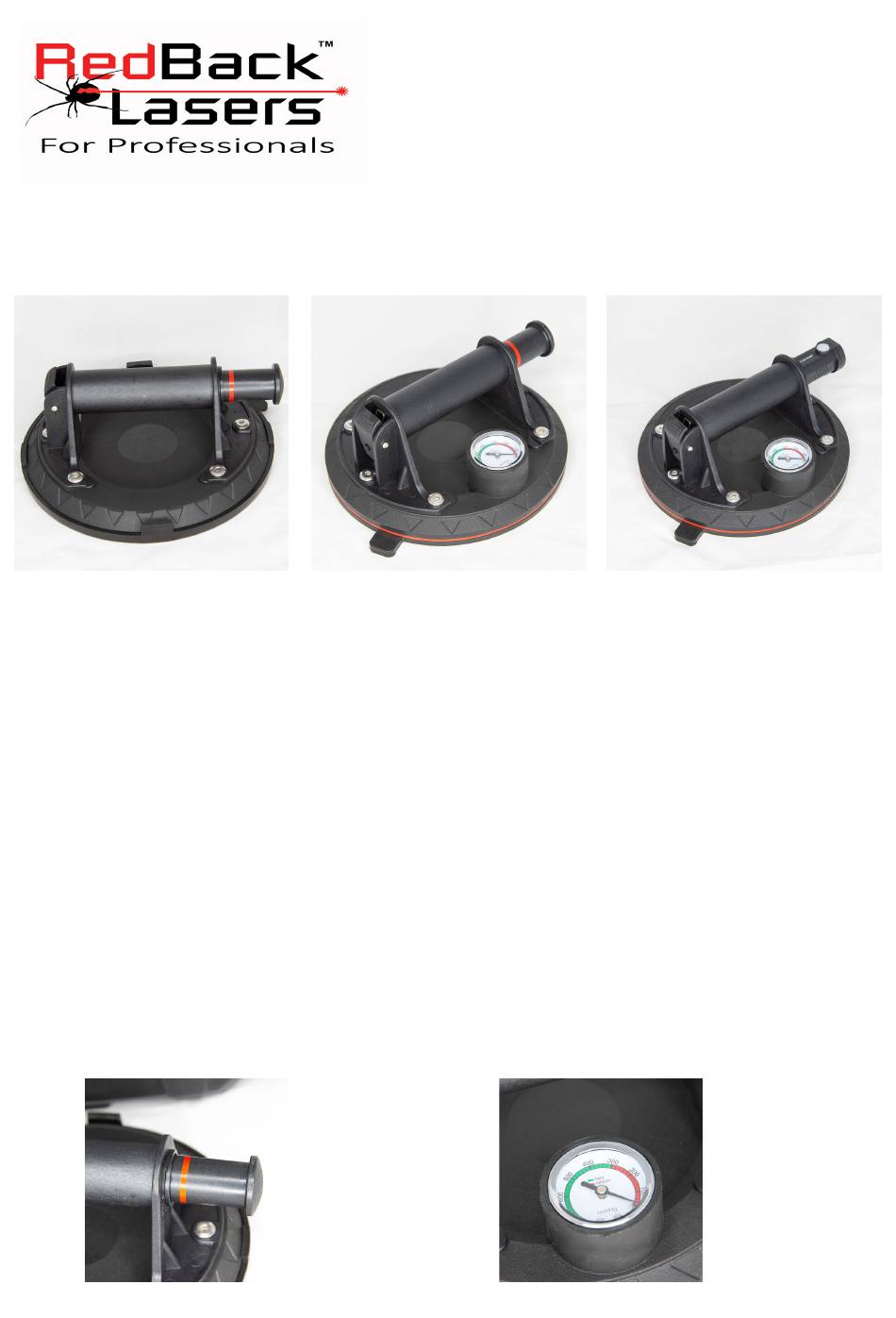

The RedBack Lasers VSL200 series of vacuum Suction lifters designed to lift and move; Glass,
Tiles and Stone Bench tops. These instructions cover all three models the VSL202, VSL203 and
VSL204 so some parts of these instructions may not be relevent to the model you purchased.
VSL202 -Manual Pump
Before use make sure that you remove the suction pad cover and that the suction pad itself is clean
and free from dust or other debris. If necessary, clean the suction pad with a damp spong and dry
thoroughly (do not immerse in water). Only use on flat smooth surfaces such glass windows, large
gloss smooth tiles and stone bench tops. Make sure the surface is dry and free from oil or dust,
clean if necessary. If a surface is not dry or clean then the glass or tile could slip when being lifted
which could cause damage or injury.
Operating the VSL202/VSL203
With the VSL202 and VSL203 Manual Pump lifters simply place the pad onto the surface of the
material you wish to lift. push with a little pressure against it and then pump the pump handle a
number of times. You should see the travel of the pump handle reduce and the red line on it be
hidden from view indicating that sufficient suction has be achieved to lift the item. Note; that with
the VSL203 you can also see the pressure gauge indicate in the safe green zone when sufficient
suction has been achieved.
Over time the suction will reduce depending on how well a seal there is between the suction pad
and material its attached to. If you see the red line on the pump handle re-appear then pump a
few time to increase the pressure. With the VSL203 if the pressure indicates into the red zone again
pump some more until it is indicating back in to the green.
www.redbacklasers.com.au
VSL200 Series
VSL203 - Manual Pump + Gauge
Pump handle and
Red Line indicator
on the VSL202 and
VSL203
VSL204 - Electric Pump + Gauge
Pressure Gauge on
the VSL203 and
VSL204
