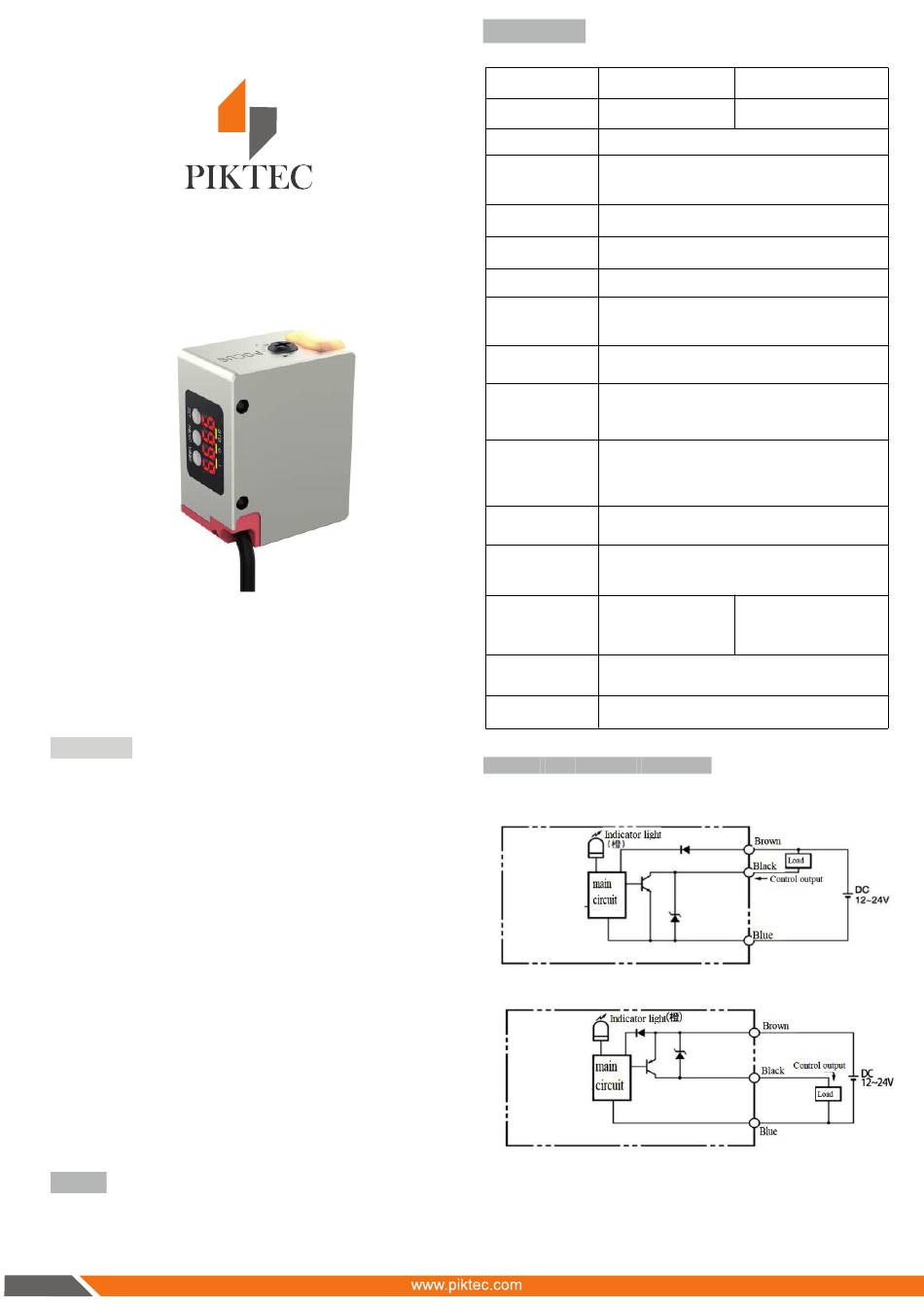

PIKTEC PTW-500 Quick Start Manual

PTW-500
Attention:
To ensure safety,please follow the below regulations when
using sensor:
1、This product only use for detecting object. Never use it as
a sensing device for personnel protection.
2、This product can't be used as an explosion-proof
product.Please don't use this product in hazardous place or
the place with potentially explosive gases.
3、This product input DC power, Prohibit use AC
power.Otherwise, it will cause product explosion and be on
fire
4、Please don't wire the amplifier along with the power or
high-voltage lines,otherwise the sensor be damaged.
5、When using commercial switch voltage regulator,please
ensure frame ground terminal and ground terminal ground
connection.
6、Please don't use this item outdoor or in the location where
external light can enter the receiving surface.
Setting
Under display menu
In MARK mode,two-point calibration: In MARK mode, STB C I
01
Color Code Sensor
Specification
Model
PTW-500N
NPN output
1 outputport, cable type
Type
1 outputport，includeshort circuitprotectionand
Control Output
anti interferencefunction
Light Source white LED, adjustablespot, minimunspot size:
3.6MM
Response time AUTO,C and CI mode 200us, MARK mode
160us
LIGHT-ON/DARK-ON
Output option
Indicator
Operation indicator： RedLED 、LED display
AUTO,C and CI mode and MARK mode
Detection Way:
sensing distance ：30MM—500MM
OFF delay/ON delay/one shot/ ON delay one
shot，optional. Timer range (ms)： 1ms ~
Timer
9999ms
NPN/PNPopen collector24V, 1 00mA or less(only
maincomponents ）
Control Output
Current consumption 40mA or less remaining
voltage:2V
12 ~ 24VDC±10%，ripple（P-P)10％ or less,
Power Supply
Class 2
Ambient Light
Inca ndescent ：20,000lux orless , Sunlight :30,000lux or
less
Power
Consumption Voltage：24Vor less，
Cureent : 60MA or less
10 to 55Hz, doubleamplitude ： 1.5mm，2 hoursin
Vibration
each of X,Y and z direction
Resistance
Ambient -10 to +55℃, no freezing
temperature
Circuit and Wiring Diagram
PTW-500N NPN
PTW-500P PNP
The STB in the indicator light will light up, C I indicator light off,
means it in the MARK color code state.
Step 1. Align the spot with the color code of workpiece and press SET
key, the screen will display SET1 and flash.
Step 2, move the spot to the background and press the SET button.
PTW-500P
PNP output
Voltage：24Vor less，
Cureent : 60MA or less
