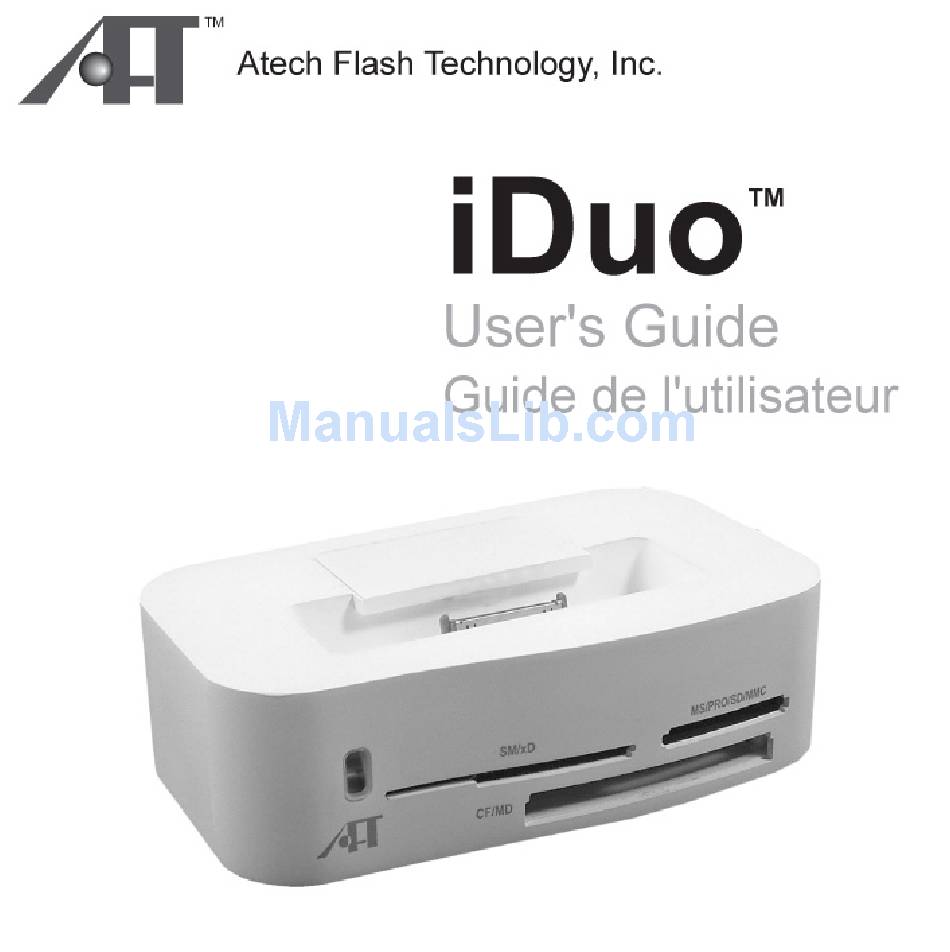

Aft iDuo Dock User Manual

Aft iduo dock docking station: user guide
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iDuo Dock and is the answer not in the manual?

Questions and answers

Summary of Contents for Aft iDuo Dock

  • Page 2 Congratulations Congratulations on your purchase of the iDuo dock/media reader. The iDuo is a docking station for your iPod™ and also a media reader for your Mac or PC computer. This guide will explain the features and specifications of your new iDuo, as well as the installation in a few simple steps.

  • Page 3: Package Contents

    Package Contents iDuo External USB 2.0 Cable x 1 - Connects iDuo to open USB port in your computer. To Reader unit connector To open USB port in your computer...
  • Page 4 Using the iDuo dock The iDuo dock is designed to hold the iPod upright as it charges or transfers music from your computer. Attach the iPod cable to your computer or power outlet and plug the other end to the iDuo dock connector.
  • Page 5 LINE-OUT to Play Music through External Speakers/Stereo The iDuo dock is designed to play music from iPod to external speakers, amplifier, or stereo system. Attach an audio/speaker cable that has a 3.5mm stereo miniplug to the iDuo LINE OUT port. You can now use the volume controls of the external audio source to adjust the volume.
  • Page 6 S-VIDEO Out to Display PHOTOS through External Display The iDuo dock is designed to display photos from the iPod photo to an external display. Attach a S-Video cable to the iDuo S-VIDEO OUT port and then connect the other end to the S-Video In display source such as a TV, LCD Projector, VCR, etc..
  • Page 7 The iDuo USB media reader is designed to transfer data between media cards your computer(does not transfer data directly to iPod). Attach the USB cable to READER port of the iDuo and then plug the other end to the USB port of your computer. Insert the media card into the slot and wait for your system to recognize the card.
  • Page 8 Installing Driver CD This step is required for Mac 9.2.+ and Windows 98SE / 2000 only. If you have Mac OS X V10.1.2+ or Windows ME / XP, please skip this step and proceed ahead. (1) Close all applications that are running, including applications running in the background.
  • Page 9 Using Media Reader with Mac Insert media card into designated card slot. Your Mac OS will display removable disk icons labeled 'no name' representing the media slot. Then you can open the files and begin read/write data to your media card.

  • Page 10: Specifications

    Specifications 3.93 inch x 1.18 inch x 2.36 inch / 100 mm x 30 mm x 60 mm Dimension (W x H x D): Power Requirement: 5V DC, 500mA (USB bus power) Supported media format: Compact Flash™ Type I Compact Flash™ Type II MicroDrive™...

  • Page 11: Limited Warranty

    AFT shall either repair, or replace defective product. AFT shall not be liable for any losses or damages of any kind resulting from the use of AFT products or for any of Customer's data stored on products returned to AFT for service. AFT accepts no liability for and provides no expressed or implied warranty against any loss of data or images.

This manual is also suitable for:

Iduo
