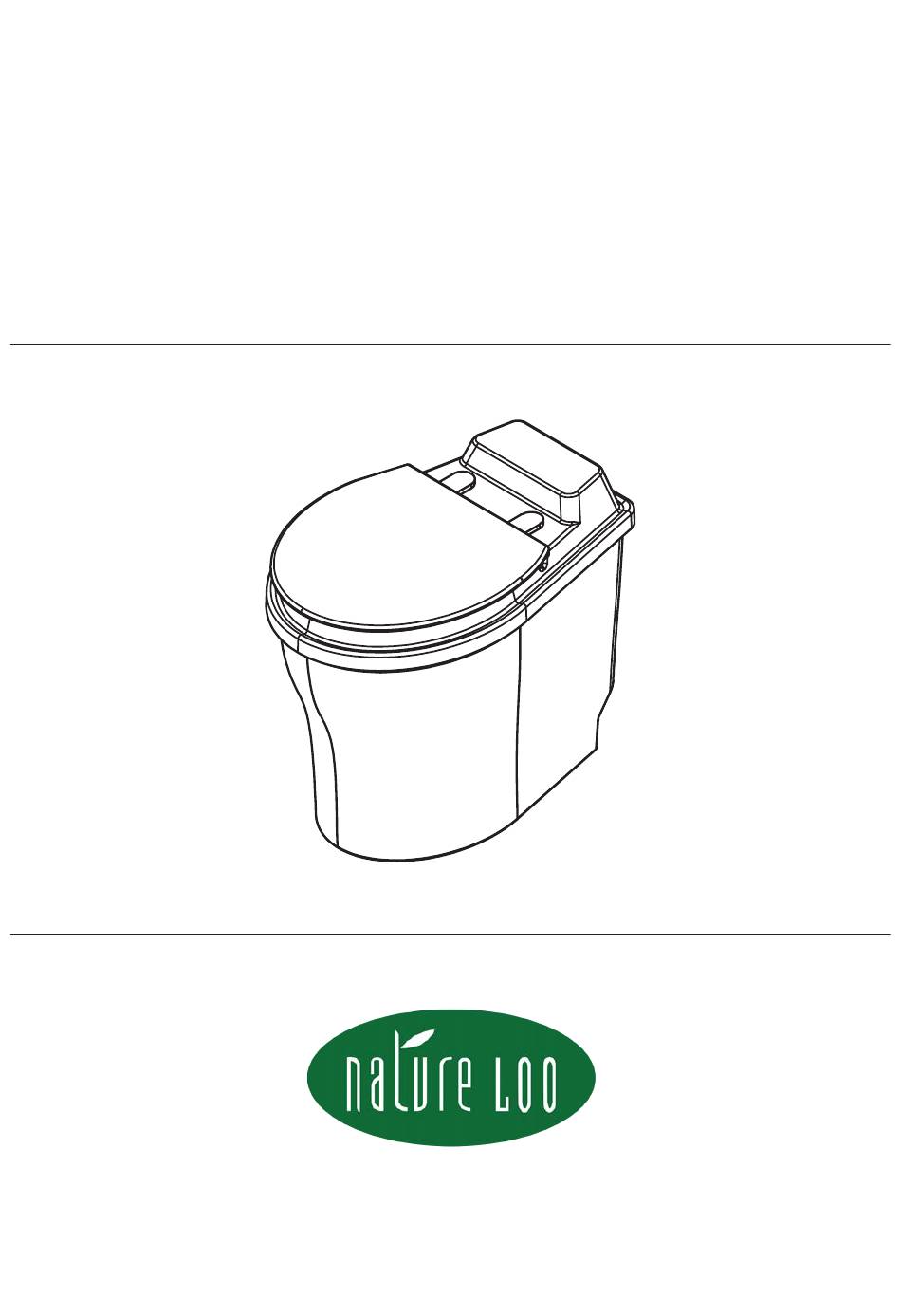

- Page 1 OWNER’S MANUAL AUS | NZ IMNL-010-2024-07-17 ©Ecoflo Wastewater Management Pty Ltd ecoflo.com.au...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS WHAT’S IN THE BOX? ADDITIONAL ITEMS (NOT INCLUDED) TOOLS REQUIRED INSTALLATION OPTIONS INSTALLATION INSTRUCTIONS POWERING THE FAN EXCESS LIQUID DRAIN USING YOUR TOILET HOW COMPOSTING WORKS COMPOST ACCELERATORS MAINTENANCE TROUBLESHOOTING WARRANTY CONTACT US... -
Page 3: Specifications
SPECIFICATIONS Capacity: 2 person full time use Max. Load Bearing: 130kg Material: LDPE Dimensions: 620L x 395W x 500H VENT COWL ELECTRICAL REQUIREMENTS Ventilation Fan: 5W 12V DC DEKTITE (NOT SUPPLIED) PIPE BRACKET (NOT SUPPLIED) DWV PIPE (NOT SUPPLIED) FAN IN HOUSING L.I.T REDUCER OUTLET PIPE TO ABSORPTION TRENCH... -
Page 4: What's In The Box
WHAT’S IN THE BOX? PEDESTAL WITH SEAT CHAMBERS, LIDS & 12V TRANSFORMER DRIP TRAY FAN IN HOUSING VENT COWL 90° 50MM DWV BEND 50MM DWV PIPE REDUCER 50MM WALLACE SEAL 25mm SULLAGE HOSE TAIL MOUNTING BLOCKS HOSE MICROBES BULKING MATERIAL TOILET ROLL ENZYMES SPRAY BOTTLE... -
Page 5: Additional Items (Not Included)
ADDITIONAL ITEMS (NOT INCLUDED) Depending on the circumstances of your installation you may require the following items. FOR THE EXCESS FLUID DRAIN TRENCH ARCH AGI DRAIN WITH GRAVEL DRAIN SOCK A Drain Kit can be purchased from ecoflo.com.au FOR THE VENT PIPE PIPE PVC GLUE DEKTITE... -
Page 6: Tools Required
TOOLS REQUIRED Screwdriver Spade Silicone Caulking gun (Philips/ Adhesive plain) Sealant Jigsaw Tape Measure Marker Spirit Level Hole Saw 38mm & 65mm (Min. sizes) INSTALLATION OPTIONS The toilet can be installed close to a wall with the vent pipe exiting directly through the rear wall (See OPTION 1). -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Mark holes on rear wall with pencil. BACK VIEW SIDE VIEW Drill 65mm Ø hole Drill 38mm Ø hole Ensure the hole for the sullage hose is sloping downwards to the outside. - Page 8 Insert rubber wallace seal (use soapy water if difficult to insert) DWV Pipe Hose tail Sullage Hose Feed vent pipe & sullage hose through the wall. Ensure the hose end point is lower than the pedestal outlet.
- Page 9 Secure pedestal to wall with mounting blocks Cut PVC if required Connect the 90° DWV Bend and the Reducer to the DWV Pipe. OUTDOOR VIEW...
- Page 10 Min 600mm Connect the Fan Housing to the Reducer. Installation complete!
-
Page 11: Powering The Fan
POWERING THE FAN A 240/12 volt regulated transformer is included to run the fan from mains power. The positive wire on the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. NOTE: The fan should run 24 hours a day to continuously circulate air through the compost heap. -
Page 12: Excess Liquid Drain
EXCESS LIQUID DRAIN The drainage system to be chosen depends entirely on the soil condition, ground water level, and local regulations. Please ensure you choose your location with this in mind. ABSORPTION TRENCH INSTALLATION This is the normal method for disposal of excess liquid, but refer to council for permit for any specific requirements. -
Page 13: Using Your Toilet
USING YOUR TOILET STARTING WITH AN EMPTY CHAMBER Once the pedestal has been installed, place one compost chamber inside the pedestal. 2. Remove the chamber lid and put back the pedestal lid. Do not misplace the chamber lid and make sure it is kept somewhere safe. 3. - Page 14 ROTATING THE CHAMBER The active compost chamber should be replaced with an empty one when it is approximately 75% full or when the pile is approximately 200mm from top of the toilet seat. Remove the pedestal seat and place the chamber lid on. 2.
-
Page 15: How Composting Works
HOW COMPOSTING WORKS When do I empty the secondary chamber? As a general rule, you should leave the material in the compost chamber as long as possible. This toilet has been designed for 2 people full time where the average monthly temperature is greater than 18°C in any given month. -
Page 16: Compost Accelerators
COMPOST ACCELERATORS Whilst users report successful composting without the use of any additives, we strongly recommend the use of the following items in order to optimize composting, particularly when the toilet is in permanent use by more than two people. Bulking Agent When starting or restarting with an empty chamber, add a 50mm starter bed of bulking agent. -
Page 17: Maintenance
MAINTENANCE GENERAL CARE The toilet should be examined regularly to ensure correct operation. The key areas to be checked are listed below: • Every 6 months, check that the ventilation fan is running well. We recommend spraying it with a degreaser such as WD40 to clean and lubricate it. - Page 18 Is your compost pile surrounding temperature too low? In cool climates do not insulate the toilet; turn down the fan voltage to lessen cool air being drawn into the system. If odour occurs due to the fan voltage being turned down, simply turn it up slightly to increase airflow.
-
Page 19: Warranty
WARRANTY Pedestal • 10 years warranty. • Any damage caused by exceeding the maximum recommended weight listed in specifications will/may void your warranty. Chamber Screen • 2 years warranty. Ventilation Fan • 12 months limited warranty. • Powering the fan with an unregulated power source exceeding 12V or using power supply not recommended by Ecoflo will/may void your warranty.
