CSD-9814
Purchase Date:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
customerservice@sunnydazedecor.com, or via our contact us page at

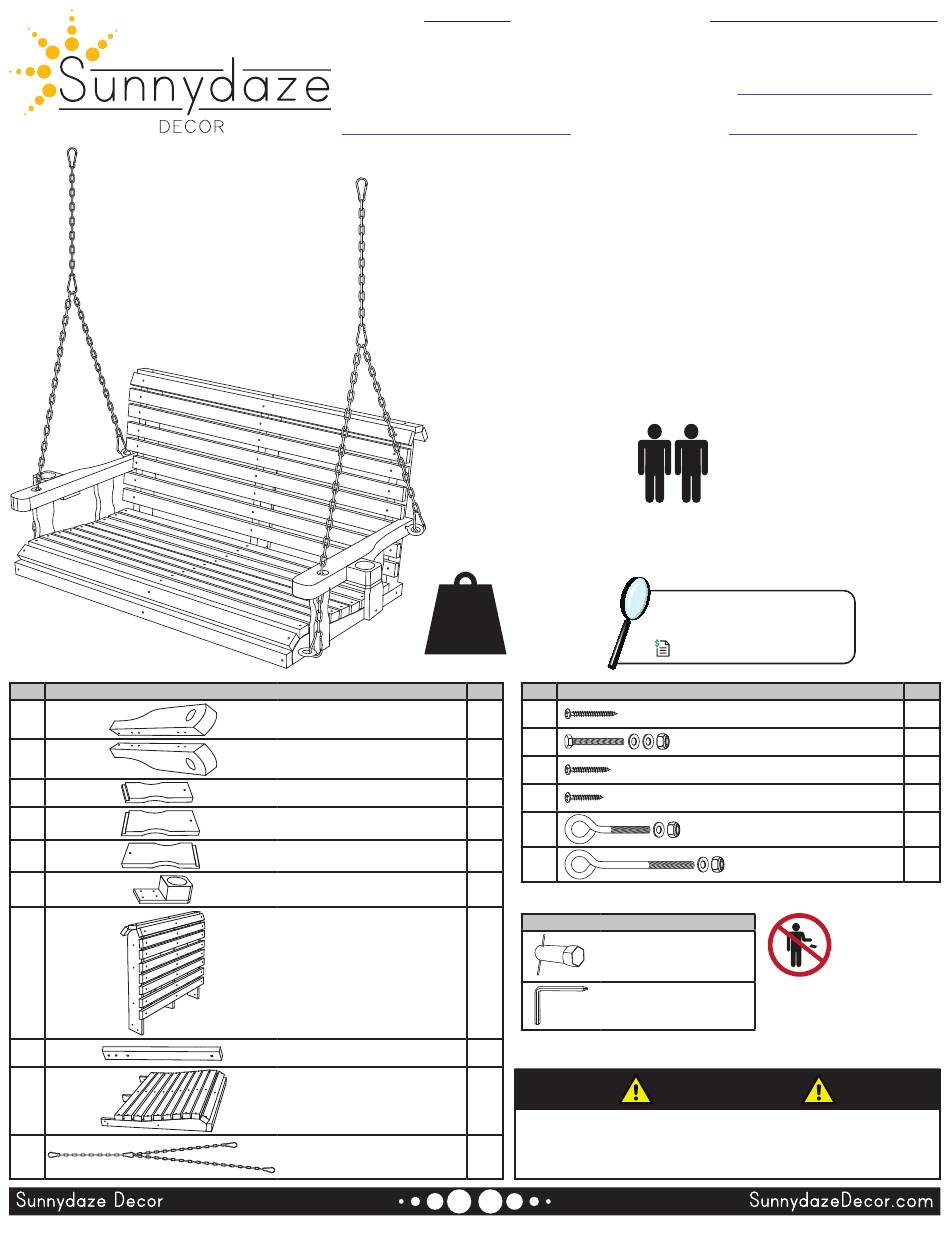

TRADITIONAL WOODEN
Assemble components on a soft, clean surface to avoid damaging the finish.
Parts
Left Armrest
Right Armrest
Front Armrest Support
Left Back Armrest Support
Right Back Armrest Support
Cup Holder
Backrest
Back Brace
Seat
Hanging Chain Set
/
/
Order/Customer Reference Number:
PORCH SWING
DSL-521
Review all assembly and care information before using this product.
Save this manual for future reference.
395
pounds
180 kg
Weight Capacity
Qty.
No.
1
1
2
1
3
2
4
1
5
1
6
2
Included Tools
1
1
1
CHOKING HAZARD — This item contains small parts
that can be swallowed. Keep children and pets away
2
during assembly.
11/2023
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
2-PERSON
ASSEMBLY/
INSTALLATION
RECOMMENDED
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
Save the packing slip.
Hardware
M4x40mm Screw
M10x65mm Bolt Set
M4x35mm Screw
M4x30mm Screw
Seat Eye Bolt Set
Arm Eye Bolt Set
Back Nut Tap Spanner
with Pivot Pin (x2)
Save included tools for
Phillips Screwdriver
tightening hardware in the
Hex Key
event it becomes loose.
WARNING
Qty.
8
8
4
8
2
2
Page 1 / 4
Advertisement
Related Manuals for Sunnydaze DSL-521
Summary of Contents for Sunnydaze DSL-521
- Page 1 Order/Customer Reference Number: Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with the date of purchase as well as photos of the merchandise defect, must be provided.
- Page 2 ASSEMBLY Carefully review all steps and understand assembly before beginning. STEP 1 IMPORTANT: Install the cup holders between the pre-drilled grooves on the A: 1 underside of the armrest. IMPORTANT TIP B: 1 E: 2 Nylon 4: 8 Insert nterbored Hole When installing a lock nut, make sure the raised center portion with the nylon insert...
- Page 3 STEP 4 STEP 5 G: 1 2: 4 3: 4 Loosely secure Back Brace (G) to the backrest and Loosely secure the armrest supports to the seat loosely se, as shown. using four M10x65mm Bolt Sets (2). Do not fully tighten hardware until Step 6 is complete. Do not fully tighten hardware until Step 6 is complete.
- Page 4 Professional installation is recommended. The intended installation area must be checked for suitability and strength. IMPORTANT INFORMATION & HELPFUL HINTS • We recommend installing the swing on a properly-sized, sturdy swing frame (not included); the swing frame must have the capacity to support the full weight of the swing and occupants while the swing is in use. •...
