ESI Touche Lighting Controls WS-TS-C Series Installation Instructions

INSTALLATION INSTRUCTIONS
TOUCHÉ LIGHTING CONTROLS
COLOR WALL STATION

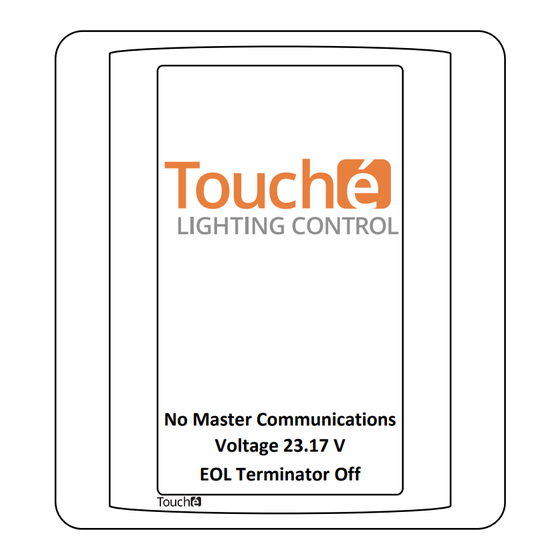

No Master Communications
Voltage 23.17 V
EOL Terminator Off
COMMUNICATION ERROR
ISSUE - POWER AND NO COMMUNICATION
VERIFY SWITCH IS CONNECTED
TO BRANCH PORT
VERIFY CABLING TERMINATION
COLOR CODING

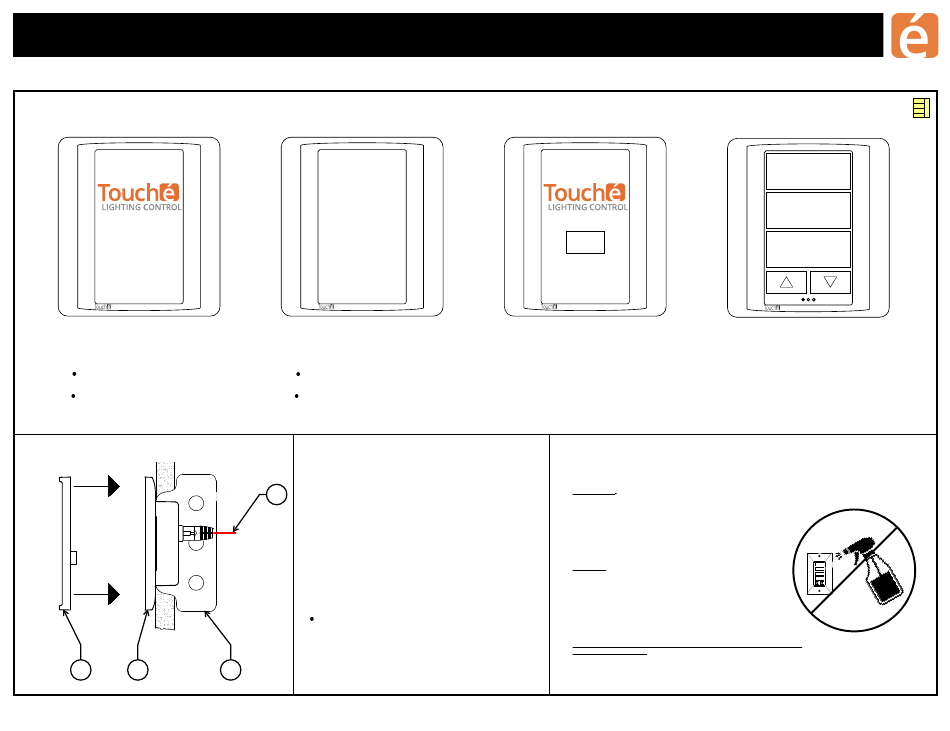

MOUNTING
1 2
Touché Lighting Controls (a Product of ESI Ventures)
A: 2085 Humphrey Street, Fort Wayne, IN 46803
SCREEN INFORMATION
WIRING ERROR
ISSUE - NO POWER AND NO COMMUNICATION
VERIFY SWITCH IS CONNECTED
TO BRANCH PORT
VERIFY CABLING TERMINATION
COLOR CODING
TIPS / NOTES
1. FRONT BEZEL
4
2. BACK MOUNTING PLATE
3. STANDARD 1-GANG PLASTER RING MOUNTED ON 4
SQUARE ELECTRICAL BOX - CUT-IN BOX NOT
RECOMMENDED
4. MINIMUM CAT 5 CABLE - ENSURE CABLES ARE
PLUGGED INTO BRANCH PORTS OF ROOM MANAGERS
- DO NOT CONNECT TO SMART PORTS
WS-TS-C-XXX IS ONLY COMPATIBLE WITH THE ROOM
MANAGER
3
T: 888.841.4356 W: ToucheControls.com
ACTIVATE
Not Activated
Voltage 23.17 V
EOL Terminator Off
ACTIVATION SCREEN
CLEANING INSTRUCTIONS
ALWAYS
• USE ONLY TOUCHSCREEN SAFE CLEANER AND CLEAN MICROFIBER CLOTH
• DAMPEN THE CLEAN MICROFIBER CLOTH AND WIPE SWITCH
• WIPE THE SWITCH DRY WITH A CLEAN MICROFIBER CLOTH
NEVER
• USE GLASS CLEANER
• SPRAY SWITCH DIRECTLY WITH CLEANER
• USE PAPER TOWELS
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL DAMAGE THE SWITCH AND VOID
THE PRODUCT WARRANTY
PART # WS-TS-C-XXX
SYMBOLS AS SHOWN
ON SUBMITTAL AND
CONSTRUCTION
DOCUMENTS
HIGH
LOW
OFF
NO ACTION REQUIRED
HIGH
MEDIUM
LOW
OFF
Page 1 of 2 v1.8
