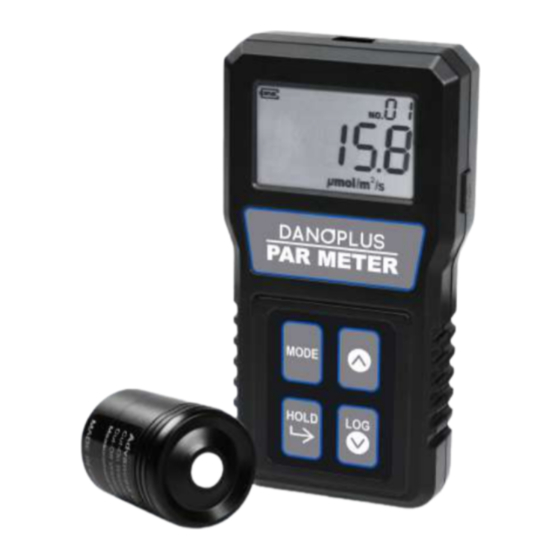

DANOPLUS Quantum 414 User Manual

WATERPROOF PAR METER
User Manual
• To ensure safety, please read this manual carefully before
installation and follow the instructions herein.
• Store this manual in a secure place for future reference
• WARNING: CHOKING HAZARD - Accessories contain small parts
• Printed by color ink, water will smudge
SCAN THE QR CODE
www.cd50.net/414
KEY FEATURES
◦ Easy operation with a clear display and compact design
◦ Records up to 100 measurements
◦ HOLD function
◦ Zero point calibration
◦ Reset to factory settings
◦ IP68 waterproof sensor
SPECIFICATION
Typical test conditions, unless otherwise specified:
Ambient Temp: 23±3°C, RH: 50%~70%, Altitude: 0~100 meter
Measurement Specifications
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating & Storage RH 0~95%, non-condensing
PPFD Measurement
Repeatability ±1 μmol/m2/sec
Measurement Range 0~4000 μmol/m2/sec
0.1 μmol/m2/sec (0~999)
Display Resolution
1 μmol/m2/sec (1000~4000)
Cut-On Wavelength 400±10nm
Cut-Off Wavelength 700±10nm
Power Requirements 2 x AAA batteries
Waterproof Level of the
IP68
Sensor
Main Unit: 115 x 60 x 24mm / 4.5 x 2.4 x
Dimension 0.9inches
Sensor Unit: Φ30 x 40mm / 1.18 x 1.57inches
173g/0.38pounds (without batteries and
Weight
Extension Rod)
to download
USER MANUAL
in different languages
TUTORIAL VIDEO ON HOW TO USE
CONTACT US.
Need more help?
2
GETTING STARTED
Hello there! Thank you for your purchase! Our products are packaged and
shipped with the utmost care. In the unlikely event that your item is incorrect,
incomplete, or unsatisfactory, please contact us, and we will promptly rectify
the situation.
The Quantum meter is designed to measure PAR (Photosynthetically Active
Radiation) flux in wavelengths ranging from 400 to 700nm. There is a
proportional relationship between the number of photons absorbed in 400 to
700nm band and the rate of photosynthesis in plants, which is important for
horticultural studies and monitoring plant physiology.
PACKAGE CONTENTS
PAR Meter PAR Meter
Main Unit Sensor Unit
Extension Rod include ¼" screw
DEVICE INTRODUCTION
MODE button
HOLD/Enter button
2x AAA User Manual
batteries
1
Sensor cable port
LCD screen
Power button
Up button
LOG/DOWN button
Sensor
3
