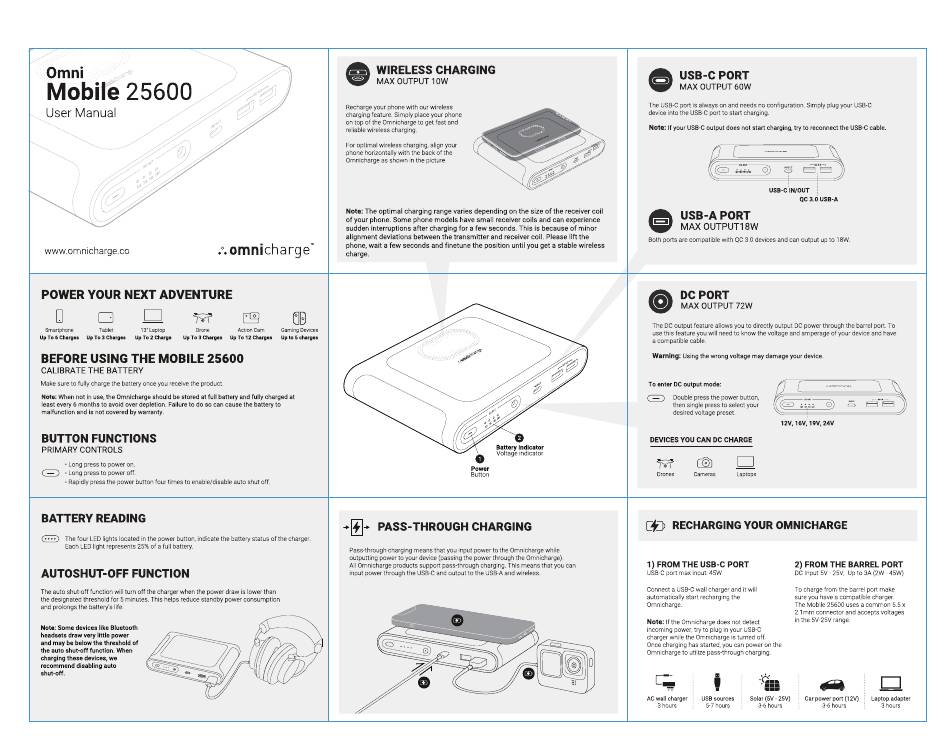

omnicharge Omni Mobile 25600 User Manual

mni
Mobile 25600
ser Manual
www.omnicharge.co
P WER Y UR NEXT ADVENTURE
Smartphone
Up To 6 Charges
Tablet
Up To 3 Charges
13" Laptop
Up To 2 Charge
Drone
Up To 3 Charges
Action Cam
Up To 12 Charges
Gaming Devices
Up to 5 charges
BEF RE USING THE M BILE 25600
CALIBRATE THE BATTERY
Make sure to fully charge the battery once you receive the product.
Note: When not in use, the mnicharge should be stored at full battery and fully charged at
least every 6 months to avoid over depletion. Failure to do so can cause the battery to
malfunction and is not covered by warranty.
BUTT N FUNCTI NS
PRIMARY CONTROLS
• Long press to power on.
• Long press to power off.
• Rapidly press the power button four times to enable/disable auto shut off.
BATTERY READING
The four LED lights located in the power button, indicate the battery status of the charger.
Each LED light represents 25% of a full battery.
AUT SHUT- FF FUNCTI N
The auto shut-off function will turn off the charger when the power draw is lower than
the designated threshold for 5 minutes. This helps reduce standby power consumption
and prolongs the battery's life.
Note: Some devices like Bluetooth
headsets draw very little power
and may be below the threshold of
the auto shut-off function. When
charging these devices, we
recommend disabling auto
shut-off.
WIRELESS CHARGING
MAX O TP T 10W
Recharge your phone with our wireless
charging feature. Simply place your phone
on top of the Omnicharge to get fast and
reliable wireless charging.
For optimal wireless charging, align your
phone horizontally with the back of the
Omnicharge as shown in the picture.
Note: The optimal charging range varies depending on the size of the receiver coil
of your phone. Some phone models have small receiver coils and can experience
sudden interruptions after charging for a few seconds. This is because of minor
alignment deviations between the transmitter and receiver coil. Please lift the
phone, wait a few seconds and finetune the position until you get a stable wireless
charge.
PASS-THR UGH CHARGING
Pass-through charging means that you input power to the Omnicharge while
outputting power to your device (passing the power through the Omnicharge).
All Omnicharge products support pass-through charging. This means that you can
input power through the SB-C and output to the SB-A and wireless.
USB-C PORT
MAX OUTPUT 60W
The SB-C port is always on and needs no configuration. Simply plug your SB-C
device into the SB-C port to start charging.
Note:
If your USB-C output does not start charging, try to reconnect the USB-C cable.
USB-A P RT
MAX OUTPUT 18W
Both ports are compatible with QC 3.0 devices and can output up to 1 8W.
DC PORT
MAX OUTPUT 72W
The DC output feature allows you to directly output DC power through the barrel port. To
use this feature you will need to know the voltage and amperage of your device and have
a compatible cable.
Warning:
Using the wrong voltage may damage your device.
To enter DC output mode:
Double press the power button,
then single press to select your
desired voltage preset.
DEVICES Y U CAN DC CHARGE
Drones Cameras Laptops
RECHARGING Y UR MNICHARGE
1) FR M THE USB-C P RT
SB-C port max input: 45W
Connect a SB-C wall charger and it will
automatically start recharging the
Omnicharge.
2) FR M THE BARREL P RT
DC Input 5V - 25V, p to 3A (2W - 45W)
To charge from the barrel port make
sure you have a compatible charger.
The Mobile 25600 uses a common 5.5 x
2.1 mm connector and accepts voltages
in the 5V-25V range.
Note: If the Omnicharge does not detect
incoming power, try to plug in your SB-C
charger while the Omnicharge is turned off.
Once charging has started, you can power on the
Omnicharge to utilize pass-through charging.
AC wall charger
3 hours
SB sources
5-7 hours
Solar (5V-25V)
3-6 hours
Car power port (1 2V)
3-6 hours
Laptop adapter
3 hours
