Replacing the hard disk (6700GX/7700GX)

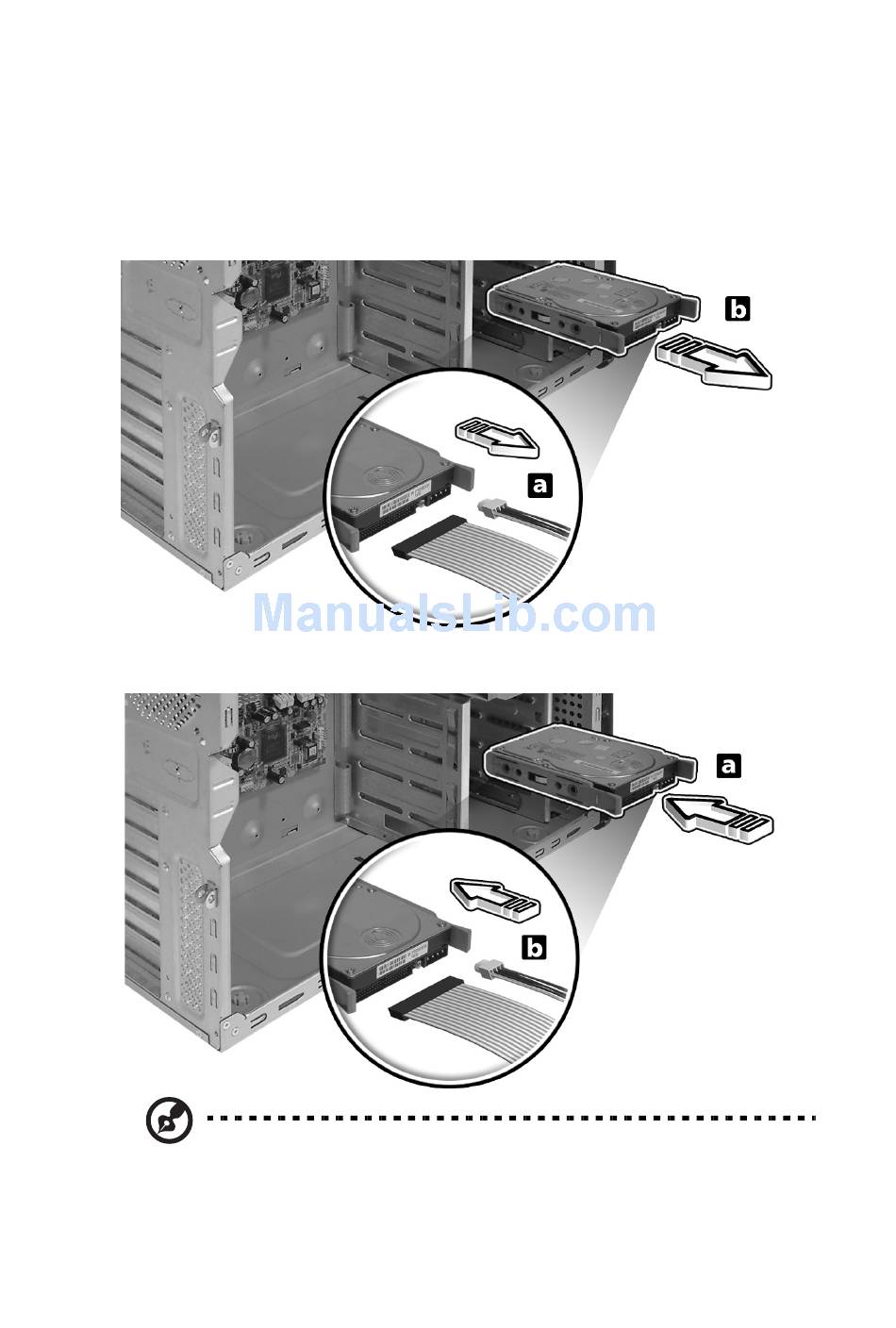

Follow these steps to replace your computer's hard disk:
1 Remove the side panel (see page 44).
2 Detach the power and hard disk cables from the hard disk(a).
Detach the hard disk from the drive frame (b).
3 Insert the new hard disk into the frame (a).
Connect the power and hard disk cables to the new hard disk (b).
Note: Make sure that the other ends of the disk cables are securely
connected to their corresponding connectors on the mainboard.
4 Replace the side panel (see page 45).
