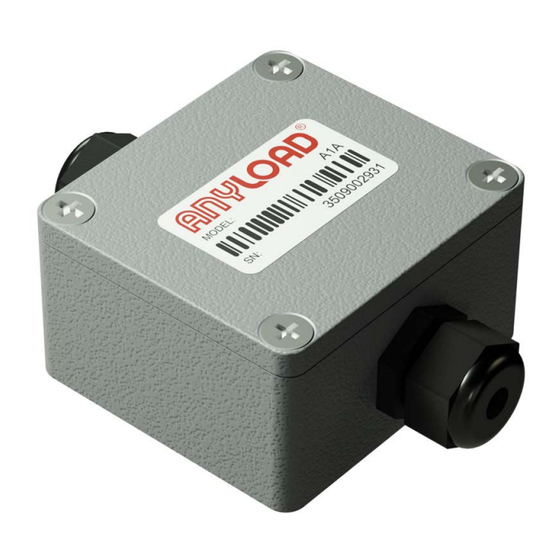

- Page 1 A1A-22B Analog Amplifier OPERATION MANUAL Version 24A...
-
Page 2: Table Of Contents
A1A-22B Operation Manual | V24A ABLE OF ONTENTS Introduction ................................. 2 Specifications ............................... 2 Dimensions ................................3 Connection ................................3 Calibration ................................4 Operating precautions ............................ 5 Troubleshooting ..............................5 www.anyload.com... - Page 3 This manual provides the connection, calibration, etc. of the A1A-22B amplifier in a weighing system. This manual is intended to be used by trained service technicians and installers. It is recommended to review this manual in detail before installing, operating, or configuring the instrument.
-
Page 4: Introduction
It is universal as it can amplify/convert the mV signal to both voltage and current output. The A1A-22B strain gage amplifier is a DC-powered amplifier that can drive one load cell connected directly or several load cells up to 4 x 350Ω... -
Page 5: Dimensions
A1A-22B Operation Manual | V24A 3. D IMENSIONS 4. C ONNECTION A1A-22B amplifier can be connected to a single load cell or multiple load cells connected through a junction box. www.anyload.com... -
Page 6: Calibration
A1A-22B Operation Manual | V24A Connect the load cell/junction box, power supply and the analogue data input devices to the amplifier board as per below schematic diagram. 5. C ALIBRATION The A1A – 22B consists of two calibration set points as zero and span calibration. -
Page 7: Operating Precautions
Span Calibration Step1: Apply the desired full load onto the scale/platform. Step2: Adjust SPAN potentiometer to an output of 10V or 20mA. Note: Anyload recommends repeating the calibration three times zero and span to ensure the most accurate calibration. 6. O PERATING PRECAUTIONS 6.1 Always keep the enclosure cover closed except for the period of the calibration and... - Page 8 Anyload Weigh & Measure Inc. North America Toll Free: 1-855-ANYLOAD (269-5623) Email: info@anyload.com www.anyload.com Address 6855 Antrim Avenue Burnaby, British Columbia Canada V5J 4M5 Anyload is an ISO 9001 certified company. Content is subject to change without notice. Version V24A...
