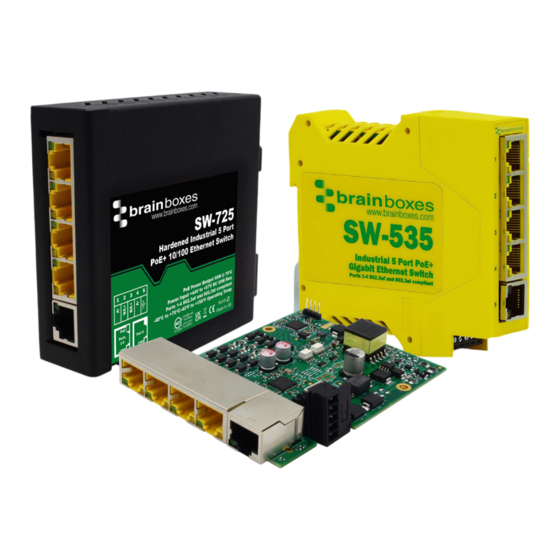

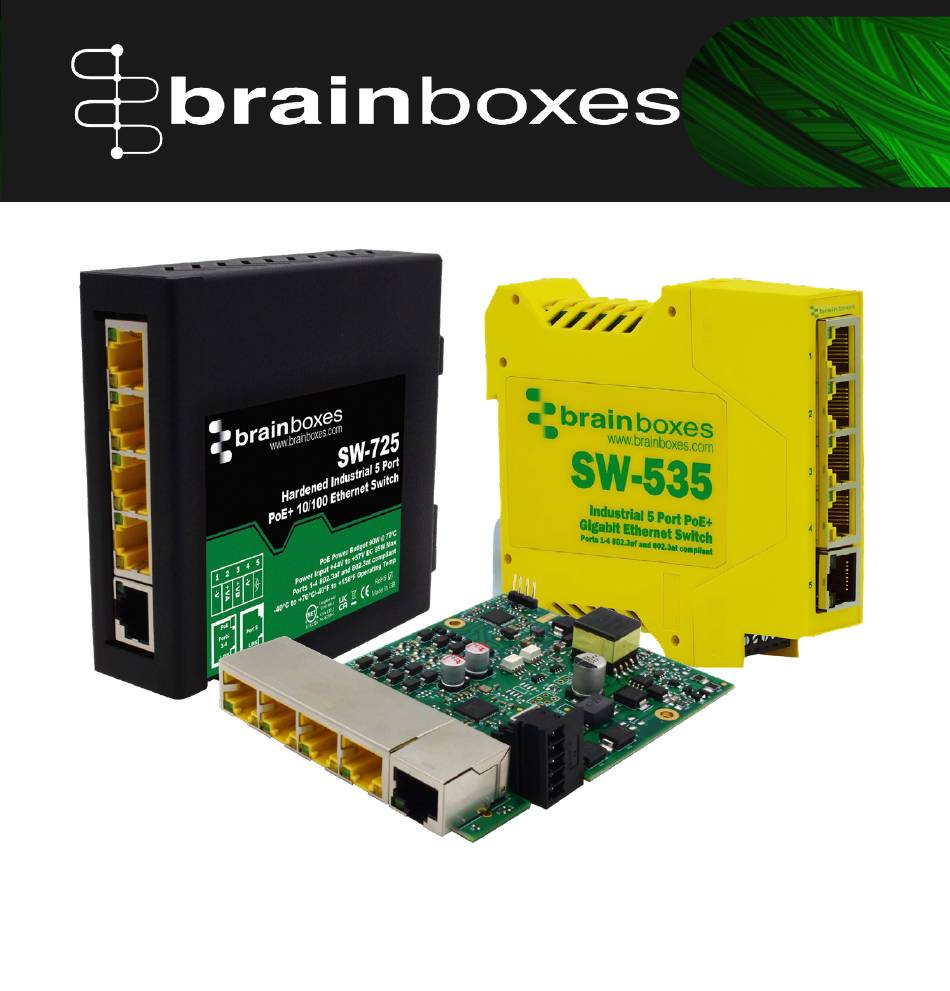

- Page 1 PoE SW RANGE Quick Start Guide for Brainboxes PoE Ethernet Switch Range...
- Page 2 SW-125, SW-525, SW-725 5PIN Dual Redundant Power Input SW-135, SW-535, SW-735 SW-195, SW-595 Power source output voltage must be within PoE/PoE+ range: +44VDC to +57VDC This equipment is not suitable for use in locations where children are likely to be present Input Voltage Range PoE: +44VDC to +57VDC PoE+: +51VDC to +57VDC...
- Page 3 PoE SW More resources online RANGE www.brainboxes.com PoE Standards Supported IEEE 802.3af/at (PoE/PoE+) PoE Power Budget 60W Max @ +44VDC to +51VDC 90W Max @ +51VDC to +57VDC Operating Temp Range -40ºC to +70ºC LINK/ACTIVITY LED: POWER LED: PoE POWER LED:...
- Page 4 DIN Rail Power Supply: PW-301 CALL US NOW: UK & EU: +44 (0)151 220 2500 USA Toll free: +1 855 958 2502 Brainboxes Ltd Brainboxes LLC 18 Hurricane Drive 4600 140th Avenue North Liverpool International Business Park Suite 180...
