Shiantech SA1600PRO User Manual

Co2/temperature/humidity monitor & controller with remote sensors
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA1600PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Shiantech SA1600PRO

  • Page 2 SA1600PRO User Manual CO2/Temperature/Humidity Monitor & Controller with Remote Sensors...
  • Page 3 If there are discrepancies or doubts, please contact our company. The functions and specifications are subject to change without prior notice. Contact Us Website: shiantech.com Tel: 86-10-89498895 Email: shian@shiantech.com 2023/10/27 Copyright Beijing SA...
  • Page 4 OVERVIEW Thank you for purchasing this CO2, Temperature, Humidity Monitor & Controller with remote sensors. It is designed for mushroom growth. And It provides two channels of outputs: it controls ventilation facility according to CO2 level and humidifier/dehumidifier according to moisture level. This product is available with US/EU/UK/AU/JP standards power plug.
  • Page 5 WARN Please strictly follow the warning items, otherwise there is a risk of death or serious injury. • Keep it out of reach of children and use it when adults can manage it regularly. • Do not store, install, or use in or near places with flammable, explosive, or flammable gases.
  • Page 6 NOTICE Please strictly follow the precautions, otherwise injury, product damage, or property damage may occur. • Do not use, install, or store this product in the following places. Places with direct sunlight, high temperatures, areas with rapid temperature changes (near condensation), areas that generate static electricity, devices that generate magnetism and electromagnetic waves in nearby areas, and dusty areas.
  • Page 7 MAIN FEATURES • Built-in photocell sensor • HD large display • Touch button operation • 2-Chanel Low Drift NDIR CO2 Sensor • Remote/external co2 sensor for co2 monitoring in confined spaces • Real-time displays co2 concentration, temperature and humidity • Easy-to-use zone value setting, and controlling on/off...

  • Page 8: Packing List

    PACKING LIST 1. CO2 Controller Unit Including one 1.5m power input cable, two 0.75m power output cables, and one 1.5m temperature & humidity sensor Sensor Kit External CO2 sensor, including 5 meters four-core shielded signal cable, waterproof aviation plug Instruction Manual Installation Screws 3 copies 2023/10/27 Copyright Beijing SA...

  • Page 9: Component Introduction

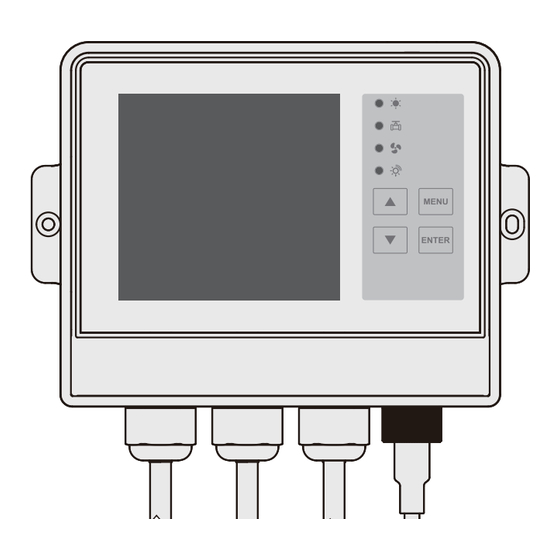

    COMPONENT INTRODUCTION Temperature and humidity sensor Operation and indication LCD display panel area Installation holes on both sides Power plug Output sockets CO2 sensor LED indicator Photosensitive sensor 2023/10/27 Copyright Beijing SA...
  • Page 10 INSTALL 1. Fix the equipment in place with the screws provided. CAUTION • It’ s recommended to keep and install the controller unit in a dry environment. • Use the provided screws to install the controller unit and remote sensor kit on the wall, make sure them firmly installed. •...
  • Page 11 2. Connect the instrument and CO2 sensor. Step 1. Align , then push to connect the two connectors. Step 2. Rotate while pushing to tighten the two connectors. Concave structure of instrument connector Convex structure of sensor connector Rotatable metal part Cable jonint 2023/10/27 Copyright Beijing SA...
  • Page 12 1. Power on To run the device, plug the power supply into the wall socket. Once it’ s booted, the full screen will be displayed after a ten-second countdown. If E1 is displayed, it indicates that the sensor is not connected correctly.
  • Page 13 2. LCD display Setup menu Date/time CO2/temperature/humidity CO2 reading center value and interval value CO2 center value settings. CO2 zone value Calibration menu Temperature reading CO2 400ppm one-key calibration. (Use with caution) Humidity reading Time menu Menu bar Setting date and time. Humidifier control status Fan control status Photosensitive mode on...

  • Page 14: Indicator Lights And Buttons

    3. Indicator lights and buttons Power supply indicator Humidifier indicator Fan indicator Photocell indicator Menu buttons Menu activation and exit Enter buttons Save and complete the settings Up/Down buttons Switch options and adjust values 4. Backlit display Pressing any button will turn on the backlight and it lasts about 30 seconds.

  • Page 15: Humidifier Control

    6. CO2 Control Output power is on when the CO2 concentration is over Set Center+(1/2) Set zone, and off when CO2 concentration is below Set Center-(1/2) Set zone. For example If the Set Center is 1200ppm, and the Set zone is 200ppm, the fan will power on when CO2 over 1200+(1/2)*200=1300ppm, and shut off...

  • Page 16: Restore Factory Settings

    SETTINGS For convenience of the demonstration, we change and explain as follows. a. Interface simplification Simplify to b. Symbol Description Grey: selected state Black: unselected sate Restore factory settings Restore factory setting will reset the device to factory setting. To do this, in normal state, press and hold for 3 seconds until an audible beep is heard.
  • Page 17 1. Menu bar activation and exit In the detection interface ( Figure 4 ), press to activate the menu bar, and press to cycle through various functional items. ( Flashing indicates selection status ). When flashing, press to exit the menu bar. ※...
  • Page 18 For example Exit 2023/10/27 Copyright Beijing SA...
  • Page 19 3. Calibration of CO2 Sensor (Use with caution) a. Before calibration, put the CO2 sensor outside with fresh and clean air for 20 minutes to reach an atmosphere with 400ppm CO2. b. When flashes, press to enter calibration. At this point, the CO2 reading area becomes 400ppm.
  • Page 20 Set the time a. When blinks, press to enter the settings, press ///////to switch Options. b. When an option flashes, press to enter the option, press //////// to adjust the value, press to save and switch to the next item, continue to press to adjust the value, and press to save.
  • Page 21 5. Photocell sensor on/off When flashes, press to enter settings, press ///////to switch Options, and press to save. For example 2023/10/27 Copyright Beijing SA...

  • Page 22: Specifications

    SPECIFICATIONS SA1600PRO Model Measurement Range ( 0-10000ppm ) 0~3000ppm ±50ppm +5%reading Accuracy ≥3000ppm ±50ppm +7%reading Warm-up Time 30 seconds (cold start) @ 25°C 63% step change<2 min， Response Time or 90% step change<4.6 min Operating Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature 14°F to 140°F (-10°C to 60°C)
