Summary of Contents for Kogan KAT416BMFNA

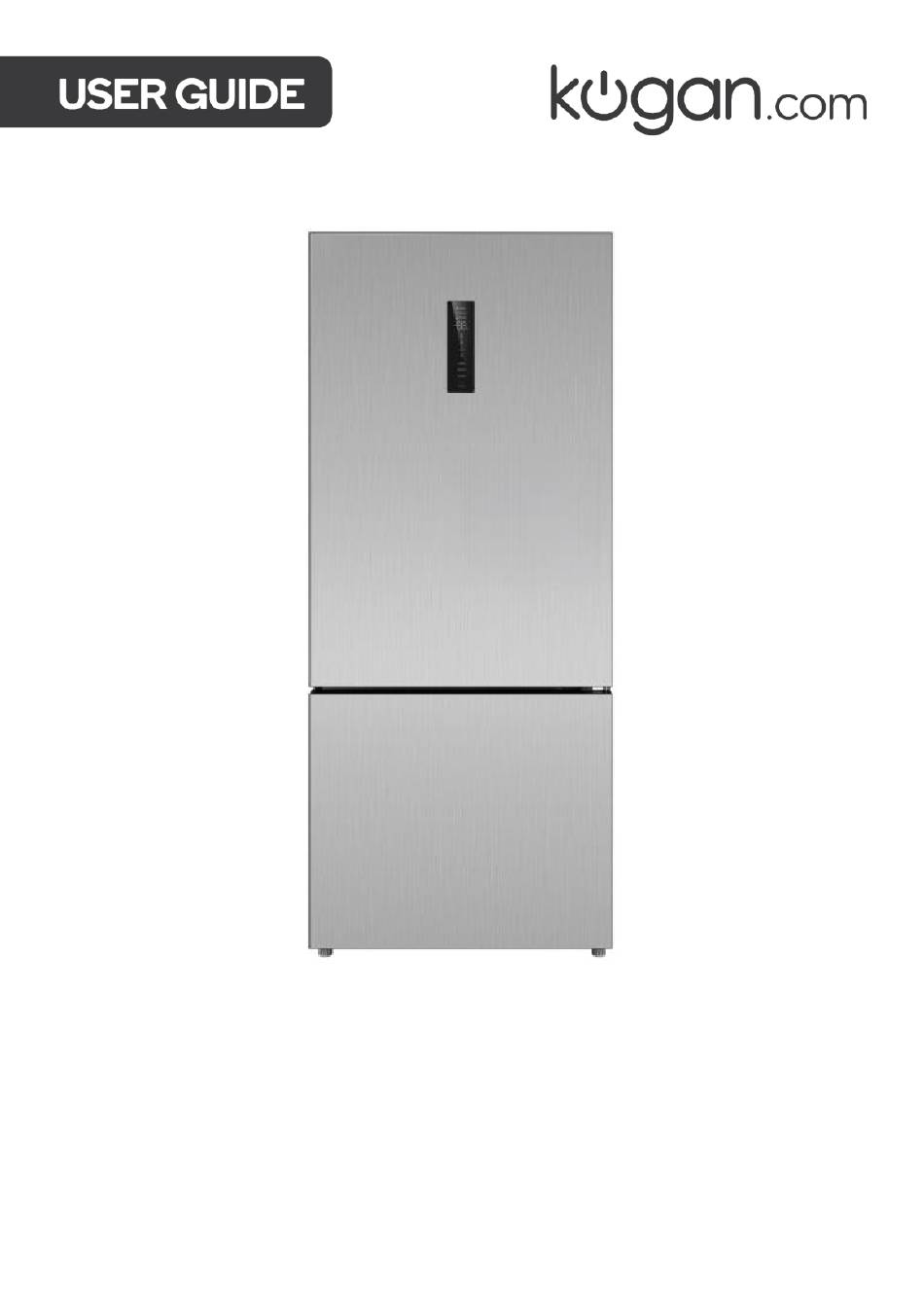

- Page 1 416L BOTTOM MOUNT FRIDGE KAT416BMFNA & KAT416BMFNB...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Before First Use Operation Cleaning & Care Specifications Troubleshooting... -
Page 3: Safety & Warnings
• Do not use other electrical appliances (such as ice cream makers) inside the appliance unless they are approved for this purpose by Kogan.com. • Do not touch the light bulb if it has been on for a long period of time as it will be very hot. - Page 4 • Any damage to the power cord may cause a short circuit, fire and/or electric shock. If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shops, offices and other working environments.
- Page 5 Service • Any electrical work required to service the appliance should be carried out by a qualified electrician. • If the appliance is damaged, cease use immediately and contact help.Kogan.com for support. Energy Saving • Do not put hot food inside the appliance.
- Page 6 Responsible Disposal • At the end of its working life, do not throw this appliance out with your household rubbish. Electrical products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. •...
-
Page 7: Overview
OVERVIEW Lighting Strip Upper Freezer Drawer Refrigerating Shelf Middle Freezer Drawer Refrigeration Air Duct Back Plate Lower Freezer Drawer Crisper Drawer Cover Door Shelf Crisper Drawer Half-Door Shelf... - Page 8 Control Panel Fridge Indicator Lock Indicator Freezer Indicator Zone Button Temperature Display Regulate Button Power Cool Indicator Function Button Power Freeze Indicator Unlock Button Holiday Indicator...
-
Page 9: Installation
INSTALLATION Handling and Placement WARNING: To ensure safe transportation, keep the fridge at a maximum tilt angle of 30 degrees during loading and unloading. Allow ample space for manoeuvring, avoiding tight corners or obstacles. Failure to adhere to these guidelines may result in damage to the appliance or injury. - Page 10 Space Requirements Outline Dimensions Space Required by the Product Total Space Required Space needed for ventilation. Outline Dimensions Space Required by the Product Total Space Required >L1+100 >W1+200 >L1+690 >W1+600...
- Page 11 Door Reversal Note: If you are not confident in performing the door reserving procedure, consult a qualified trade professional. Tools required (not provided): • Philips head screwdriver. • Wrench. Components: Left upper hinge Left upper hinge cover Left lower hinge assembly Left middle hinge Right upper decorative Left door stop...
- Page 12 Take out the middle hinge screw with a Phillips head screwdriver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door. Gently tilt the fridge, remove the lower hinge and leveling foot at the bottom of the fridge.
- Page 13 Install the left lower hinge assembly prepared in advance on the left side. Install the previously removed leveling foot to the right side and install the lower door. Install the prepared middle hinge in the left mounting position and install the previously removed screw cover into the right screw hole.
-
Page 14: Before First Use
BEFORE FIRST USE • • Remove all packing materials such as adhesive tape, plastic bags, etc. Be sure to remove the foam base. • Use a cloth dampened in warm water to clean both the interior and exterior of the fridge. -
Page 15: Operation
OPERATION Powering On for the First Time • When the appliance is powered on for the first time: The fridge will run at 5°C. The variable temperature zone will run at 4°C. The freezer will run at -18°C. Child Lock •... - Page 16 Power Cool Mode • Function button repeatedly until the Power Cool indicator flashes. Stop Function button for 3 seconds to enter Power Cool mode. The temperature of the fridge will rapidly cool down until it reaches 2°C. • The fridge will automatically exit Power Cool mode after 2 hours or if the door is open for over 3 minutes.
- Page 17 Freezer High Temperature Warning • When the power is switched on and the temperature of the freezer is higher than -12°C, • Press any button to display the temperature of the freezer when it is powered on. After 10 seconds, the control panel will return to the normal display state. Control Panel Protection •...
- Page 18 • Frozen food should be kept in suitable individual packages to ensure that adjacent food cannot be contaminated. • Consume thawed and defrosted foods immediately, do not refreeze them. • In case of prolonged power failure or malfunction, remove the stored frozen food and check if it is still edible, then store them in a sufficiently cool place or in another appliance.
- Page 19 Adjustable Shelves and Crisper Drawer • The walls of the fridge are equipped with runners so that the shelves can be adjusted and removed as desired. • Pull the shelf outwards and upwards to remove it. • Pull the crisper drawer outwards to remove it. Freezer Drawer Pull the drawer outwards and upwards to remove it.
-
Page 20: Cleaning & Care
Notes: • If the power cord and plug are damaged or dusty, electric shock or fire may occur. If this occurs, cease use immediately and contact help.Kogan.com for support. • After unplugging, wait 5 minutes before plugging in again. • Do not put your hands under the fridge, as this may cause injury. -
Page 21: Specifications
SPECIFICATIONS Climate type Electric shock resistance Total storage volume 416L Storage volume of fridge 310L Storage volume of freezer 106L Power type 220-240V~50Hz Rated current 1.6A Power consumption 273kWh/y Lamp power Weight 72kg Dimension (mm) 703 x 689 x 1725mm Refrigerant and charge amount R600a,56g Noise volume... -
Page 22: Troubleshooting
TROUBLESHOOTING Abnormal Occurrences Problem Potential Cause Solution Check the connection of Properly connect the power power plug. plug. Check whether the fridge is The fridge does Move the fridge to a place exposed to direct sunlight not power on or without direct sunlight and or whether there is heat the refrigeration... - Page 23 Normal Occurrences Phenomenon Cause Heat on two sides and spacing part surface Fridge pipes (condenser, anti-fog pipes) are on two sides between refrigerating and front part of fridge for heat dissipation and to chamber and freezing prevent from condensation. chamber. Reopening of the door immediately after closing it is hard The door is too tight and because hot air enters the fridge and contracts to...
