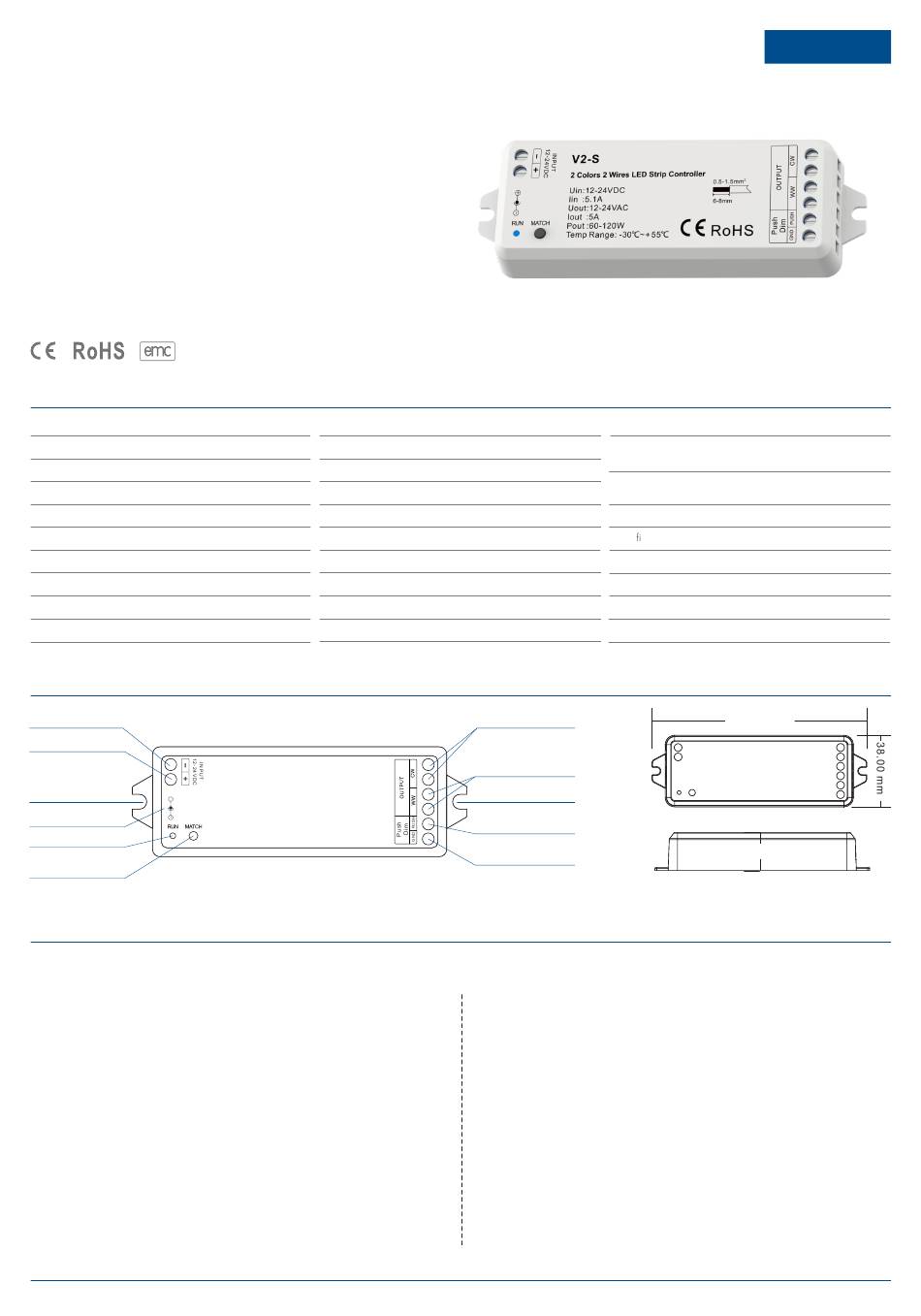

B-LED V2-S Manual

V2-S
2 Colors 2 Wires LED Strip Controller
● Only apply to 2-wires WW+CW LED strip.
● Match with RF 2.4G single zone or multiple zone dual color remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Auto-transmitting function: Controller automaticly transmit signal to another
controller with 30m control distance.
● Synchronize on multiple number of controllers.
● 3 levels color temperature (WW, NW and CW)
power off and on operation.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
RED
Technical Parameters
Input and Output
Input voltage 12-24VDC
Input current 5.1A
Output voltage 12-24VAC
Output current 5A
Output power
60-120W
Output type Constant voltage
Warranty and Protection
Warranty 5 years
Protection Reverse Polarity
Mechanical Structures and Installations
Power input -
Power input +

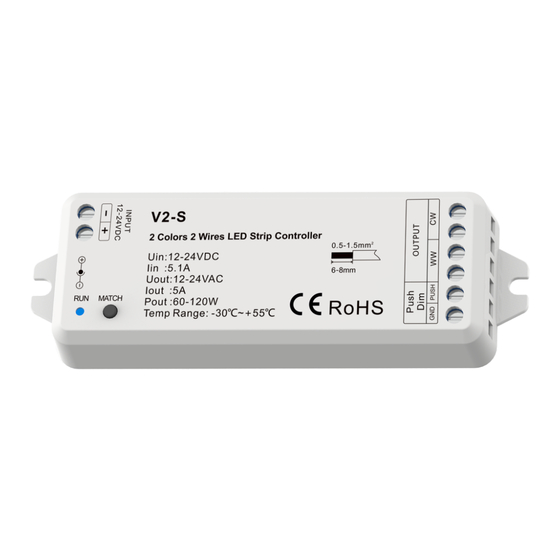

Installation rack
+
DC socket input
LED indicator
Match key
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off key (single zone remote)
or zone key (multiple zone remote) of the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
User Manual Ver 2.0.1
2024.6
selectable by continuous
2--wires CCT / Step-less dimming / Wireless remote control / Auto-transmitting / Synchronize / Push Dim
Dimming data
Input signal
RF 2.4GHz + Push Dim
Control distance
30m(Barrier-free space)
Dimming gray scale 256 levels
Dimming range
0 -100%
Dimming curve Linear
PWM Frequency
2KHz
Environment
Operation temperature
Ta: -30
Case temperature (Max.) Tc: +85
Safety and EMC
EMC standard (EMC)
Safety standard
Radio Equipment(RED)
Certi cation
Package
Size
Gross weight
O C ~ +55 O C
O C
Output CW LED
Output WW LED
Installation rack
Push switch
Push switch common
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
RF CCT
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 61348-1:2015+A1:2021
EN 61348-2-13:2014+A1:2017
ETSI EN 300 328 V2.2.2
CE,EMC,RED
L120x W43 x H27mm
0.066kg
114.00 mm
20.00 mm
