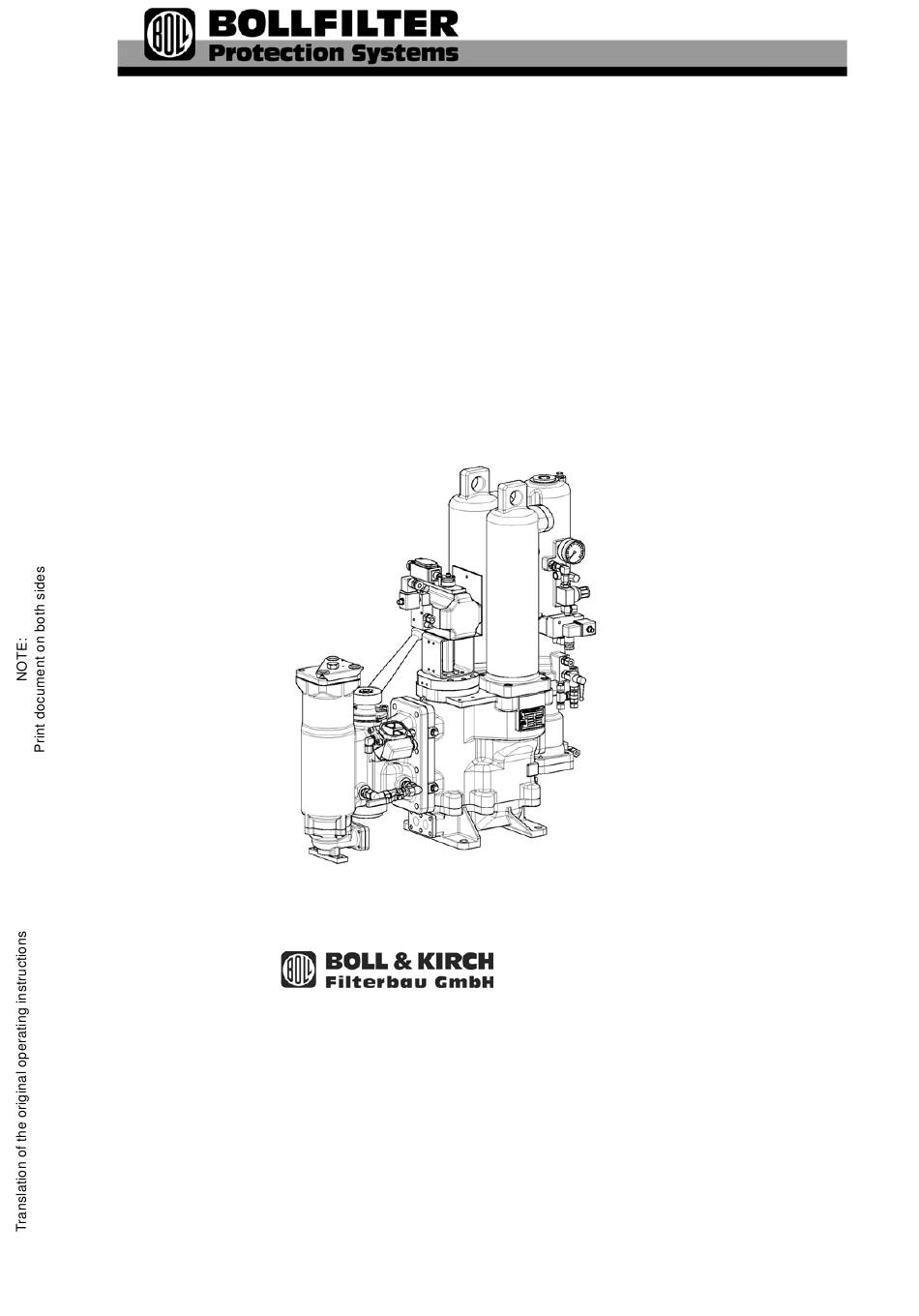

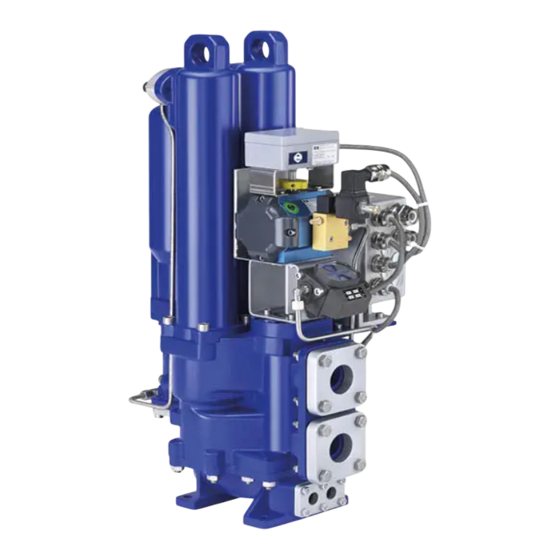

Operating instructions for automatic filter
Type
Nominal diameter
Filter element
Siemensstraße 10 - 14
50170 Kerpen
Germany
www.bollfilter.de
Date
Version
03.2011
001
6.72.1
DN 65
Filter candle
Language
Order No.
en
3962785
Item No.
01
1/90

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6.72.1 and is the answer not in the manual?

Questions and answers

Andruxa
May 7, 2025

we have high difference in dp pressure and i will like to request some remedy .... thanks in advance !

1 comments:
Mr. Anderson
May 18, 2025

High differential pressure in a Bollfilter with part number 6.72.1 is addressed by the following remedy:

- The controller monitors the differential pressure between the filter inlet and outlet.
- When the differential pressure reaches the set maximum value, the controller automatically triggers a backflushing process to clean the filter.

This process reduces the pressure by removing the accumulated soiling.

This answer is automatically generated

Summary of Contents for Bollfilter 6.72.1

  • Page 1 Operating instructions for automatic filter Type 6.72.1 Nominal diameter DN 65 Filter element Filter candle Siemensstraße 10 - 14 50170 Kerpen Germany www.bollfilter.de Date Version Language Order No. Item No. 03.2011 3962785 1/90...
  • Page 2 2 / 90 Operation Instruction 6.72.1...
  • Page 3: Table Of Contents

    Flushing valve ......... 35 Operation Instruction 6.72.1...
  • Page 4 Spare parts list ......... 83 4 / 90 Operation Instruction 6.72.1...
  • Page 5 Declaration of conformity ....... . . 88 Operation Instruction 6.72.1...
  • Page 6 6 / 90 Operation Instruction 6.72.1...
  • Page 7: Preamble

    Reference to any deviations is made in the respective place if required for comprehension. The graphic illustrations are not true to scale. A list of spare parts is enclosed with the operating instructions for spare parts orders. Operation Instruction 6.72.1 7 / 90...
  • Page 8: Copyright

    • reproduced, • distributed or • otherwise made available to others, either in full or in part. Failure to comply will require compensation. 8 / 90 Operation Instruction 6.72.1...
  • Page 9: Basic Safety Instructions

    NOTE Denotes special user tips and other particularly useful or important information. DISPOSAL Denotes special measures for environmental protection. Target group The operating instructions apply for use by qualified specialist staff only. Operation Instruction 6.72.1 9 / 90...
  • Page 10: Obligations Of The User/Operator

    Adhere to the legal minimum age requirement. • Only appoint trained staff or staff who have received appropriate instruction. Clearly delegate the areas of responsibility of staff for installation, operation and maintenance and servicing. 10 / 90 Operation Instruction 6.72.1...
  • Page 11: Organisational Measures

    When handling media which are to be filtered, make sure you follow the respective safety regulations for the media. 2.7.2 Cleaning agent • When handling the cleaning agents, make sure you follow the respective safety regulations for the cleaning agents. Operation Instruction 6.72.1 11 / 90...
  • Page 12 12 / 90 Operation Instruction 6.72.1...
  • Page 13: Transportation And Storage

    • Remove the packaging material before transportation into an explosive atmosphere. DISPOSAL Observe the regulations for environmental protection. Make sure that the packaging material is disposed of properly and in an environmentally friendly manner. Operation Instruction 6.72.1 13 / 90...
  • Page 14 14 / 90 Operation Instruction 6.72.1...
  • Page 15: Scope Of Delivery

    Scope of delivery Immediately after receiving the delivery, check that the content is not damaged and that it corresponds to the scope of the order. In case of discrepancies, contact the manufacturer. Operation Instruction 6.72.1 15 / 90...
  • Page 16 16 / 90 Operation Instruction 6.72.1...
  • Page 17: Technical Data

    When making enquiries or ordering spare parts, always provide the information on the type plate. Overview of automatic filter assembly group NOTE The description of assembly groups can be found in the "Operation" chapter of these operating instructions. Operation Instruction 6.72.1 17 / 90...
  • Page 18 3-way ball valve (optional) Ball valve Pressure gauge (optional) One-way restrictor valve Differential pressure monitoring system NOTE Dependent on the filter configuration, the differential pressure monitoring can be assembled on the bypass filter, see section 5.3. 18 / 90 Operation Instruction 6.72.1...
  • Page 19 Limit switch Lower section of housing (optional) Solenoid valve (pivoting Shut-off valve actuator) NOTE In combination with a bypass filter, the shut-off valves are assembled on the plug valve switch-over circuit, see section 5.3. Operation Instruction 6.72.1 19 / 90...
  • Page 20 Fig. 5-3 Overview of assembly groups (cross sectional view) Vent (automatic) Spacer Filter candle Filter inlet Valve tappet Filter outlet Candle holder Flushing oil outlet Plug valve Heating medium inlet Change-over housing cover Heating medium outlet 20 / 90 Operation Instruction 6.72.1...
  • Page 21: Overview Of Assembly Groups, Bypass Filter And Plug Valve Switch-Over

    Element support Cover (Bypass filter) Draining (full drainage) Housing cover safety device Filter heating (optional) including ventilation Seal Shut-off valve Filter element Inlet Seal Outlet Plug valve Heating medium inlet Housing Heating medium outlet Operation Instruction 6.72.1 21 / 90...
  • Page 22 Fig. 5-5 Overview of assembly groups (view II with differential pressure monitoring) Differential pressure monitoring (optional position) Shut-off valve Floor fastening Pressure compensation 22 / 90 Operation Instruction 6.72.1...
  • Page 23: Installation

    NOTE Contact the manufacturer with any special questions you may have regarding installation. The contact data for the respective national subsidiaries can be found in the appendix of the operating instructions. Operation Instruction 6.72.1 23 / 90...
  • Page 24: Filter Installation

    DANGER! Combustible medium When filtering combustible medium expelled medium may cause fires and personal injuries. • Adhere to the valid fire safety regulations when carrying out any work on the filter. 24 / 90 Operation Instruction 6.72.1...
  • Page 25: Floor Fastening

    Make sure that there is sufficient space in the vicinity of the filter for maintenance and servicing work. Align the filter. Screw the filter housing to the fastening points. When fastening the filter in place, the filter housing must not be twisted. Operation Instruction 6.72.1 25 / 90...
  • Page 26: Installation Diagram

    The filter inlet/outlet and flushing oil outlet are indicated by the inscriptions (Ein/In), (Aus/Out) and (Spülölaustritt/Flushing oil). • The direction of flow is also shown in the technical data sheet which is included in the appendix of these operating instructions. 26 / 90 Operation Instruction 6.72.1...
  • Page 27: Filter Inlet/Outlet Pipe Connections

    The pipe must also be laid with an inclination and bled. The pipe may need to be provided with additional supports, depending on the installation conditions. When installing the piping, the filter housing must not be twisted. Operation Instruction 6.72.1 27 / 90...
  • Page 28: Filter Heating (Optional)

    Use the appropriate seals. The pipes for the heating medium inlet and outlet may need to be provided with additional supports, depending on the installation conditions. When installing the piping, the filter housing must not be twisted. 28 / 90 Operation Instruction 6.72.1...
  • Page 29: Connection Of Compressed Air Supply

    Connection of compressed air supply Fig. 6-4 Connection of compressed air supply Air tank Ball valve One-way restrictor valve Connect the plant's compressed air supply line to the one-way restrictor valve on the ball valve. Operation Instruction 6.72.1 29 / 90...
  • Page 30: Electrical Connections

    10 mm² on the filter. Connect the ground cable to the fastening screw on the filter. If necessary, prior to the installation of the ground cable, remove the paint from the fastening point to ensure sufficient electrical contact. 30 / 90 Operation Instruction 6.72.1...
  • Page 31: Operation

    • The differential pressure can also be displayed optically on the differential pressure monitoring system. • The control line for the differential pressure monitoring system is fitted with shut-off valves (e.g. shut-off valves). Operation Instruction 6.72.1 31 / 90...
  • Page 32 The levers have to point downwards when in operation. In order to protect the differential pressure monitoring system from the filtered media glycerine receivers (optional) can be installed upstream of the differential pressure monitoring system. 32 / 90 Operation Instruction 6.72.1...
  • Page 33 Fig. 7-2 Glycerine receiver installation example Glycerine receiver (optional) Differential pressure monitoring system The glycerine receivers (optional) separate the differential pressure monitoring system from the media being filtered. Operation Instruction 6.72.1 33 / 90...
  • Page 34: Air Tank And Flushing Valve

    The pressure level in the air tank can be read from the pressure gauge and set using a pressure controller. The air tank is equipped with a safety valve to prevent the air tank from being damaged by excessive positive pressure. 34 / 90 Operation Instruction 6.72.1...
  • Page 35: Pivoting Actuator (Pneumatic) With Limit Switch

    A solenoid valve (flushing valve) regulates the supply of compressed air for actuation of the flushing valve. Operation Instruction 6.72.1 35 / 90...
  • Page 36: Filtration Stage

    7.1.7 Filtration stage Fig. 7-4 Filtration stage Filter candle Air tank Plug valve Filter inlet Flushing valve Filter outlet Solenoid valve (flushing valve) 36 / 90 Operation Instruction 6.72.1...
  • Page 37 The solenoid valve (flushing valve) is switched so that the flushing valve is closed. The plug valve isolates the cleaned filter chamber. In the air tank, compressed air is available for the next backflushing. Operation Instruction 6.72.1 37 / 90...
  • Page 38: Backflushing Stage

    Filter candle Valve tappet Limit switch and cam disc Solenoid valve (flushing valve) Solenoid valve (pivoting Air tank actuator) Pivoting actuator (pneumatic) Filter inlet Differential pressure Filter outlet monitoring system Plug valve Flushing oil outlet 38 / 90 Operation Instruction 6.72.1...
  • Page 39 Flushing an only partially filled filter causes increased strain on the filter candles. • Never perform backflushing due to installation or control circumstances in an only partially filled filter. A completely drained filter can be flushed for test purposes without any restrictions. Operation Instruction 6.72.1 39 / 90...
  • Page 40: Functional Description Of The Plug Valve Switch-Over Circuit

    It is opened and closed manually. NOTE The measuring points for the differential pressure monitoring system are situated at the inlet and outlet to the plug valve switch-over circuit. 40 / 90 Operation Instruction 6.72.1...
  • Page 41: Pressure Compensation

    Fig. 7-7 Pressure compensation Pressure compensation valve Pressure compensation Lever pointing - Pressure compensation valve open lengthways along the line Lever pointing across the - Pressure compensation valve closed line Operation Instruction 6.72.1 41 / 90...
  • Page 42: Functional Description Of The Bypass Filter

    The filter chamber is relieved via the vent. When the filter is shut off, the operating pressure is immediately relieved and hardly any medium is expelled. Otherwise, close the vent immediately and the expulsion of medium is limited. 42 / 90 Operation Instruction 6.72.1...
  • Page 43: Automatic Filter Filter Insert

    Automatic filter filter insert 7.4.1 Filter insert with filter candles Fig. 7-9 Construction of the filter insert with filter candles Filter candle Candle holder Seal Operation Instruction 6.72.1 43 / 90...
  • Page 44: Functional Description Of The Filter Insert With Filter Candles

    The candle holder secures the filter candles and thus protects the filter material on the filter candles from damage during removal and installation. The dirty side is sealed off from the clean side by a seal on the candle holder. 44 / 90 Operation Instruction 6.72.1...
  • Page 45: Bypass Filter Filter Insert

    Bypass filter filter insert 7.5.1 Star-pleated filter element Fig. 7-10 Construction of star-pleated filter element Threaded connection piece Sieve ring Filter bottom Seal Filter material Operation Instruction 6.72.1 45 / 90...
  • Page 46: Functional Description Of The Star-Pleated Filter Element

    The bypass filter is fitted with a star-pleated filter element. The star-pleated filter element is attached with the open end on the element support. The dirty side is sealed off from the clean side by seal on the star-pleated filter element. 46 / 90 Operation Instruction 6.72.1...
  • Page 47: Commissioning

    It is needed to ensure that the cleaned filter chamber can be filled. Check that the controller is functioning by performing backflushing manually. Open the filter outlet shut-off valve Slowly open the filter inlet shut-off valve. Avoid pressure surges. Operation Instruction 6.72.1 47 / 90...
  • Page 48: Determination Of Time Interval For Time-Controlled Backflushing

    24 hours with differential pressure, you have to deactivate the intervals for forced flushing on the controller. Calculate the average of all flushing intervals. Reset the flushing interval time (which should be 30 % shorter) on the controller. 48 / 90 Operation Instruction 6.72.1...
  • Page 49: Removal From Service

    The connection flange openings must be sealed with plastic (or similar) dummy plugs. 7.7.3 Disposal DISPOSAL When the filter or individual components and consumables are finally disposed of, make sure that they are disposed of in an environmentally friendly manner. Operation Instruction 6.72.1 49 / 90...
  • Page 50 50 / 90 Operation Instruction 6.72.1...
  • Page 51: Maintenance And Servicing

    • Filter elements are sensitive to pressure and impact. Always exercise extreme caution when installing and removing the filter elements. Before installation, check all filter elements/seals and replace any damaged filter elements/seals as necessary. Operation Instruction 6.72.1 51 / 90...
  • Page 52: Cleaning Agent

    The correct cleaning agent is selected in accordance with the type of medium being filtered and the associated soiling. • BOLL & KIRCH Filterbau GmbH recommends BOLL CLEAN 2000 cleaning agent. For more detailed information, see the appendix of these operating instructions. 52 / 90 Operation Instruction 6.72.1...
  • Page 53: Special Tool

    Special tool The manufacturer provides the following special tools for the filter: Wrench for removing the filter elements Key for opening the controller Key for fitting filter housings Guide pins for filter housing removal Operation Instruction 6.72.1 53 / 90...
  • Page 54: Maintenance Intervals

    Replace all seals at least every 2 years and when overhauling the automatic filter. NOTE The filter elements are subject to wear from two-way strain. It is therefore recommendable to keep a complete set of filter elements in stock. 54 / 90 Operation Instruction 6.72.1...
  • Page 55 • The plug valve circuit must be inspected annually for leaks. • Replace all seals at least every 2 years and when overhauling the plug valve circuit. Operation Instruction 6.72.1 55 / 90...
  • Page 56: Cleaning/Replacing The Filter Element On The Automatic Filter

    Wear the appropriate protective clothing. DANGER! Risk of accidents from expelled medium Hot medium may be expelled when opening the filter chamber. • Depressurise and lower the level of medium before removing the filter insert. 56 / 90 Operation Instruction 6.72.1...
  • Page 57 Venting line Filter housing Screw Upper section of housing Disconnect the venting lines from the filter housings. Unfasten the screw connection for the filter housings with the key included in the scope of delivery. Operation Instruction 6.72.1 57 / 90...
  • Page 58 When installing / removing the filter housings, proceed with extreme care. • Use the guide pins to install / remove the filter housings. Screw the guide pins into the change-over housing. Lift the filter housings off the upper section of housing. 58 / 90 Operation Instruction 6.72.1...
  • Page 59: Removing The Filter Insert With Filter Candles

    Fig. 8-3 Removing the filter insert with filter candles Filter element Candle holder Seal Remove the filter inserts from the housing by pulling vertically upwards. Allow the filter inserts to drip dry in a suitable container. Operation Instruction 6.72.1 59 / 90...
  • Page 60: Cleaning The Filter Insert With Filter Candles

    Allow the filter insert to drip dry again. Blow out the filter elements with compressed air from the inside to the outside. Then check all filter elements for damage. Replace any damaged filter elements/seals as necessary. 60 / 90 Operation Instruction 6.72.1...
  • Page 61: Cleaning The Filter Candles In Case Of Stubborn Soiling

    Blow out the filter elements with compressed air from the inside to the outside. Remove any particles collected on the magnetic candle (if fitted). Re-assembly is performed by carrying out the steps for disassembly in reverse order. Clean the candle holder as necessary before assembly. Operation Instruction 6.72.1 61 / 90...
  • Page 62: Installing The Filter Insert With Filter Candles

    Clean any soiling which has collected on the inside of the filter. Check all the seals for damage. Replace any damaged seals as necessary. Insert the filter inserts vertically into the housing from above. Make sure that the seals are properly in place. 62 / 90 Operation Instruction 6.72.1...
  • Page 63: Concluding Work

    Screw the filter housings to the upper section of housing. Tighten the screw connection evenly, gradually tightening opposite screws step-by-step. Connect the venting lines to the filter housings. Put the filter back into operation. See the section "Commissioning". Operation Instruction 6.72.1 63 / 90...
  • Page 64: Cleaning/Replacing The Filter Element On The Bypass Filter

    Unscrew the vent screw far enough so that the securing plate on the cover safety device can pivot to the side over the covered screws. Unfasten the screw connection on the cover. Lift the cover off the housing. 64 / 90 Operation Instruction 6.72.1...
  • Page 65: Removing The Star-Pleated Filter Element

    8.6.2 Removing the star-pleated filter element Remove the filter element from the housing by pulling it vertically upwards. Allow the filter element to drip dry in a suitable container. Operation Instruction 6.72.1 65 / 90...
  • Page 66: Cleaning The Star-Pleated Filter Element

    Rinse the filter element carefully and allow it to drip dry. Check the filter element for damage. Replace any damaged filter elements/ seals as necessary. 66 / 90 Operation Instruction 6.72.1...
  • Page 67: Installing The Star-Pleated Filter Element

    Pivot the securing plate on the housing cover safety device by the screws which have to be secured, and screw the vent screw tight. Put the filter back into operation. See the section "Commissioning". Operation Instruction 6.72.1 67 / 90...
  • Page 68: Manually Backflushing The Filter In The Event Of Power Failure

    Check whether there is compressed air on the filter, Actuate the solenoid valve (pivoting actuator) manually with a screwdriver to pivot the plug valve to the soiled filter chamber, Do not move the manual actuator back into the initial position. 68 / 90 Operation Instruction 6.72.1...
  • Page 69 Move the solenoid valve's (flushing valve) manual actuator back into the initial position. Move the solenoid valve's (pivoting actuator) manual actuator back into the initial position. The automatic venting process in the filter chamber is not completed until the filling time has elapsed. Operation Instruction 6.72.1 69 / 90...
  • Page 70: Remedying Faults

    Check the compressed air supply on the filter connection (see respective operating instructions for the entire plant) The solenoid valve Replace the solenoid (pivoting actuator) or valve (pivoting actuator) pivoting actuator are or pivoting actuator stuck 70 / 90 Operation Instruction 6.72.1...
  • Page 71 (see respective operating instructions for the entire plant) Set the air pressure on the pressure controller Ball valve on the filter Open the ball valve closed Pressure gauge faulty Replace the pressure gauge Operation Instruction 6.72.1 71 / 90...
  • Page 72 72 / 90 Operation Instruction 6.72.1...
  • Page 73: Appendix

    Element type of filter Mesh screw-in candle Number of filter elements Element type of bypass filter Star-pleated filter element Heating Heated filter housing Steam Permitted operating pressure 14.00 bar permitted max. operating temperature 200.00 °C Operation Instruction 6.72.1 73 / 90...
  • Page 74: Technical Data Sheet

    9.1.2 Technical data sheet 74 / 90 Operation Instruction 6.72.1...
  • Page 75: Spare Parts

    9.1.3 Spare parts 9.1.3.1 Spare parts drawing Operation Instruction 6.72.1 75 / 90...
  • Page 76 76 / 90 Operation Instruction 6.72.1...
  • Page 77: Spare Parts List

    00023 5700158 mounting sheet pcs. 00024 5700182 mounting for limit switch pcs. 00025 4101224 isolation plate pcs. 00026 5130044 Control Disc pcs. 00030 3030324 o-ring pcs. 00031 3030324 o-ring pcs. 00032 3030339 o-ring pcs. Operation Instruction 6.72.1 77 / 90...
  • Page 78 00079 2000121 hexagon socket head cap screw pcs. 00080 2009088 stud bolt pcs. 00081 2010329 hexagon socket head cap screw pcs. 00082 2000130 hexagon socket head cap screw pcs. 78 / 90 Operation Instruction 6.72.1...
  • Page 79 00124 2001772 screwed sealing plug pcs. 00125 2000693 screwed sealing plug pcs. 00127 2560356 angle ball valve pcs. 00128 0600485 tubing set pcs. 00128 0600611 tubing set pcs. 00129 2510239 screwing extension pcs. Operation Instruction 6.72.1 79 / 90...
  • Page 80 00322 3030353 o-ring pcs. 00323 2000004 stud bolt pcs. 00325 2009088 stud bolt pcs. 00326 2009088 stud bolt pcs. 00327 2000001 stud bolt pcs. 00328 2010326 hexagon socket head cap screw pcs. 80 / 90 Operation Instruction 6.72.1...
  • Page 81 2000188 screwed sealing plug pcs. 00341 2000187 screwed sealing plug pcs. 00342 0203920 pressure compensation pcs. 00343 6700526 bottom fastening pcs. 00344 2000130 hexagon socket head cap screw pcs. 00350 2300048 Star grasping pcs. Operation Instruction 6.72.1 81 / 90...
  • Page 82: Differential Pressure Indicator

    Differential pressure indicator 9.2.1 Technical data sheet 82 / 90 Operation Instruction 6.72.1...
  • Page 83: Spare Parts List

    9.2.2 Spare parts list Operation Instruction 6.72.1 83 / 90...
  • Page 84: Supplier's Documentation

    Cleaning devices For particularly good cleaning results, BOLL & KIRCH Filterbau GmbH recommends the filter element cleaning unit type 5.04 with rotating nozzle and flat jet nozzle or optionally, the type 5.05 ultrasonic cleaning unit. 84 / 90 Operation Instruction 6.72.1...
  • Page 85: Boll Clean 2000 Cleaning Agent Product Information

    The concentration depends on the type and extent of the collected dirt particles which have to be removed. When using a concentration of 1 : 30 and above, rinsing is usually not necessary. No visible film is left on the surface. Operation Instruction 6.72.1 85 / 90...
  • Page 86: Worldwide Sales And Service Network, Subsidiaries And Representatives

    Tel.: +32/(0)3 646 61 80 Tel.: +39/(0)0238/00 52 83 Tel.: +90/(0)216/580 92 15 Fax: +32/(0)3 646 93 98 Fax: +39/(0)0238/00 36 31 Fax: +90/(0)216/580 92 19 E-Mail: info@auximeca.be E-Mail: sales@decosta.it E-Mail: sami.uygurer@aresmakina.com www.auximeca.com www.decosta.it www.aresmakina.com 86 / 90 Operation Instruction 6.72.1...
  • Page 87 No. 318, Yuan Shan Rd. CN - 201108 Shanghai Asia Tel.: +86-21 64 42 22 11 India Fax: +86-21 64 42 20 66 BOLLFILTER India Pvt. Ltd. E-Mail: shanghai@bvi-marine.com "Monarch Plaza", Office No. 106 www.bvi-marine.com.hk Sector-11, CBD Belapur, Singapore / Malaysia / Indonesia IN - Navi Mumbai 400614 Tel.: +91/(0)22/27 56 01 47...
  • Page 88: Declaration Of Conformity

    Declaration of conformity 88 / 90 Operation Instruction 6.72.1...
  • Page 89 Operation Instruction 6.72.1 89 / 90...
  • Page 90 90 / 90 Operation Instruction 6.72.1...
