Model 064B06
Water-cooled adaptor, sensor recess mount, M20 x 1.50 thd, 1.25" hex (for Models 106B,116B &
116B03)
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PCB Piezotronics 064B Series
Summary of Contents for PCB Piezotronics 064B Series

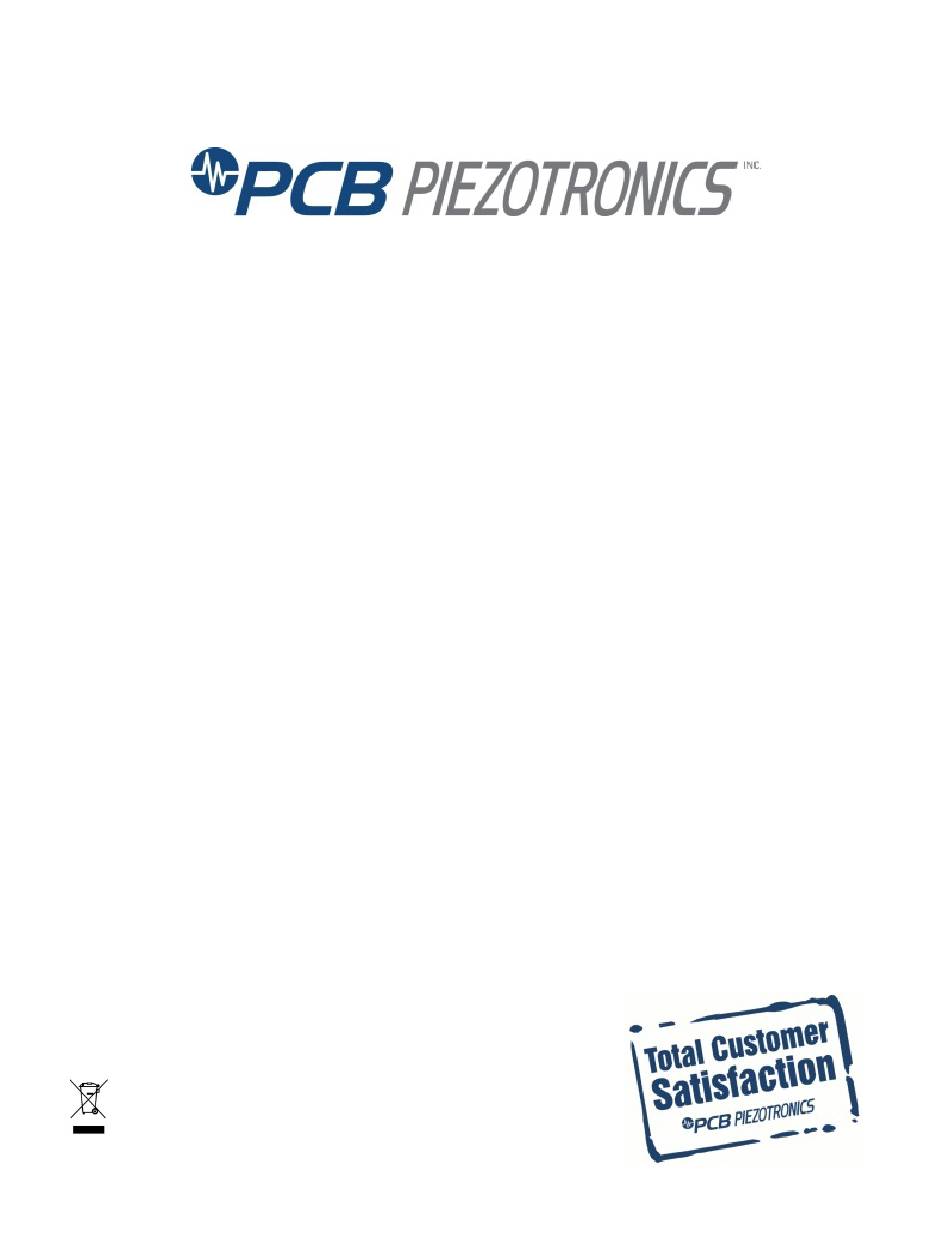

- Page 1 Water-cooled adaptor, sensor recess mount, M20 x 1.50 thd, 1.25" hex (for Models 106B,116B & 116B03) Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...
-
Page 2: Repair And Maintenance
Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T. - Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 Series 064B Water-cooled Adaptors DESCRIPTION LEAVE SENSOR WATER COOLING ON FOR A Various probe style charge or voltage mode quartz FEW MINUTES AFTER ENGINE IS SHUT pressure sensors can be installed in the series 064 DOWN TO PREVENT HEAT SOAK DAMAGE. water-cooled adaptors for high temperature: ...
- Page 7 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATED NOTES 54812 1.00 [25.4] WATER INLET AND OUTLET TUBES .187[4.75] O.D./.125[3.18] I.D.
- Page 8 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. -SEE SHEET 1- MOUNTING HOLE PREPARATION: Ø.718[18.24] THRU Ø.875[22.22] .060 AS SHOWN...
