Summary of Contents for EuroGarden FYS-76

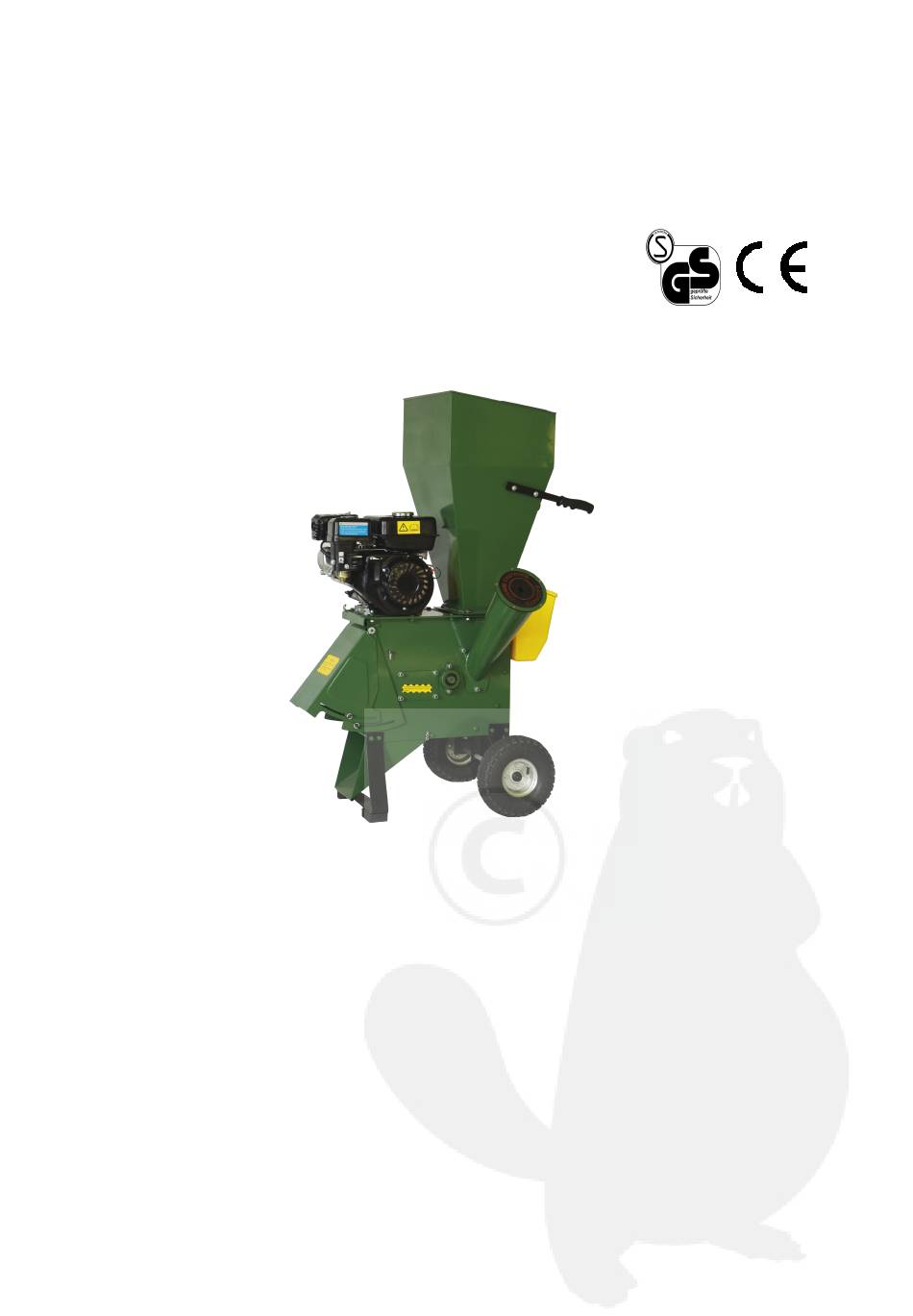

- Page 1 F F F YS YS- - - 76 76 76 SHREDDER SHREDDER SHREDDER OPERATION MANUAL OPERATION OPERATION MANUAL MANUAL ●Double blades cutting ,more effective. ●Special discharge opening, safer and nice looking. ●Tool kit equipped, more practical and convenient.
- Page 2 FUTURE REFERENCE REFERENCE Attn: users. We are highly appreciated for your using FYS-76 shredder. Read this operation manual carefully before attempting to assemble or operate the machine. The power unit used for this shredder is type 168FA. Please read the attached engine manual for detail information of 168FA.
- Page 3 fuel can be be be controlled controlled controlled. . . The fuel fuel can Don’ ’ ’ t t t put your hand into machine. put your your hand hand into into the the machine. machine. label label is is is for engine switch switch.
- Page 4 II. II. II. Assemble Assemble Instructions. Assemble Instructions. Instructions. Unpack and checking contents. Remove all the items from the crate. If any part is missing, contact your place of purchase at once. Assembly should be done on a clean, level surface with a helper. 1.
- Page 5 2.5. Put the pipe spacer that was removed in step 1 back in place. Insert the bolts and secure them tightly with gaskets and nuts. 3.Attach axle brackets, axle and tires. See picture 3. 3.1 Remove the wood shelf. 3.2 Disassemble the bolt 7 and pipe spacer. 3.3 Put the rear axle brackets in place and align the mounting hole with holes 6.7.
- Page 6 6.1. The steel frame can be used as handle grip. Firstly, attach the steel bar on both left and right side of hopper by screws. Please do not tighten the screws. 6.2. Put the frame on the bars and fix it by tightening the screws. Then tighten the screws on the hopper.
-
Page 7: Operation
properly secured and screen are in place. Replace unreadable labels. 8.Pay more attention while handling fuels. They are flammable and the vapors are explosive. The points in the below should be followed. ---Never remove the fuel cap or add fuel with power source running. Stop engine, allow engine and exhaust components to cool before refueling. -
Page 8: Shredder Operation
downwind of exhaust. 16.Keep all guards and deflectors in place and in good working condition. 17.Turn off machine before transport the machine. 18.Do not tilt the machine while the engine is running. Maintenance storage IV. Maintenance Maintenance and and storage storage 1.When the machine needs servicing, inspection, or storage, or to replace a part, turn off the engine, make sure all the moving parts completely stop and allow the machine to cool... - Page 9 stop engine before clearing build-up with wood tools. Never use hand or foot. 6.Never attempt to clear an accumulation of processed material when engine is still on work. 7.Perhaps you get other pretty plants in your garden and the material will be processed to be organic fertilizer as follows.
- Page 10 2.Remove the old belt. Pull the belt outside by tools and turn the pulley gradually to remove the pulley. Note: please mind your finger. 3.Place the new belt in the main pulley first (“V” belt on engine) and then to the affiliated pulley beside the blade tray.
-
Page 11: Specification
SPECIFICATION Main dimension: L x W x H 762*731*1131 Net weight Fuel tank volume 2000 Oil tank volume Max. cutting speed /min 2000/min Type of engine 168FA Engine manufacturer Shandong Huasheng Zhongtian Engine type Machinery Group., Ltd. 4-stroke engine Carburetor type Type of carburetor Starter Recoil starter... - Page 12 Name Material Spec. Name Material Spec. support neoprene handle grip front support cold rolled steel A3 t3.5 hook steel wire 10# Ø3 flat gasket some hex bolt some spring gasket some thermal proof cover 10# steel wire Ø2 some clutch long bolt round steel A3 M8*205...
