H--CC
Owner's Manual
CABLE CROSSOVER
215-00132
11/06 Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-CC and is the answer not in the manual?

Questions and answers

Summary of Contents for HUDSON STEEL H-CC

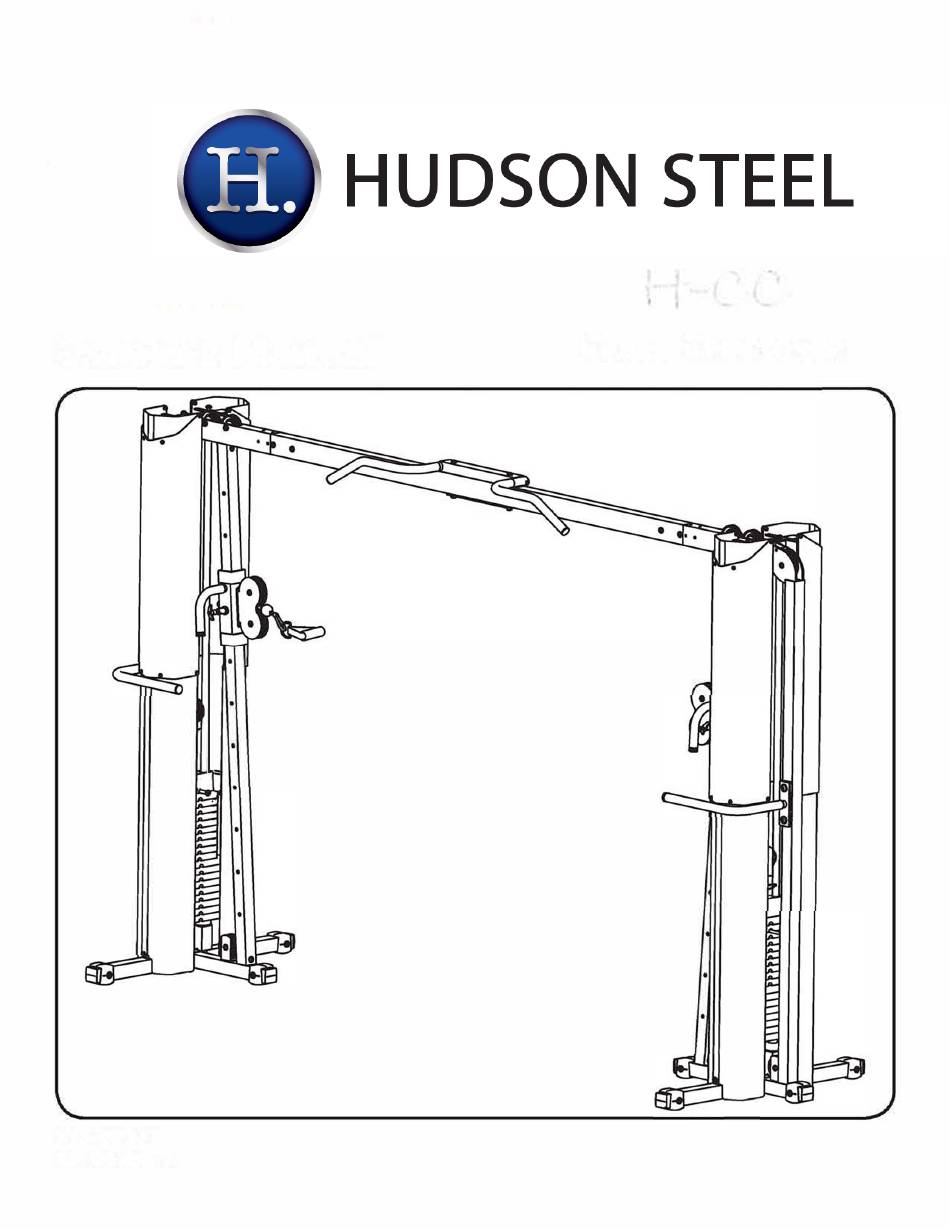

  • Page 1 H--CC Owner's Manual CABLE CROSSOVER 215-00132 11/06 Rev A...
  • Page 2 • Table of Contents Before You Start Important Safety Information 5-12 Assembly Parts List Exploded View...
  • Page 3 Important Safety Information This manual will guide you through the assembly process.
  • Page 4 • Before You Start NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre­...
  • Page 5 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 1 Attach Middle Base (2) to Left Rear Upright (4) and Inner Base (1) using Bolts (42), Washers (53) and Nylon Lock Nuts (54 ).
  • Page 6 • NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 2 Attach Middle Base (2) to Right Rear Upright (3) and Inner Base (1) using Bolts (42), Washers (53) and Nylon Lock Nuts (54 ).
  • Page 7 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 3 NOTE: Before completing any other steps, you should position noth ends of the unit 12 ft apart from each other to accommodate the Cross Tube (11). T his will keep you from having to move the unit once it is loaded with weights.
  • Page 8 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 4 Insert Left Slide Frame (6) onto Slide Guide Tube (5) as shown and lock into one of the holes in tube. Attach Slide Guide Tube (5) to Inner Base (1) with Bolt (41), Washers (53) and Nylon Lock Nut (54).
  • Page 9 • Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 5 Insert Right Slide Frame (7) onto Slide Guide Tube (5) as shown and lock into one of the holes in tube. Attach Slide Guide Tube (5) to Inner Base (1) with Bolt (41), Washers (53) and Nylon Lock Nut (54).
  • Page 10 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 6 Slide Top Cross Tube (11) into both sides of the Top Frame (8) and secure as shown , using Bolts (41), Washers (53) and Nylon Lock Nuts (54). Note: two people will be needed to com­ plete th is step safely.
  • Page 11 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 7 Secure Big Pulleys (20) to Double Pulley Bracket (13) using Bolts (43), Washers (53), and Nylon Lock Nuts (54 ). Secure Double Pulley Bracket (13) to Left Slide Frame (6) using Bolt (47), Small Bushings (36) and Nylon Lock Nuts (54).
  • Page 12 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 8 Attach Handle (10) to each side of frame and secure with Bolts (39) and Washers (51). TIGHTEN ALL BOLTS AND NUTS before continuing! Once all bolts and nuts are tightened, then attach Weight Shrouds (12,62,63) with Allen Bolts ( 49) and Washers (52).
  • Page 13 206-00394 PLUG, 50.8X76.2 H SERIES 202-00636 SCREW, M8X25 BUTTON HEAD SOCKET CAP 202-00660 ALLEN WRENCH, 5=5 206-00469 SLEEVE, EZ GLIDE 1 50.8 H-LATM/ H-CC 206-00470 SLEEVE, EZ GLIDE 2 50.8 H-LATM 202-00661 ALLEN WRENCH, S=8 223-00958 WEIGHT SHROUD, MIDDLE H-1860...
  • Page 14 '.53'. >< -· < � :20· I-" � � � •...
  • Page 15 HUDSONSTEELCO.COM...
