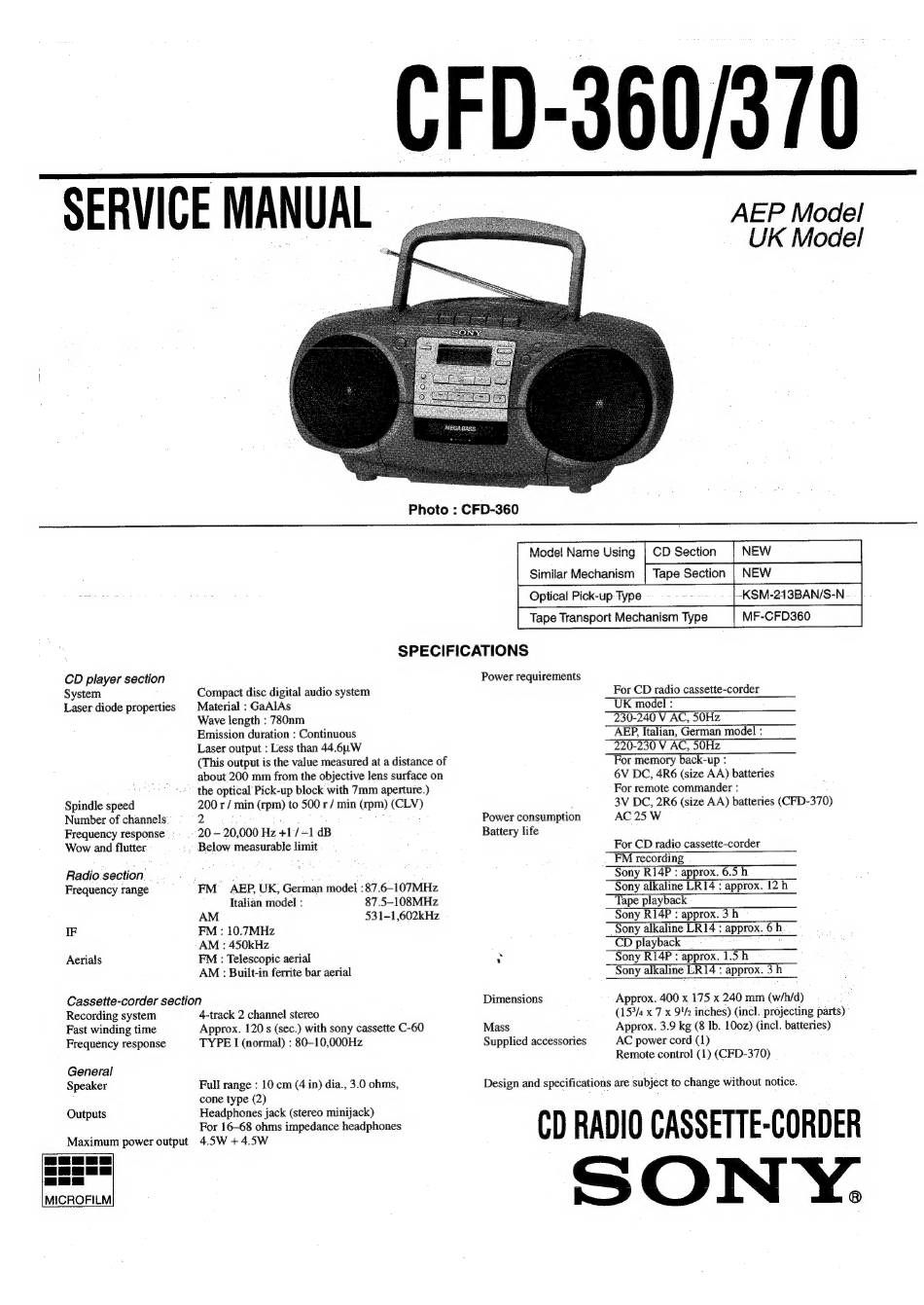

Sony CFD-360 Service Manual

CFD-360/370
SERVICE MANUAL
CD player section
System
Laser diode properties
Spindle speed
Number of channel
Frequency response
Wow and flutter
Radio section _
Frequency range
IF
Aerials
Cassette-corder section
Recording system
Fast winding time
Frequency response
General
Speaker
Outputs
20 — 20,000 Hz +1 /=1 dB
-, Below measurable limit
Photo : CFD-360
SPECIFICATIONS
Power requirements
Compact disc digital audio system
Material : GaAlAs
Wave length : 780nm
Emission duration : Continuous
Laser output : Less than 44.6W
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical' Pick-up block with 7mm aperture.)
200 r/ min (rpm) to 500 r/ min (rpm) (CLV)
2 . : Power consumption
Battery life
'FM AEP, UK, German model :87.6-107MHz
Italian model : 87.5—108MHz
AM 531-1,602kHz
FM : 10.7MHz
AM : 450kHz
FM : Telescopic aerial
AM : Built-in ferrite bar aerial
",
Dimensions
4-track 2 channel stereo
Approx. 120 s (sec.) with sony cassette C-60
TYPE I (normal) : 80-10,000Hz
Mass
Supplied accessories
Full range : 10 cm (4 in) dia., 3.0 ohms,
cone type (2)
Headphones jack (stereo minijack)
mo
T Model Nam Using | CD Section y |
Similar Mechanism | Tape Section
Optical Pick-up Type --KSM-213BAN/S-N
Tape Transport Mechanism Type
AEP Model
UK Model
NEW
MF-CFD360
For CD radio cassette-corder
UK model :
230-240 V AC, 50Hz
AEP, Italian, German model :
~ 220-230 V AC, 50Hz
For memory back-up :
6V DC, 4R6 (size AA) batteries
For remote commander : j
3V DC, 2R6 (size AA) batteries (CFD-370)
AC 25 W
For CD radio cassette-corder
FM recording
Sony R14P : approx. 6.5 h
Sony alkaline LR14 : approx. 12h
Tape playback
Sony R14P : approx. 3h
Sony alkaline LR14 : approx. 6h
CD playback ;
Sony R14P : approx. 1.5.h
Sony alkaline LR14 : approx. 3h
Approx. 400 x. 175.x 240 mm (w/h/d)
(159/4 x 7 x 9"/ inches) (incl. projecting parts)
Approx. 3.9 kg (8 Ib. 100z) (incl. batteries)
AC power cord (1)
Remote control (1) (CFD-370)
Design and specifications are subject to change without notice.
CD RADIO CASSETTE-CORDER
For 16-68 ohms impedance headphones
Maximum power output 4.5W + 4.5W
