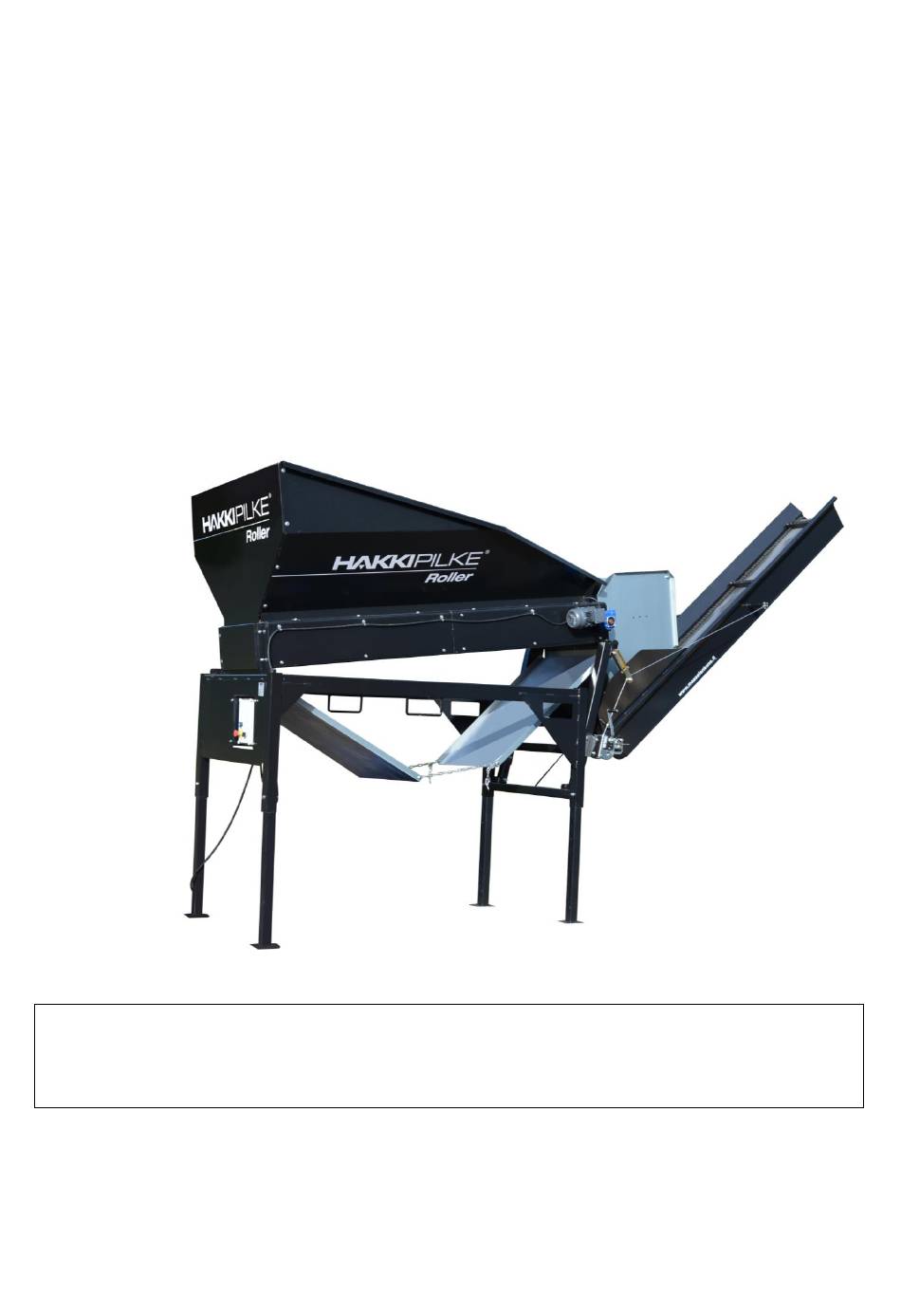

  • Page 1 Hakki Pilke Roller MANUAL AND SPAREPARTSBOOK The operator must read and understand these instructions before operating the machine! HAKKI PILKE / Maaselän Kone Oy Valimotie 1, FI-85800 Haapajärvi, FINLAND tel. +358 8 7727 300 info@hakkipilke.fi, www.hakkipilke.fi...
  • Page 2 Hakki Pilke Roller Original Version 2...

  • Page 3: Table Of Contents

    Operator’s responsibilities ........................6 1.6. Operating conditions ........................... 6 1.7. Guarantee terms ..........................6 Assembling the machine ..........................7 2.1. Roller with divider ..........................7 2.2. Roller with conveyor ........................... 8 2.3. Log guides ............................. 10 Operating the Roller ..........................11 3.1.

  • Page 4: Basic Information And Responsibilities

    Additional information on our company’s products is available on our website at www.hakkipilke.fi. NOTE! Always keep this manual in the immediate vicinity of the machine. Hakki Pilke Roller Original Version 2...

  • Page 5: Purpose Of Use

     Do not wear loose or hanging clothing.  Before use Set up the Roller and the conveyor in the operating position before turning on the machine.  Ensure that no unauthorised persons are in the working area.  Operate the machine on a sufficiently solid and even surface.

  • Page 6: Operator's Responsibilities

    Danger! Stay clear of moving parts.  1.5. Operator’s responsibilities The Roller may be used only for cleaning firewood as an accessory to a Hakki Pilke firewood  processor or when loaded using a loader. All of the Roller’s safety devices are necessary for ensuring a sufficient level of safety.

  • Page 7: Assembling The Machine

    2. Assembling the machine Figure 1. Use a forklift with long forks to lift the Roller from the bottom of the frame to the desired  operating height (Frame width 1,120 mm). Lock the legs into position using screws inserted through the hollow sections (1.)

  • Page 8: Roller With Conveyor

    2.2. Roller with conveyor Attach the conveyor to its support through hole A (Figure 2.) (Figure 2.) Attach the conveyor locking lever to its support from point B (Figure 3.) (Figure 3.) Hakki Pilke Roller Original Version 2...
  • Page 9 A (Figure 5.). Thread the wire through the conveyor and behind the rollers through pipe B (Figure 5.). (Figure 5.) Thread the wire through roller C (Figure 6.) to winch D (Figure 6.). (Figure 6.) Hakki Pilke Roller Original Version 2...

  • Page 10: Log Guides

    Attach side guides B and C to the angle plates. Make sure that the folded parts are facing outwards (Figure 8.). Attach fastening plate D to the top edges of the side guides (Figure 8.). (Figure 8.) Hakki Pilke Roller Original Version 2...

  • Page 11: Operating The Roller

    R (Figure 9.) button. When loading with a front loader, it is crucial that the Roller is only loaded with small amounts of firewood at a time. Loading the Roller with a large amount of...

  • Page 12: Adjusting Firewood Throughput Rate

    When loading with a front loader, it is crucial that the Roller is only loaded with small amounts of firewood at a time. Loading the Roller with a large amount of firewood at once will reduce screening efficiency and may clog up the output conveyor.

  • Page 13: Spare Parts

    3. Use the figure number and part number to find the order number in the parts list. 4. All orders must include the order number and the name of the part as well as the serial number and year of manufacture of the machine. Hakki Pilke Roller Original Version 2...
  • Page 14 Hakki Pilke Roller Original Version 2...
  • Page 15 Osa/ Item Order Nimitys Description Kpl/ Part Tasakiila Parallel key K2604030 Holkki Bushing L2601271 Vaihteen alusta Motor mount plate K8722010 Väliakseli Adapter shaft Vaihdemoottori Gear motor Hakki Pilke Roller Original Version 2...
  • Page 16 Hakki Pilke Roller Original Version 2...
  • Page 17 Roller 8713000 Pääty Gable K8710060 Ketjupyörä Sprocket Rullaketju Chain 8714000 Ketjupyörä Sprocket K8713030 Holkki Bushing 8712000 Kylki Side of the frame Rullaketju Chain UCFC207 Laippalaakeri Bearing unit L8710040 Suoja Cover Plate L8713011 Päätylevy Gable Hakki Pilke Roller Original Version 2...
  • Page 18 Hakki Pilke Roller Original Version 2...
  • Page 19 Osa/ Item Order Nimitys Description Kpl/ Part 8717000 Akseli Shaft 8716000 Nostokehikko Adjustment frame K8710030 Putkipalkki Square tube L8710020 Roskapelti chip guide 8718000 Akseli Shaft 8715000 Runko Frame 8719000 Jalka Hakki Pilke Roller Original Version 2...
  • Page 20 Hakki Pilke Roller Original Version 2...
  • Page 21 Laita Sideboard L8710050 Takalaita Tailboard L8721010 Laita Sideboard L8722030 Suoja Cover plate L8722040 Suoja Cover plate L8710060 Kiinnike Mount piece L8710082 Sivupelti Side plate L8710071 Takalevy Back plate L8710081 Sivupelti 2 Side plate 2 Hakki Pilke Roller Original Version 2...
  • Page 22 Hakki Pilke Roller Original Version 2...
  • Page 23 Hakki Pilke Roller Original Version 2...
  • Page 24 31932 Slope Divider accessory 31933 Handle Divider accessory 31934 Lug Divider accessory Conveyor 31935 Roller cage accessory Conveyor 14392 Roller wheel (inc. bearing) accessory Conveyor 10060 Bearing 6201 2RS accessory Conveyor 31936 Conveyor support accessory Conveyor 11197 Winch Goliath 6AF...
  • Page 25 10 31938 Conveyor Conveyor 11 14392 Roller wheel (inc. bearing) Conveyor 12 10060 Bearing 6201 2RS Conveyor 13 31939 Mounting clip Conveyor 14 31940 Swivel beam Conveyor 15 32387 Conveyor chain Conveyor 16 11655 Cleat Conveyor 17 11376 Cleat fastening...

  • Page 26: Guarantee Terms

    This guarantee certificate indicates our responsibilities and obligations in full and it excludes all other responsibilities. Hakki Pilke Roller Original Version 2...

  • Page 27: Ec Declaration Of Conformity For The Machine

    Name: Timo Jussila Address: Valimotie 1, FI-85800 Haapajärvi, Finland The aforementioned person assures that Serial number: ………………………… Hakki Pilke Roller cleaning machine  is compliant with the applicable regulations of the Machinery Directive (2006/42/EC). Location and date: HAAPAJÄRVI 7.11.2017 Signature:...
