WAC EBM104-08EL Series Installation Instructions

Basic performance of lighting fixtures:
Lamp protection level:
Protection level against electric shock:
Lamp input voltage:
Installation Statement:
1. Please read the instruction manual carefully before installation;
2. The installation of this lamp requires qualified personnel to carry out the installation;
3. To avoid the risk of electric shock, please confirm to turn off the power before installation
and maintenance;
4. The installation of lighting fixtures must comply with the corresponding local laws and
regulations;
5. Suitable for indoor and outdoor installation and use;
6. Keep the instruction manual for reference only.
Installation of lighting fixtures:
Attention: All installation, replacement, or maintenance
operations must be done by cutting off the mains power!

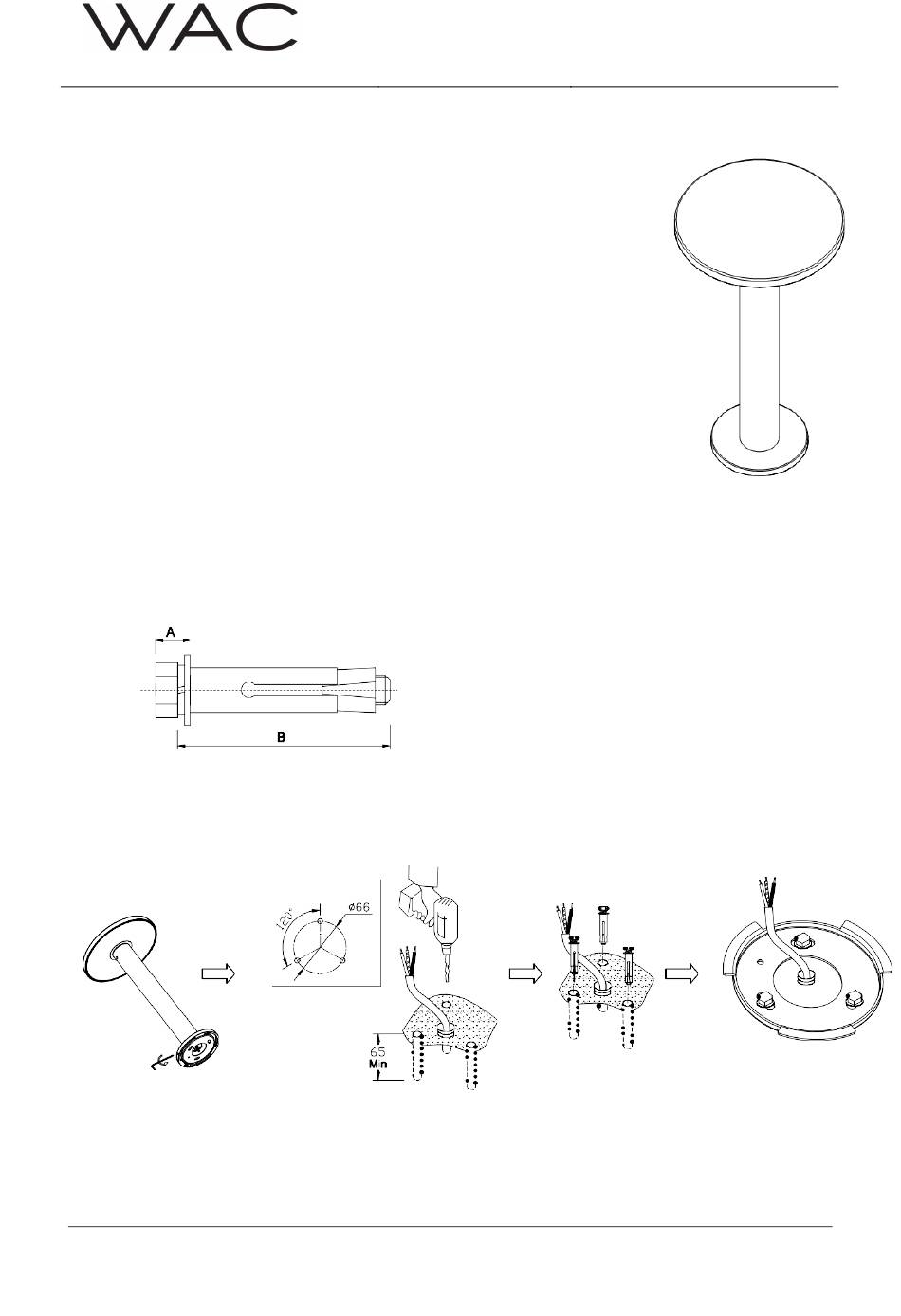

1. Installation requires M5 or M6 expansion bolts with the required dimensions as shown in Figure 1 (this bolt needs to be
purchased by the customer);
2. Open the packaging, take out the lamp, use an internal hexagonal wrench (2.5mm) to loosen the fastening screws on the side
of the base, take out the installation chassis, drill the holes required for the expansion bolts on the installation surface as
shown in Figure 2, and the depth of the holes should be greater than the length of the expansion bolts. Install the
expansion bolts into the corresponding installation holes and lock the installation chassis;
Remove and install
the chassis
Licensed by "WAC" trademark holder - WAC LIGHTING, USA
Chinese Marketing Headquarters
Address
China factory
Address
IP65
Class I
AC 220-240V
Figure 1.
Install three M5 or M6 expansion
bolt fixing holes evenly on a circle
with a diameter of 66
Figure 2.
: WAC Lighting (Shanghai) Co, Ltd.
: 14,Lane 299, Bi Sheng Road, Shanghai 201204,China
: Manufactured WAC Lighting (Dongguan) Co, Ltd.
: 390, Qingfeng Road, Qingxi Town, Dngguan, Guangdong. Postal code: 523653
Installation Instructions
Model: EBM104-08EL*
Choose M5 or M6 expansion bolts,
Requirement: A (bolt head thickness+spring washer
thickness+flat washer thickness) ≤ 6.5mm, B (bolt length) ≥
60mm
Install M5 or M6
expansion bolts into the
fixing holes
EBM106-08EL*
Locking installation
chassis
1 / 2
