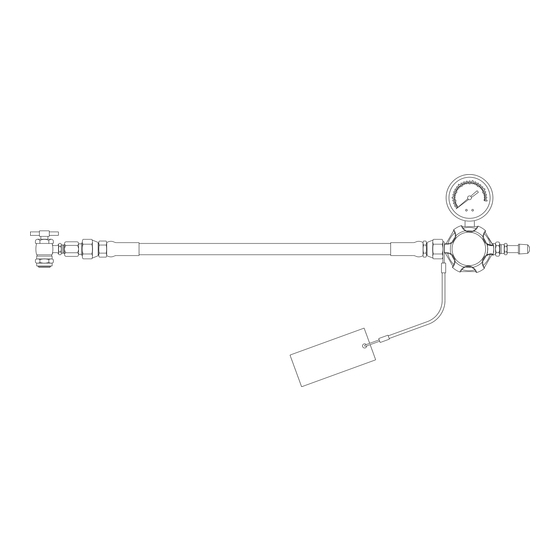

- Page 1 OPERATION & SERVICE MANUAL Model: 18-4216-6000 Low Pressure Nitrogen Regulator 09/2023 − Rev. 05 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 05/2010 Major revision 08/2021 Major revision 09/2023 Major revision...
- Page 3 Model: 18-4216-6000 Low Pressure Nitrogen Regulator TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SAFETY INSTRUCTIONS ..............................1 GENERAL ................................1 SAFETY ................................1 GENERAL SAFETY REQUIREMENTS ......................1 TRAINING ..................................
- Page 4 Low Pressure Nitrogen Regulator This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Read this entire manual prior to operation of the unit. All personnel using this Nitrogen Regulator should understand and follow this manual, as well as receive training. We encourage our customers to call Tronair at 800- 426-6301 to discuss any operating or testing requirements.
- Page 6 Low Pressure Nitrogen Regulator USAGE INSTRUCTIONS ASSEMBLY FIGURE 1 NOTE: It is recommended Nitrogen servicing procedure be accomplished in conjunction with Tronair Service Regulator/Model: 14-6808-6000. Reference Figure 1 during the following steps: Ensure (I) Nitrogen bottle supply valve is closed (Off).
-
Page 7: Maintenance
If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents. -
Page 8: Parts List
Model: 18-4216-6000 Low Pressure Nitrogen Regulator Parts List Item Part Number Description H-1221 Valve, Air N-2210-02-B Reducer, Pipe Thread PC-1142 Regulator, Low Pressure H-1389 Lanyard H-1390 Ferrule V-1994 Label, Maximum Operating Pressure 15 psi TF-1043-15*16.0 Assembly, Hose N-2010-08-S Connector, Female... - Page 9 Re-calibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements. Note that Tronair, Inc. does not supply certificates of calibration on flow meters or pyrometers unless requested at the time of placed order. These instruments are considered reference indicators only and are not critical to the test(s) being performed on the aircraft.
-
Page 10: Statement Of Compliance
Statement of Compliance Tronair has assessed the equipment described below against the Requirements of the Directive listed below. Based on Article 4, Section 3 of the directive, the equipment shall not carry the CE mark. This equipment has been designed and manufactured in accordance with Sound Engineering Practice.
