Ross PTZ-12G+ Quick Start Manual

Quick Start Guide
1) Camera Connection Panel
5) Providing Power to the Camera
To power the camera, do one of the
following:
• Connect the provided 12 VDC power
supply unit.
• Using CAT6 network cable, connect the
Ethernet port of the camera to a
network router or hub that supports
Power over Ethernet (PoE).
The camera requires PoE++
Camera (Serial Connection)
(IEEE802.3bt).
2) Video Output Switch
CAT6 Network Cable
Router
Rotate the Video Output
(PoE++ capable)
Switch to select the video
output format. The arrow
points to the current format.
The factory-set default
position is 0 : 2160p/59.94.
When operated in 2160p
mode, the 1080p SDI output
is set to the same frame rate.
7) Access the Camera Web Interface
The web interface enables you to configure camera settings and view camera video, using a web browser.
Tip: Alternatively, you can set
the video format using the
a) On a computer connected to the same
web interface. For more
network as the camera, launch a web browser.
information, see Technical
b) In the address bar of the web browser,
Manual for PTZ-12G+
type the IP address of the camera, and then
(5000DR-353-06).
press Enter.
Tip: You can use the remote control to
view the IP address. Press Menu >
Ethernet > IP Address.
The login page of web dialog appears:
3) IR Select Switch
The IR Select Switch assigns a number
(1, 2, or 3) to the camera.
When you later use a remote control, you can select
which camera (1, 2, or 3) you want to control.
Remote Control
c) Provide the User Name and Password,
and then click the Login button.
Tip: The default User Name is admin.
The default Password is 9999.
© 2024 Ross Video Limited. All rights reserved.
Need Help? Our friendly, knowledgeable Ross Video Technical Support staff are always available! Need Help? Our friendly, knowledgeable Ross Video Technical Support staff are always available!
• Telephone +1 613-652-4886; or toll-free 1-844-652-0645 (North America), +800 1005 0100 (International) • Telephone +1 613-652-4886; or toll-free 1-844-652-0645 (North America), +800 1005 0100 (International)
2 1
• E-mail techsupport@rossvideo.com, or visit our website at • E-mail techsupport@rossvideo.com, or visit our website at
• Contact the ROSS VIDEO | HELP CENTER at
• Contact the ROSS VIDEO | HELP CENTER at
Router/Switch
Secure
6) Camera Networking
Lock Port
a) Connect all cameras and control systems to the same network.
b) Use the remote control to either turn on DHCP or to assign each
LOCK
Controller
Camera
Setting Output Mode
2160p/59.94
0
1 2160p/50
2 2160p/29.97
3 2160p/25
4 1080p/59.94
5 1080p/50
6 1080p/29.97
7 1080p/25
8 720p/59.94
9 720p/50
A 720p/29.97
B 720p/25
C 1080i/59.94
D 1080i/50
E Reserved
F Reserved
Number Switch Position
1
1 2 3
2
1 2 3
3
1 2 3
https://support.rossvideo.com/hc/en-us
https://support.rossvideo.com/hc/en-us
Computer
Video Outputs
camera a unique IP address:
• To turn on DHCP, select Menu > Ethernet > DHCP > On.
USB
Note: The network must be configured for DHCP.
• To assign an IP address, select Menu > Ethernet > IP Address,
and then specify the IP address.
Tip: The default IP Address is 192.168.100.100.
Camera Camera
Microphone

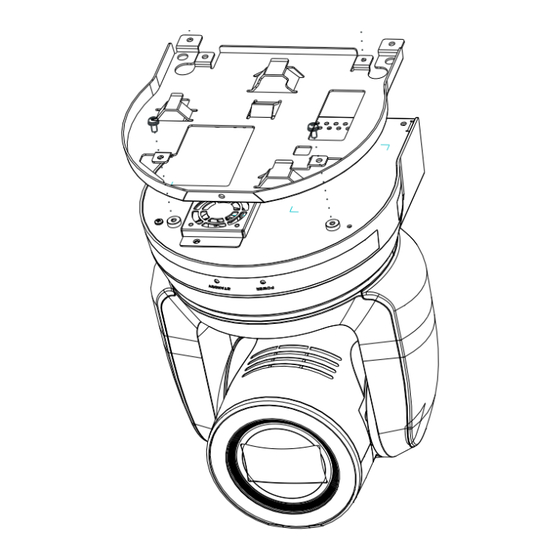

4) Mounting the Camera (Ceiling)
a) Remove the foot pads (4 pcs) from the bottom of
the camera by rotating them counter-clockwise.
Store the foot pads for future use.
b) Using four silver M3 screws (included), fasten
Metal Plate A to the base of the
camera.
Router
Metal Plate A
(PoE++ capable)
c) Attach Metal Plate B to the
ceiling, using suitable fasteners.
Camera Web Interface
Note: Allow adequate space for
connecting cables to the back
of the camera.
Black
M3 Screw
Mounting the Camera (Tripod)
a) Screw the tripod mount adapter onto
the camera with the
b) Align the threaded hole on the
bottom of the adapter with the tripod
screw and tighten.
www.rossvideo.com www.rossvideo.com
Controller
Camera
Genlock Signal
Synchronizing Signal Generator Synchronizing Signal Generator
Control
Computer
d) Align the two Metal Plates
and slide them together.
e) Fasten the Metal Plates
together using two silver
M3 screws (back) and
one black M3 screw (front).
Silver
M3 Screws
Screw
Hole
Pin
Hole
¼-20 screw.
Tripod Mount
Adapter
