Air Meter (55-Air1 / 2)
Display Units for 1 or 2 Air Gauges
Operating Instuctions
Firmware 3.00 See annex on page 90 for v3.34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55-Air1 and is the answer not in the manual?

Questions and answers

Related Manuals for Bowers 55-Air1

Summary of Contents for Bowers 55-Air1

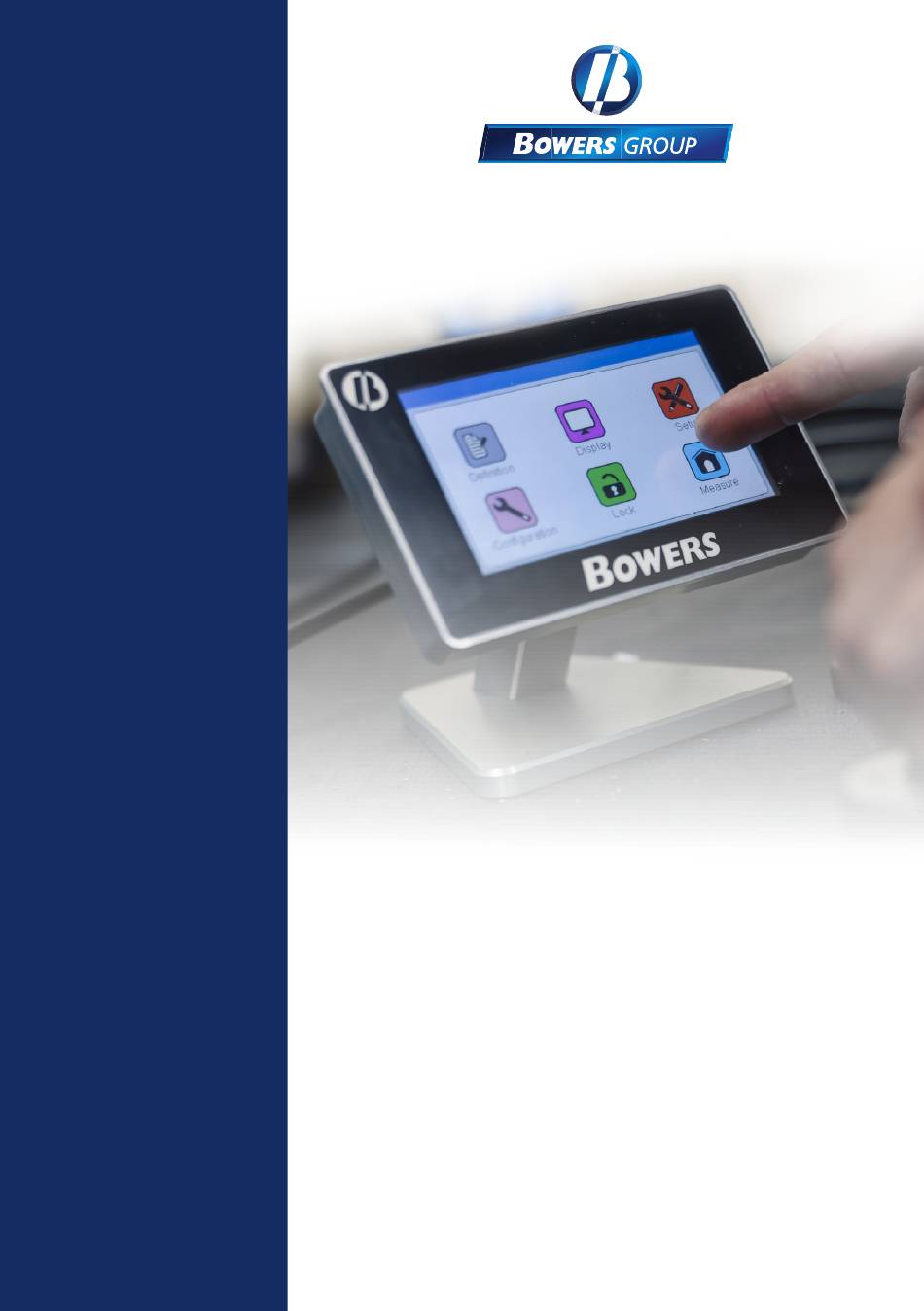

  • Page 1 Air Meter (55-Air1 / 2) Display Units for 1 or 2 Air Gauges Operating Instuctions Firmware 3.00 See annex on page 90 for v3.34...

  • Page 2: Table Of Contents

    8.1. LATERAL BUTTON FUNCTIONS 8.2. CHOICE OF THE NEEDLE INDICATOR 4.2. AIR PIPES STYLE 5. QUICK START 8.3. TEMPORARY DYNAMIC MODE 6. GRAPHICAL INTERFACE 8.4. DISPLAY MODE WITHOUT TOLERANCE 9. USB COMMUNICATION 6.1. 2 MAIN PARTS Air Meter (55-Air1 / 2)
  • Page 3 Page Page Contents 10. RS232 COMMUNICATION ANNEX 10.1. COMMANDS FIRMWARE UPDATES FOR v3.34 10.1.1. GENERALITIES BY-PASS REGULATOR KIT & ECO MODE 10.1.2. COMMAND LIST PRESET VALIDITY 10.1.2.1. WINDOW PART CALIBRATION & CALIBRATION GAIN INPUT 10.1.2.1. WINDOW DISPLAY FIRMWARE UPDATE PROCEDURE v3.34 10.1.2.2.

  • Page 4: Forewords

    See section 3.3.6 & 3.3.7 page 15. Cleaning Use a soft cotton cloth slightly soaked with an ethyl alcohol based product. DO NOT USE the following products: acetone, benzene, toluene and halogens hydrocarbons. Air Meter (55-Air1 / 2)

  • Page 5: Introduction

    3.1 Product Presentation The 55-AIR1 Single Channel (M1) and the 55-AIR2 Twin Channel (M3) display units allow making dimensional control using 1 or 2 air gauges. This can either be the connect air gauges or a mixture of measuring tools via M-Bus.

  • Page 6: Characteristics

    Dimensions: width 130 mm, height 111 mm, depth 105 mm • Mass: 600 grams (700g with the power supply) 3.3.2 Display Dimensions Base fitted with 4 threads M5. To access to these threads, it is necessary to remove the 4 antiskid plastic feet. Air Meter (55-Air1 / 2)
  • Page 7 Remove the antiskid parts to attach it on the table It is also possible to panel mount the display, with the accessory ref 55-ACS-AFF-001. Be careful not to use longer screw than M4*16. Pneumatic connections (see also chap.4): INST-AIR2-1 Iss 1...

  • Page 8: Contains Of The Packaging

    1 USB cable, (length =1.8m) for power supply and/or data transfer • 1 USB main adaptor for the display power supply. Can also be powered by a computer when connected to it with the USB. • 1 USB Flask Memory stick with user manual. Air Meter (55-Air1 / 2)

  • Page 9: Accessories

    3.3.4 Accessories Ref. Description Air preparation unit: It is mandatory to use a precision regulation system, otherwise the measurements will not be stable. We can supply the adapted air preparation 55-MBV001 unit including stop valve, filter and regulator + precision regulator. The second precision regulator must be adjusted at 3 BARS (0.3MPa) and the first to minimum 5 BARS (0.5 MPa)

  • Page 10: Options / Cables

    6 inputs allowing remote control 55-MB-RL the display. This MB-RL module is wired exactly like the optional board for Monocote displays. It allows then to replace a Monocote by a display without changing the machine wiring. Air Meter (55-Air1 / 2)
  • Page 11 Ref. Description M-Bus cable This cable allows to connect the compatible M-Bus modules on a display unit. Length 1.5m 55-81213-1.5 RS232 Cable This cable allows to connect a display to a computer or a PLC. 55-45160 This cable allows to connect a display to a Multiplexer Mux, and to the DP1 printer from Mitutoyo 30-926-8116...
  • Page 12 - Send a Manufacturing order number. The export file will take the name of the number entered. Air cut-off footswitch Allows to simply cut off the air supply, for stopping the air flow when the air gage is not used. Air Meter (55-Air1 / 2)

  • Page 13: Connectors

    3.3.6 Connectors USB Stick connector for data saving on a CSV file, or for configuration with QR codes 1 or 2 input for RS232 AIR at 3BAR connector for NEVER EXCEED connection 4BAR. It is highly to a PC recommended to use the 55-MBV001 (Air preparation set) See Multi-...
  • Page 14 If you order a turnkey solution at Bowers, we will deliver the display with the adapted restrictor, or with an integrated restrictor (see chap 3.3.8). But if you want to use the M1 / M3 display together with your existing air gauge, you will have to use the adapted restrictor by your own.
  • Page 15 Example: INST-AIR2-1 Iss 1...

  • Page 16: Cabling With By-Pass Nozzle (Integrated Restrictor)

    DISPLAY. This configuration allows to have a faster the reaction time and makes the installation easier by removing the need to choose the adapted restrictor. Please contact Bowers for more information. The cabling layout is the following: Standard push-in connector, M5...

  • Page 17: The Rs232 Communication Port

    3.3.9. The RS232 Communication Port The M3 is fitted with a RS232 port. It allows linking the M1/M3 to PC or an external system. The configuration is as following 9600 bauds, 8 bits, 1 stop bit, no parity Connector Pinout It is fitted with a SUBD 9 pins female connector.

  • Page 18: Mini-Usb Connector

    3.3.11. The 24VDC Connector It is advised to use this power supply when panel mounted. Using this power supply instead of the mini-USB will deactivate the ON-OFF switch. Therefore, when the display is powered, it will start automatically. Air Meter (55-Air1 / 2)

  • Page 19: The Usb Stick Connector

    3.3.12. The USB Stick Connector This connector allows to connect USB sticks and USB bar code readers (see chapter 12). It is possible to connect both at the same time using a USB hub. It is possible to save measurements on a CSV file. In this case the display must be set the following way: Configuration →...

  • Page 20: Air Preparation Unit - Air Pipes

    Therefore, it is vital to have a high stability air input, in order not to have variation of pressure due to air input variation. Bowers supply the air preparation set 55-MBV001 4.2. Air Pipes The air displays are fitted with air connectors adapted to connected pipes with 6mm external diameter and 4mm internal diameter.
  • Page 21 INST-AIR2-1 Iss 1...

  • Page 22: Quick Start

    – Press on the « PRESET » button. The value must change to the master value. You can now check with the 2 masters if the values are correct. You are now ready to measure. Air Meter (55-Air1 / 2)

  • Page 23: Graphical Interface

    6. Graphical Interface The graphical interface of the M1/M3 has been designed to be easy to use and intuitive. This section gives you a preview of the different screens and commands available. 6.1. 2 Main Parts The graphical interface of your M3 is divided in 2 main parts: A part that allows configuring the device and the measure.

  • Page 24: Generalities

    It is possible to enter a characteristic name, either with an RS232 command, or by scanning a QR code. After this, the characteristic name is written instead of P1 : C(1). Characteristic name, entered with RS232 or QR code Air Meter (55-Air1 / 2)
  • Page 25 In the same way it is also possible to input a manufacturer order either with an RS232 command, or by scanning a QR code: Manufacturing order number entered with RS232 or QR code USB logo appear when a USB stick or a QR code reader has been plugged.

  • Page 26: Configuration Windows

    Edit box. A virtual keyboard appears after clicking on the edit box • Closing a window: All the windows can be closed by clicking on the white cross on a red background on the top left corner on each window. Closing a window Air Meter (55-Air1 / 2)

  • Page 27: Virtual Keyboard

    6.4. Virtual Keyboard Erase Quit without taking into account the modification Quit and save the modification INST-AIR2-1 Iss 1...

  • Page 28: Configuration Of The Device And The Measure

    Connexion of M-Bus modules Configuration of the device Allows to lock selected Go to the measuring screen language, footswitch function functions by password etc.. The 6 following sections describe the 6 icons of this screen. Air Meter (55-Air1 / 2)

  • Page 29: Definition

    7.1. Definition After pressing on this icon, the bellow window appears: It gives the possibility to define the tolerances, the master, the master part characteristic, the resolution of each of the 2 available measurement configurations. → This window is divided in 2 parts for the configuration of the 2 measurement configurations Choice the part 1 or 2 Go to the screen 1, 2, 3 or 4 INST-AIR2-1 Iss 1...
  • Page 30 • -C(2) • -C(1)+C(2) • Taper « C » means « Channel » It is possible to give a coefficient for each probe from the menu Air Meter (55-Air1 / 2)
  • Page 31 Resolution 000.000 = micron 00.0000 = 0.1 micron Unit mm : millimeters In : inches Um = Microns Deg = decimal degrees (automatic choice when the formula is set as Taper) DMS = Degrees / Minutes / Seconds Mode Static = direct reading: The display is refreshed together with the probe is moving. Dynamic : The following mode starts after pressing on the “clear”...
  • Page 32 2 diameters must be written here. Direction Direction: none With this direction of measurement, any measure outside of the tolerance limits will appears in red. All the good measure will be in green. Air Meter (55-Air1 / 2)
  • Page 33 Direction: Internal Diameter The direction of measurement is used to measure internal or external diameters. The difference between these two modes is that according to the part, the part might still be rework. For example, the size of a bore in a part: if the bore is too big, there is no way to rework the part, so the indicator is RED. However, if the bore is too small, it can still be increased, and then the part could fit in the tolerance interval, so the indicator is YELLOW.

  • Page 34: Part 3 - Class

    The class has an important utility, because it allows the user to sort the parts according to their position in the tolerance interval. The top bar of the display, which is normally blue is grey on the picture bellow, because grey is the colour which was defined for this interval of measurement. Air Meter (55-Air1 / 2)
  • Page 35 Grey colour because of the class parameters. INST-AIR2-1 Iss 1...

  • Page 36: Part 3 Control Limit

    Control limits are warning that informs the user is the measure becomes too close to the tolerances limits. (Yellow colour on the bargraph) This part is hidden if « no » has been selected Example of characteristic displayed with control limits Part OK Part OK with warning Part Not OK Air Meter (55-Air1 / 2)

  • Page 37: Display

    7.2. Display After clicking on this button, the below window appears. This window allows to define if 1 or 2 measure are displayed on the screen and on which format. (Needle = galva, horiziontal bargraph or value only). The auto-switch function The +/- keys appears on the Left: simple and double needle indicator (galva)
  • Page 38 Displays small indicators (triangles) on the measuring screen to show the maximum and minimum value measured Allows to move the needle like with the screw on an old analogue display. Air Meter (55-Air1 / 2)

  • Page 39: Setup

    7.3. Setup After clicking on this button, the below window appears. From this windows you can calibrate each channel. (the M1/M3 must be calibrated with 2 maters). Channel 1 and Possibility to connect an M-Bus channel 2 (only for M3) Before mastering, this field Allows to slow down the If you touch the unit, it can...

  • Page 40: Calibration Of The Air Gage

    7.3.1.1. Calibration in 2 Points Must be calibrated The air gauge probes cannot be used without a special calibration. This calibration requires at least 2 master sample of the size of the tolerance limit for the part to measure. Air Meter (55-Air1 / 2)
  • Page 41 7.98 8.02 Write here the 2 calibration values which will be used. INST-AIR2-1 Iss 1...
  • Page 42 After placing the min master, push « calibration » The same manipulation is done here, but with the max master, and the final push on « calibration » The probe is now calibrated Air Meter (55-Air1 / 2)

  • Page 43: Calibration In 3 Points

    After calibration is it possible to check the pressure. For this you need to click on the unit “mm”, the unit will then become BAR for few seconds. This feature allows for example to check if the restrictor installed on the air input is the right one. The ideal pressure at the nominal should be 2.7 BAR.

  • Page 44: Advanced Mode

    In measuring mode, if the input pressure has changed over the limit, a popup windows appear informing the operator, and asking the recalibrate, or check the air network. Air Meter (55-Air1 / 2)

  • Page 45: M-Bus Modules

    7.3.2. M-Bus Modules External M-Bus modules can be connected to the Display thanks to the following screen. CABLE 55-81213-1.5 required. It allows to mix 2 different probes on the same display with the multiplexer modules, or to use input/output modules. Multiplexer Modules The same process is made to connect all the multiplexer modules Example with MB-2S module (for Heidenhain probes) on the channel 2.
  • Page 46 After being connected, A Multiplexer module must be configured from the C1 or C2 pages of the setup menu (according to the channel with which the probe is linked). Please refer to the example for each probe. MB-2S module, Heidenhain MB-2T module, TTL MB-AG Module Air Gauge Air Meter (55-Air1 / 2)
  • Page 47 MB-8I Module Inductive MB-4D Module For Digimatic instruments MB-1R Module RS232 INST-AIR2-1 Iss 1...
  • Page 48 The connection of an input/output module is made with the same way than a multiplexer. Up to 4 MB-IO modules can be connected. Example: connection of a MB-IO module on the Display. Click here to configure the MB-IO The different options for the MB-IO configuration are displayed below. Air Meter (55-Air1 / 2)
  • Page 49 The number of the MB-IO is written here and can be changed if more than one is connected These buttons are used to output The function of each port of the a 24VDC signal on specific MB-IO can be set with these 2 port of the MB-IO to check the menus.
  • Page 50 Characteristic: (output) changes the displayed screen in the measuring screen • Touchscreen: disconnect the touch screen function. Useful when connected to a PLC, so that no one can use the touch screen without the permission of the PLC. Air Meter (55-Air1 / 2)

  • Page 51: Configuration

    7.4. Configuration After clicking on this button, the below window appears. This window allows configuring the general settings of your display Choice of the transfer mode: RS232, Keyboard* or USB Stick** Language selection. Other languages can be installed on demand. Footswitch function •...
  • Page 52 If you use a QR code reader to input a manufacturing order number, the “OUTPUT.CSV” file takes the name becomes “manufacturingordernumber.csv” The “clear” icon is yellow while the hold function is activated: « clear » button, coloured in yellow because of the « hold » function of the pedal. Air Meter (55-Air1 / 2)
  • Page 53 Defines the register format for the Request a confirmation of preset MODBUS RTU protocol. Float, or when the preset is done from the integer. measuring screen. INST-AIR2-1 Iss 1...

  • Page 54: Lock

    0000 the icon desktop Allows to remove the corresponding buttons from the measuring screen. It is recommended to remove the button to make the interface as easy as possible for the user Air Meter (55-Air1 / 2)

  • Page 55: Measure

    Example of a measuring screen without all the buttons. Allows to remove the Allows to lock the measuring mode corresponding buttons from (maxi, mini, maxi-mini, average...) the measuring screen. 7.6. Measure After clicking on this button, the measuring screen appears. Please read the chapter 8 for the presentation of the measuring screen.

  • Page 56: Measuring Screen

    Measurement transfer become red (RS232 or USB or USB stick) To come back to the absolute mode, press on the « clear » button When they are pushed, the button becomes green for one second: Air Meter (55-Air1 / 2)
  • Page 57 Zero: This button is used to set the current measured value to 0, it’s the relative mode Clear: This button allows to cancel the zero button, and to switch again to absolute mode Preset: This button allows to set the current measure value to the master value INST-AIR2-1 Iss 1...
  • Page 58 Print: The print function transfers the measured value to a computer. Part: This function is used to change the displayed part. Air Meter (55-Air1 / 2)

  • Page 59: Choice Of The Needle Indicator Style

    8.2. Choice of the Needle Indicator Style If the display is configured with the needle indicator (mode Galva, see chap. 7.2), it is possible to change manually the scaling. Automatic Manual The automatic needle scale adapts automatically with the part tolerances. The manual needle has fixed scales and allows to use the +/- option (see chap 5.2) You can change the scale type by touching the area as on the picture below for 2 seconds.

  • Page 60: Temporary Dynamic Mode

    The displayed value is calculated with the formula (MAX-MIN)/2. When a dynamic mode has been selected, press on the button or on the footswitch (if configured as « init dyn » (see chap 7.4)) to start recording. Air Meter (55-Air1 / 2)

  • Page 61: Display Mode Without Tolerance

    8.4. Display Mode Without Tolerance This mode (see chap. 5.2) allows to display only the numerical value, without tolerance indication. It is also possible to change the preset value (calibration) directly from this screen. Press on the value as shown on the below picture, an input the new value with the keyboard. If the double display mode is selected, the 2 characteristics can move together, but only 1 is active.

  • Page 62: Usb Communication

    PC when your cursor is. (For example on an Excel cell), in the same way than you would have typed with your standard keyboard. 5,13 5,09 Example of a table completed 5,07 5,06 5,16 5,12 5,19 Air Meter (55-Air1 / 2)
  • Page 63 A problem appears sometimes while the data is transfering with a USB cable. The display acts like a keyboard, so, in order to write numbers, the “num lock” key must be activated. If your keyboard doesn’t have the “num lock” key, you can still find it by writing “visual keyboard” in the windows search bar, and activate it. If even there the “num lock”...

  • Page 64: Rs232 Communication

    All the commands must be ended by a « CR » character. (ASCII code 13/ $0D). The commands can be sent grouped by separating with a « ; » (max 500 characters). The display is refreshed only once after reception of the « CR » character. Air Meter (55-Air1 / 2)

  • Page 65: Command List

    10.1.2. Command list 10.1.2.1. Window PART Window « Part » (Command by characteristic with “n” = 1 or 2 (number of the characteristic)) Rubric Read. command Write command Comment Resolution nRES? nRES=x x=1 to 5 (number of decimals) x=0(mm) Unit nUNIT? nUNIT=x x=1 (inch)

  • Page 66: Window Display

    (horiz. Bar origin left) x=1 (horiz. Bar origin center) Bargraph BAR? BAR=x x=2 (needle) x=3 (non = value only, no tolerance) Display DISPL? DISPL=x x=1 (display 1 characteristic on the screen) x=2 (display 2 characteristics on the screen) Air Meter (55-Air1 / 2)

  • Page 67: Window Configuration

    10.1.2.2. Window CONFIGURATION Window “Configuration” Rubric Read. command Write command Comment Transfert PRINT? PRINT=x x=0 (USB) x=1 (RS232) x=0 (French) x=1 (English) x=2 (German) x=3 (Spain) Langue LANG? LANG=x x=4 (Italian) x=5 (Hungarian) x=6 (Czech) x=7 (Swedish) x=8 (Portugaise) Footswitch FOOT? FOOT=x x=0 (Print)

  • Page 68: Window " Lock

    10.1.2.3. Window « Lock » Window “Lock” Rubric Read. command Write command Comment Protection LOCK? LOCK Lock UNLOCK x=1 (RS232) Code PASS? PASS=xxxxxx xxxxxx = password with 6 figures Air Meter (55-Air1 / 2)

  • Page 69: Measuring Screen

    10.1.2.4. Measuring Screen Measuring Screen Rubric Read. command Write command Comment Zero Zero Zero relative Clear Start dynamic measurement Preset PRESET Calibration Measurement transfer : If 1 characteristic mode, transfer the value with the format :+000.00000<CR> Print If double characteristic mode, transfert the value with format : +000.00000,+000.00000<CR>...

  • Page 70: Data Export On Usb Keys

    Nominal +20.00000 +20.00000 Nominal value Lower tol. +0.00000 -0.02000 Lower tolerance Measure +20.00012 +19.99350 Data #1 + indication GO Measure +20.00011 +19.99340 Data #2 + indication GO Measure +20.00010 +19.99980 Data #3 + indication NG Air Meter (55-Air1 / 2)

  • Page 71: Advanced Mode

    11.2. Advanced Mode: It is possible to connect a QR code reader (55-HD3430-BKK1B), and to input a manufacturing order number on the display. After scanning the QR code corresponding to the manufacturing order number, the number will appear on the top bar of the measuring screen, and the output csv file will get the name of the scanned name. Then each time you scan a new number, after saving the first part, a file is created on the USB key.

  • Page 72: Configuration Of The Unit With Qr Codes

    AGL=2 // Configuration of input 2 AGF=2 // Filter level (from 0 to 5) AGN=19.9807 // Value of the MIN master AGA=19.9932 // Value of the MAX master AGS // End of calibration configuration + display of the configuration window Air Meter (55-Air1 / 2)

  • Page 73: Advanced Configuration

    12.2. Advanced Configuration The previous chapter shows how to configure the calibration. It is possible to go further and configure the whole device. The goal of the configuration by QR code is generally to save time and limit configuration errors when the air gauge is changed often on the display.
  • Page 74 The value changes to 0.0068. The display is ready to measure. You can then scan a manufacturing order number if request to export the data, as describes on the chapter “DATA EXPORT ON USB KEYS”. Air Meter (55-Air1 / 2)

  • Page 75: Modbus Rtu Protocol

    13. Modbus RTU Protocol This protocol allows to connect the display to a compatible PLC. A maximum of 256 register can be read. Example of a RTU Modbus communication with an automate Pro-Face. This example can be download from our website www.metro-fr.com Address: always equal to1 Code: the M3 supports codes «...
  • Page 76 Type of the characteristic 3 = Maxi-Mini 4 = average 5 = Median Nominal Lower tolerance Upper tolerance Master value Measure Displayed value Mini class 1 Mini class 2 Mini class 3 Mini class 4 Air Meter (55-Air1 / 2)
  • Page 77 Function Address Size (word) Value Mini class 5 Mini class 6 Mini class 7 Mini class 8 Mini class 9 Mini class 10 Mini class 11 Mini class 12 Mini class 13 Mini class 14 Mini class 15 Mini class 16 Maxi class 1 Maxi class 2 Maxi class 3...

  • Page 78: Optional I/O Module

    The 8 outputs are similar to the « open collector PNP » type. They can be used with an external power supply 12 to 30 VDC maximum. The maximal output current drained by each output is 50mA The 8 inputs represent a 2.2kOhms load connected to the 0 volt. Air Meter (55-Air1 / 2)
  • Page 79 Refer to chapter 7.3 (setup) to connect a MB-IO module Power supply 12-30 VDC Terminal 1 to 8 : see the below table Male connector with screw terminals (delivered with the IO module) Input M-Bus Connect the next MB-IO module here Press on this button when the display is on the «...
  • Page 80 + 24 V of the PLC Output PLC Output 0V of the PLC IO module + 24V + 24V + 24 V from the PLC Input Output to the PLC 0V of the PLC IO module Page 84 Air Meter (55-Air1 / 2)

  • Page 81: Mb-Rl Module

    14.2. MB-RL Module Please refer to the chapter 7.3 (Setup) to connect a M-Bus module The MB-RL module has been designed for retrofitting old Monocote displays equipped with the optional relay board. The external M-bus module has the same pinout (SUBD-15) than the relay board of the Monocote display, so there is no need to change the wiring of the existing installation.
  • Page 82 • PRESET : External command of calibration according the selected working mode. This command has the same function as the button “PRESET” of the measuring screen SUB D connector (15 pins) : pin assignment Borne Signal Sens Description Page 86 Air Meter (55-Air1 / 2)
  • Page 83 SUB D Connector (15 pins): Pin Assignment Borne Signal Sens Description AIR1 & AIR2 Display units +5 V output Power supply to activate the inputs +5 V output Power supply to activate the inputs Not connected MINNC Mini tolerance relay contact 1A 48V connected MINCOM Common of mini tolerance contacts...
  • Page 84 Input: Set the displayed value tolerance min displayed value to zero Input: Set the displayed value to the master value Input: Transfer the measured value (need a USB or RS232 link) Air Meter (55-Air1 / 2)

  • Page 85: Mb-Tp Module - For Temperature Compensation

    14.3. MB-TP Module – for Temperature Compensation The MB-TP module allows to use an isolated thermocouple type K (hot junction) or PT100 sensor. 2 functions are then available: alarm or compensation. A – Identification and configuration of the Temperature module MB-TP The temperature is displayed Selection between type K or PT100 Unit: Degree Celsius or Fahrenheit...
  • Page 86 Here we selected +/- 5°C of allowed temperature variation. Let’s come back to the measure screen: After a PRESET, the actual temperature is recorded, and the monitoring starts. Temperature OK = no alarm Temperature increased = alarm Air Meter (55-Air1 / 2)
  • Page 87 After validation with the OK button, the Preset button becomes red until you made the preset: The PRESET button become black again after pre- setting. The new reference temperature has now been moved to the actual temperature. b – Temperature compensation mode Compensation mode Expansion coefficient If validated (green), a new screen appears...
  • Page 88 The temperature function is advanced functionality of M3. It is recommended to make trials and comparative measurements to validate the process before using it in production. The MB-TP module is compatible with PT100 sensors and hot junction isolated Thermocouple type K. Air Meter (55-Air1 / 2)

  • Page 89: Factory Reset

    To Reset to factory settings, please follow the process bellow. Shut down Start When the splash screen appears, press on the Bowers logo A desktop with 3 icons appear. Press on « initialization » Confirm YES or cancel NO...

  • Page 90: Firmware Update

    The firmware update requires to use the « flash magic » software that can be download (free) from this (free) from this address: address: www.flashmagictools.com www.flashmagictool.com After installation, please configure the software on the following way: After installation, please configure the software on the following way: Page 94 Air Meter (55-Air1 / 2)
  • Page 91 The LPC4357 can be found on the “ARM Cortex” category after clicking on « Select ». If you are connected directly on a serial port, you can use the baud rate 115200bauds. If you use a USB/RS232 convertor, use 38400 bauds.

  • Page 92: Annex

    When the operator places the piece back on the air gauge or touches the display screen, the regulator will return to preset working pressure for the measurement. Air Meter (55-Air1 / 2)
  • Page 93 55-MB-RO Relay Output Module Supplied with mains adaptor. Requires cable 55-45186-1.5 to connect to solenoid on by-pass regulator kit. Module connects to air display using cable 55-81213-1.5, see page 13. See section 7.3.2 page 48 on how to add module. The MB-RO module works like the MB-IO, but with only 1 relay output.
  • Page 94 Indicate if the part belongs to the class defined on this port Pinout of the M12 connector: 1: 24VDC 2: NC 3: GND 4 : Out You need therefore a M12 male connector. You can use cable ref 55-45186-1.5 (length 1.5m) Air Meter (55-Air1 / 2)

  • Page 95: By-Pass Regulator Kit & Eco Mode

    ECO (Economy) Mode This page allows the configuration of an ECO mode, for the screen (screen saver mode) and to reduce the air flow with the 55-MB-RO module. • Setting of the screen saver mode Delay to start the screen saver mode The time spent on standby is displayed on the screen Select the colour of the screen saver...

  • Page 96: Preset Validity

    If 0 is entered, then no calibration will be proposed. If the value is upper 0, the Preset button becomes red after the indicated period, and invites you to calibrate. Press the Preset button, and select if yes or no you want to calibrate. Air Meter (55-Air1 / 2)

  • Page 97: Calibration & Calibration Gain Input

    Calibration and Calibration Gain Input. FOR ADVANCED USERS ONLY. When the factory screen appears, tap the BOWERS logo. By using the Calibration/Gain icon you can choose the default calibration mode of the Air Gauge channels. Either a calibration with 2 or 3 masters, or direct entry of the gain of your air gauge.
  • Page 98 Configure the « METRO_ProductUpdateTool » » software according to the below pictures. Procedure: 1 – Connect the Display with the cable ref 18060 to the computer 2 – Start the Display » 3 – Configure the « METRO ProductUpdateTool » software according to the below Air Meter (55-Air1 / 2) pictures.
  • Page 99 Select product display M3 Fill in the Serial Port from the drop-down list. • Select Refresh if the desired port does not appear on the list • Go get the update file • Click on Browse The selected file is ready to be send. Click on program It takes nearly 5 min depending on the Baud rate selected.
