Summary of Contents for StarMax MP-200

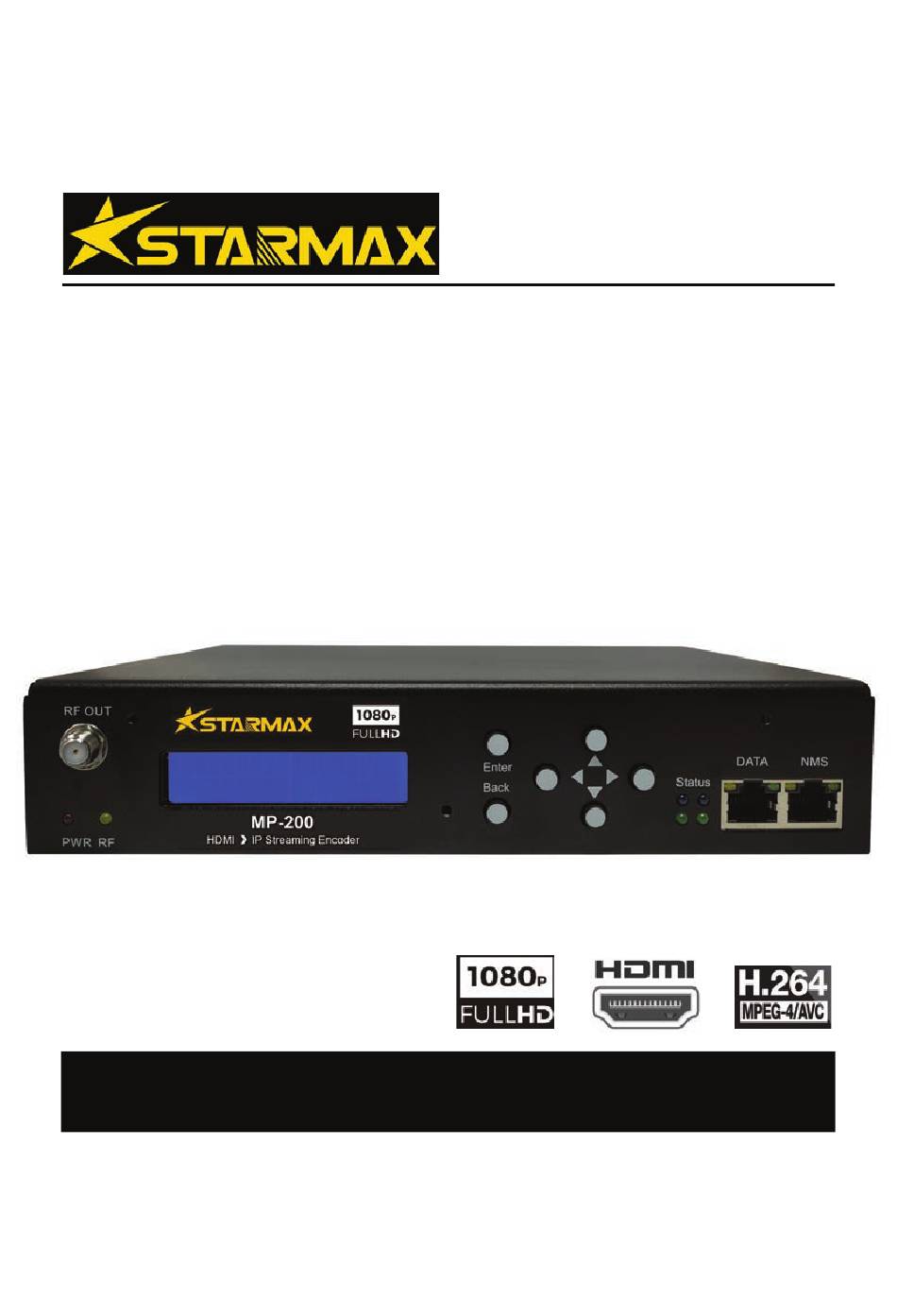

- Page 1 MP-200 Dual Channel HDMI to H.264 IP Streaming Encoder User Guide v1.2 July, 2024 support@starlink7.com...
- Page 3 IP streams received from Internet or LAN IP network to ATSC / J.83B QAM RF modulation signal for delivery of IPTV over coax network. ■ IP Streaming to ATSC/J.83B QAM RF Output MP-200 HDMI to H.264 IP Streaming Encoder...
-
Page 4: Installation Requirement
HDMI 1 HDMI 2 ■ ■ Installation Requirement Package Content • Available video/audio source from • MP-200 dual channel HDMI to H.264 IP streaming HDMI output device encoder • Available Ethernet/IP network • AC/DC power adapter • Available electrical power socket •... - Page 5 LCD Menu Flowchart All commands and settings are also available on Web based configuration by connecting the Ethernet port of computers to the NMS port of MP-200. Launch any Web browser and point the URL to http://192.168.0.168 to login with...
-
Page 6: Specifications
The output of MP-200 IP streams can be received and played on various smart devices, such as • Regular TV with Android TV set-top box, IPTV set-top box, or IPTV to HDMI decoder •... - Page 7 Web configuration page, write down the new IP address for future use. If the IP address of the NMS port of MP-200 is unknown, press and hold the reset button for 5 seconds to restore the default IP address of NMS port to be 192.168.0.168.
- Page 8 Press Choose button to select firmware file (image.ub) and then Upgrade button to update the firmware. Note: MP-200 reboots after Firmware/Encoder/Boot file update. Wait for 1 minute to allow the unit to boot up. Press Choose button to select boot loader file (bootloader.bin) and then Upgrade button to update boot loader.
- Page 9 Service Stream ID between 1 and 65535. ♦ TS ID Transport Stream ID between 1 and 65535 ♦ Service Provider Service Provider name. Maximum 15 characters allowed. ♦ Service Name Service name. Maximum 15 characters allowed. MP-200 HDMI to H.264 IP Streaming Encoder...
- Page 10 ♦ Play Mode • UDP or RTP Protocol Selection of Unicast or Multicast for destination address of IP streams. Multicast can ONLY be used where MP-200 and the receiver/decoder are located in the same subnet. • HLS or HTTP Protocol SPTS only.
- Page 11 (for HDMI 1 input) or Stream File http://source_IP_address:8080/h2.ts (for HDMI 2 input) for example http://192.168.0.10:8080/h1.ts where 192.168.0.10 is the IP address of the DATA port of MP200 encoder that generates the IP streams. MP-200 HDMI to H.264 IP Streaming Encoder...
-
Page 12: Warranty
■ Warranty The MP-200 modulator has one-year Limited Hardware Warranty and 90-day free software updates after purchase. This Limited Warranty Statement gives the customer specific legal rights. The customer may also have other rights which vary from State to State in the United States, from province to province in Canada, and from country to country elsewhere in the world. -
Page 13: Troubleshooting
♦ Why the NMS and the DATA ports of MP-200 cannot be assigned to the same IP subnet If IP addresses of the NMS port and the DATA port of MP-200 are assigned to the same subnet, the internal Ethernet switch may transmit the IP streams to the wrong port to forward. - Page 14 Notes MP-200 HDMI to H.264 IP Streaming Encoder...
- Page 16 STARMAX is a trademark of StarLink LLC StarLink LLC. Copyright 2024, All Rights Reserved. 1030 E. El Camino Real, #158 Sunnyvale, CA 94087 www.starlink7.com support@starlink7.com...
