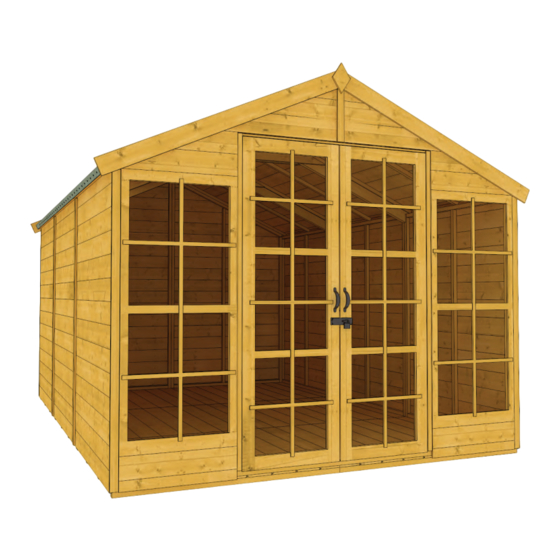

8ft Harper T & G Apex Summerhouse Building Instructions
COVERED SIZES:
8FT GABLE:
10x8,12x8
TONGUE & GROOVE
SUMMERHOUSE
BEFORE
YOU
START
Please read the instructions carefully
and please retain for future reference
Please note that all images are for illustration purposes only.
For Queries and Help please contact Product Support: 01909 768840
4x8, 8x8,
1) Take 5
yourself with the
minutes
parts, QTy's and
and have
Sizes on the
a coffee.
PACKING LIST.
Covers All 8ft Gable Sizes
3) Read the
2) Reacquaint
instructions
thoroughly and
then re-read if
necessary.
CODE:
INS-0081
V3.5-010321
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Billyoh 8ft Harper Tongue and Groove Apex Summerhouse 4x8
Summary of Contents for Billyoh 8ft Harper Tongue and Groove Apex Summerhouse 4x8
- Page 1 8ft Harper T & G Apex Summerhouse Building Instructions Please read the instructions carefully and please retain for future reference Please note that all images are for illustration purposes only. For Queries and Help please contact Product Support: 01909 768840 COVERED SIZES: 4x8, 8x8, 8FT GABLE:...
- Page 2 If there is any cause for concern or any other problems are found on or after delivery, such as damaged parts do not build, please visit our Support Centre - billyoh.co.uk/help for further advice & resolution & stop all use before assembly until issues are Wood Characteristics: Wood is a natural material, which means that no two boards on your building will be identical &...
- Page 3 When In most cases the lower edge of the are still not found please visit our Support Centre - billyoh.co.uk/help the wood has dried through panels overhangs the floor of the Q: Are tower playhouses freestanding? A: We recommend that tower playhouses are positioned on a flat /...

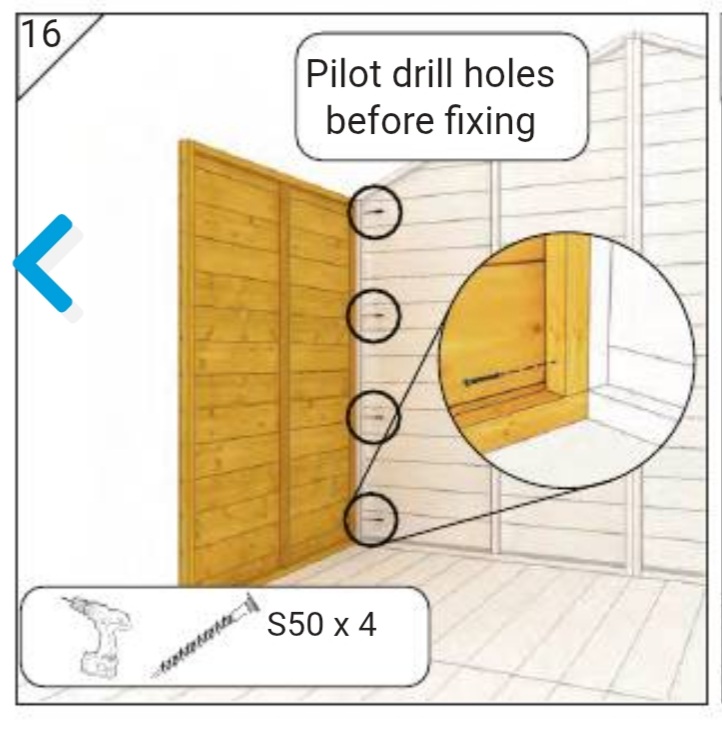

- Page 4 01909 768840 For Queries and Help please call Product Support: Where to find everything Pilot Drilling What you need IMPORTANT: Pre pilot drill all screw holes This is needed for all screw codes: 4x8 Building Woodkits - contains all strips, S12, S30, S40, S50, S70 and S100 framing, fixings and Instruction for the building size.
- Page 5 01909 768840 For Queries and Help please call Product Support: Plain Panel Fixing Stages Only join a max of 4 floors together before turning 823mm or 1116mm (FR-0823-SQ - 3ft Gable Panel) S50 x 6 Side (FR-1116-SQ - 4ft Gable Panel) Side Repeat for all Back...

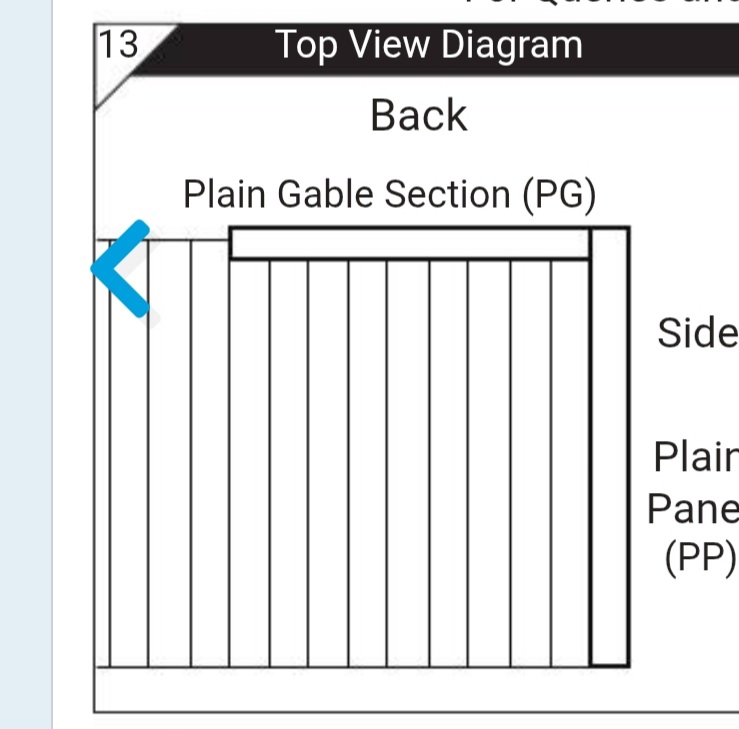

- Page 6 01909 768840 For Queries and Help please call Product Support: Top View Diagram Add the remaining Panels. Accor- Place the Eave Panel next ding to building size. (image below Back to the Gable Section. shows 12 x 8 building) Plain Gable Section (PG) Side Plain Panel...
- Page 7 01909 768840 For Queries and Help please call Product Support: Place the Door Gable Section Fix truss pieces 1 side, Pilot drill holes following the screw pattern. on the inside of the Eave Panels before fixing Flip truss over and repeat S50 x 24 (TR-0491-BV2 x 2) “Fitted on both...
- Page 8 01909 768840 For Queries and Help please call Product Support: Truss Position Diagram Roof Sheet requires S50 x 6 879mm or 1172mm Roof Support only (FR-0879-SQ / FR-1172-SQ) S50 x 12 879mm or 1172mm Heavy Duty Side View only, Halfway point.
- Page 9 01909 768840 For Queries and Help please call Product Support: The Roof Sheet should fit half Position the Roof Sheet way across the Roof Truss square with N30 x 12 first sheet and push up to the centre N30 x 12 N30 x 12 N30 x 12 N30 x 12...
- Page 10 01909 768840 For Queries and Help please call Product Support: T&G Roof Only T&G Roof Position Position the T&G Roof Side View Side View square with the framing Correct Position Incorrect Position Lay T&G roof ,Fix bottom rails. Line up the T&G Roof with Repeat for all T&G the framing not the cladding roof sections.
- Page 11 01909 768840 For Queries and Help please call Product Support: S70 x 8 S70 x 8 Push the T&G Roof Push the T&G Roof up to the centre. up to the centre. This will require 2 This will require 2 people and make people and make S70 x 8...
- Page 12 01909 768840 For Queries and Help please call Product Support: Door Fixing Stage Fixing Door Glazing Cardboad can be used to protect the glazing when fitting the Beading Hinges to the Framing. Place the Glazing in the Frame and fit the beading around the edges P30 x 48 S30 x 18...
- Page 13 01909 768840 For Queries and Help please call Product Support: Cloaking Strip Fixing Stages S30 x 4 S25 x 2 100mm This will require This will require Bottom 1511mm cutting to size 1511mm cutting to size S30 x 28 (CL-1511-40RS) S30 x 24 (CL-1511-40RS) Felt Fixing Stage...
- Page 14 01909 768840 For Queries and Help please call Product Support: 70mm overhang at each end Fold over Tack to hold Corner in place Fold over Eaves Repeat previous stages for this side Sand Felt Mineral Felt For Shingles Roof Covering Only Cut the full roll of felt in half length ways Only 1 roll of felt is used...
- Page 15 01909 768840 For Queries and Help please call Product Support: Door Latch Fixing For Shingles Roof Covering Only For Shingles Roof Covering Only Use the shingles Instructions S30 x 8 that comes with the packs Fascia Fixing Stage Cloaking Strip Fixing Stage Cut to size Cut to size 1422mm...
- Page 16 01909 768840 For Queries and Help please call Product Support: Protect your building Protect your building Pilot drill holes first 12x8 Harper Apex Summerhouse Shown 8x8 Harper Apex Summerhouse Shown Same for 4x8, 10x8 and 12x8 Treat after assembly and Treat after assembly and N30 x 4 annually to protect...
- Page 17 Woodkit Building Apex 4ftx8ft Summerhouse Long Window U1511 Name: 25937 Pack List PACKED PART Tick when GROUP PART ID Description / Image Part Code Length Z (m) Packed Georgian Bars - 0.566 GB20‐0566‐SQ Panel 10mm x 20mm Georgian Bars Slotted - Planed Georgian Bars - GB20‐0637‐SQ 0.637...
- Page 18 Name: Woodkit Extension Apex 4ft Plain U1511 25449 Pack List PACKED PART Tick when GROUP PART ID Description / Image Part Code Length Z (m) Packed 1.511 Cloak CL-1511-40RS 11mm x 40mm Cloak Strip - Rough Sawn Floor Joining 0.100 FR-0100-SQ Block 28mm x 28mm Framing Rough Sawn - Homegrown...
- Page 19 Name: Woodkit Extension Apex 3ft Plain U1511 25448 Pack List PACKED PART Tick when GROUP PART ID Description / Image Part Code Length Z (m) Packed 1.511 Cloak CL-1511-40RS 11mm x 40mm Cloak Strip - Rough Sawn Floor Joining 0.100 FR-0100-SQ Block 28mm x 28mm Framing Rough Sawn - Homegrown...
- Page 20 Fixing Kit Building Apex 4ftx6ft Summerhouse Long Part Name: 25944 Part ID: Code Name Image Ticked 30mm Nails 30mm Screws 50mm Screws 70mm Screws FH04 4 INCH Flush Hinge - Silver Tower Bolt Silver Hasp and staple, Padlock 6 INCH Plain Handle - Silver Turn Button - Silver...
- Page 21 Fixing Kit Extension Apex 3ft and 4ft Plain Part Name: 25561 Part ID: Code Name Image Ticked 30mm Nails 50mm Screws 70mm Screws FINAL PART CHECKING: TO BE FILLED IN BY THE FINAL PACKER OR CHECKER: I, __________________________, have checked that all components have been packed in good quality on ____/____/__________ Kybotech, Claylands Avenue, Worksop S81 7BQ V1.0 - 050117...
- Page 22 Name: Truss 8ft Pack Treated 25404 Pack List PACKED PART Tick when GROUP PART ID Description / Image Part Code Length Z (m) Packed 0.491 Truss Brace TR-0491-BV2 19mm x 75mm Framing Rough Sawn - Homegrown - Bevelled x2 1.000 Truss Brace TR-1000-BV2 19mm x 75mm Framing Rough Sawn - Homegrown - Bevelled x2...
- Page 23 Glazing Pack Fits 2ft Long Window Section W0.525xH1.278 Name: 25722 Pack List PACKED PART Profile or Tick when GROUP PART ID Description / Image Clad Part Code Length Z (m) Packed 0.510 Beading Top BD20-0510-SQ 10x20PL 10mm x 20mm Beading -Planed 1.281 Beading Sides BD20-1281-SQ...
- Page 24 Name: Glazing Pack Fits Summerhouse Door W0.434xH0.516 (x6) 25941 Pack List PACKED PART Profile or Tick when GROUP PART ID Description / Image Clad Part Code Length Z (m) Packed Beading Top ‐ BD10‐420‐SQ 0.420 10x10PL 10mm x 10mm Beading ‐ Planed 0.519 Beading Sides ‐ BD10‐0519‐SQ 10x10PL 10mm x 10mm Beading ‐ Planed 1.2STY‐DR‐ Glazing 24254 ‐ 1.2STY 434x516 Glazing 1.2mm Styrene Door W0.434xH0.516m ‐ Panel Pins ‐ ‐ 30mm Panel Pins FINAL PART CHECKING: TO BE FILLED IN BY THE FINAL PACKER OR CHECKER: I, __________________________, have checked that all components have been packed in good quality on ____/____/__________ Kybotech, Claylands Avenue, Worksop S81 7BQ V1.0 260117...
