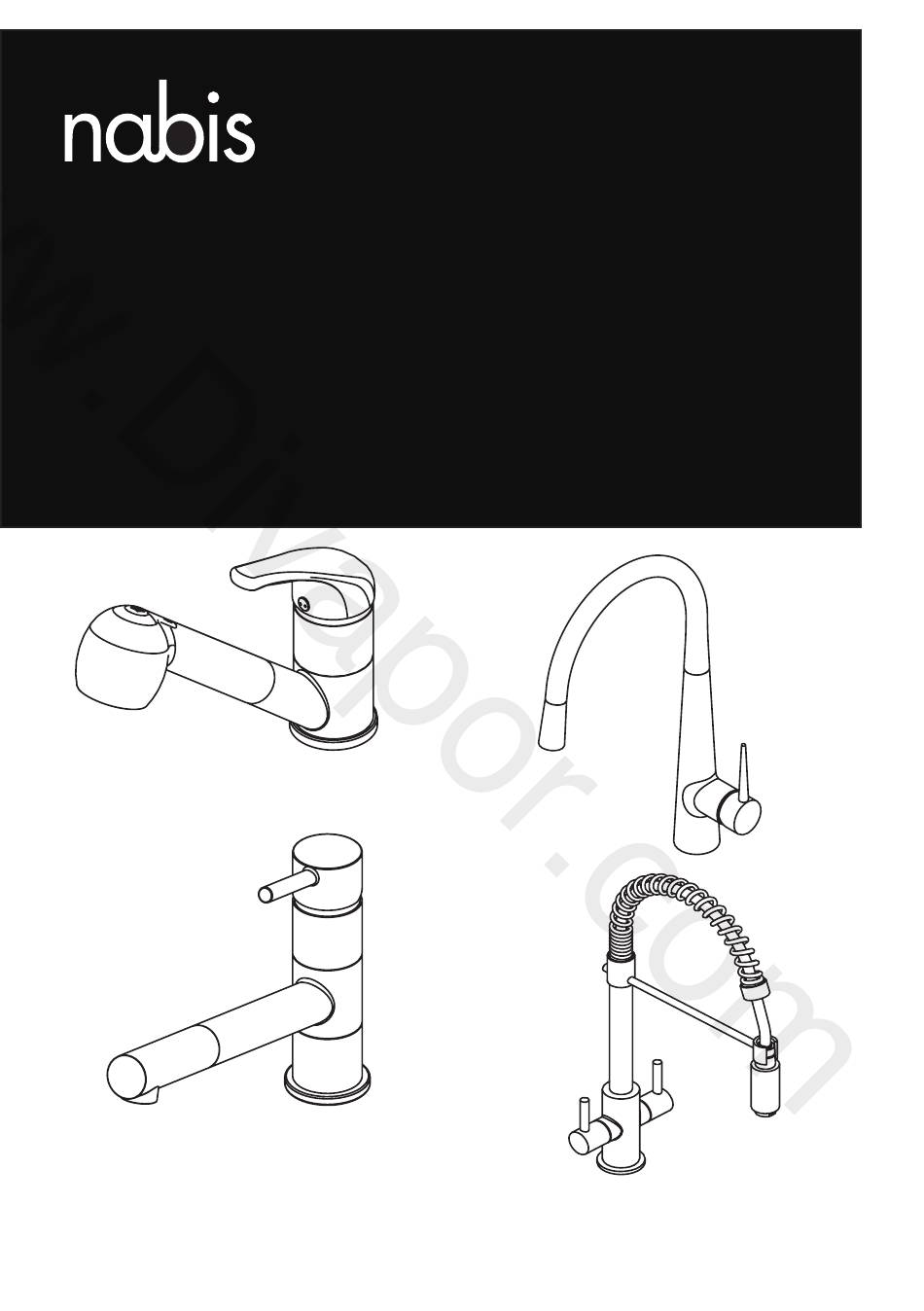

- Page 1 Mono Pull out Kitchen Mixers Instructions Product code: B08922 B08924 B08929 B08930 Please keep these instructions for future reference.
-
Page 2: Pipe Connections
Water Regulations Requirements It is important to ensure that the water supplies to your taps and mixers are connected in accordance with the Water Regulations and good plumbing practice. It is Wolseley’s recommendation and good plumbing practice that the supplies of hot and cold water to the products should be equal (balanced) pressures in order to provide a consistent flow. - Page 3 Warning from your Water Supplier It could be a criminal offence to use this tap with a mains water supply drawn directly from the supply pipe. (The supply pipe is the one which brings the water supply into your home and is directly connected to the public water main). This tap has an outlet on a flexible hose which, if left immersed in water, could result in contaminated water being drawn back into the pipework if the supply pressure dropped.
-
Page 4: Installation Requirements
Installation Requirements Flexible Connecting Pipes Please ensure flexible pipes are connected to the household pipework with extra care to avoid the flexi pipes are not kinked, twist or bent sharply. Below are recommended ways to fit the flexible pipes during tap installation. Failure to follow the below recommended guidelines may damage the flexible pipes or poor taps performance. - Page 5 Single lever pull-out kitchen mixer Fixing rod Tap Body Flexible hose Hole for hose Fig 1 Anti-rotational washer Holder seat Fixing rod C shaped rubber washer C shaped metal washer Fixing nut Adaptor Flexible tails Sealing Washer Pull out hose Counter balance weight Fig 2 1.
- Page 6 Single lever pull-out kitchen mixer Tap body Flange Anti-rotational washer Fixing rod C shaped rubber washer C shaped metal washer Flexible tails Thick fixing nut Hose retainer Flexible hose Thin fixing nut Adaptor Sealing washer Pull out hose Fixing rod Counter balance weight Hole for hose Fig 2...
- Page 7 Mono pull-out kitchen mixer Tap Body Flange (if supplied) Anti-rotational washer C shaped rubber washer C shaped metal washer Flexible tails Fixing rod Fixing nut 1. Identify all components and check for completeness, particularly before commencing installation. 2. Screw fixing rod to tap body and tighten it. 3.
-
Page 8: Component Diagrams
Nabis products are manufactured to the highest of standards and should require little or no maintenance. In the unlikely event of any spare part requirements, please contact our telephone helpline number.
