- Page 1 Tedee Dry Contact Installation giude...
-
Page 2: Application Example

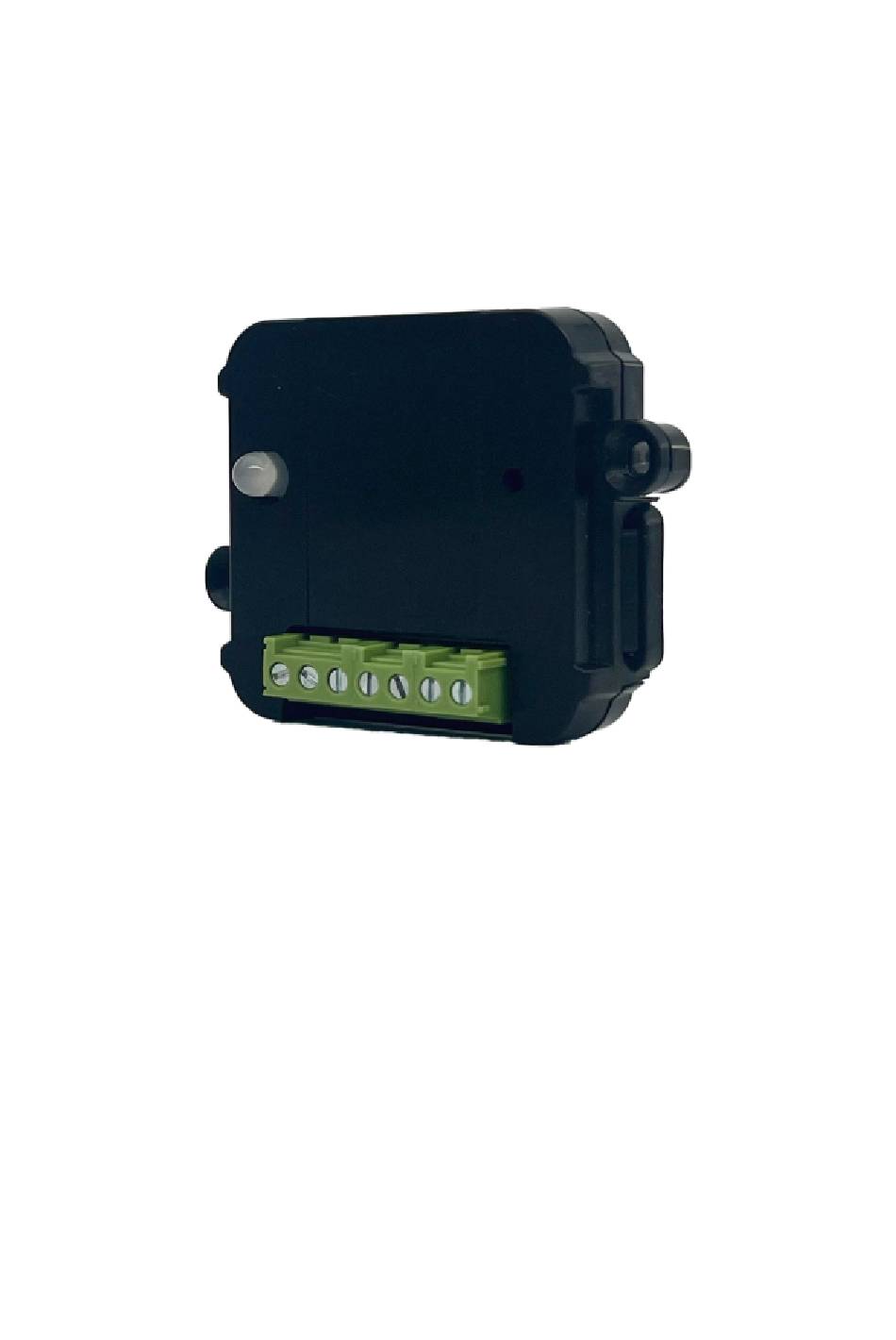

Introduction Tedee Dry Contact is a matchbox-sized unit that connects to Tedee GO and Tedee PRO smart locks using Bluetooth. It can be wired directly into existing dry contact systems through connections for power and control signals. Tedee Dry Contact is designed to expand the functionality of Tedee smart locks by enabling: Direct connections to alarm systems. -
Page 3: Power Supply
Smart Lock Compatibility To pair or unpair the Tedee Dry Contact with the Tedee PRO or the Tedee GO, the user must have an owner or administrator access level over the smart lock. -
Page 4: Safety Precautions
Two outputs convey the lock’s status, indicating whether it is locked or unlocked and whether the device requires attention, for example, when it is blocked, needs charging, or requires calibration. The operation of Tedee Dry Contact’s inputs and outputs can be configured within the Tedee app. -
Page 5: Wiring Guide
Wiring Guide Consult the diagrams provided below, paying particular attention to the designation of the connectors. + 5-60V DC – 5-60V DC OUT1 – OUTPUT 1 OUT2 – OUTPUT 2 IN1 – INPUT 1 IN2 – INPUT 2 COM – COMMON... -
Page 6: Device Activation
Step 2) Adding Device to the Tedee App To set up Tedee Dry Contact, you must have a Tedee account with the owner or the administrator access level to the smart lock that will be connected to the dry contact controller. - Page 7 6) Input your Tedee Dry Contact activation code – this is provided as a QR code and in text format within your device’s paper manual, and it is also printed on a sticker on your device. 7) Click “Connect.” Your smartphone will add the Tedee Dry Contact to your account.
-
Page 8: Step 3) Device Configuration
8) Press “Continue” to scan for Tedee smart locks within the Bluetooth range of your Tedee Dry Contact. 9) Choose the smart lock to pair with the Tedee Dry Contact, press “Pair,” then “Continue.” You’re now ready to configure your Tedee Dry Contact and the operations of its inputs and outputs. -
Page 9: Signal Configuration
The paired Tedee Dry Contact will be displayed in the list of your devices, under the “Accessories” section. Tedee Dry Contact does not have a control screen. Selecting the device will lead directly to the device settings. Signal Configuration To set up the operation of your dry contact’s logical inputs and outputs, navigate to the “Signal Configuration”... - Page 10 Paired Lock In the device settings, the Tedee Dry Contact can only be unpaired from a connected smart lock if the user has owner or administrator-level access to both devices simultaneously.
- Page 11 If the Tedee Dry Contact is unpaired or not currently paired with any smart lock, this step will display the smart locks connected to your Tedee account. You can then choose a smart lock to pair with the Tedee Dry Contact.
-
Page 12: Factory Reset
Be aware that sharing access to the Tedee Dry Contact only grants authorization to browse and edit its settings. Control over a smart lock requires a separate sharing process. To pair (or unpair) a Tedee Dry Contact with a Tedee smart lock, the user must be an owner or an administrator of both devices.
