Gaggenau
planning aid
Vario
Cooling
appliances

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB491200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gaggenau RB491200

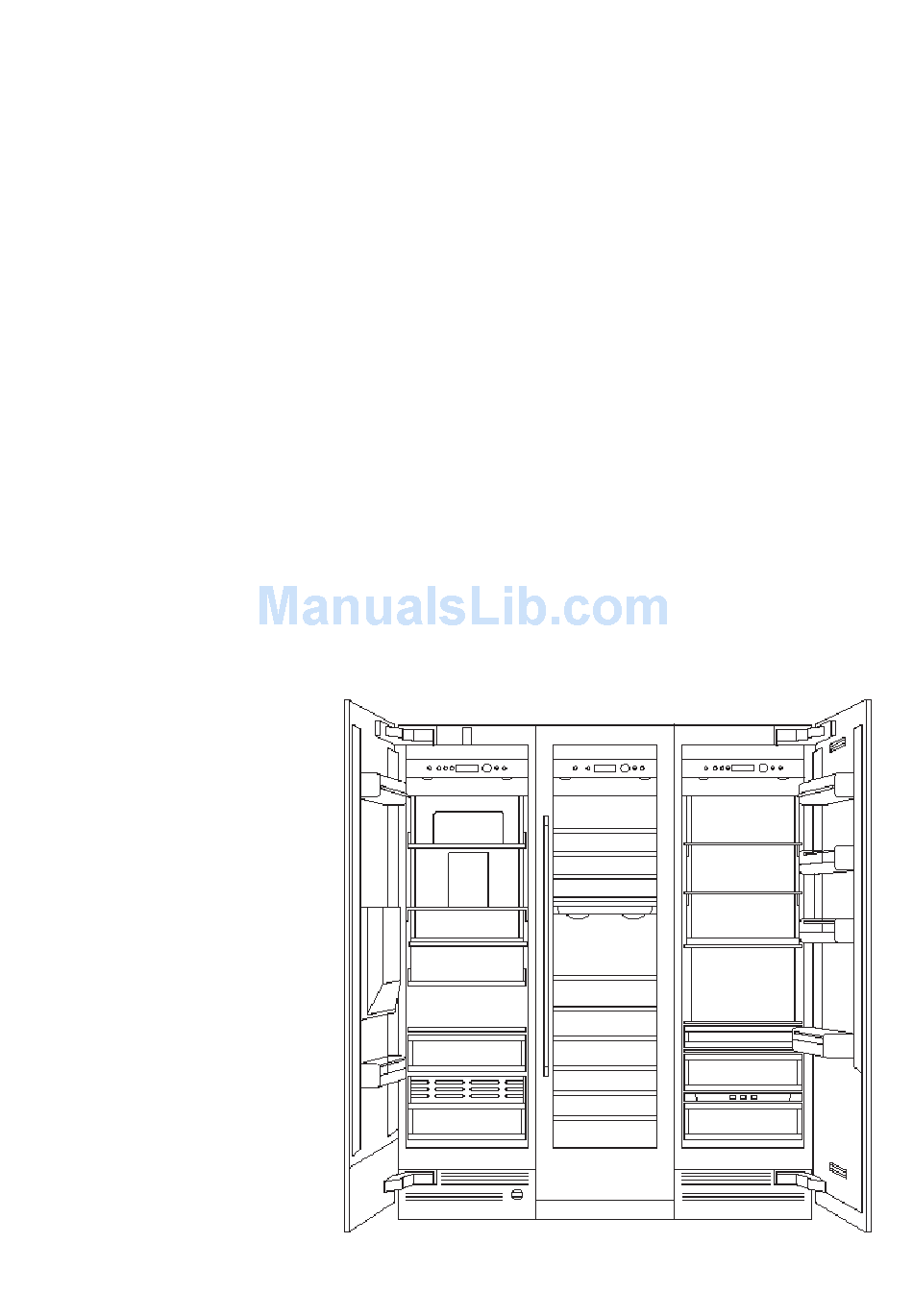

  • Page 1 Gaggenau planning aid Vario Cooling appliances...
  • Page 2: Table Of Contents

    Base area/Crown of the niche ... . . 20 Explanation of the installation accessories ..21 Technical data ......22...
  • Page 3: Overview Of Vario Fridges/Freezers/ Wine Storage Cabinets

    Overview of Vario fridges/Vario freezers/Vario wine storage cabinets Niche 213 cm Ice: Ice maker FC 0 °C: Fresh cooling close to 0 °C Wine Ice and water dispenser...
  • Page 4: Short Product Description

    RY 491. interior space. Planning note: Flat hinge. – Integrated ice maker in the freezer Door hinge right, reversible drawer, with water connection. (for RB 491–200). The power socket can be planned Niche height 213.4 cm.
  • Page 5 RC 462. pulled out completely. – Temperature control drawer RA 421–710 Stainless steel door (0 °C to 3 °C) for the storage of panel with handle for RC 472. delicate foods, such as fish, meat or vegetables. RA 421–730 Aluminium door panel –...
  • Page 6 – Fully integrated appliances. Doors open to a 115-degree angle, RA 450–010 Activated charcoral so that the large drawers can be filter for water filter system pulled out completely. including saturation indicator. – Stainless steel, aluminium and glass interior to high hygiene stan- RA 422–610...
  • Page 7 Ventilation grille Stainless steel, for RF 411, – Fully integrated appliances. left-hinged. Doors open to a 115-degree angle, so that the large drawers can be RA 461–610 Ventilation grille pulled out completely. Stainless steel, for RF 461, – Stainless steel, aluminium and right-hinged.
  • Page 8 RA 491–631 Bottle tray in beech and aluminium for RW 464, full extendable. RA 493–030 Presenter in aluminium (set of 3 for 3 bottles). RA 492–130 Aluminium shelf for RW 414, full extendable. RA 492–630 Aluminium shelf for RW 464.
  • Page 9: Additional Planning Notes

    There is no fixation on the hinge side of the appli- ance door (plus fitted cabinet door and handle). ance, because the finger protection slides in be- There should be no possibility of collision with tween the appliance and the adjacent cabinetry.
  • Page 10: Appliance Dimensions Wall Clearance Rc/Rf/Rw

    830 mm 363 mm 395 mm Notes – The adjustable feet have an adjustment range of – Dimension B details the securing position for the +35 mm to -13 mm. The standard height displayed door hinge parts. in the pictures is 0 mm.
  • Page 11: Appliance Dimensions Wall Clearance Rb/Ry

    115° 90° 115° Notes – The adjustable feet have an adjustment range from – The panel thickness of customised doors can +35 mm to -13 mm. The standard height displayed range from between 19 mm and 38 mm. in the pictures is 0 mm.
  • Page 12: Installation Niche - Dimensions

    224 mm B: Area for laying the water connection line (if required). 61.0 cm 304 mm It is very important to position the stop tap of the water connection so that maintenance and repair work 76.2 cm 380 mm is possible without dismantling the appliance.
  • Page 13: Door Fronts/Door Front Frames

    A: The cut out for the ice and water dispenser is centred horizontally and vertically. B: The width of the side frame parts of the door for the Vario wine storage cabinet can be between 65 and 82 mm. A width of 75 mm is recommended.
  • Page 14: Planning Principle For An Individual Appliance

    – The side walls of the installation niche must be Crown completely even and flat along their entire depth – Crown is at least 100 mm deep and made of a solid material (min. 16 mm thick) – Width of the installation niche: 762 mm –...
  • Page 15: Planning Principle For A Side-By-Side Solution

    – The side walls of the installation niche must be completely even and flat along their entire depth – Crown is at least 100 mm deep and made of a solid material (min. 16 mm thick) – Width of the installation niche: 2134 –...
  • Page 16: Planning Examples

    RW 414 / RY 491 Usability limitations: Not all doors can be opened at the same time. The left door of the RY may col- lide with the handle of the RW. Installation accessories: 1 x RA 460 011 Addi- tional side heating element (HE).
  • Page 17 Distance ≥ 160 mm RF 471 / RF 463 / RW 464 / RC 472 Usability limitations: The middle doors cannot be opened at the same time. Installation accessories: 2 x RA 460 000 SxS*. Notes: Two separate installation niches. The clear- ance between the two installation niches is greater than 160 mm.
  • Page 18: Installation Conditions

    The location of the appliance should not be subject height as the floor in the rest of the room. to direct sunlight or near a source of heat, such as a cooker, a radiator, etc. If installation next to a Due to the heavy weight of a fully loaded appliance, the floor beneath must be stable.
  • Page 19 A cold-water connection is required to operate the automatic ice maker. The water pressure must be between 1.7 and 10 bar. The installation must be in compliance with local plumbing regulations. A separate stop valve must be installed in the cold water supply.
  • Page 20: Base Area/Crown Of The Niche

    In relation to the standard height, the maximum This height can vary depending on the conditions height of the base board is 102 mm. The plinth can at the site. be maximum 19 mm thick.
  • Page 21: Explanation Of The Installation Accessories

    For appliances with a width of 762 mm, as well as In addition, it contains a decorative strip for covering for fridge-freezers with a width of 914 mm, it is the gap between the two appliances.
  • Page 22: Technical Data

    Storage time after a malfunction (hrs.) – Interior compartments/containers/ice cube trays (No.) –/2/1 –/2/1 – Rating Total connected load Water connection inlet/outlet •/– •/– –/– • Standard Special accessory – Not available RF 463–200 right only, not reversible; RF 463–201 left only, not reversible.
  • Page 23 Wine RF 471–200 RC 462–200 RF 463–200 /–201 RF 461–200 RF 411–200 RW 464–260 RW 414–260 2125 – 2170 2125 – 2170 2125 – 2170 2125 – 2170 2125 – 2170 2125 – 2170 2125 – 2170 •/–/• –/•/• •/•/–...
  • Page 24 Description RB 491-200 RY 491-200 RC 462-200 Door panels / door panel frames Stainless steel door panel with handles, panel thickness 19 mm RA 421-910 RA 421-912 RA 421-610 Aluminium door panel with handles, panel thickness 19 mm RA 421-930...
  • Page 25 RC 472-200 RF 411-200 RF 461-200 RF 471-200 RF 463-200 RF 463-201 RW 414-260 RW 464-260 RA 421-710 RA 421-110 RA 421-610 RA 421-710 RA 422-610 RA 422-610 RA 421-730 RA 421-130 RA 421-630 RA 421-730 RA 422-630 RA 422-630...
  • Page 26 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München www.gaggenau.com...
