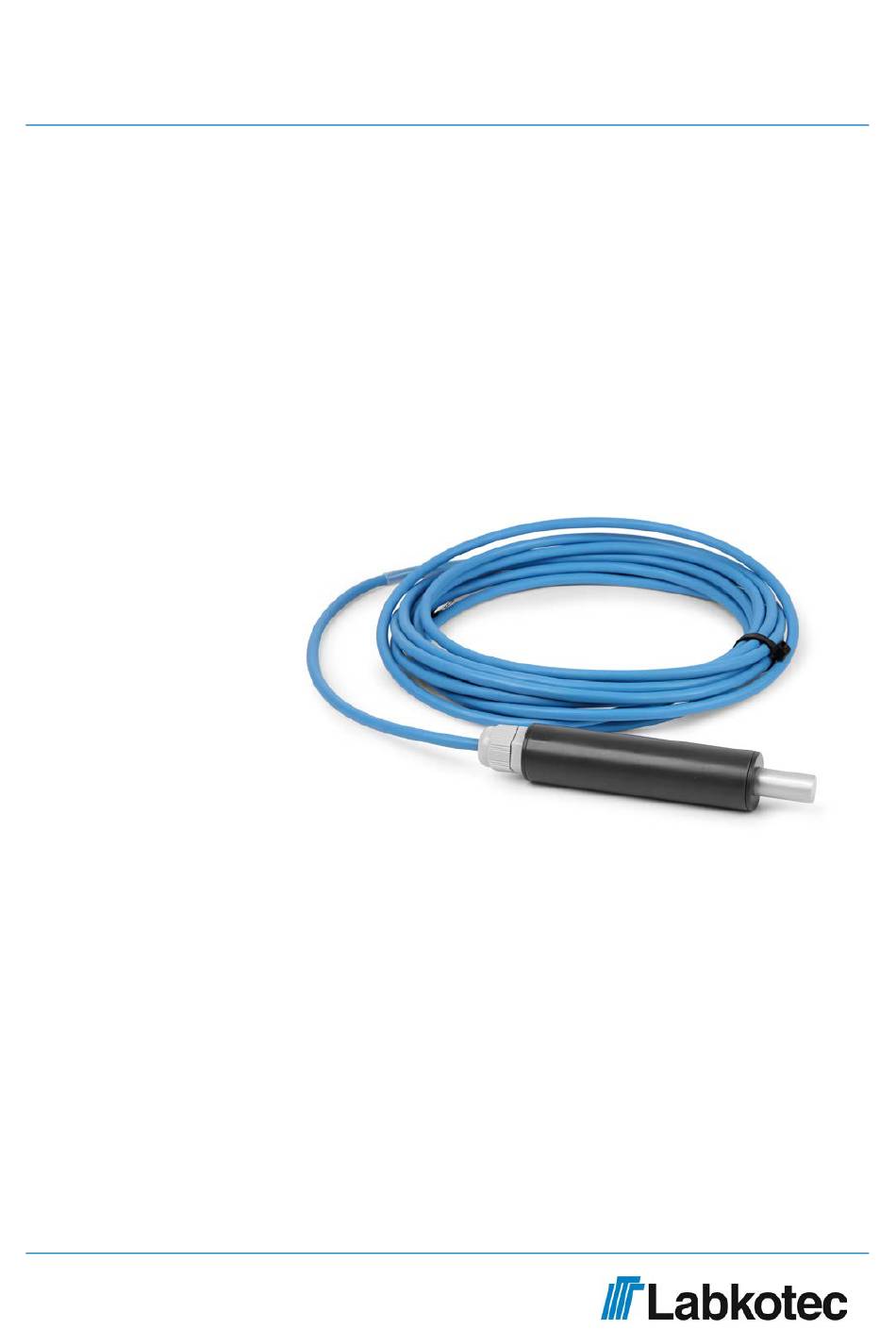

- Page 1 Installation and Operating Instructions idOil-LIQ High liquid level sensor DOC001796-EN-6 7/29/2021...
-
Page 2: Table Of Contents
6.1 idOil-LIQ sensor functional test with idOil control unit ....... -
Page 3: General Information About The Manual
All of our products have been designed and manufactured with due consideration to the essential European standards, statutes and regulations. Labkotec Oy has a certified ISO 9001 quality management system and ISO 14001 environmental management system. Limitation of liability Due to continuous product development, we reserve the right to change these operating instructions. -
Page 4: Safety And The Environment
Intended use The idOil-LIQ sensror is intended to be used as liquid high level alarm in oil and sand separators. The sensor can be placed in a zone 0 explosive atmosphere, but the control unit connected with have to be placed in a safe area. -
Page 5: Repair
Installation and Operating Instructions | idOil-LIQ 5/18 Keep the original package. Always store and transport the device in the original packaging. Store the device in a clean and dry space. Observe the permitted storage temperatures. If the storage temperatures have not been presented separately, the products must be stored in conditions that are within the operating temperature range. -
Page 6: Product Description
Product description Device operation The idOil-LIQ sensor can be connected to Labkotec Oy analog (SET-1000 and SET-2000 - product family) or digital (idOil-product family) control units. The sensor issues an alarm signal when the liquid level in the separator reaches the sensor in overflow situation. -
Page 7: Installation
1 idOil-LIQ high liquid level sensor A Air B Oil C Water L Standard liquid level S Sensor switching point Liquid alarm limit (maximum surface level) Figure 4. Installing the idOil-LIQ high liquid limit sensor DOC001796-EN-6... -
Page 8: Connections
Installation and Operating Instructions | idOil-LIQ 8/18 Connections idOil sensor connected to idOil control unit Kuva 5 . Connecting idOil sensor(s) to idOil control units Safe area Hazardous area The sensor connection is polarity free digital bus connection so the sensor can be connected to any of the sensor connectors (sensor 1, sensor 2 or sensor 3). -
Page 9: Idoil-Liq Sensor Connected To Set Control Unit
SET control unit The sensor of the idOil product family can be connected to the control unit of Labkotec Oy's SET product family in place of the SET sensor. The difference is that the cable in the idOil series sensors has no shielding and the polarity of the conductors does not matter because the sensor connection is polarity-free. - Page 10 Installation and Operating Instructions | idOil-LIQ 10/18 Kuva 6. Connecting idOil-SLU to SET control units Safe area Hazardous area The sensor connection is polarity free so the sensor wires can be connected to any of the sensor terminals (+ or -).
- Page 11 Extension cable, e.g. protected, twisted-pair 2 x 0.5 mm , maximum resistance 68 Ohm. idOil-LIQ spare part sensor for SET-1000 and SET-2000 control units Product code 8540706SP including: idOil-LIQ sensor LCJ1-1 cable connector Rubber seal for LJB2-78-83 and LJB3-78-83 junction box...
-
Page 12: Functional Test
You should also check the operation every time the separator is emptied or at least once every six months. idOil-LIQ sensor functional test with idOil control unit Functional test: The sensor is in the air. The control unit should be in normal mode; indicator lights are off (idOil-20) and there are no alarm notifications on the screen (idOil-30 and idOil- D30), the relays are energised and the buzzer is silent. -
Page 13: Maintenance
Installation and Operating Instructions | idOil-LIQ 13/18 Maintenance The sensor should be cleaned every time the separator is emptied and at least once every six months during mantenance inspection. For cleaning the sensor you can use e.g. dishwashing detergent and brush. -
Page 14: Troubleshooting
B idOil-20, idOil-30 control unit’s sensor connectors 9–10 or 11–12 or 13–14 C idOil-D30 control unit’s sensor connectors 46–47 or 48–49 or 50–51 D idOil sensor(s) Figure 7 . Measuring sensor current; idOil control unit - idOil sensor(s) If problems occur, contact Labkotec Oy's service department. DOC001796-EN-6... -
Page 15: Idoil-Liq Sensor Troubleshooting With Set Control Unit
/ junction box. A Ex-classified mA current meter B SET-1000/2000 series control unit’s sensor connector C idOil-LIQ sensor Figure 8 . Measuring sensor current; SET-1000/2000 control unit - idOil-LIQ sensor If problems occur, contact Labkotec Oy's service department. DOC001796-EN-6... -
Page 16: Technical Specifications Idoil-Liq High Liquid Level Sensor
Installation and Operating Instructions | idOil-LIQ 16/18 Technical specifications idOil-LIQ high liquid level sensor TECHNICAL SPECIFICATIONS idOil-LIQ Operating principle Vibration Enclosure Enclosure class: IP 68 Materials: PVC, aluminium, PA, CR, Viton Weight 240 g (incl. 5 m cable) Temperature Operation: 0 ºC…+60 ºC Environment: -30 ºC…+60 ºC... -
Page 17: Appendix Eu Declaration Of Conformity
Installation and Operating Instructions | idOil-LIQ 17/18 Appendix EU Declaration of Conformity DOC001796-EN-6... - Page 18 Installation and Operating Instructions | idOil-LIQ 18/18 DOC001796-EN-6...
