Summary of Contents for infobit iSpeaker CM360

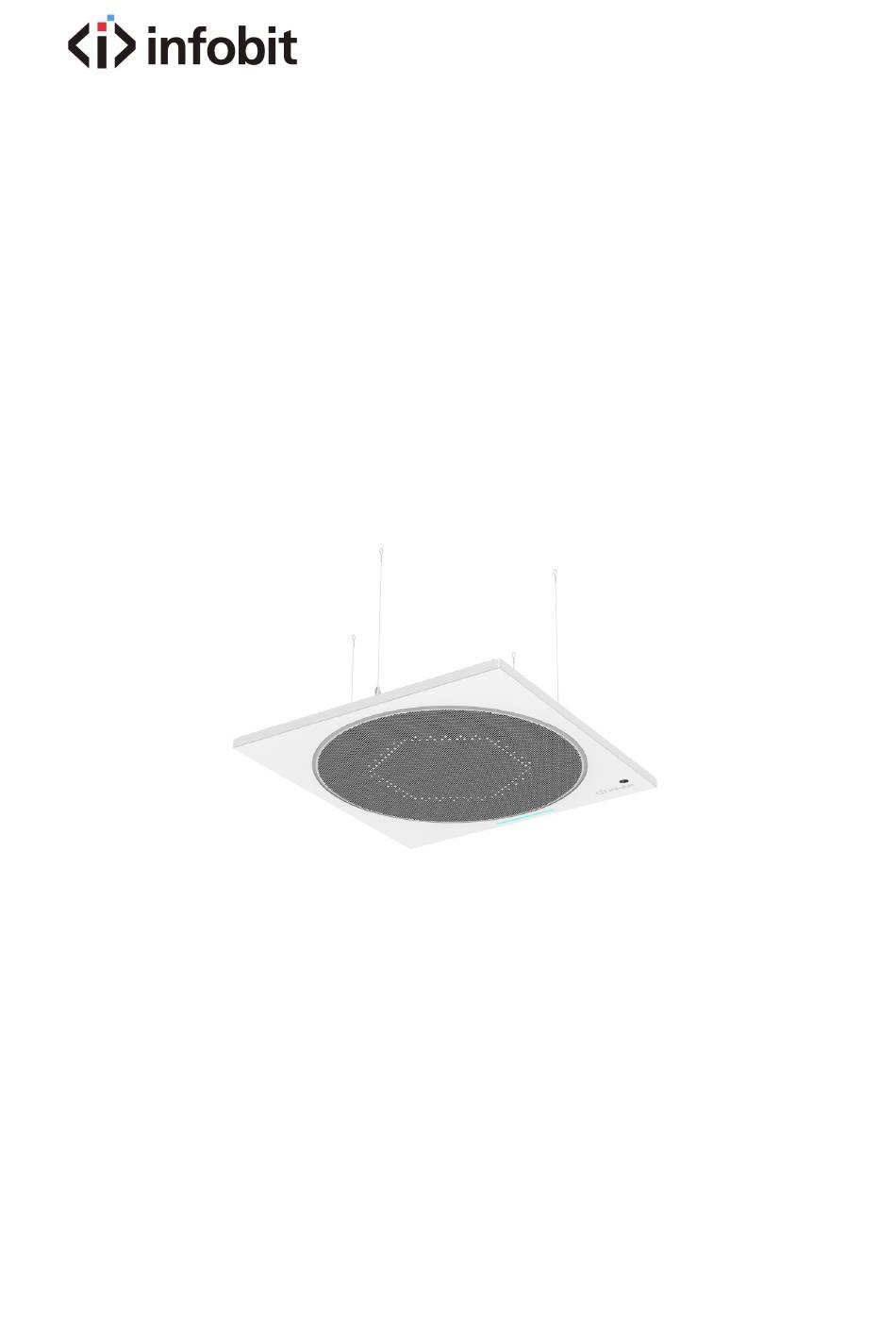

- Page 1 CM360 Dante Ceiling Microphone Hardware User Manual V1.0 INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 2: Table Of Contents
NSTALLED FLUSH IN DRYWALL CEILING 7.4 V 2: I ......................24 ARIANT NSTALLED BY SUSPENDING ROPES 7.5 V 3: M CM360 VESA ................24 ARIANT OUNTING THE I PEAKER ON A MOUNT 8. SPECIFICATIONS ............................. 26 INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 3: Safety Precautions
• Before turning on the machine for debugging, please be mindful of the regulations in your country/region! • Caution: Excessively high signal levels can damage your hearing and speakers! Before connecting the product, reduce the volume of any connected playback devices to reduce the risk of acoustic feedback. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 4: Packaging List
• Local, national, and international codes and standards must be observed and followed during installation. 2. PACKAGING LIST • iSpeaker CM360 x1 • 10m Cat6 network cables x2 • IR Remote controler x1 • Suspension rope set x4 •... -
Page 5: Product Overview
10. Supports -38dBv/94dB SPL @1KHz sensitivity. 11. Supports 65dBv/94dB SPL@1KHz, A-weighted SNR (Signal-to-Noise Ratio) 12. Supports 8x local pickup zones. 13. Supports 8x local sound reinforcement zones. 14. Supports 1x local mute zone. 15. Supports 48kHz sampling rates. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 6: Software Features
10. Supports EQ configuration. 11. Supports AGC configuration. 12. Supports import/ export the configuration data. 13. Supports built-in Dante Controller software. 14. Supports built-in INFOBIT iSound DSP software. 15. Supports LOG management. 16. Supports camera tracking configuration. INFOBIT AV www.infobitav.com... -
Page 7: Mounting Features
By pressing the reset button for a duration of more than 8 seconds, the entire unit configuration will be restored to factory default. 2. Status indicator Not powered on Red (All constant light) Mute INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 8: Back Side
USB C port: Used for debugging. 5. Dante Audio & PoE Power Supply RJ45 ethernet port: Used to connect to a POE switch or POE power adapter to power the device and transmit Dante audio. 3.3 BACK SIDE INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 9: Ir Remote
Threaded holes 1: Threading hole for installation of the ceiling mounting bracket. 2: Threading hole for installation of the suspension ropes. 3.4 IR REMOTE INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 10: Switch Working Modes
In conference Pickup Mode, press the speaker button on the remote control, and the indicator light on the lower side of the iSpeaker CM360 will turn green. During the conference, the ceiling conference microphone only performs conference pickup, and does not perform local sound reinforcement. - Page 11 In the Hybrid Mode, press the speaker button on the remote control again, and the indicator light on the bottom side of the iSpeaker CM360 will turn blue. During the conference, the ceiling conference microphone will simultaneously perform conference pickup and local sound reinforcement.
-
Page 12: Silence The Ceiling Conference Microphone
During the conference, click the mute button, and the indicator light on the lower side of the iSpeaker CM360 will turn red, indicating that the sound pickup has been turned off and the voice of the speakers in the local conference will no longer be picked up. The far-end attendees will not be able to hear the voice of the speakers. -
Page 13: Connection
Connect the iSpeaker CM360 to the Dante audio network through a Cat6A network cable. The Ethernet PoE/Ctrl RJ-45 socket is used to both power the iSpeaker CM360 Ceiling microphone via Power over Ethernet and configure it using the iSpeaker Controller software. -
Page 14: Diagram
5. DIAGRAM 5.1 Conference solution with PTZ camera and column speakers 5.2 Conference solution with videobar, iShare X and ceiling speakers INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 15: Conference Solution Without Dsp (Remote Call + Local Sound Amplification )
5.3 Conference solution without DSP (Remote call + Local sound amplification) INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 16: Conference Solution With Dsp (Remote Call + Local Sound Amplification )
5.4 Conference solution with DSP (Remote call + Local sound amplification) 5.5 Education solution with tracking camera INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 17: Upgrade The Exiting Application
6. PC SOUND SETUP 6.1 USB DANTE adapter The example is based INFOBIT iTrans DU-TR-22B, the USB to Dante adapter, which can convert the network audio transmitted by the Dante protocol into a digital audio signal that supports the UAC protocol. Please connect the USB port to your PC. -
Page 18: Select The Right Audio Input And Output
6.2 Select the right AUDIO INPUT and OUTPUT In the sound card of the PC connected to the Dante audio adapter iTrans DU-TR-22B, it can be seen that all devices have been detected with the GREEN audio indicator bar. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 19: Select The Right Speaker And Microphone In Meeting Software
(Zoom as example) Select the system default speaker and microphone array on the audio settings on the software, and then use the iSpeaker CM360 for audio and video conferencing communication. Note: On video conferencing software, it is necessary to turn off audio processing functions (background noise reduction, automatic adjustment of microphone volume, etc.) to avoid secondary duplication with the audio processing functions of the iSpeaker... - Page 20 Variant 3: Mounted on the ceiling by VESA mount Adapting the installation height Observe the following minimum and maximum distances when installing the iSpeaker CM360. Recommended distances for variants 1: Recommended distances for variants 2 and INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 21: Variant 1: Installed Flush In A Dropped Coffered Ceiling
The recommended maximum distance from the speaker to the iSpeaker CM360 is 4 to 5 m. The minimum distance from the iSpeaker CM360 to the floor is 2.50 m. Note: If installation variants 1 would result in a distance greater than the recommended maximum due to the room height, we recommend installation variant 2 or 3. - Page 22 Ø Always run the cables carefully and in a loop shape inside the installation recess. Ø Make sure not to kink the cables to avoid breaking them or damaging the plugs. Installing the iSpeaker CM360 in the ceiling (600 x 600 mm grid). INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 23: Variant 1: Installed Flush In Drywall Ceiling
Ø Remove a tile from the ceiling. Ø Place the iSpeaker CM360 in the frame in the coffered ceiling. Ø Maintain the distances indicated in the figure. 7.3 Variant 1: Installed flush in drywall ceiling CAUTIONS Observe the following when install: Ø... -
Page 24: Variant 2: Installed By Suspending Ropes
7.4 Variant 2: Installed by suspending ropes Same as 7.2 7.5 Variant 3: Mounting the iSpeaker CM360 on a VESA mount. The iMount S200 adapter (available separately) allows you to mount the iSpeaker CM360 on any 100 x 100 mm or 200 x 200 mm VESA mount. - Page 25 Ø Fasten the ceiling mount to the ceiling using suitable screws and anchors. Ø Observe the mounting specifications from the manufacturer. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 26: Specifications
8. SPECIFICATIONS Model iSpeaker CM360 Name Dante Ceiling Microphone Color White Size 597mm*597mm*53.5mm Net Weight Power Supply Installation Method Ceiling mount Mic Type 128-unit MEMS microphone array Sensitivity -38dBv/94dB SPL @1KHz Signal-to-Noise Ratio 65dBv/94dB SPL@1KHz, A-weighted Dante Channels Remote Meeting Pickup Channel... - Page 27 Cascade Quantity Unlimited Cascade Method Dante audio RJ45 Port 1x (Dante Audio Transmission, PoE) USB C Port 1x ( For debug) Reset Button INFOBIT AV www.infobitav.com info@infobitav.com...
