Summary of Contents for R&S RT-ZF1

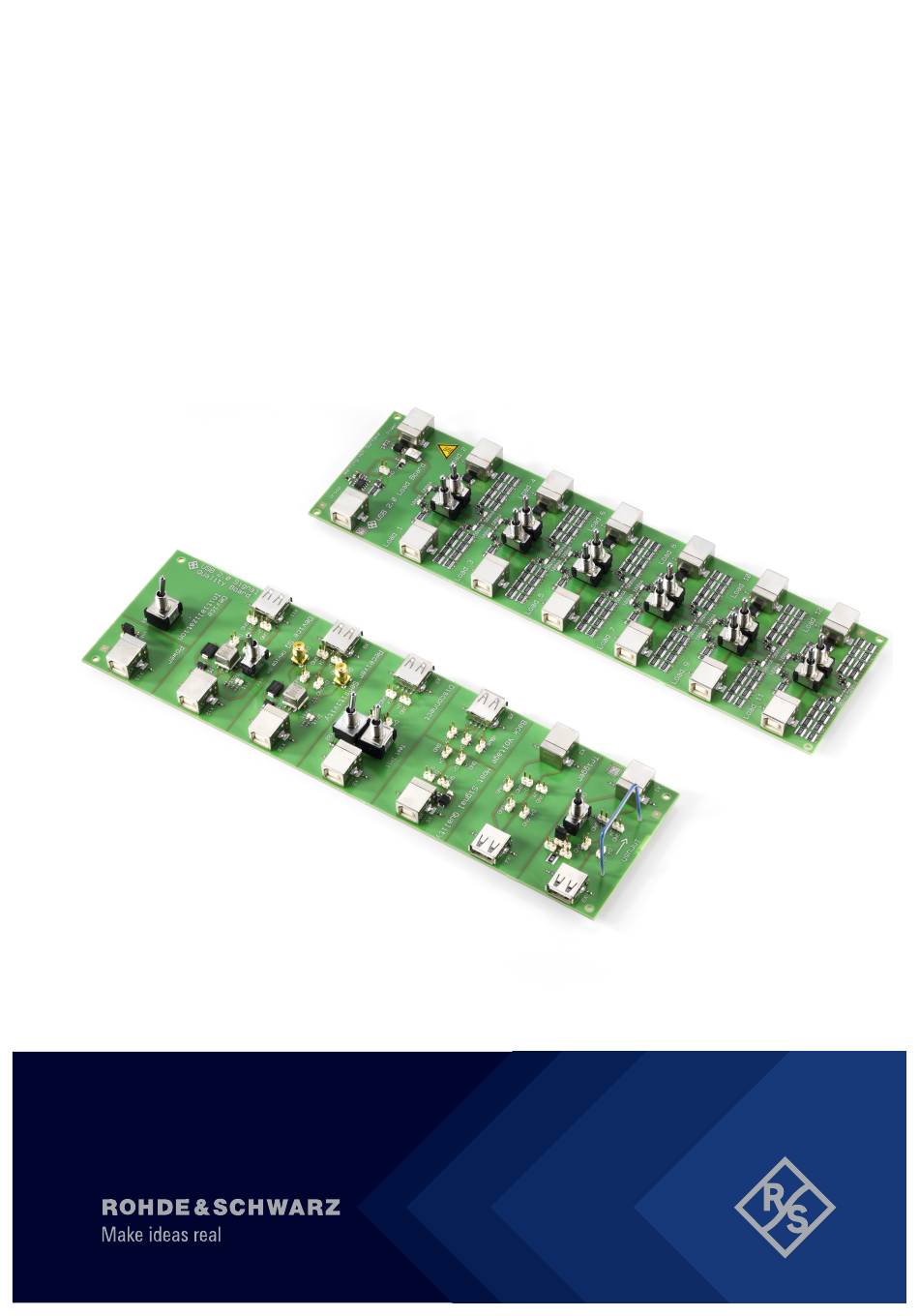

- Page 1 ® R&S RT-ZF1 USB 2.0 Compliance Test Fixture Set Manual (=A[J2) 1317432602 Version 08...
- Page 2 This manual describes the R&S RT-ZF1 USB 2.0 Compliance Test Fixture Set (1317.3420.02). © 2021 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com Subject to change – data without tolerance limits is not binding.
-
Page 3: Safety Information
® Safety Information R&S RT-ZF1 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description
Product Description The R&S RT-ZF1 USB 2.0 compliance test fixture set is a product for automatic testing of USB 2.0 compliance (high-speed) as well as USB 1.1 (full-speed) and USB 1.0 (low-speed). It is used in combination with the R&S RTO/R&S RTP oscil- loscopes, with the R&S RTO/RTO6/RTP-K21 USB 2.0 compliance test option... - Page 5 ® Product Description R&S RT-ZF1 Signal Quality Board ● Signal quality board (1317.5200.02) ● Accessories, see table Table 2-1 ● Carrying case ● Manual Table 2-1: Supplied accessories Item Quantity Order number USB cable type A to type B, length 20 cm 3589.2124.00...
- Page 6 ® Product Description R&S RT-ZF1 Signal Quality Board Inrush D- GND Low and full speed tests: Device D+ GND Device on off Trigger D- GND Low and full speed tests: Hub D+ GND Low and full speed tests: Device, Hub...
- Page 7 ® Product Description R&S RT-ZF1 Load Board Device Initialization switch The device initialization switch at the bottom of the board is relevant for device high speed signal quality and device high speed receiver sensitivity tests. The current switch position - init or test - is indicated by LEDs in the relevant test sec- tions.
- Page 8 ® Product Description R&S RT-ZF1 Load Board Warning Hot Surface Droop Power USB 2.0 Load Board 100 mA 100 mA Load 1 Load 2 500 mA 500 mA 100 mA 100 mA Load 3 Load 4 500 mA 500 mA...
-
Page 9: Oscilloscope Connections
® Product Description R&S RT-ZF1 Oscilloscope Connections Risk of burning caused by hot load board The load board gets hot during testing. To avoid injuries: ● Do not touch the board when a test is running. ● After finishing the tests, set all switches to their middle position and wait at least 5 min until the module cools down. -
Page 10: Connecting The Board
For full speed and low speed compliance tests, a 4-channel R&S RTO/RTO6 with less than 2 GHz bandwidth is sufficient. ● R&S RT-ZF1 USB 2.0 compliance test fixture set, which consists of the load board and the signal quality board. -
Page 11: Contacting Customer Support
® Contacting customer support R&S RT-ZF1 – USB 2.0 host: www.usb.org/developers/tools/usb20_tools/ Regularly check the USB-IF website compliance.usb.org/index.asp?Update- File=Electrical&Format=Standard for USB-IF compliance updates. USB 3.2 Test Equipment For USB 3.2 compliance tests, the following test equipment is recommended: ● R&S RTP oscilloscope with 4 channels and at least 16 GHz bandwidth. -
Page 12: Contact Information
® Contacting customer support R&S RT-ZF1 Contact information Contact our customer support center at www.rohde-schwarz.com/support, or fol- low this QR code: Figure 5-1: QR code to the Rohde & Schwarz support page Manual 1317.4326.02 ─ 08...
